首页图标Home >  Product > Satellite Antenna > Ceramic Antenna
741aee9c5e659bc
347801a3023512a

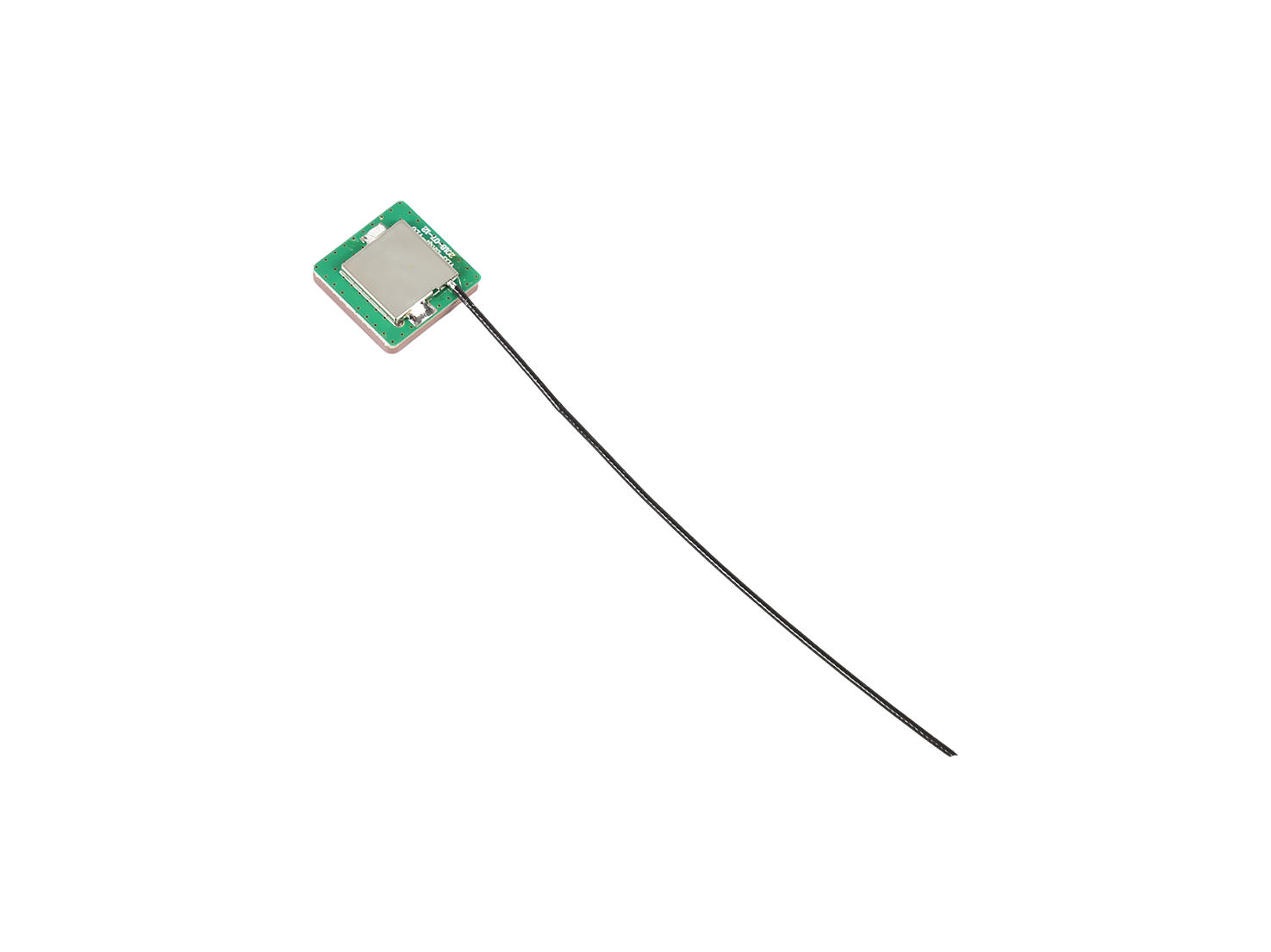

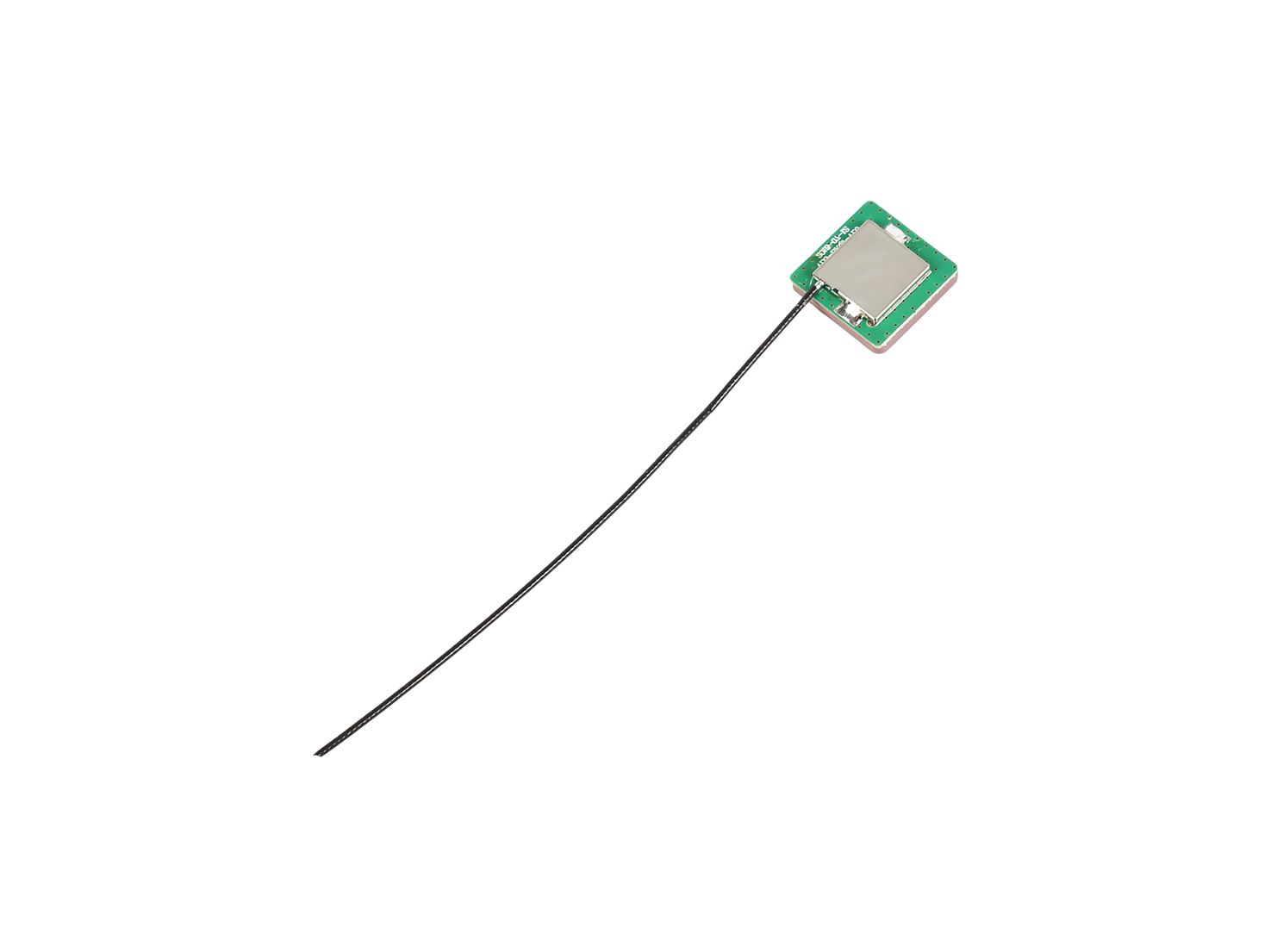

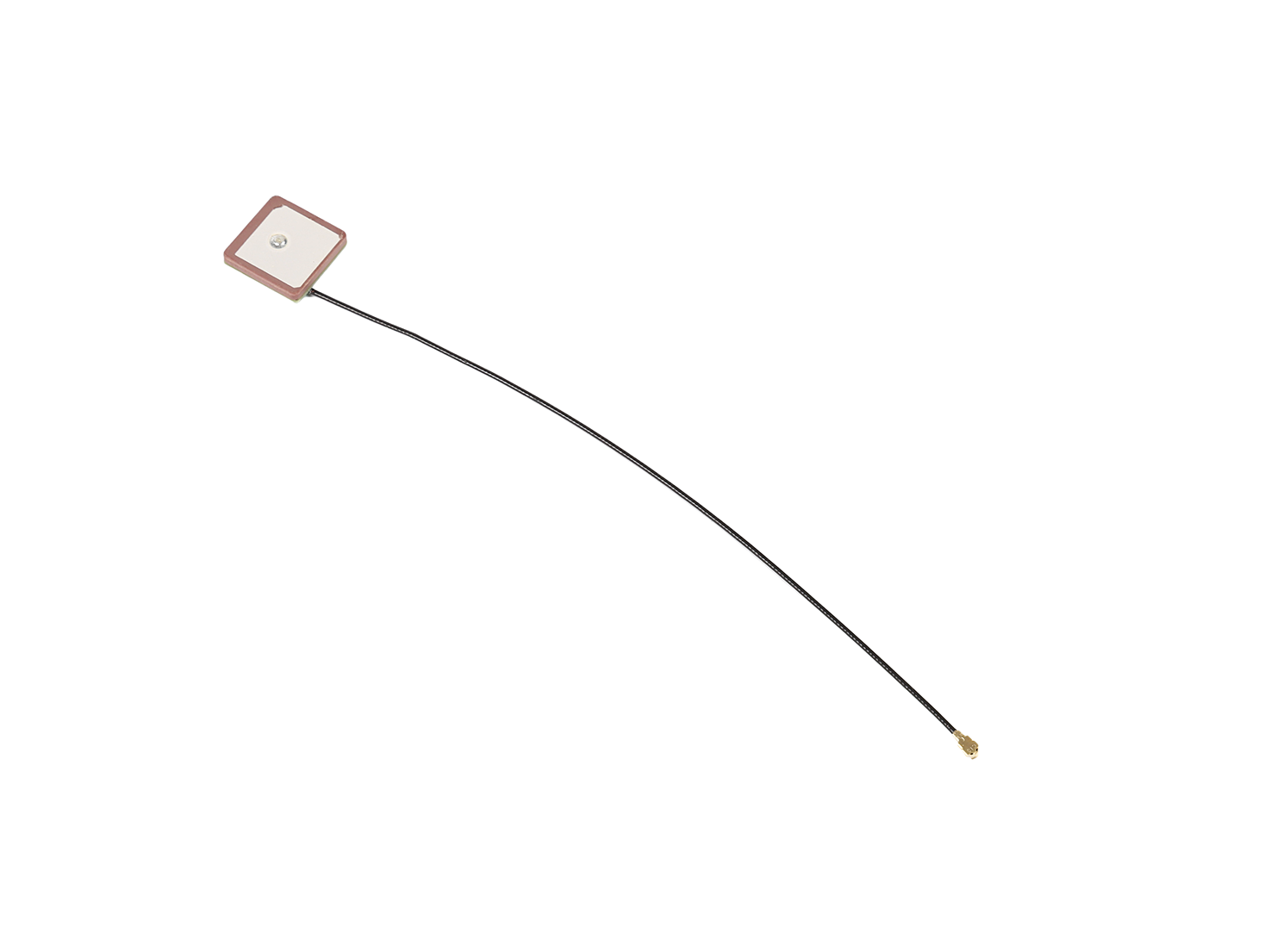

Ceramic Antenna

GPS Ceramic Antenna 0.5db For Geological Hazard Monitor

Frequency :1559.05MHz-1605.89MHz

Impedance:  50Ω

Output VSWR: ≤2.0 max

Dimension : 25mm(L)×25mm(W)×7.2mm(H)

Connectors and cables: IPEX+φ1.13(150mm，Customizable)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactGPS Ceramic Antenna 0.5db For Geological Hazard Monitor
e614a5d76f998f4
741aee9c5e659bc
347801a3023512a

Overview

This passive GPS antenna has good performance and can be used in conjunction with geological equipment, measurement equipment applications, etc. to achieve good navigation and positioning. Being able to adapt to complex and ever-changing outdoor environmental conditions is crucial for real-time monitoring of geological disasters.



Suitable for: geological monitoring equipment, surveying and mapping equipment, safety monitoring equipment, tracker equipment, etc.

Key Features

• Small in size, light in weight, easy to maintain, easy to install, size: 25 x 25 x 7.2mm.

• Excellent anti-interference performance design, able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.

Specification

Antenna parameter:
Center Frequency: 1559.05MHz~1605.89MHz
Max peak Gain: 0.5dBi
Output VSWR: ≤2.0 max
Output Impedance: 50Ω
Dimensions: 25mm(L)×25mm(W)×7.2mm(H)
Cable: φ1.13(150mm，Customizable)
Connector: IPEX(Customizable)
Type: Passive

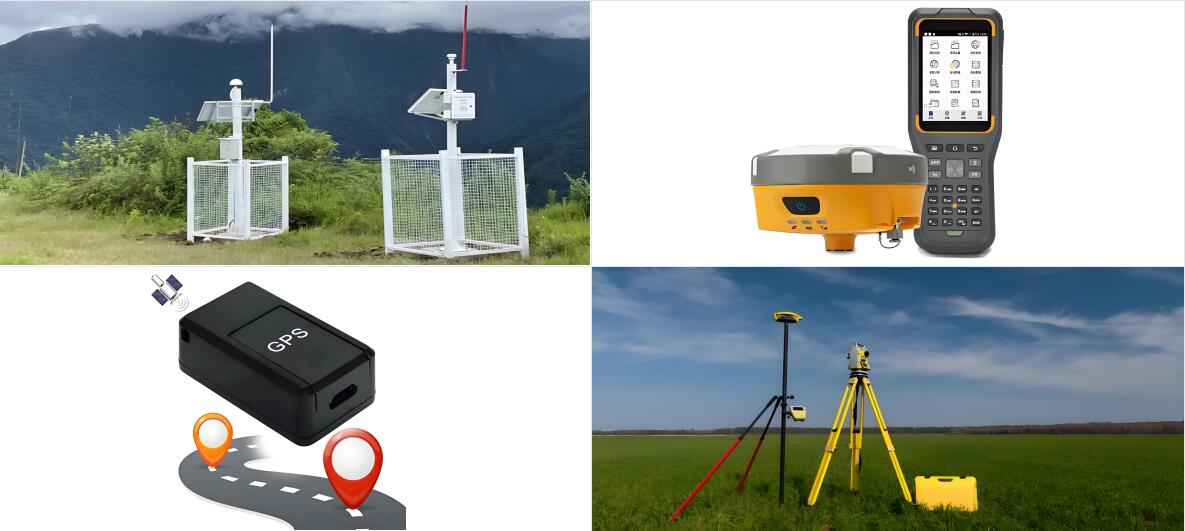

Applications
