Ceramic Antenna

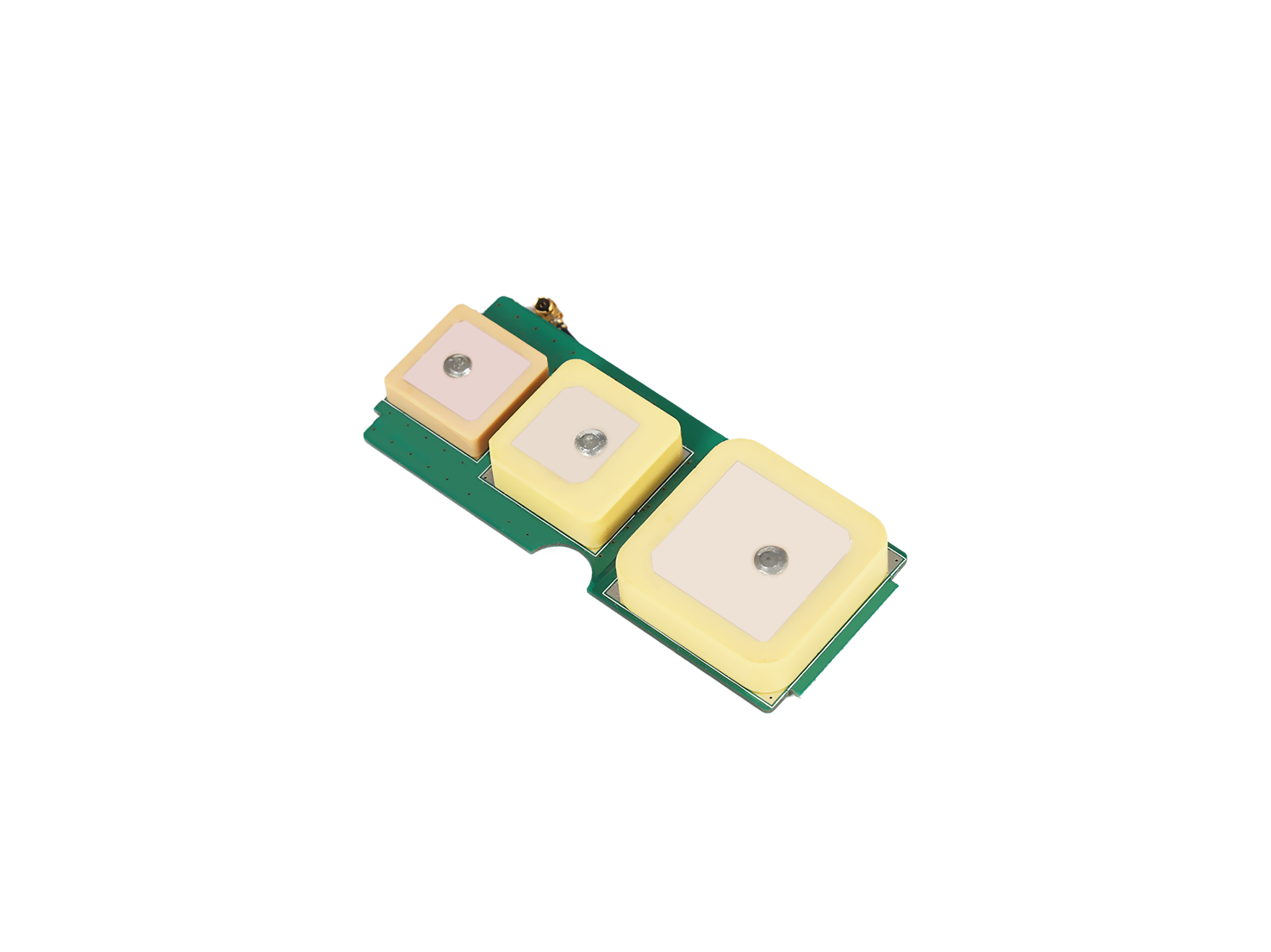

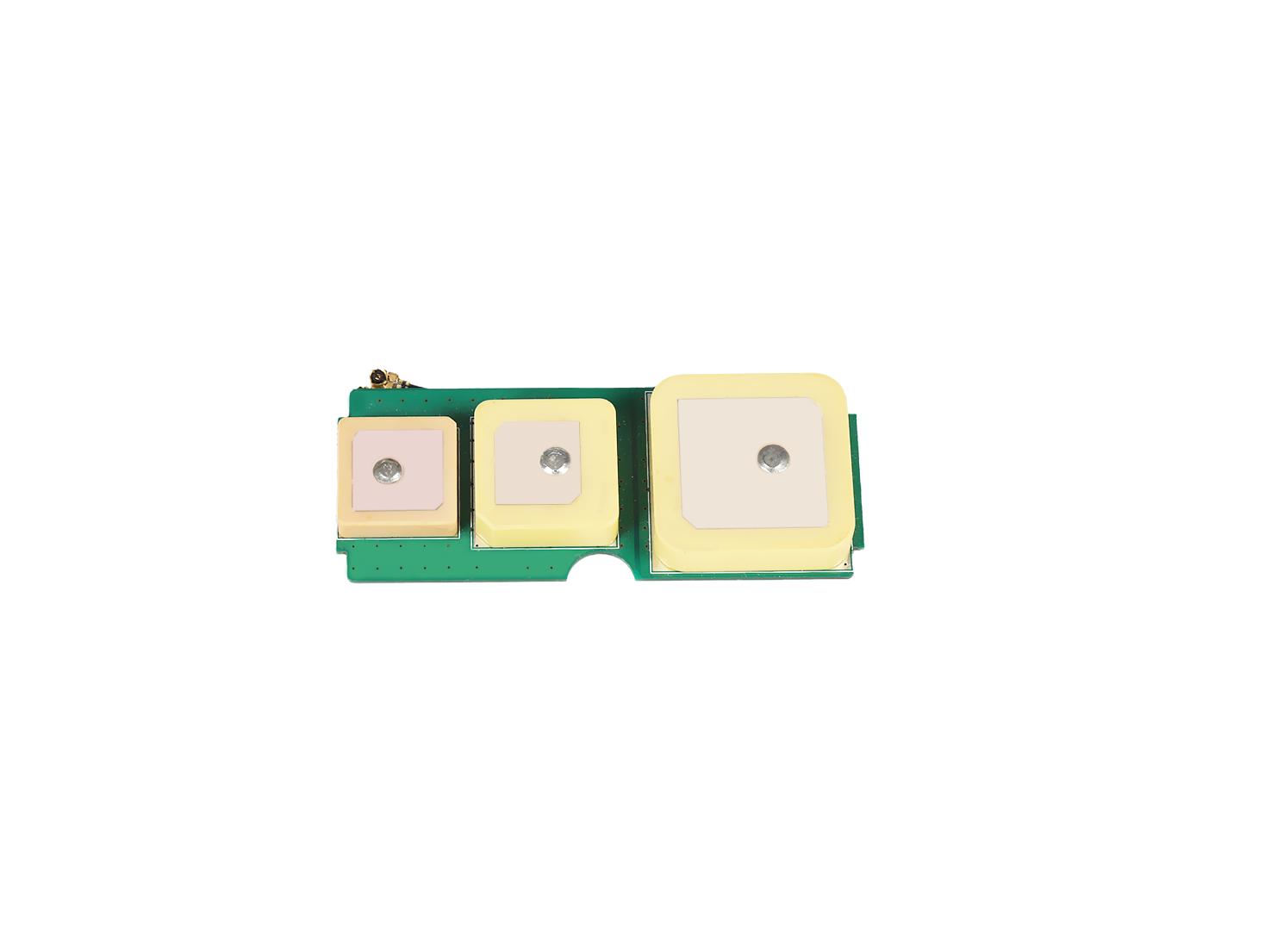

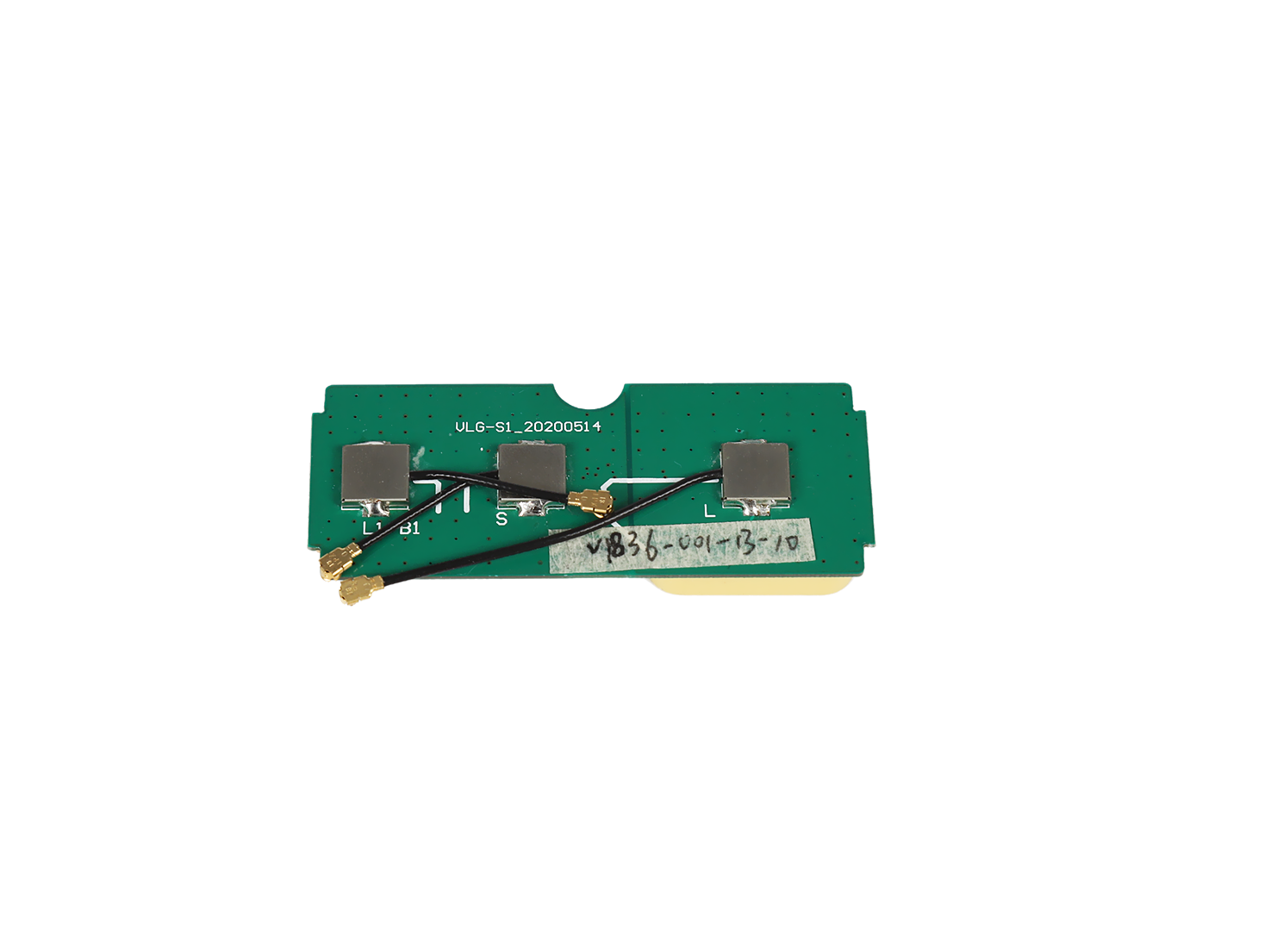

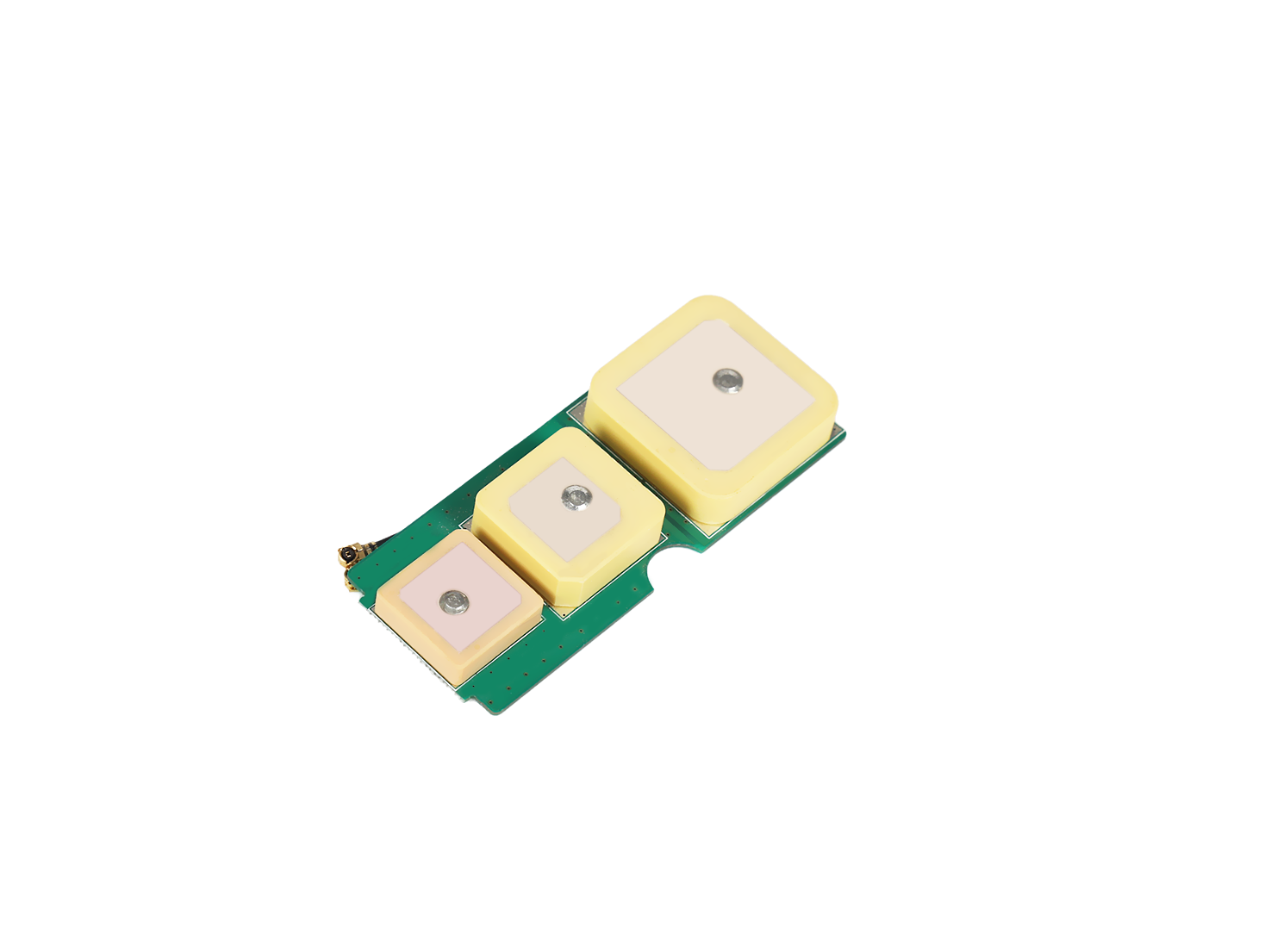

BeiDou And amp; GPS Positioning 3-in-1 Antenna For Handheld Phone

Frequency :

L1& B1：1555MHz~1580MHz

S：2487MHz~2497MHz

L：1612MHz~1621MHz

Gain Elevation 90 °:

B1、L1≥0.5dBi

L≥1.5dBi

S≥2dBi

Impedance:  50Ω

Polarization type:

Right-hand circular polarization (L1, B1, S)

Left-hand circular polarization (L)

Dimension : 67mm(L)×27mm(W) ×9mm(H)

Connectors and cables: IPEX+φ1.13(Customizable)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactBeiDou And amp; GPS Positioning 3-in-1 Antenna For Handheld Phone
6857366dab4e4a8
a1b22c701fcde8d
d76c33e4b2687c0
b14a9b9f6304f92

Overview

This antenna is a four band antenna that covers GPS L1, Beidou B1, and Beidou generation transceivers.



Suitable for: navigation scheduling, tracking and monitoring, measurement and control, and military fields. It is particularly suitable for high-speed mobile systems and fields such as aviation

Key Features

• The antenna part adopts tiled design to realize the combination of multi-system and multi-frequency points, and has small size and beautiful appearance.



• And the antenna gain is high, the pattern beam is wide, the receiving effect of low elevation signal is good, to ensure that the star can still be normally received in some cases with more serious occlusion.

Specification

Electrical/mechanical parameters:
Frequency Range: L1& B1：1555MHz~1580MHz  / S：2487MHz~2497MHz / L：1612MHz~1621MHz
VSWR: ≤2
Input Impendence: 50Ω
Gain Elevation 90 °: B1、L1≥0.5dBi / L≥1.5dBi / S≥2dBi
Polarization: Right-hand circular polarization (L1, B1, S)/Left-hand circular polarization (L)
Working Temperature: -30 °C to +65°C
Antenna Size: 67×27×9mm
Connectors and cables: IPEX+φ1.13(Customizable)
Environmental protection: ROHS

Applications
