Ceramic Antenna

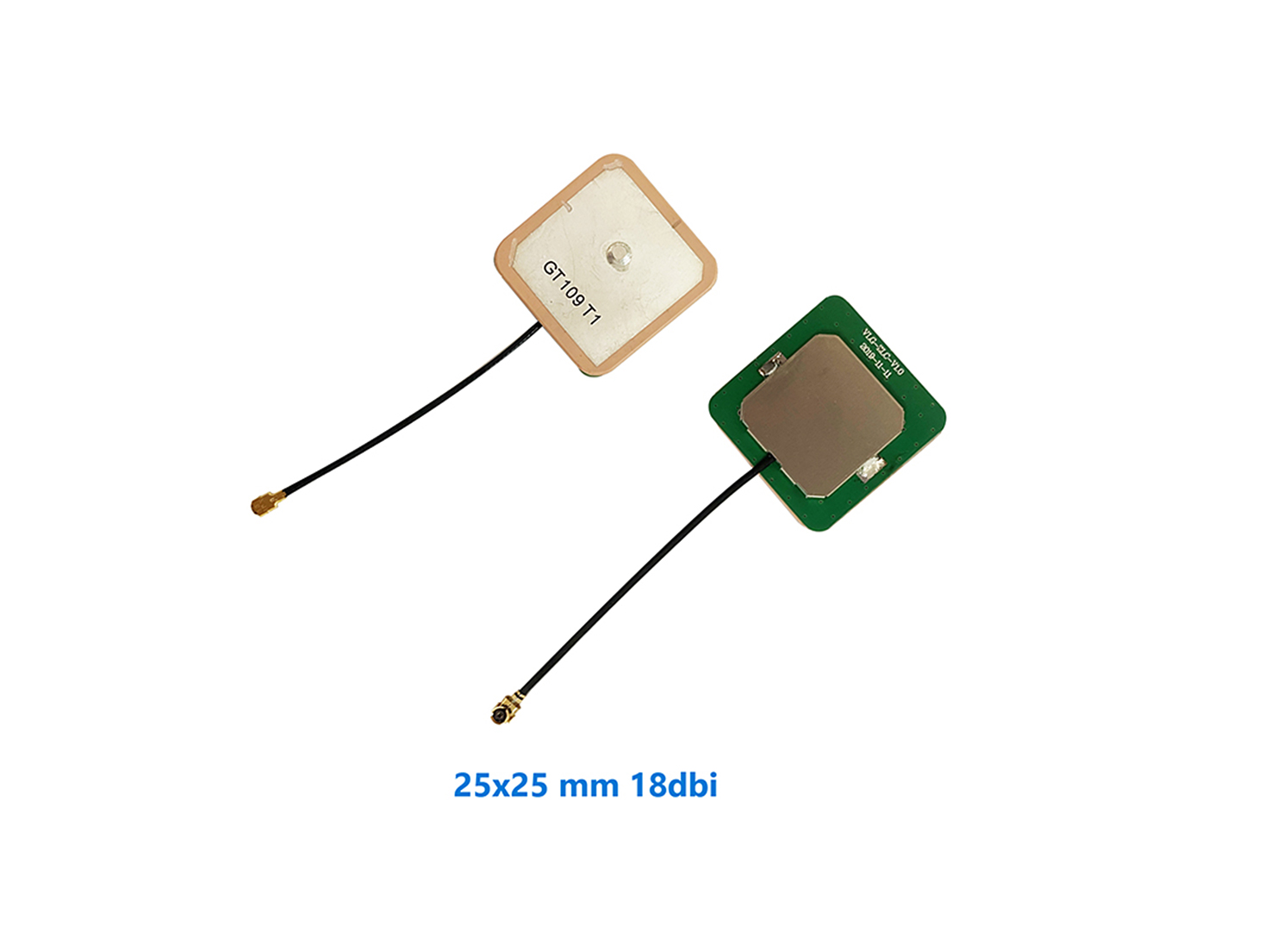

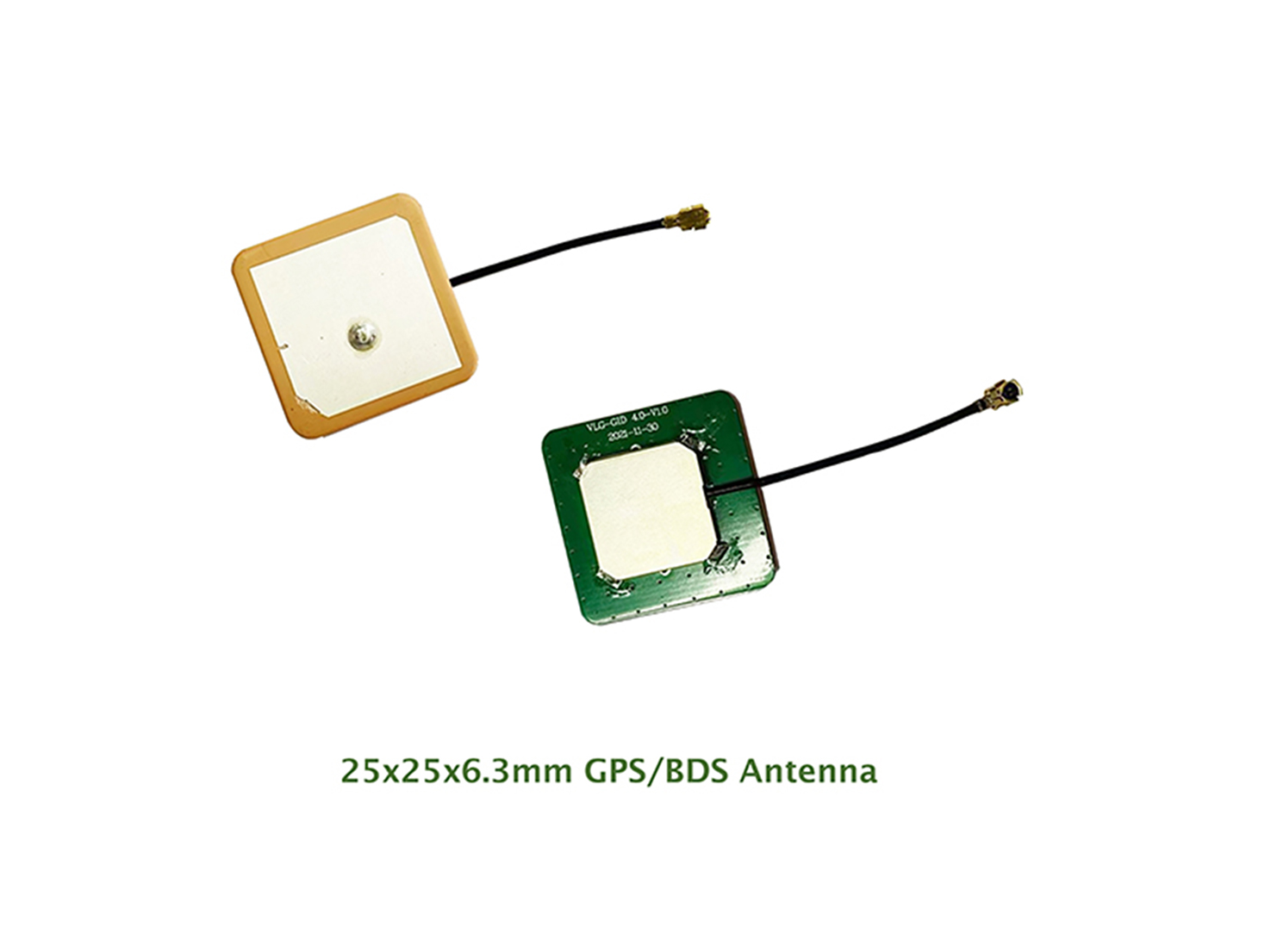

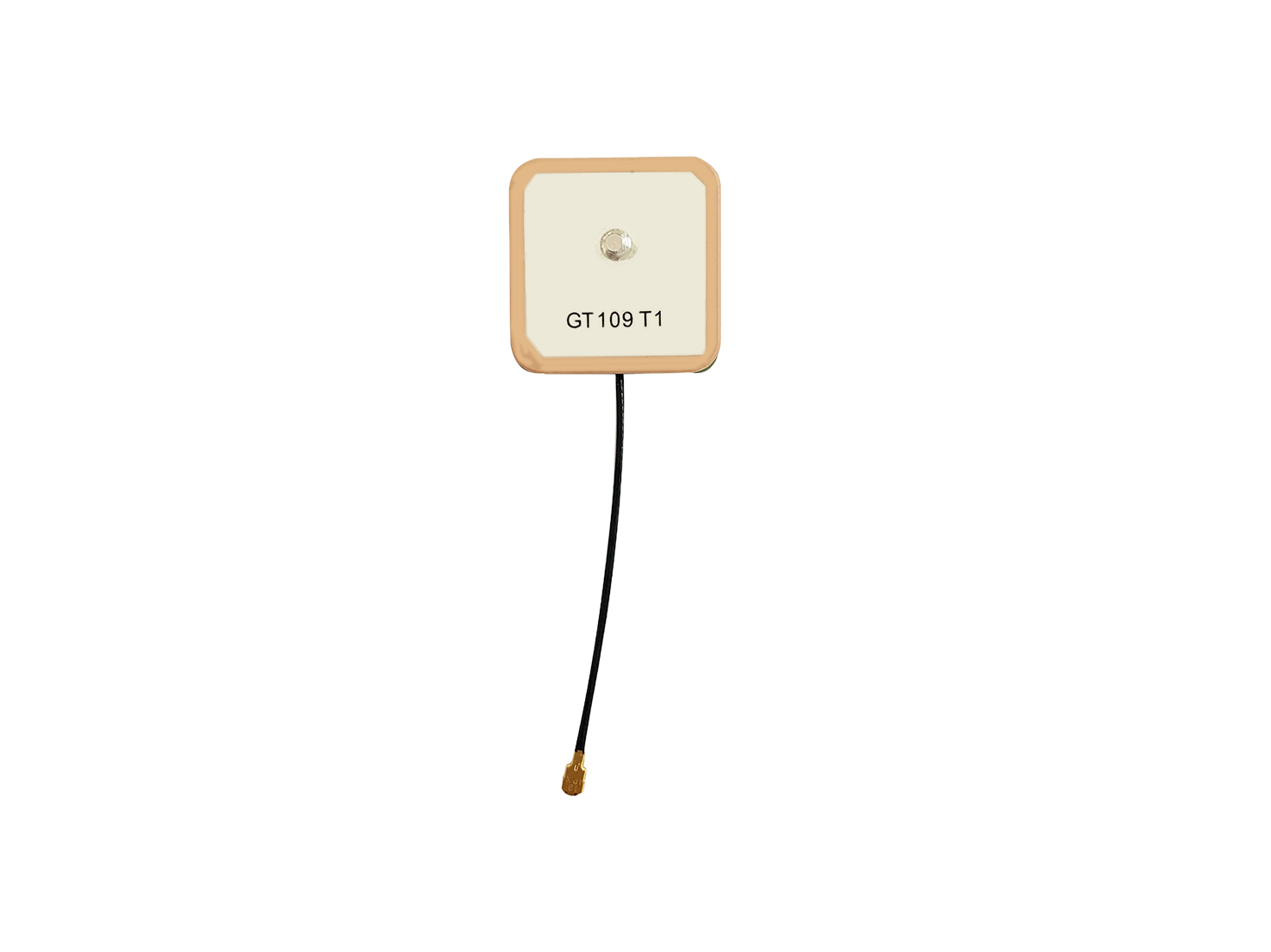

Built-in GPS BDS 25x25mm active ceramic Antenna 18dBi

Main specifications/performance:

Frequency :1561.098MHz~1575.42MHz

Impedance:  50Ω

Polarization type: RHCP

Dimension : 25mm(L)×25mm(W)

Connectors and cables: IPEX+φ1.13(Customizable)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactBuilt-in GPS BDS 25x25mm active ceramic Antenna 18dBi
8457540405515a1
cd4a7aa02b9c3
c3ecdee573c6c5b
c8e7851a8580400

Overview

This is a ceramic antenna with small size, high gain, and support for GPS+BDS dual frequency (1561.098MHz~1575.42MHz), which can achieve joint positioning and navigation of multiple systems. It has the advantages of high stability and strong anti-interference ability.



Suitable for: trackers, cars, electric vehicles, navigation equipment, instruments, etc.

Key Features

• Dual band support



Passive and active design, suitable for different application needs.



• Excellent anti-interference performance design



Able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.



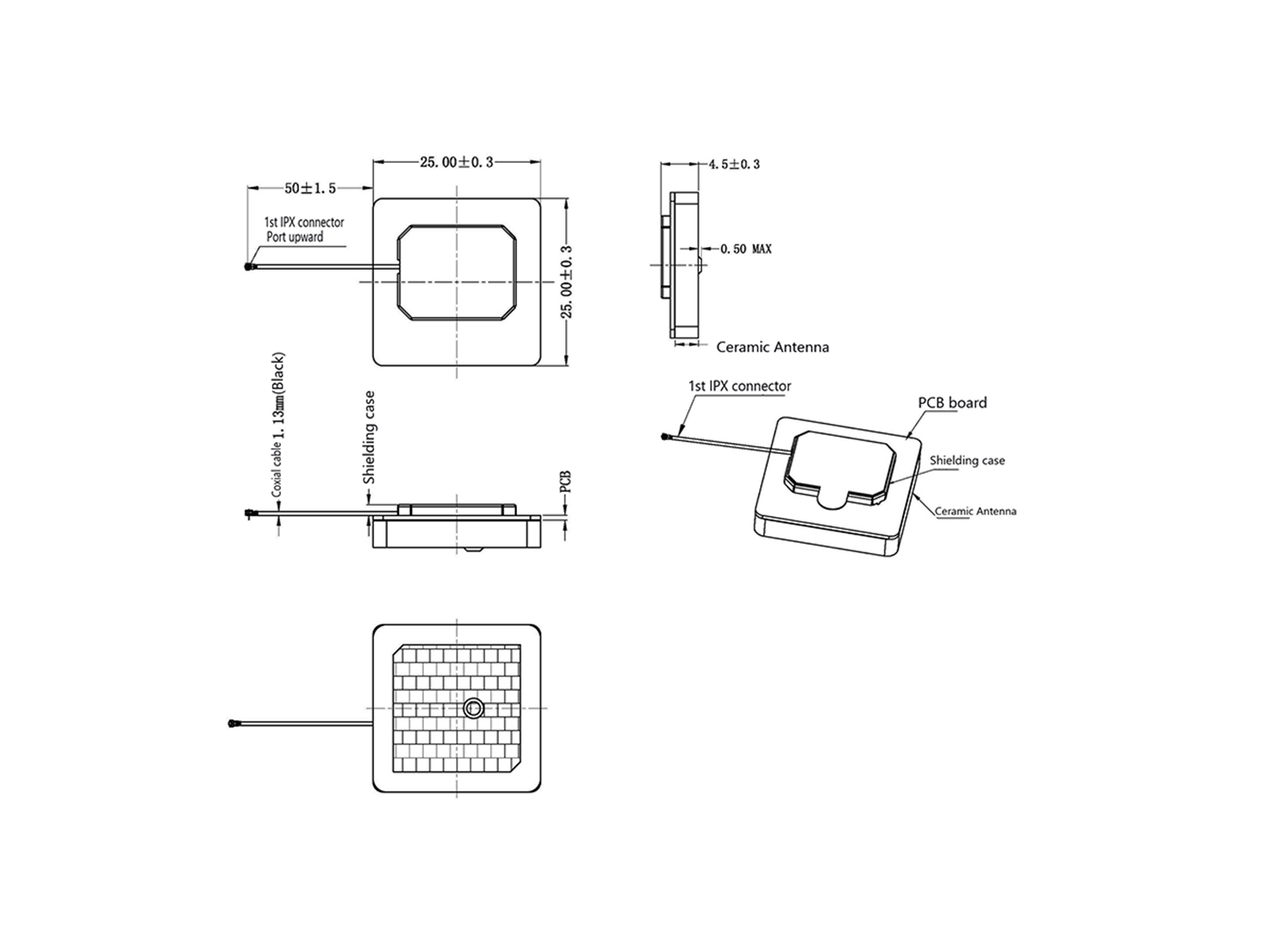

Specification

Antenna Element,LNA&Cable
Center Frequency  1561.098MHz~1575.42MHz


Voltage DC 3.0±0.3V
Current 5mA max
LNA Gain 18±2dBi typ
Noise Figure ≤2.0dB max
Bandwidth 20MHz min
Output VSWR ≤2.0 max
Output Impedance 50Ω
Dimensions 25mm(L)×25mm(W)×4.5mm(H) \Φ1.13 Coaxial cable (customizable)
Connector IPEX(Customizable)
Passive Antenna
Dimensions 25mm(L)×25mm(W)×2.0mm(H) typ
Center Frequency 1561.098MHz-1575.42MHz
Bandwidth 20MHz min
Peak Gain ≥1.0 dBi  typ
Efficiency ≥40%
Output VSWR ≤2.0dB max
Output Impedance 50Ω
Polarization RHCP

Applications
