RFID antenna

RFID Unmanned Retail Tags

Product name  VLG-OS1835-U9

Antenna size 18x35mm

Chip NXP UCODE 8 /NXP UCODE 9

Frequency 860MHz-960MHz

Reading distance 8m

EPC area 128Bits/96Bits

TID Contains 96Bits

Service life 100,000 erase/data retention for 50 years

Application Scenarios Retail/Medical drugs

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactRFID Unmanned Retail Tags
458c7342204b0c4
dddc6b82b26e9de
20e1f2f4f7ef
95ea9ad3edc75b9

Overview

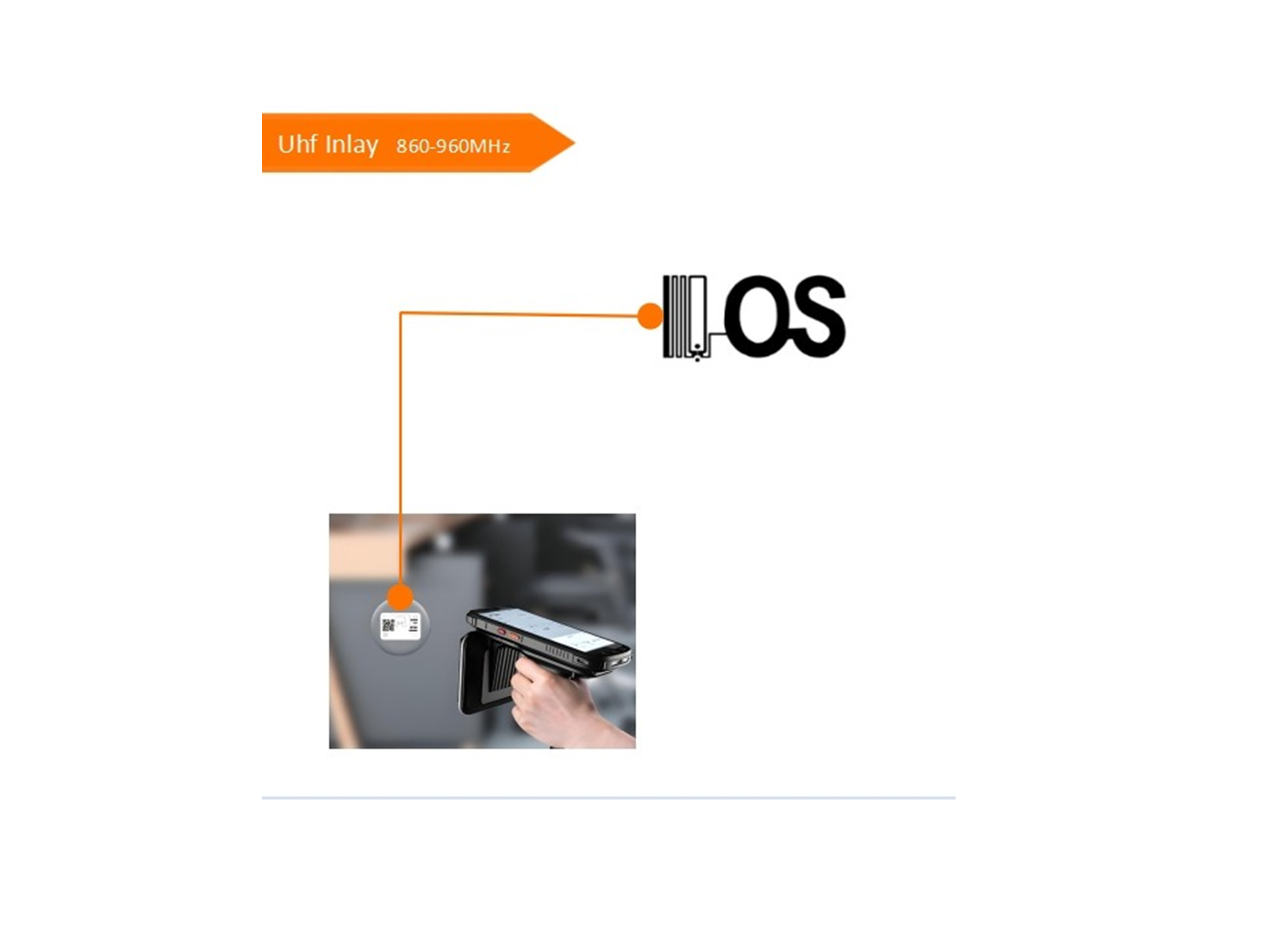

This antenna is a flag design for retail applications. It’s highefficiency and excellent performance make it widely usedinliquid,medical consumables, retail management and on-metal fields etc. The flag design make it more flexible and practical.

Key Features

• Uhf

The frequency  860MHz to 960MHz band, providing a longer reading distance and a higher data transfer rate.



• Long reading distance

Thanks to advanced chip technology and antenna design, the reading distance of the RFID antenna can reach 8 meters, which greatly facilitates the tracking and management of goods in large retail stores or warehouses.



• Large data storage

the antenna has a built-in EPC area and TID area, with 96Bits and 96Bits of storage space, which can store rich product information to meet various application needs.



• Durability

The antenna supports up to 100,000 erase operations and retains data for up to 50 years, ensuring stability and reliability for long, high-frequency use.

Specification

Model OS31280 OS331468

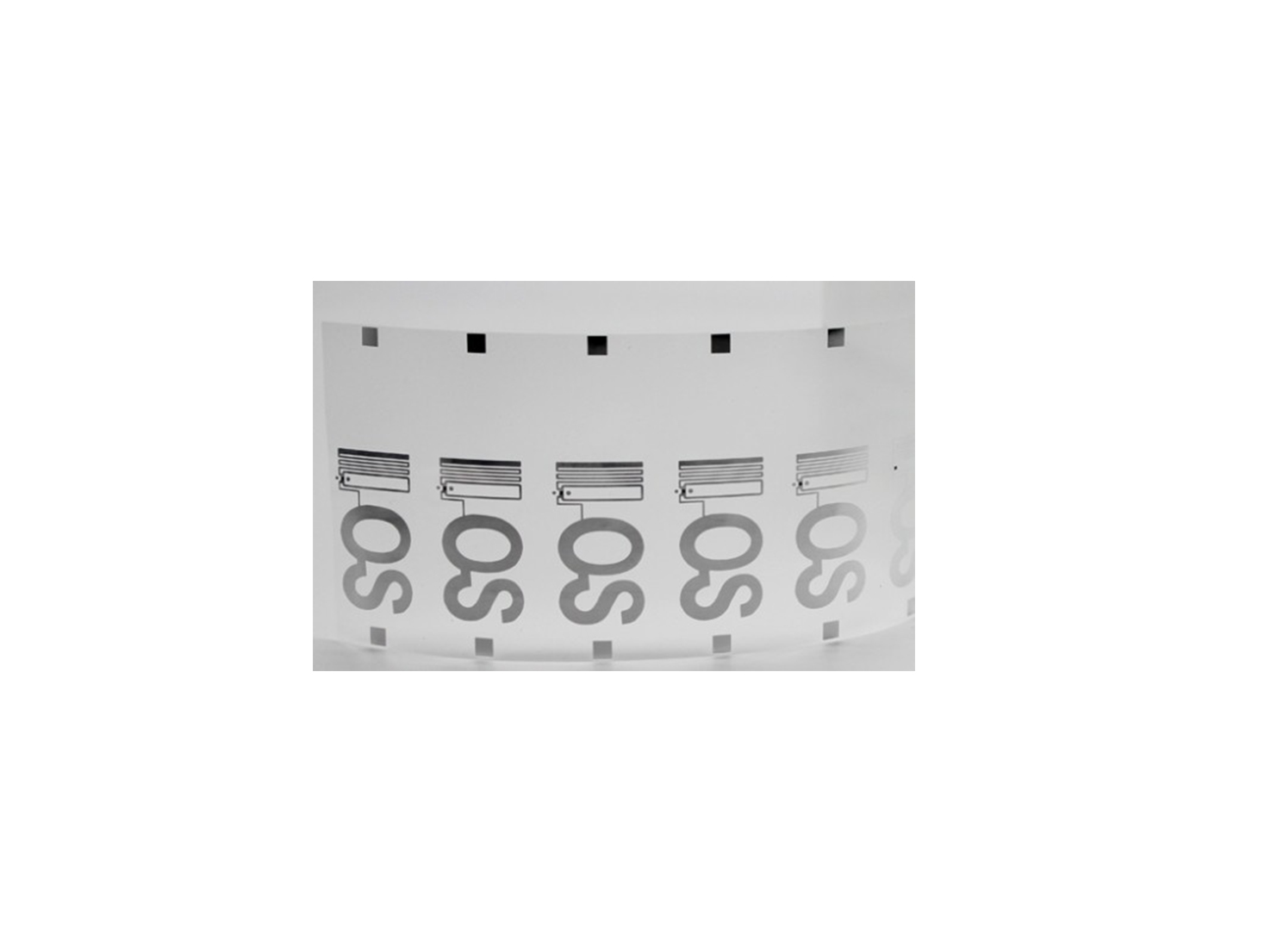

Delivery Format Dry Inlay Label
EPC Memory 96Bits 96Bits
User Memory 0Bits 0Bits
Die-cut Dimension – 46*23mm
Inlay Substrate 50um PET 50um PET
Standard Pitch 25.4mm 25.4mm
Web Width 70mm 56mm
Core Size 76.2mm/3inch 76.2mm/3inch
Quantity / Reel 10000±300Pcs/Reel 2500±2Pcs/Reel
Operating Temperature -20℃ to +50℃ （20% to 80%RH）
Remarks Wet inlay and Label are regular size. Other size can be customize
Frequency 860MHz-960MHz
Chip NXP UCODE9 NXP UCODE9
International Standard ISO/IEC 18000-63 Type C

Applications

 Applications：Retail, logistics, medical drugs
微信截图_20240830113440

Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

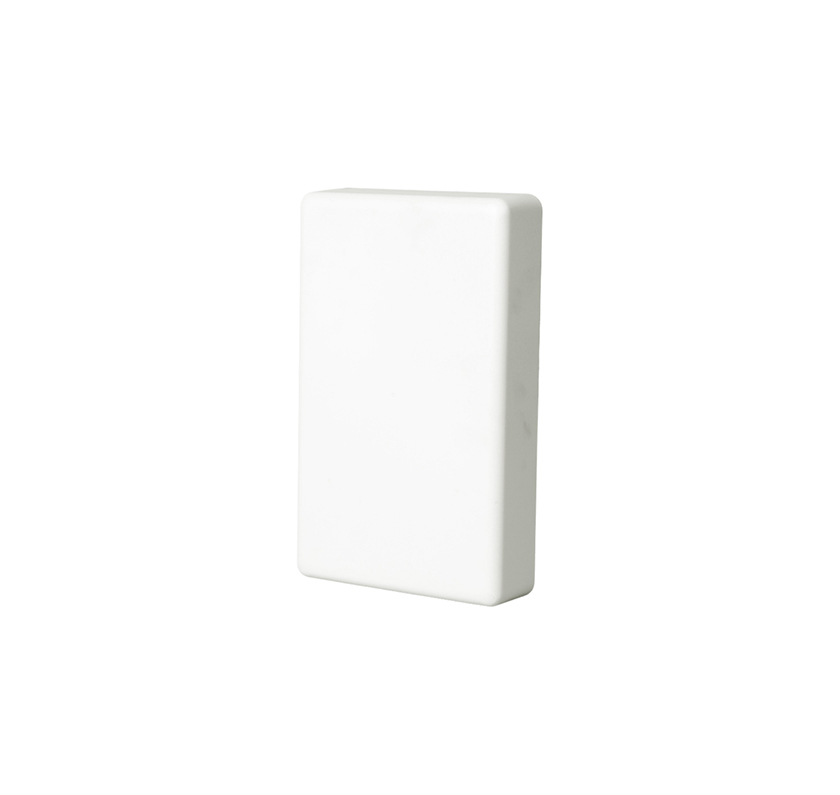

8dBi WD-BG02C two-port Antenna custom Antennas Detail

RFID antenna

8dBi WD-BG02C two-port Antenna custom Antennas

WD-BG02C is a two-port antenna, port 1: 820-960/1710-2690/3300-3600MHz; port 2: 1900-2690/3300-3600MHz. Model:V2235-016-A-01

RFID Antennas Detail

RFID antenna

RFID Antennas

Product name  VLG-OS1835-U9 Antenna size 18x35mm Chip NXP UCODE 8 /NXP UCODE 9 Frequency 860MHz-960MHz Reading distance 8m EPC area 128Bits/96Bits TID Contains 96Bits Service life 100,000 erase/data retention for 50 years Application Scenarios Retail/Medical drugs

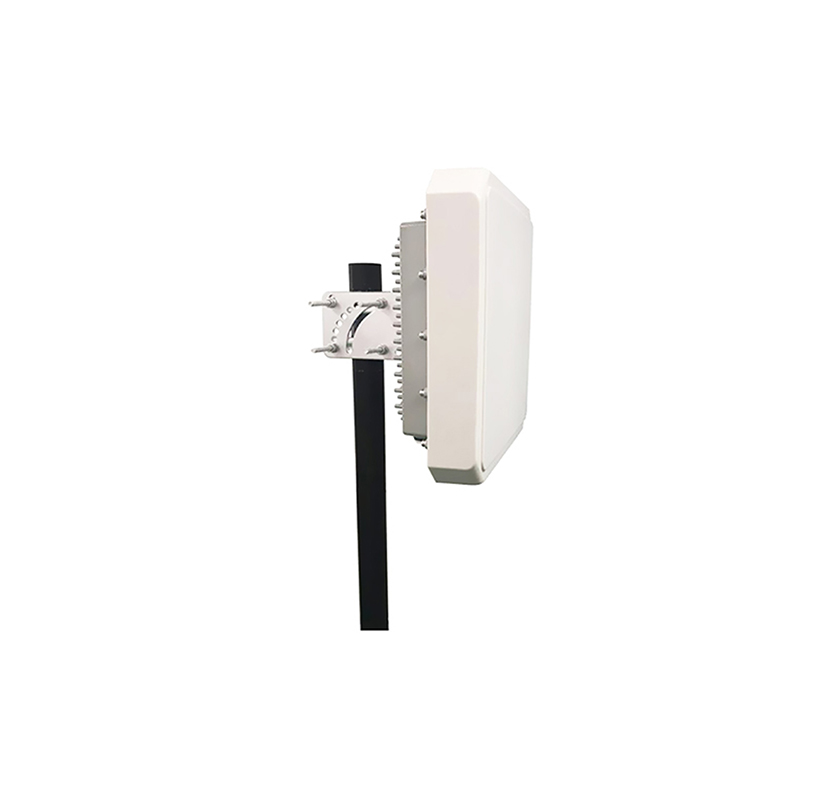

9dBi RFID Antenna (902-928/915MHz) with chamber Anti-Jamming Antennas Detail

RFID antenna

9dBi RFID Antenna (902-928/915MHz) with chamber Anti-Jamming Antennas

Model:VLG-RFID09C09-270 Frequency: 902-928(915±5)MHz Gain: 9dBi VSWR: ≤1.3 Dimension: 270*270*60mm

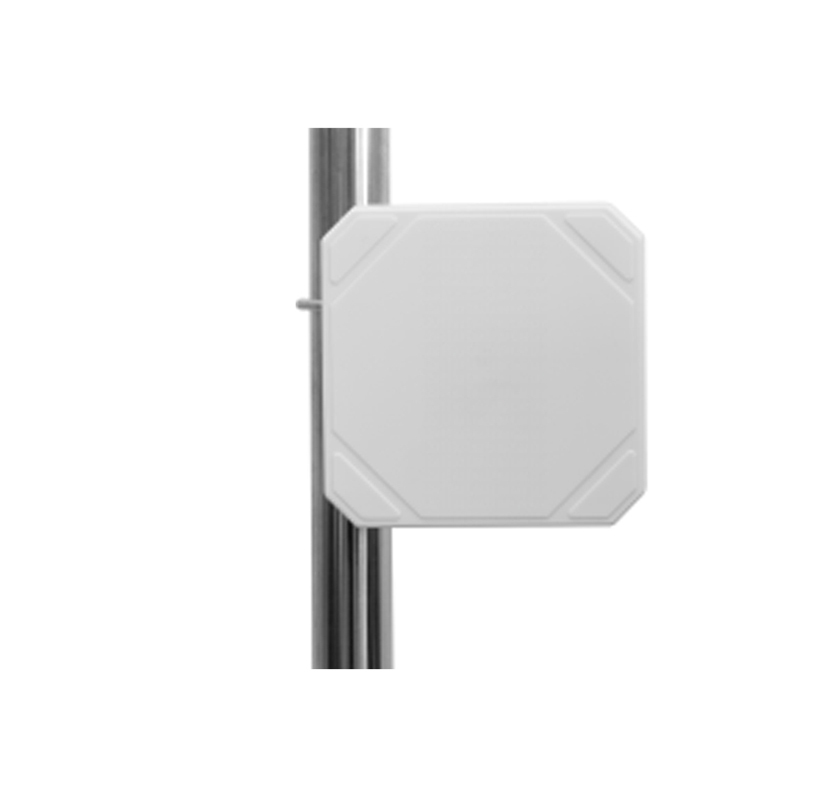

6dBi 840-928MHz RFID directional Antenna UHF Antenna Detail

RFID antenna

6dBi 840-928MHz RFID directional Antenna UHF Antenna

Frequency: 840-928MHz Gain: 6dBi±1dBi VSWR: ≤1.5 Szie:145*145*20(mm) Model:VLGAX-RFID0809C05-145A

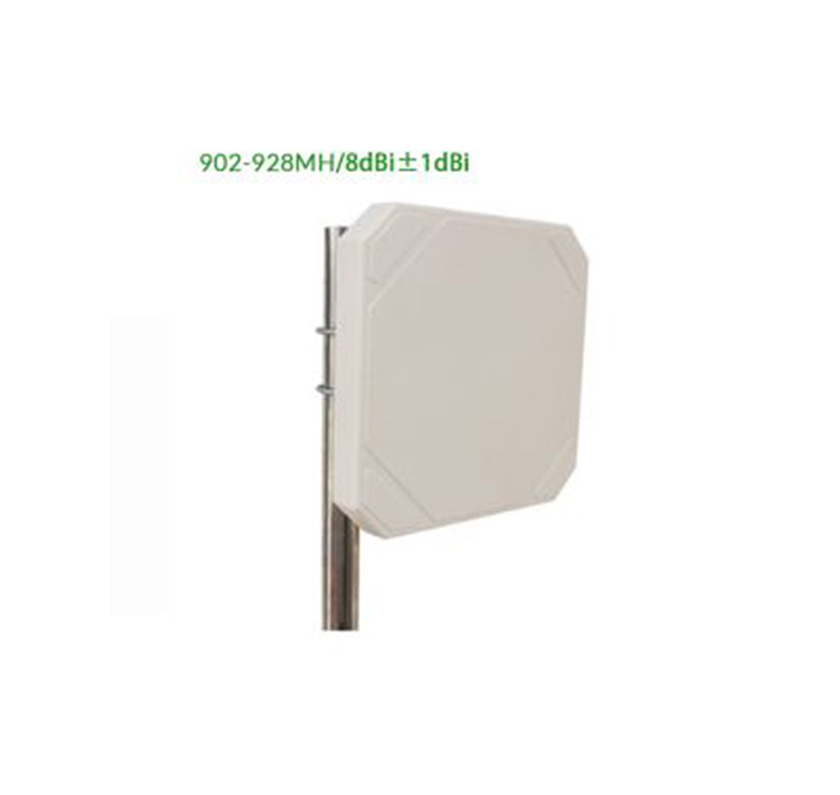

8dBi 902-928MHz/915MHz RFID Antenna for Warehouse Management Detail

RFID antenna

8dBi 902-928MHz/915MHz RFID Antenna for Warehouse Management

Frequency:902-928MHz Gain: 8dBi±1dBi VSWR: ≤1.3 Dimension: 255*255*30(mm) Model:VLG-AX-RFID09C09

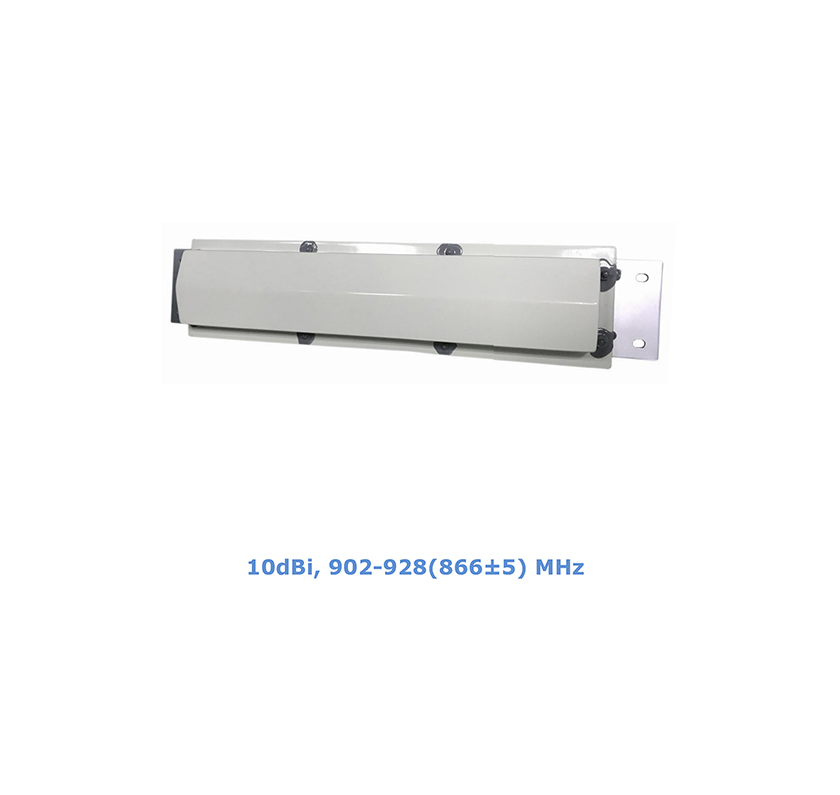

10dBi RFID Antenna 902-928MHz Antenna for rail Rail transit antenna custom Antennas Detail

RFID antenna

10dBi RFID Antenna 902-928MHz Antenna for rail Rail transit antenna custom Antennas

Model:VLGAX-RFID09VH10-700 Frequency: 902-928MHz Gain: 10dBi VSWR: ≤1.5 Dimension: 710*155*90mm

RFID Antennas Detail

RFID antenna

RFID Antennas

Product name  VLG-OS1835-U9 Antenna size 18x35mm Chip NXP UCODE 8 /NXP UCODE 9 Frequency 860MHz-960MHz Reading distance 8m EPC area 128Bits/96Bits TID Contains 96Bits Service life 100,000 erase/data retention for 50 years Application Scenarios Retail/Medical drugs

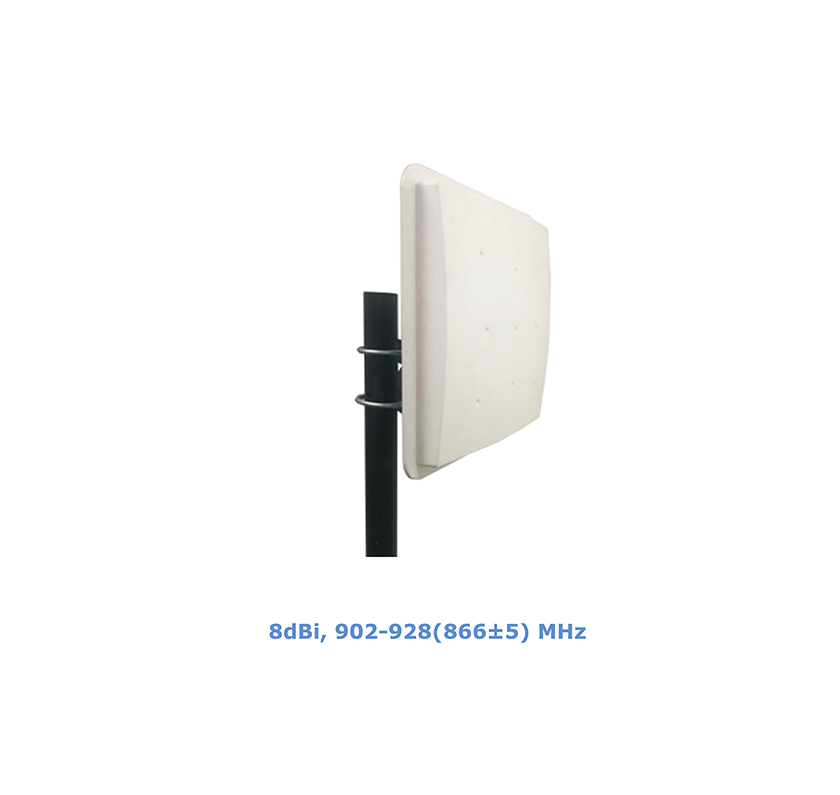

8dBi 902-928/866MHz RFID Antenna for Logistic Management Detail
