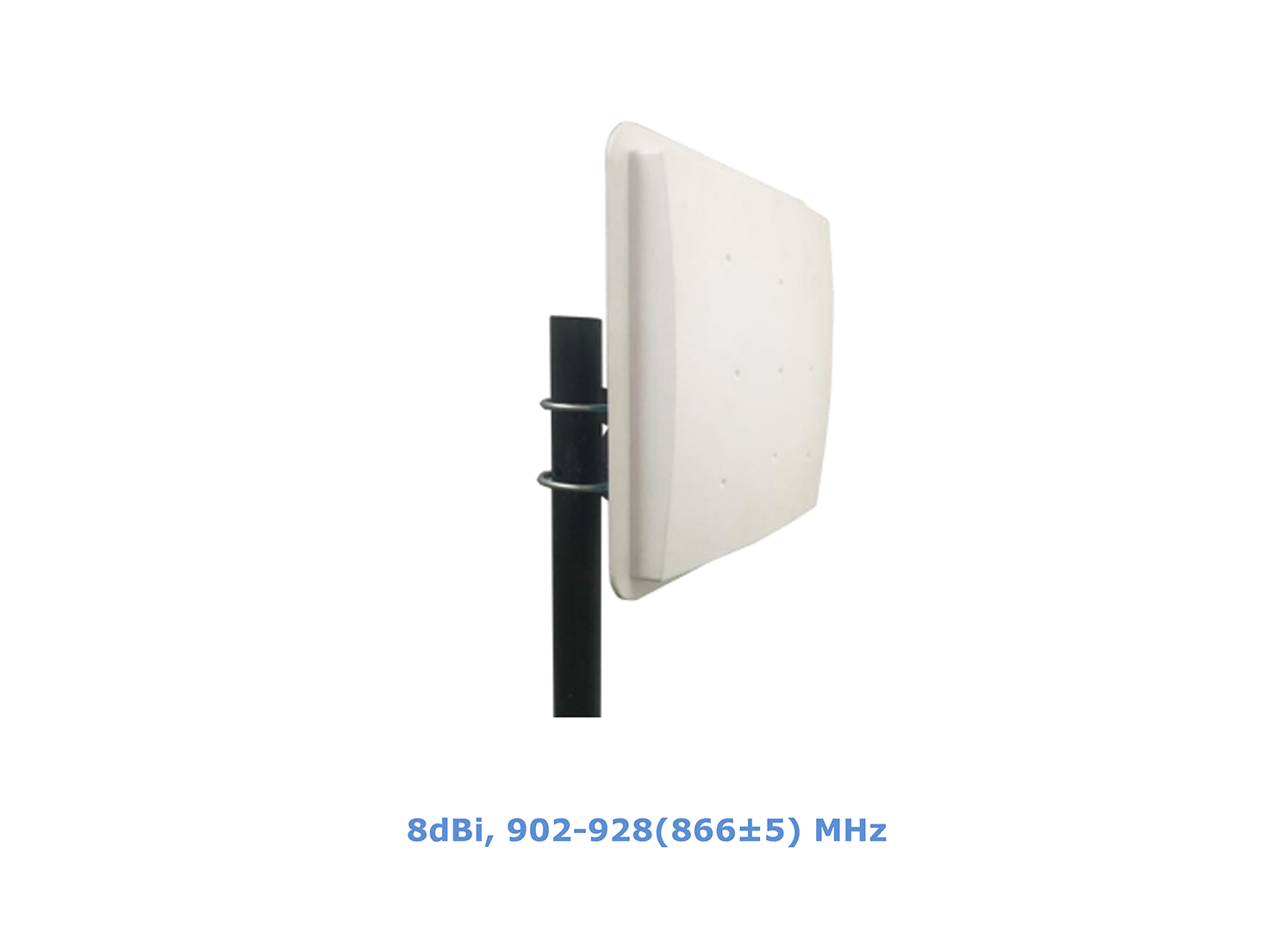

8dBi 902-928/866MHz RFID Antenna for Logistic Management

Overview

The 8dBi RFID Directional Panel Antenna excels in focused tag reading (902-928 MHz). Its 8dBi gain and narrow 80° x 70° beam ensure strong, targeted signals for applications like warehouse management, access control, and asset tracking. The compact, weatherproof design (IP65) makes it ideal for diverse environments.

Key Features

• Exceptional Signal Focus

This high-gain (8 dBi) directional antenna offers superior focus for RFID tag reading. Unlike omnidirectional antennas, it directs a powerful signal in a specific zone (80° x 70°), enhancing accuracy and reliability in applications like access control or asset tracking within warehouses and storage facilities

• Efficient Signal Transmission

This high-gain (8 dBi) directional antenna offers superior focus for RFID tag reading. Its efficient signal transmission ensures strong readings across the targeted zone, ideal for access control or asset tracking in warehouses.

• Durable Design for Diverse Environments

This durable antenna (IP65) thrives in any environment, indoors or outdoors. Its compact size (190x190x25mm) ensures easy installation for diverse applications

• Improved Tag Readability

This antenna tackles challenges of tag orientation with circular polarization. Unlike standard antennas, it guarantees reliable tag reading regardless of tag position, ideal for tracking moving objects or situations with imprecise tag placement.

Specification

Frequency Range	902-928 MHZ
Gain	8 dBi
Beamwidth (Horizontal)	80°
Beamwidth (Vertical)	70°
Polarization	Circular
VSWR	≤ 1.4
Impedance	50Ω
Maximum Power	100W
Connector	N-Female
Dimensions	190 x 190 x 25 mm
Net Weight	0.4 kg
Operating Temperature	-20°C to 60°C
Waterproof Rate	IP65
Radome Material	ABS

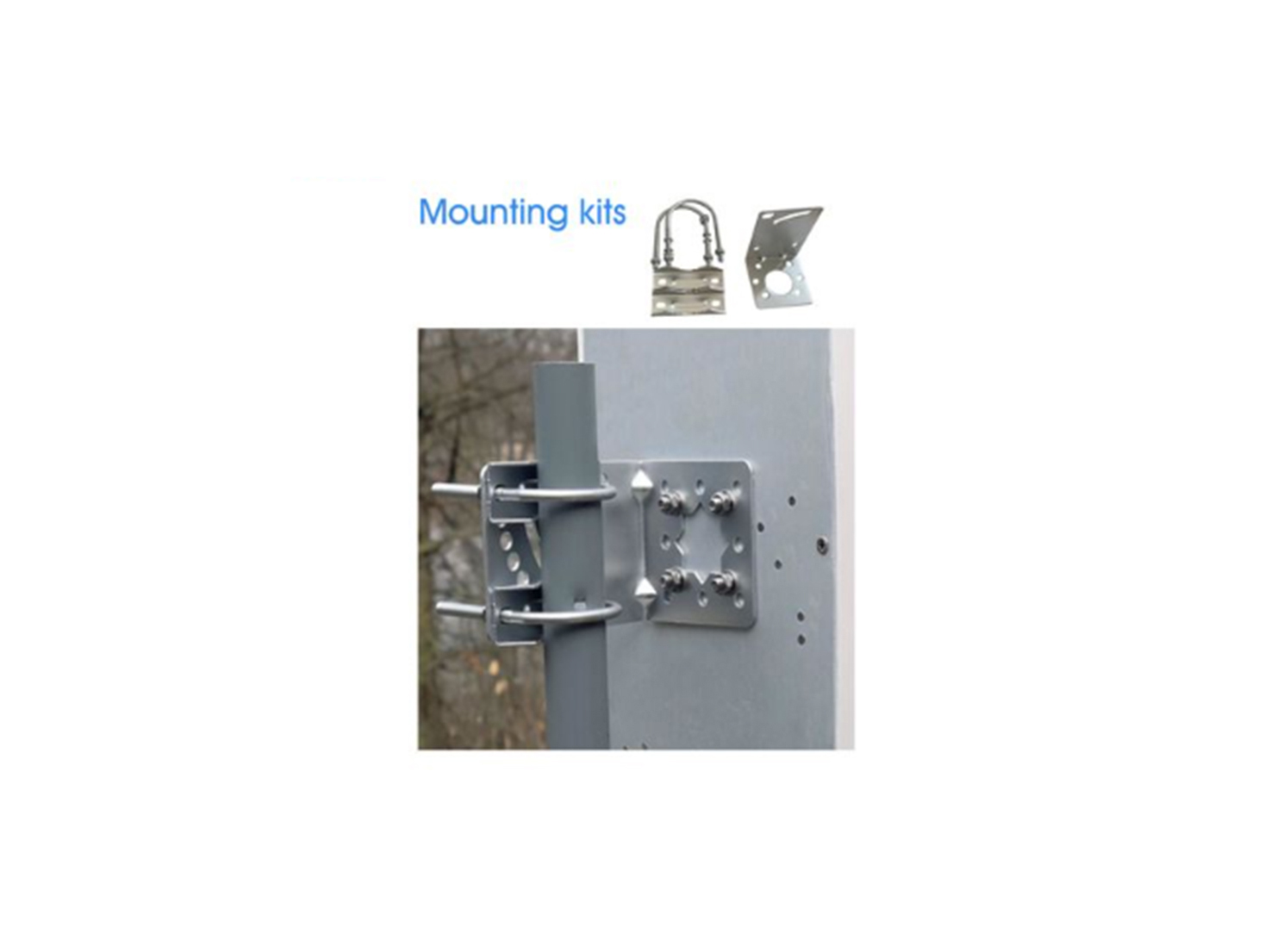

Pole Diameter	Φ30-50 mm

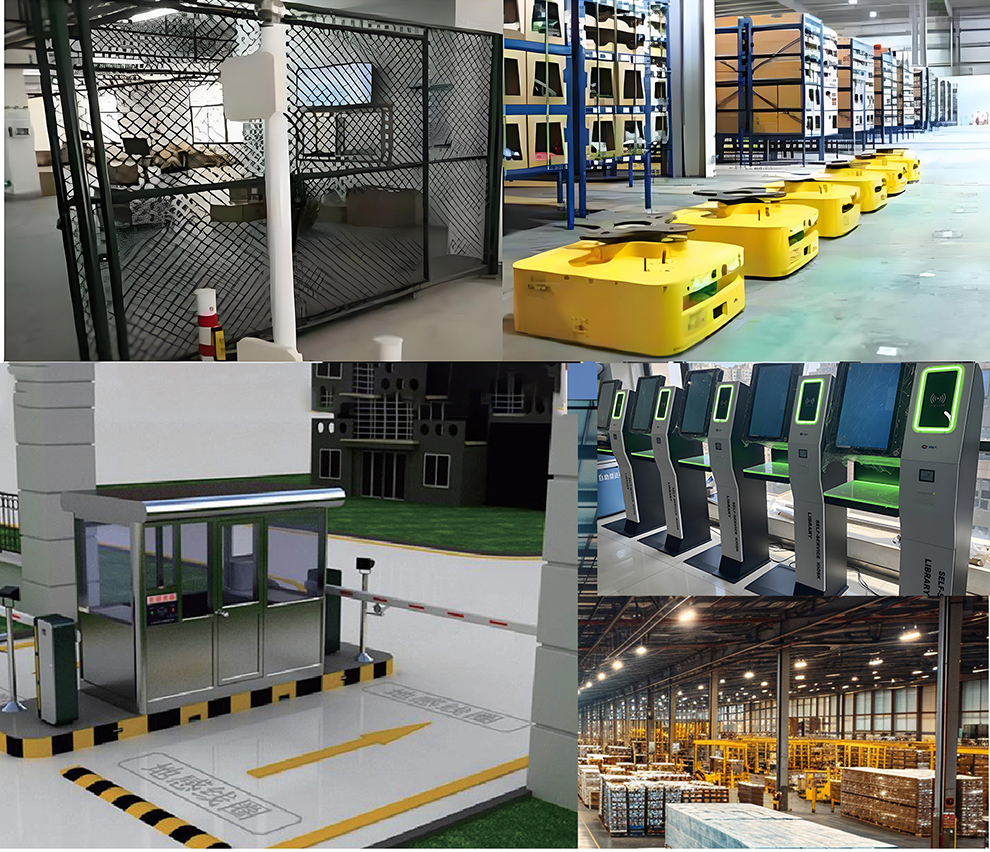

Applications

★902-928MHz RFID radio frequency identification system. ★ Customizable European standard (860-868MHz) ★ Intelligent parking lot management, intelligent access control management ★ Logistics and warehousing management, production line identification ★ Conveyor belt, baggage sorting ★ Site personnel and goods, livestock management ★ Medical equipment management, school, consumption management, attendance management, Dining management, swimming pool management and other systems have been widely used
