2G、3G、4G 、5G built-in antenna

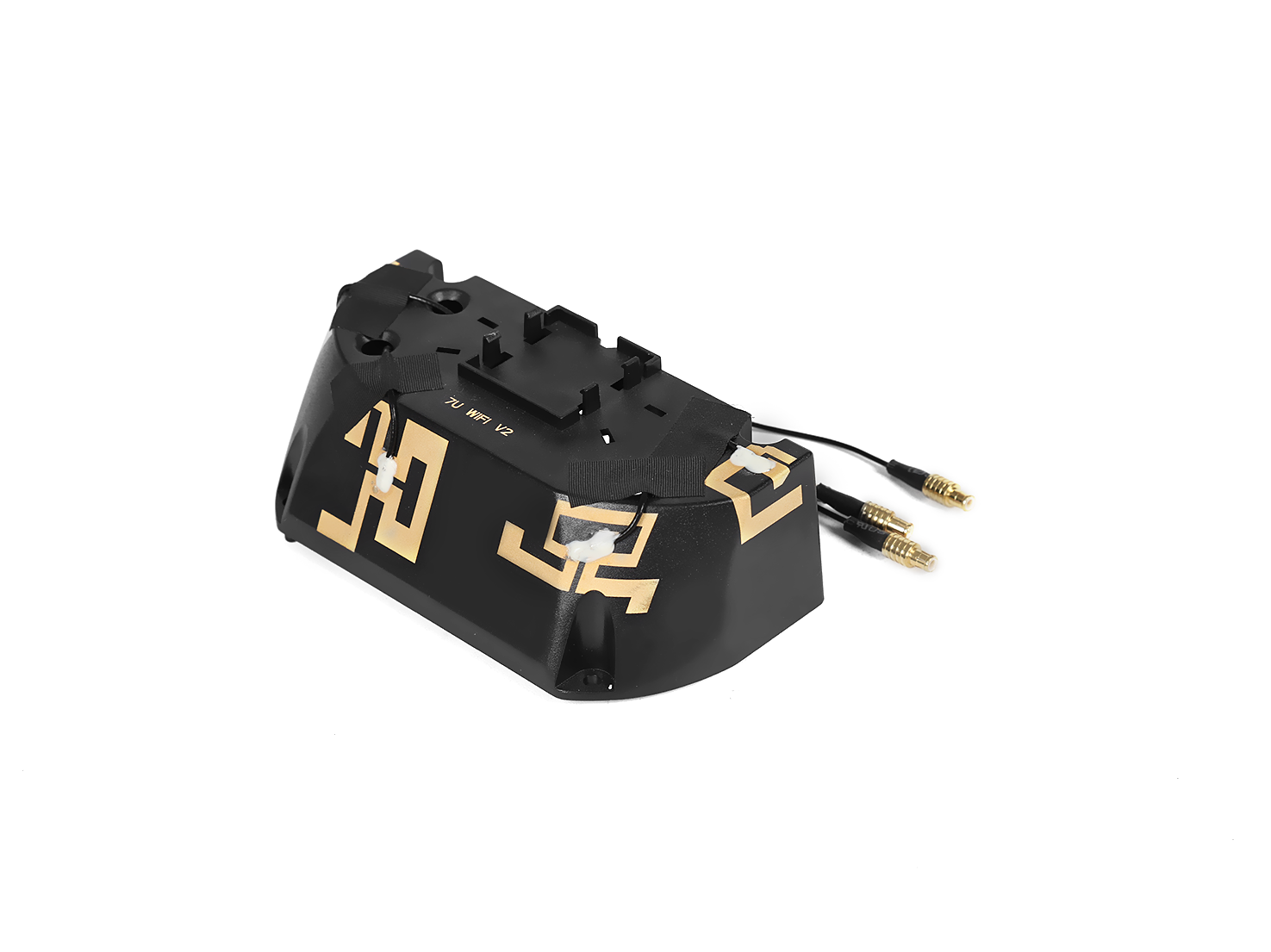

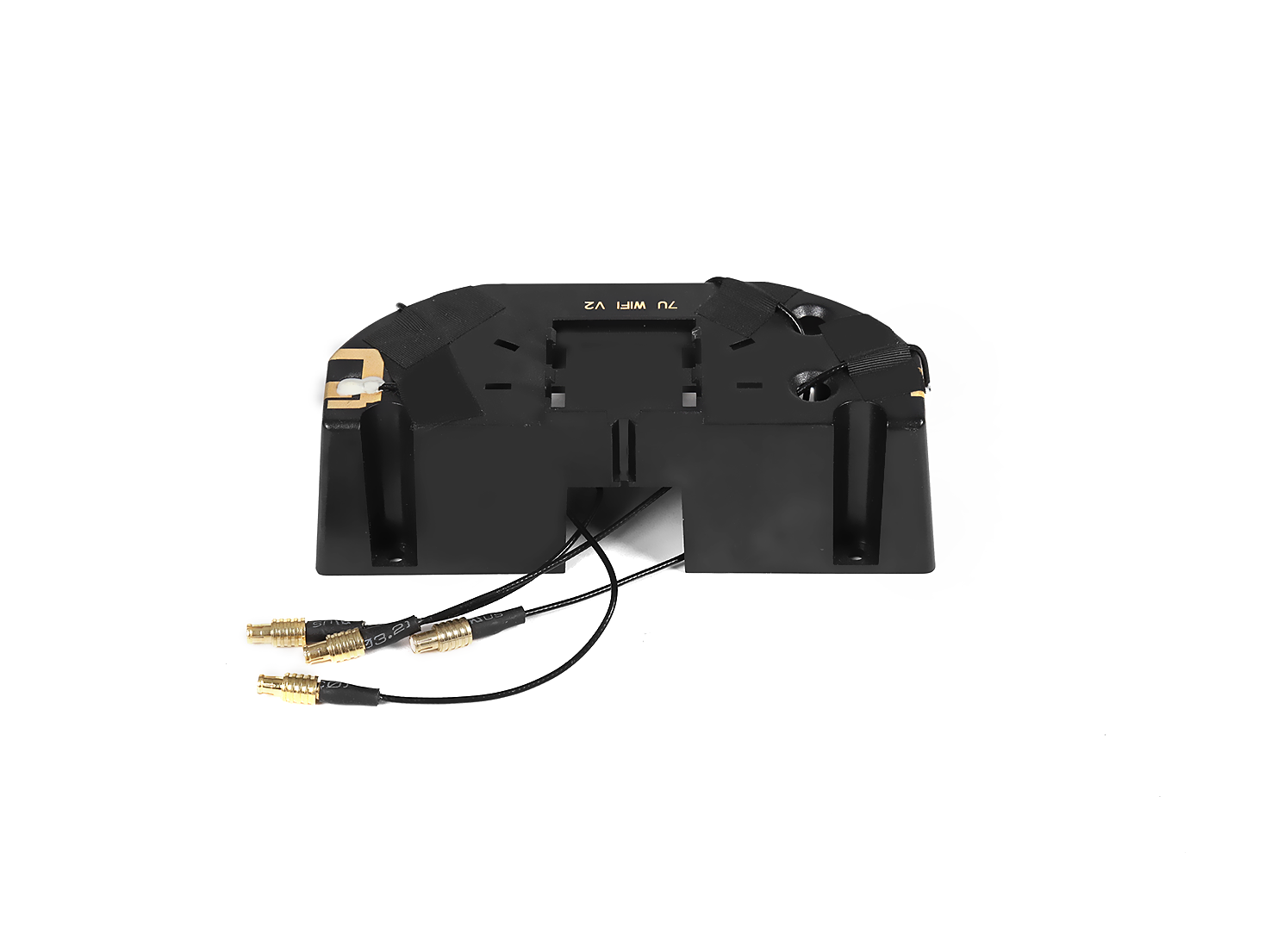

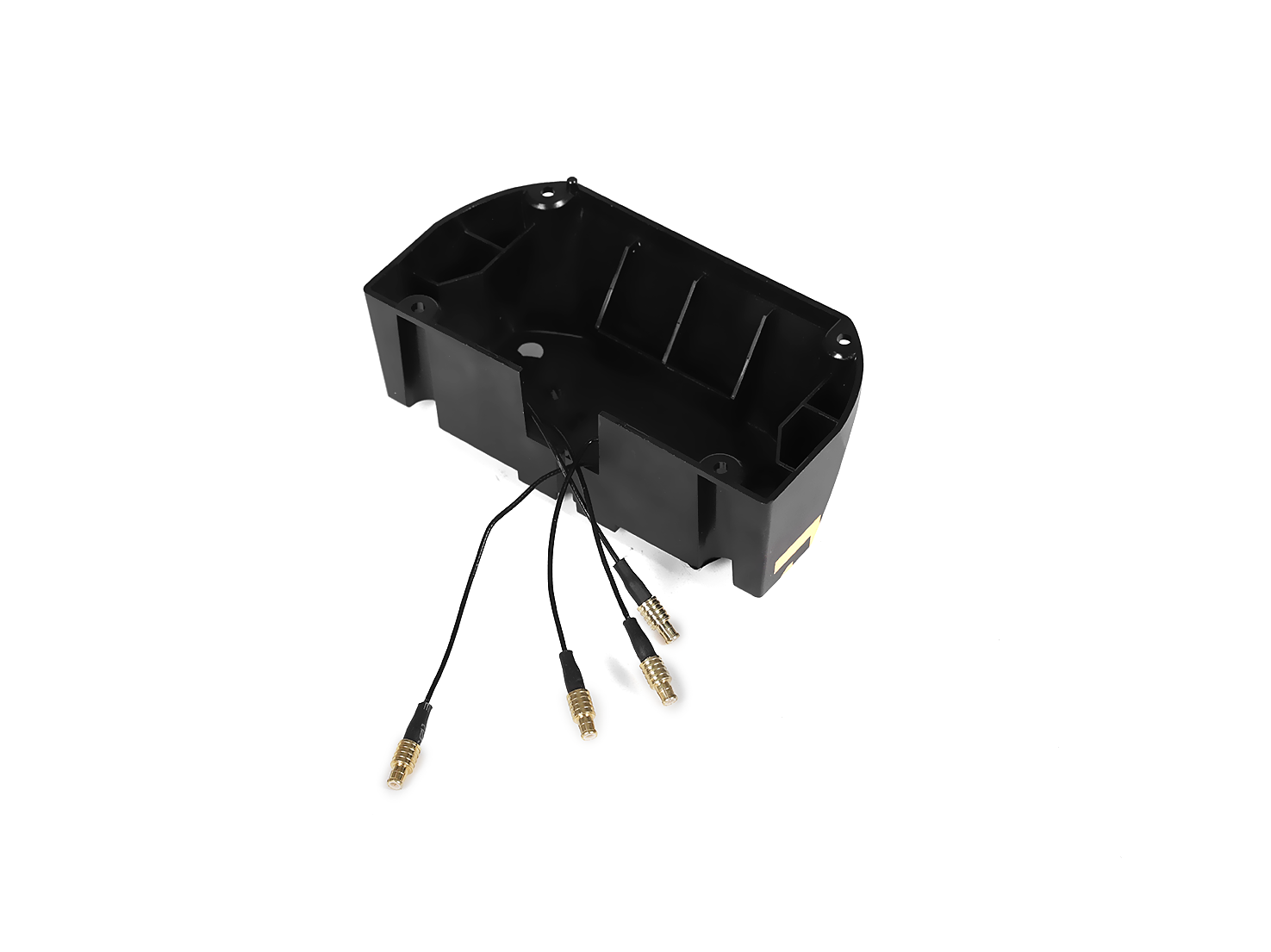

LDS Antenna (Applicable to all kinds of camera products)

Model:V1334-256-A-2

Frequency:2400-2500MHz

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

LDS Antenna (Applicable to all kinds of camera products)

Overview

This antenna is designed for dual-cabin camera products, equipped with 4 Wi-Fi antennas, operating frequency is 2400-2500MHz

Key Features

4 Antenna Design

The 4-antenna design can significantly improve signal reception and transmission capabilities, reduce signal attenuation, and ensure stable connections in complex environments.

High gain

High gain can effectively enhance signal strength and ensure good communication quality at a longer distance.

Specification

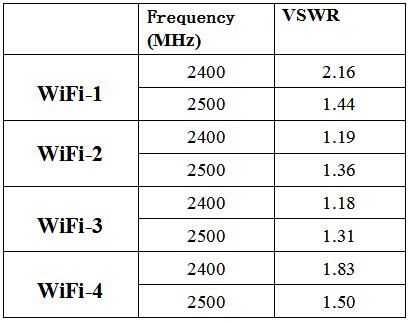

1.Antenna VSWR

LDS Antenna (Applicable to all kinds of camera products)

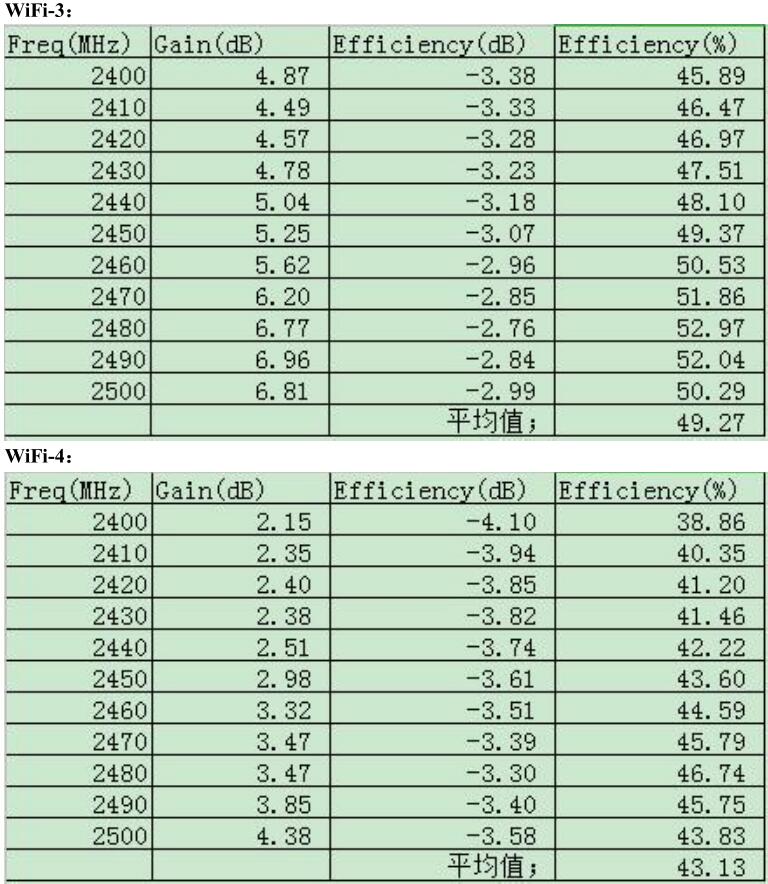

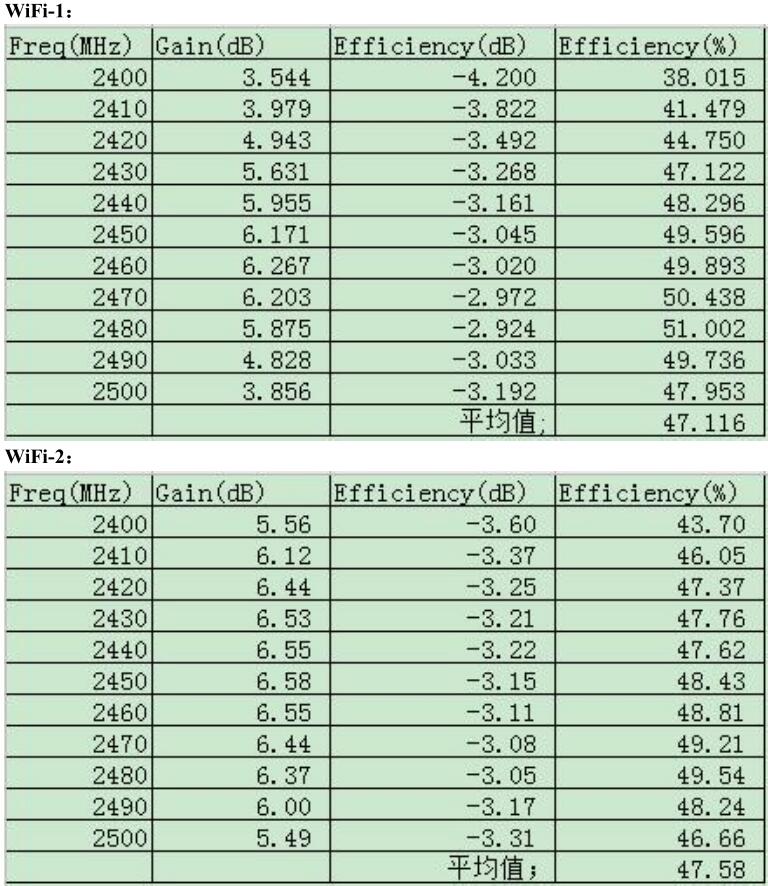

2.Passive Antenna Efficiency

LDS Antenna (Applicable to all kinds of camera products)

Applications

Home security, commercial places, public areas, traffic management, smart cities, etc.

Overview

Key Features

Specification

Applications
