首页图标Home >  Product > IOT Antenna > 2G、3G、4G 、5G built-in antenna
a38852185a03a71
728d8647bb66d84
039bc56b23a8d53

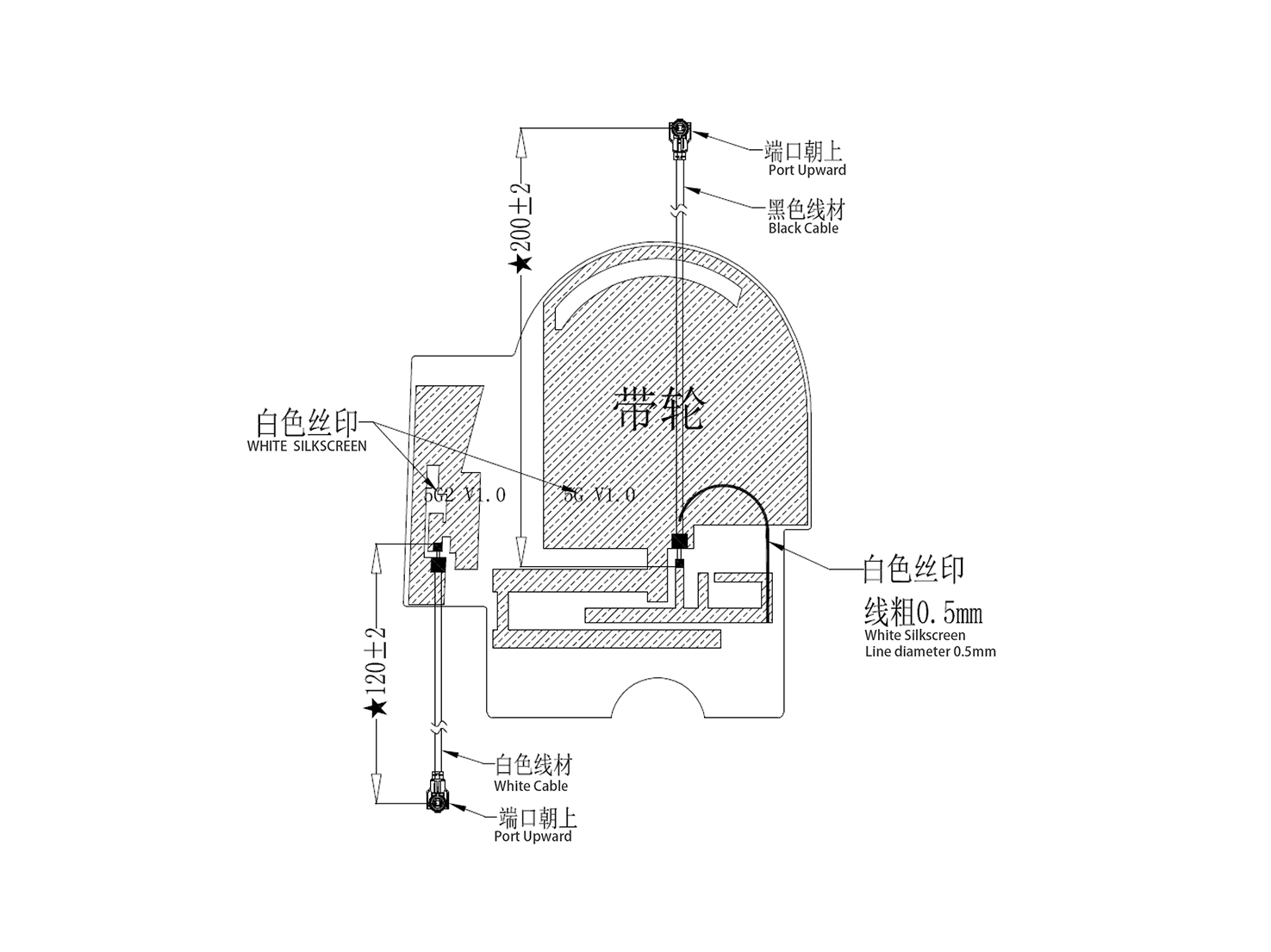

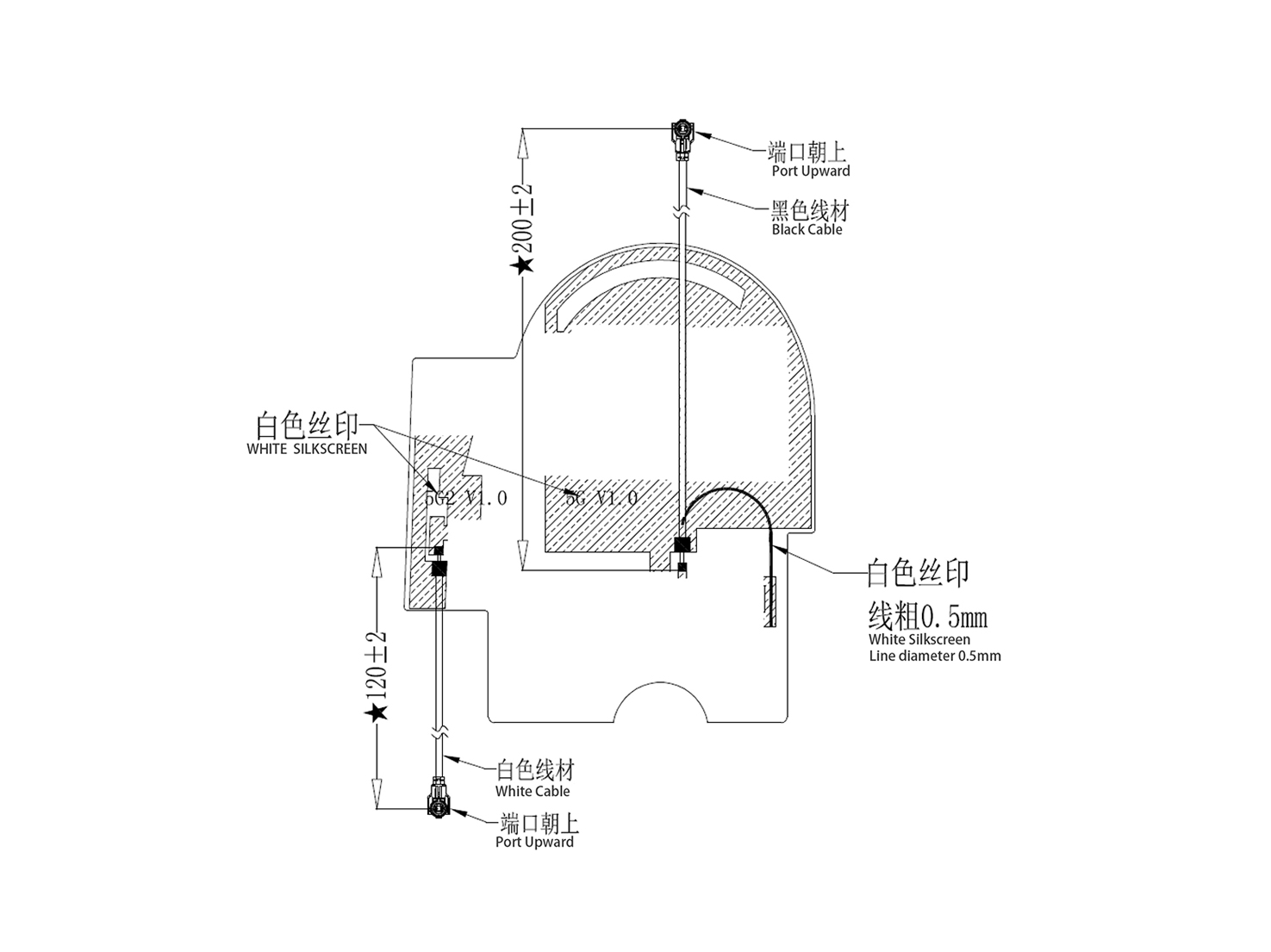

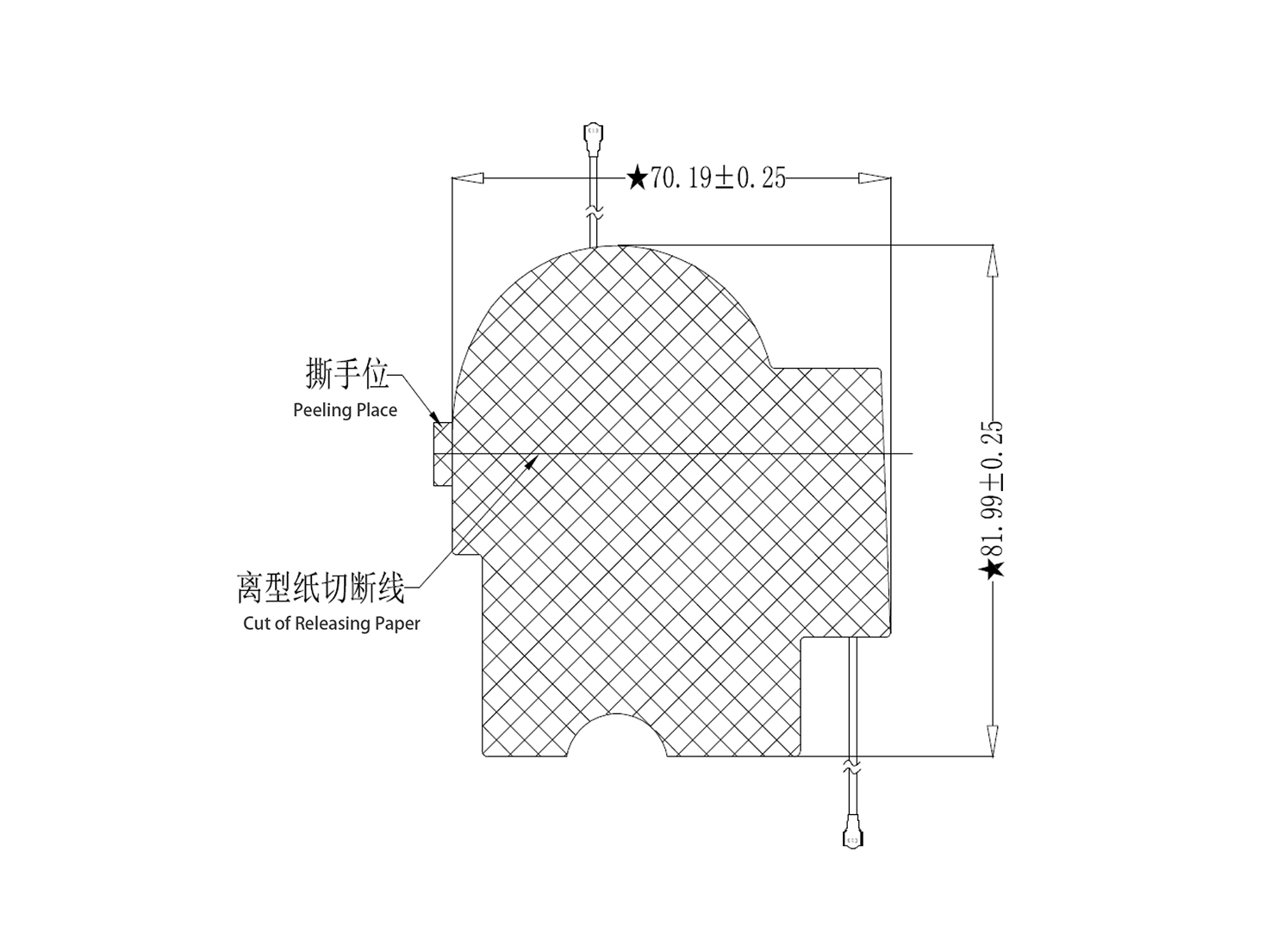

2G、3G、4G 、5G built-in antenna

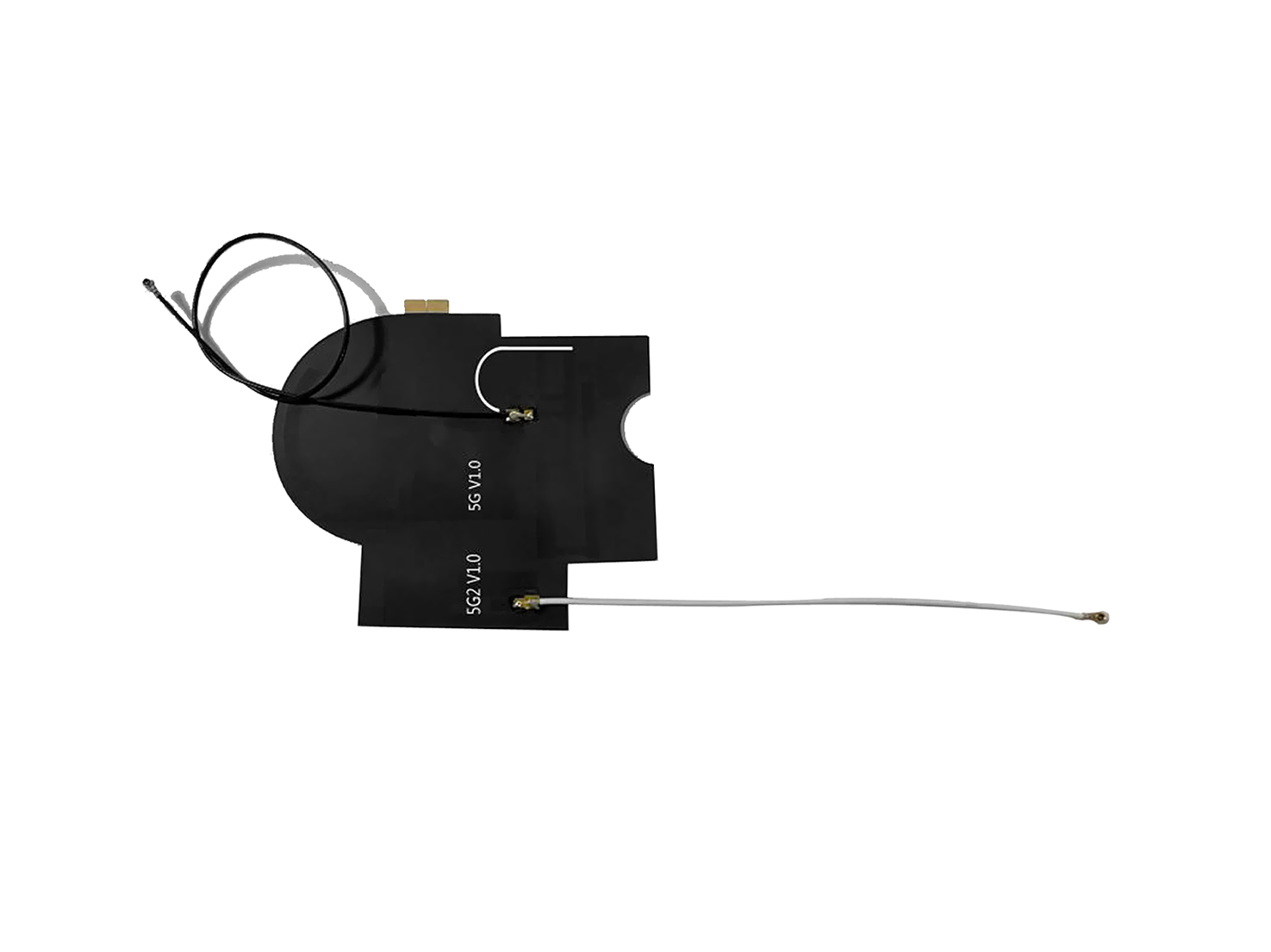

Dual 5G FPC Antenna Wideband 700MHz-5000MHz Flexible Antenna I-PEX

Applications:Consumer electronics, automotive electronics, aerospace, medical equipment

Frequency :

5G:700~2690/3300~5000MHz

5G2:1710~2690/3300~5000MHz

Gain:

5G：-6.48~2.91 & -2.03~4.40 dBi

5G2：-3.70~3.74 & -1.38~3.73 dBi

Impedance:  50Ω

Polarization type: linear

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactDual 5G FPC Antenna Wideband 700MHz-5000MHz Flexible Antenna I-PEX
96c85bb3a997
a38852185a03a71
728d8647bb66d84
039bc56b23a8d53

Overview

The 5G built-in antenna is widely used in the monitoring field and is a specially designed antenna product for high-performance ball machine monitoring equipment. With its powerful communication ability, highly integrated design, and built-in characteristics, the antenna has become an important component of modern intelligent monitoring systems.



Suitable for: smart cities, industrial automation, robots, emergency communication, traffic management, etc., especially in the field of security monitoring with excellent performance

Key Features

• Wide coverage

Dual 5G support, wider frequency bands and stronger signal penetration ability, ensuring stable connections even in complex environments.



• Low latency communication

5G significantly reduces network latency and can quickly transmit information and respond in the fields of traffic management and public safety monitoring.



• High speed data transmission

Utilizing the high-speed characteristics of 5G networks, it is possible to achieve ultra high speed data transmission

Specification

Electrical/mechanical parameters:
Frequency Range: 5G:700~2690,3300~5000MHz/5G2:1710~2690,3300~5000MHz
VSWR: <5
Input Impendence: 50Ω
Gain: 5G：-6.48~2.91 & -2.03~4.40 dBi/5G2：-3.70~3.74 & -1.38~3.73 dBi
Polarization: linear polarization
Working Temperature: -20 °C to +70°C
Efficiency: 5G：8.58~51.48 & 13.96~51.89 %/5G2：9.16~28.27 & 19.97~45.97%
Power Capacity: 33 dBm
Connectors and cables: IPEX, coaxial cable with a diameter of 1.13mm(Customizable)
Radiation direction: omnidirectional
Environmental protection: ROHS

Applications

1716800285585360

Overview

Key Features

Specification

Applications
