Electrical performance indicators
Passive antenna indicators
Frequency Range(MHz)	GPS L1/L2/L5 BDS B1/B2/B3 GLONASS L1/L2 GALILEO: E1/E5/E6 L-Band
Polarization	Right-hand circular polarization
Gain(dBi)	Elevation angle 90 degrees：≥2.5
Axial Ratio(dB)	Elevation angle 90 degrees：≤3
Impedance(Ω)	50
VSWR	≤2
Horizontal coverage angle（°）	360° omnidirectional
LNA Specifications
Signal Gain(dB)	35±3
Noise Figure(dB)	≤2
VSWR	≤2
Voltage（VDC）	3~16
Current (mA)	≤45
Inband Spectrum Ripple（dB）	≤2
Impedance(Ω)	50
Physical properties

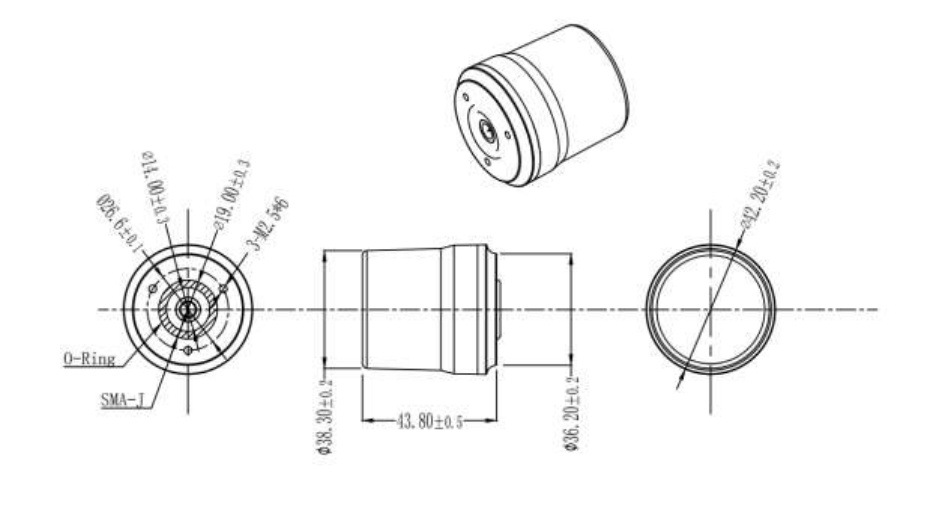

Dimensions(mm)	Φ42.2*43.8
Weight（g）	≤35g
Connector Type	sma-J
Operating Temperature(℃)	-40~+70
Storaging Temperature(℃)	-40~+70
Humidity	95%

Satellite Antenna

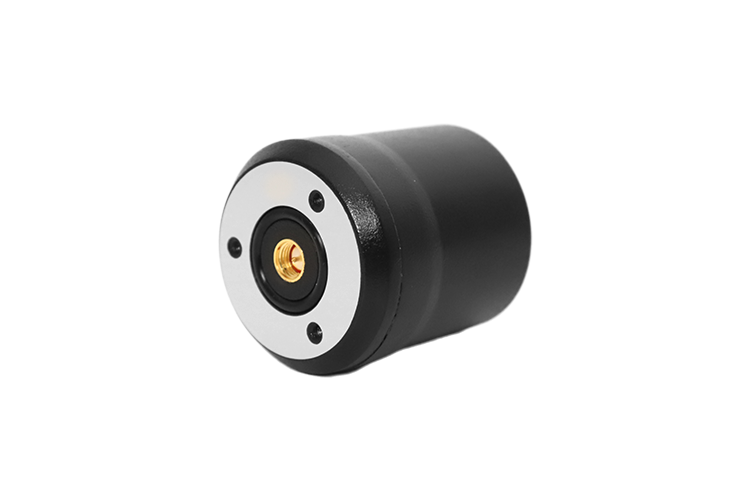

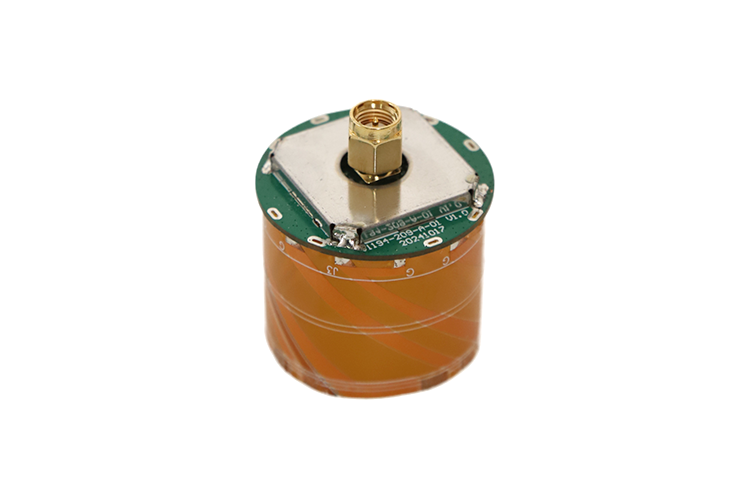

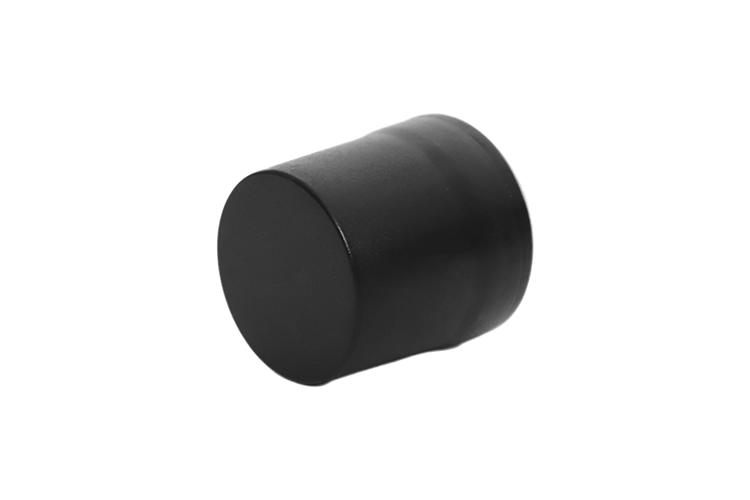

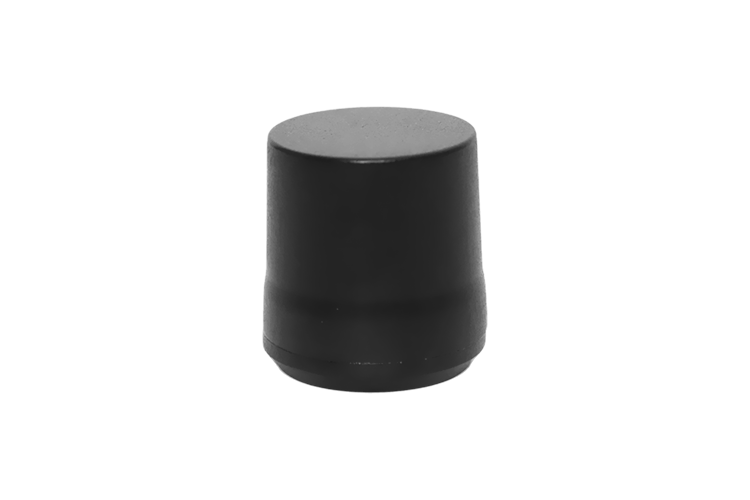

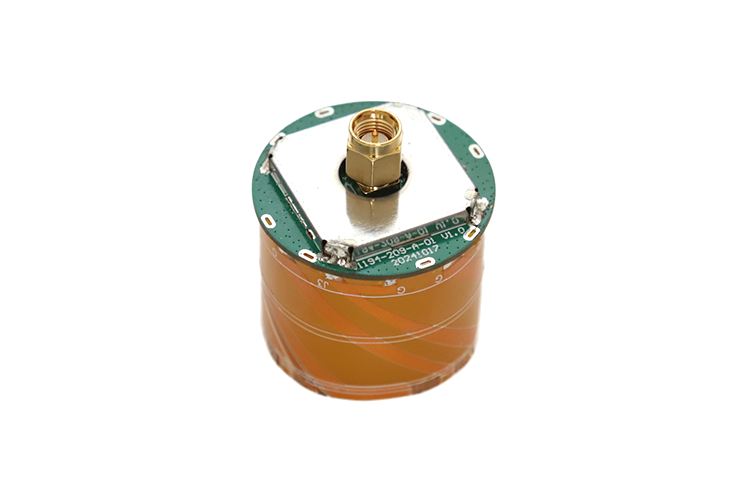

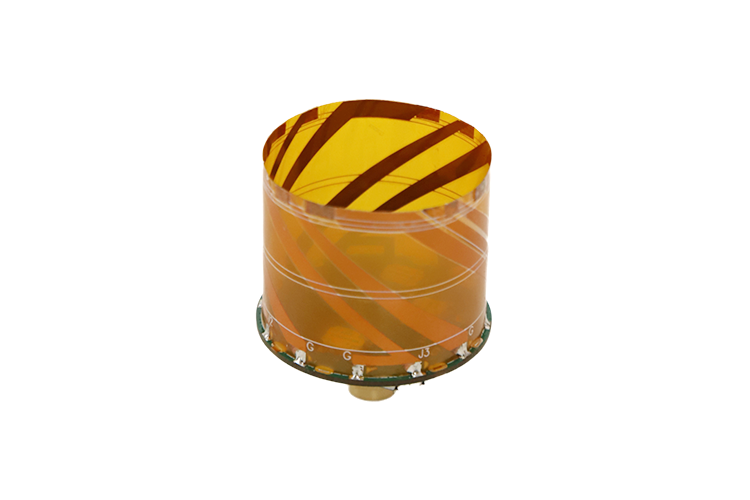

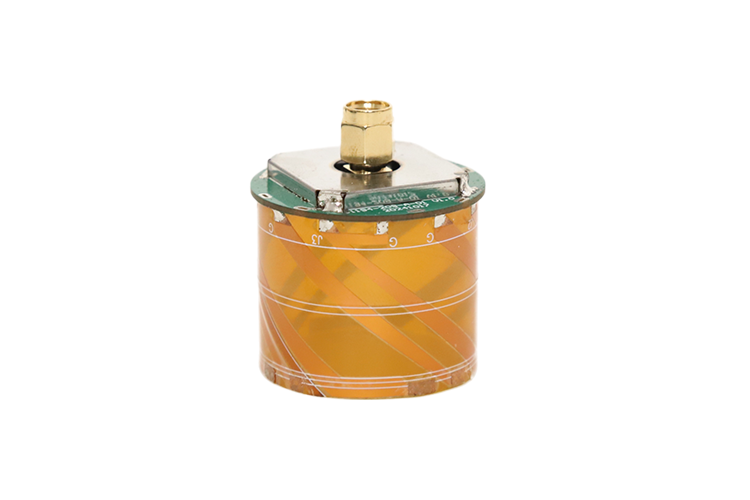

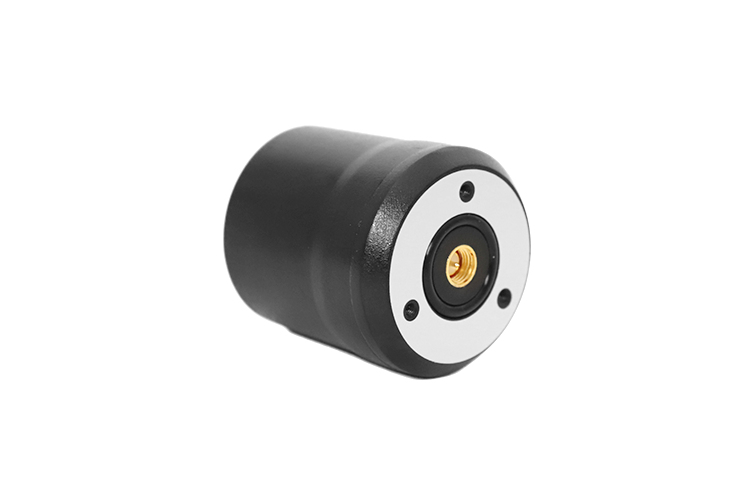

High-precision positioning four-arm helical Antenna

Overview

Specification
