Ceramic Antenna

High precision GPS L5+L1 dual band Antenna passive ceramic Antenna 1176.45MHz /1575.42MHz

Main specifications/performance:

Frequency :

GPS L5: 1176.45MHz

GPS L1: 1575.42MHz

Impedance:  50Ω

Polarization type: RHCP

Dimension : 50mm(L)×50mm(W) ×23mm(H)

Connectors and cables: Customizable

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactHigh precision GPS L5+L1 dual band Antenna passive ceramic Antenna 1176.45MHz /1575.42MHz
29390c3fb1f74d1
6a2519920a4c6c4
cd5a4d452992c39

Overview

This is a square built-in ceramic antenna with light weight, low axial ratio, and high gain.Dual band ceramic antenna covering GPS L1/L5, providing good positioning performance.

Suitable for: shared bicycles, drones, tablets, trackers, anti-theft devices, pet positioning, portable terminals, in car mobile terminals, various GPS module OEM and GSM GPRS communication module. .

Key Features

High sensitivity and positioning accuracy can effectively enhance signal reception capability, enabling fast positioning and high-precision coordinate determination even in weak signal environments.







Excellent anti-interference performance design, able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.

Specification

Passive Electrical Specifications
Frequency GPS L5: 1176.45MHz / GPS L1: 1575.42MHz
VSWR

<2


Gain <3 dBi
Polarization RHCP
Impedance 50Ω
Mechanical Specifications
Working Temperature -45 °C to +85 °C
Antenna Size 50 × 50 × 23mm
Connectors and cables Customizable
Environmental protection ROHS

Applications

09

Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

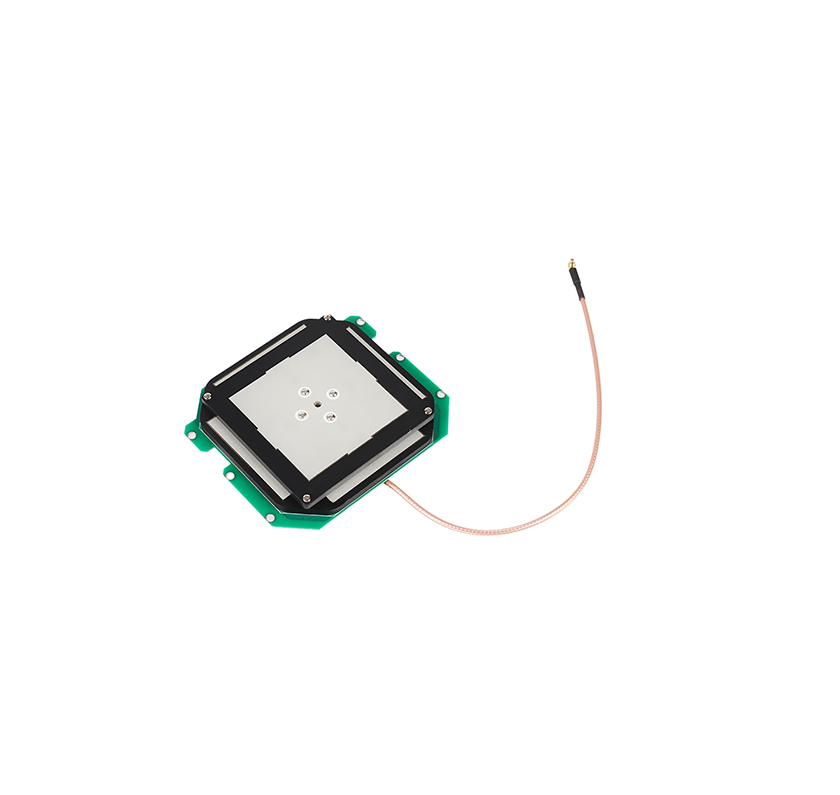

Built-in Antenna High-precision positioning Antenna full frequency band Detail

Ceramic Antenna

Built-in Antenna High-precision positioning Antenna full frequency band

Model:V1586-021-A-01 Frequency Range： GPS L1/L2/L5、 BDS B1/B2/B3、 GLONASS L1/L2、 Galileo E1/E5a/E5bz LNA Gain： 40±2 dBi Output V.S.W.R： 2.0dBi max Voltage Range ：3.3 V ~ 5.5 V Current ：15~45 mA Impedance ：50 Ω

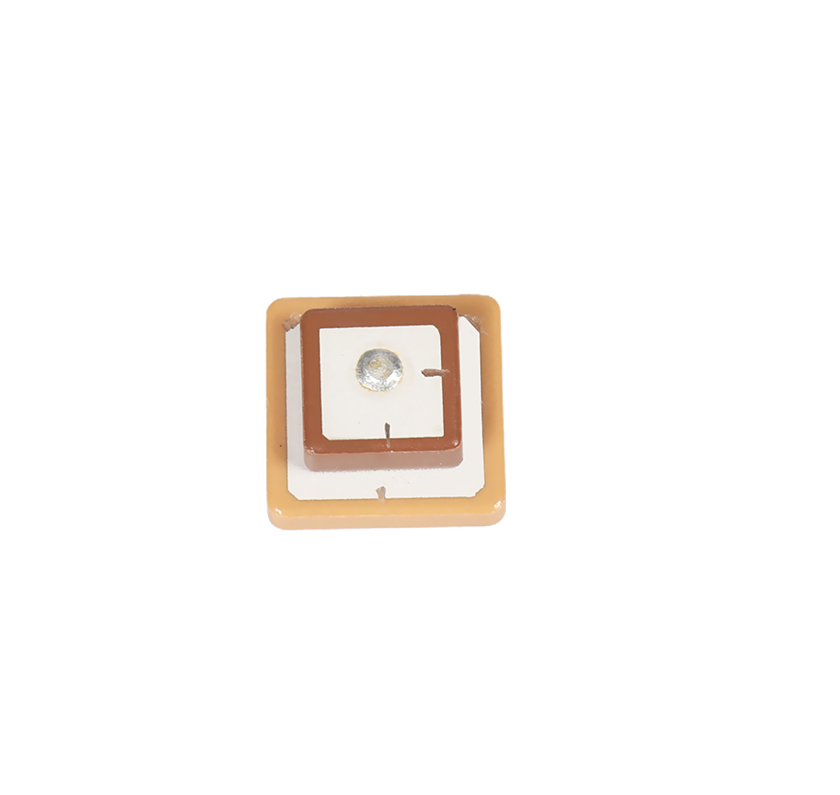

GNSS Built-in Antenna Ceramic Antenna Detail

Ceramic Antenna

GNSS Built-in Antenna Ceramic Antenna

L1 L5 GNSS built-in ceramic antenna Frequency：1176.45MHz~1561.098MHz~1575.42MHz VSWR：≤2.0 Output Impedance(ohm)：50 Dimensions：25*25*4mm+18*18*4mm Suitable for: shared bicycles, vehicle navigation systems, drones, trackers,  smart meters, consumer electronics.

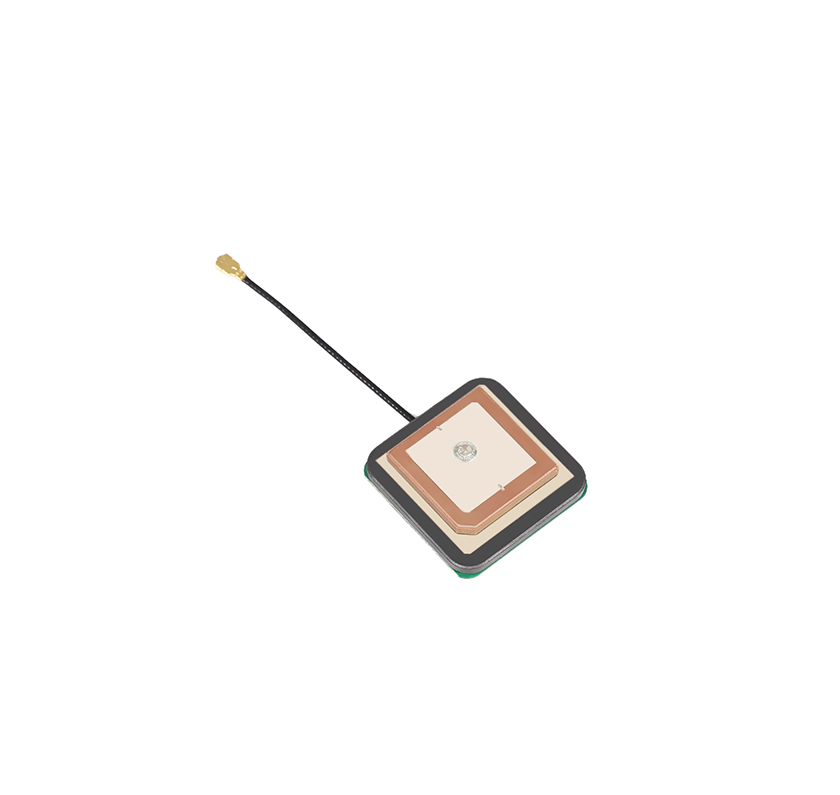

High Precision GPS GLONASS Active Ceramic Antenna 19dBi 18*25 Detail

Ceramic Antenna

High Precision GPS GLONASS Active Ceramic Antenna 19dBi 18*25

GPS L5: 1176.45MHz GPS L1: 1575.42MHz Glonass L1:1602MHz Impedance:  50Ω Polarization type: RHCP Dimension : 25mm(L)×25mm(W) ×11.9mm(H) Connectors and cables: IPEX+φ1.13(Customizable)

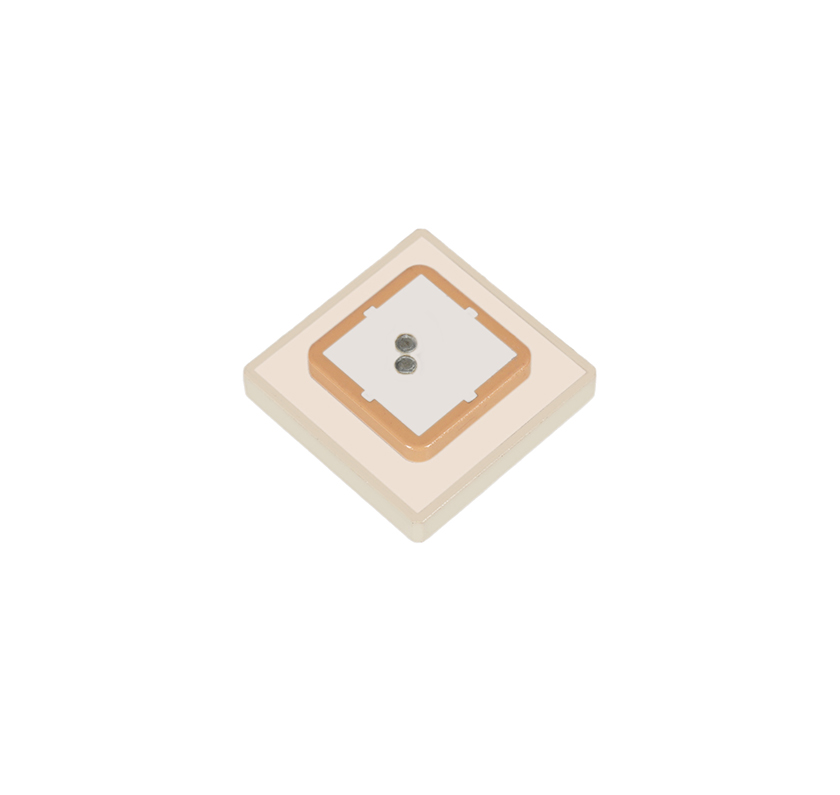

Dual-band ceramic Antenna passive GPS Antenna Detail

Ceramic Antenna

Dual-band ceramic Antenna passive GPS Antenna

L1/L5 built-in ceramic antenna Frequency：1176.45MHz~1561.098MHz~1575.42MHz VSWR：≤2.0 Output Impedance(ohm)：50 Dimensions ：38*38*6mm+28*28*4mm Suitable for: shared bicycles, vehicle navigation systems, drones, trackers, anti-counterfeiting scanners, smart meters, consumer electronics.

Inbuilt 12x12mm active GPS ceramic Antenna 18dBi Detail

Ceramic Antenna

Inbuilt 12x12mm active GPS ceramic Antenna 18dBi

Main specifications/performance: Frequency :1561.098MHz~1575.42MHz Impedance:  50Ω Output VSWR: ≤2.0 max Dimension : 12mm(L)×12mm(W)×4.5mm(H) Connectors and cables: IPEX+φ1.13(Customizable)

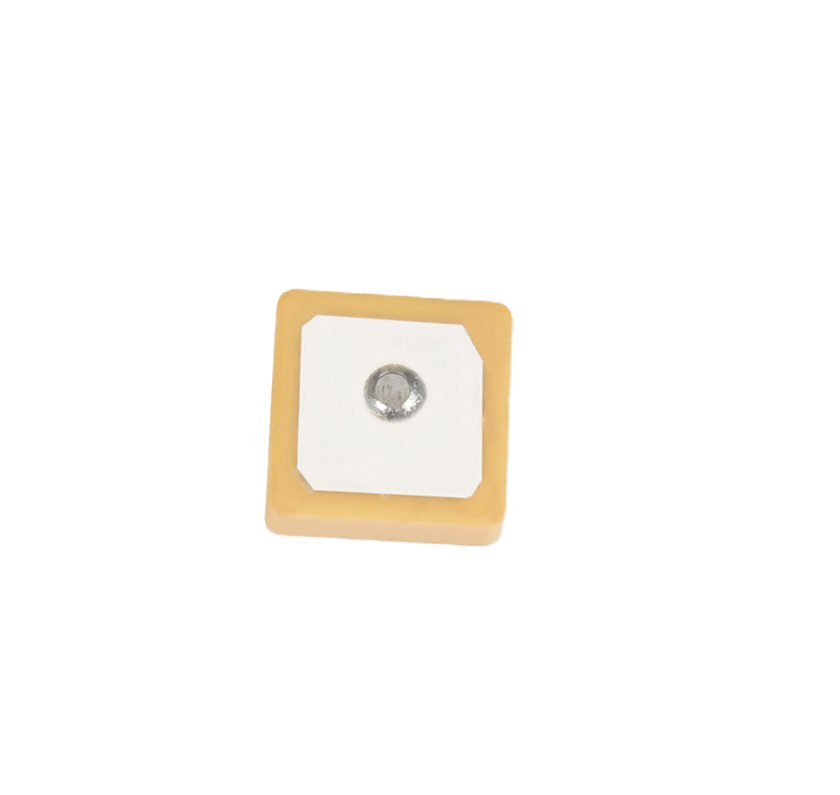

Built-in Antenna Ceramic Antenna Detail

Ceramic Antenna

Built-in Antenna Ceramic Antenna

Frequency：1575.42MHz Output VSWR：≤2.0 Output Impedance：50ohm Gain：≥3dBi Dimensions：25mm(L)x25mm(W)x4mm(H) Material：Ceramic This antenna can be integrated into various small electronic devices, such as smartphones, tablets, smart watches, smart speakers, etc. These devices usually require stable wireless communication connections to support their various functions, such as location positioning, data transmission, voice calls, etc. By integrating this ceramic antenna, these […]

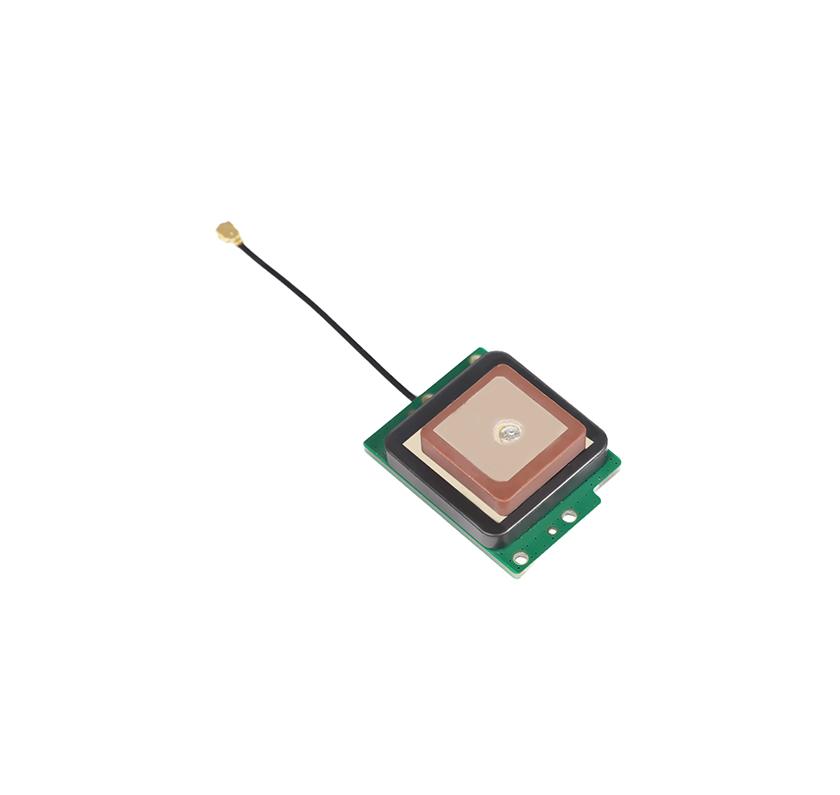

Built-in Antenna: ceramic+PCB+wire Detail

Ceramic Antenna

Built-in Antenna: ceramic+PCB+wire

Frequency:GPS L5: 1176.45MHz / GPS L1: 1575.42MHz VSWR:≤2 Gain:≤3 dBi Antenna Size:33 x 25 x 11.95mm Connectors and cables:Customizable

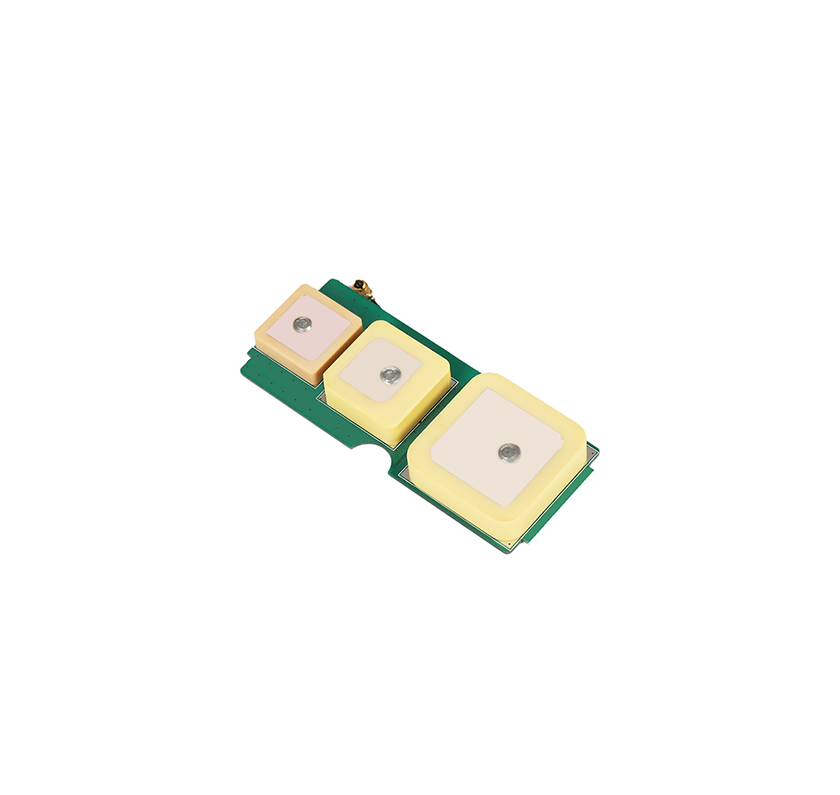

BeiDou And amp; GPS Positioning 3-in-1 Antenna For Handheld Phone Detail

Ceramic Antenna

BeiDou And amp; GPS Positioning 3-in-1 Antenna For Handheld Phone

Frequency : L1& B1：1555MHz~1580MHz S：2487MHz~2497MHz L：1612MHz~1621MHz Gain Elevation 90 °: B1、L1≥0.5dBi L≥1.5dBi S≥2dBi Impedance:  50Ω Polarization type: Right-hand circular polarization (L1, B1, S) Left-hand circular polarization (L) Dimension : 67mm(L)×27mm(W) ×9mm(H) Connectors and cables: IPEX+φ1.13(Customizable)

Built-in Antenna High-precision positioning Antenna full frequency band Detail

Ceramic Antenna

Built-in Antenna High-precision positioning Antenna full frequency band

Model:V1586-021-A-01 Frequency Range： GPS L1/L2/L5、 BDS B1/B2/B3、 GLONASS L1/L2、 Galileo E1/E5a/E5bz LNA Gain： 40±2 dBi Output V.S.W.R： 2.0dBi max Voltage Range ：3.3 V ~ 5.5 V Current ：15~45 mA Impedance ：50 Ω

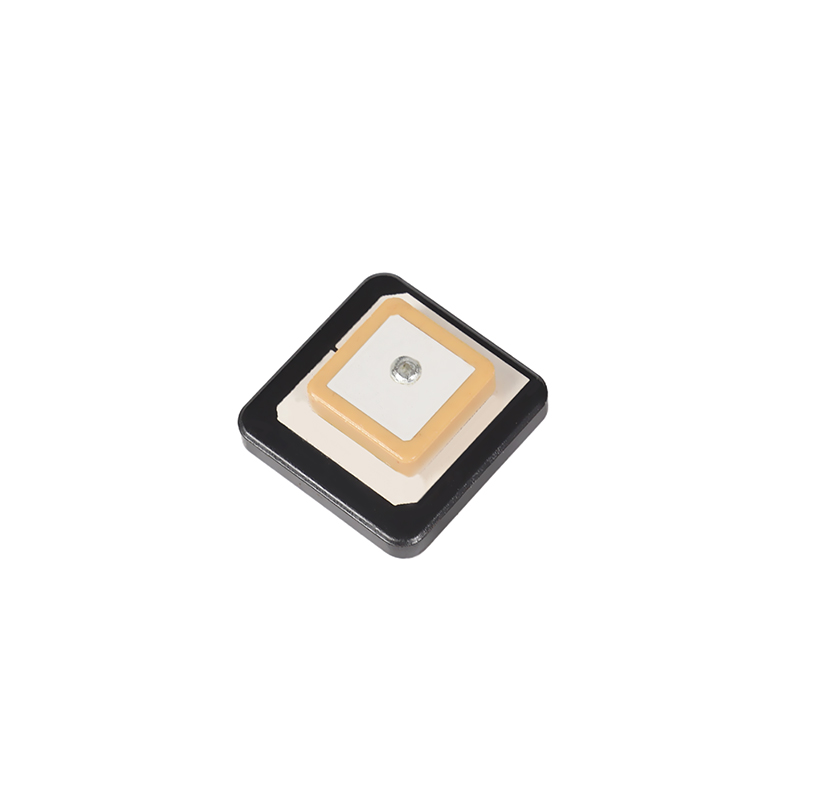

Built-in Ceramic Antenna Detail

Ceramic Antenna

Built-in Ceramic Antenna

GNSS Dual Frequency Antenna Frequency (MHz) L1:1575.42±1.023 L5:1176.45±1.023 Axial Ratio≤3dBi Polarization:RHCP VSWR(dBi)≤2 Size: According to customer equipment

Built-in GPS BDS 25x25mm active ceramic Antenna 18dBi Detail

Ceramic Antenna

Built-in GPS BDS 25x25mm active ceramic Antenna 18dBi

Main specifications/performance: Frequency :1561.098MHz~1575.42MHz Impedance:  50Ω Polarization type: RHCP Dimension : 25mm(L)×25mm(W) Connectors and cables: IPEX+φ1.13(Customizable)

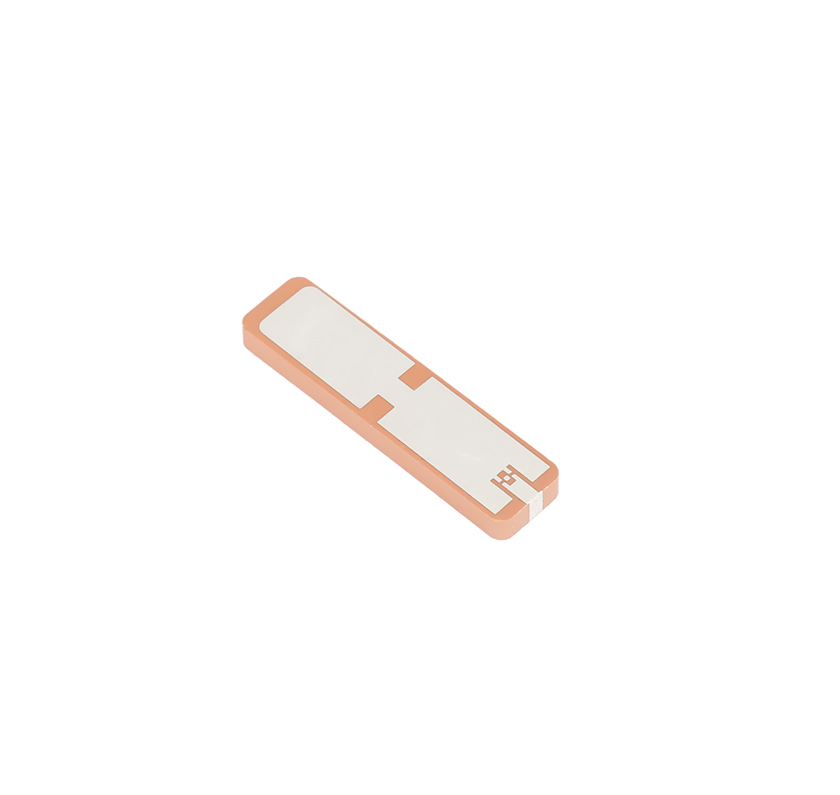

SMT Ceramic Antenna Detail

Ceramic Antenna

SMT Ceramic Antenna

Antenna thickness, frequency, polarization mode & soldering pad can be customized.

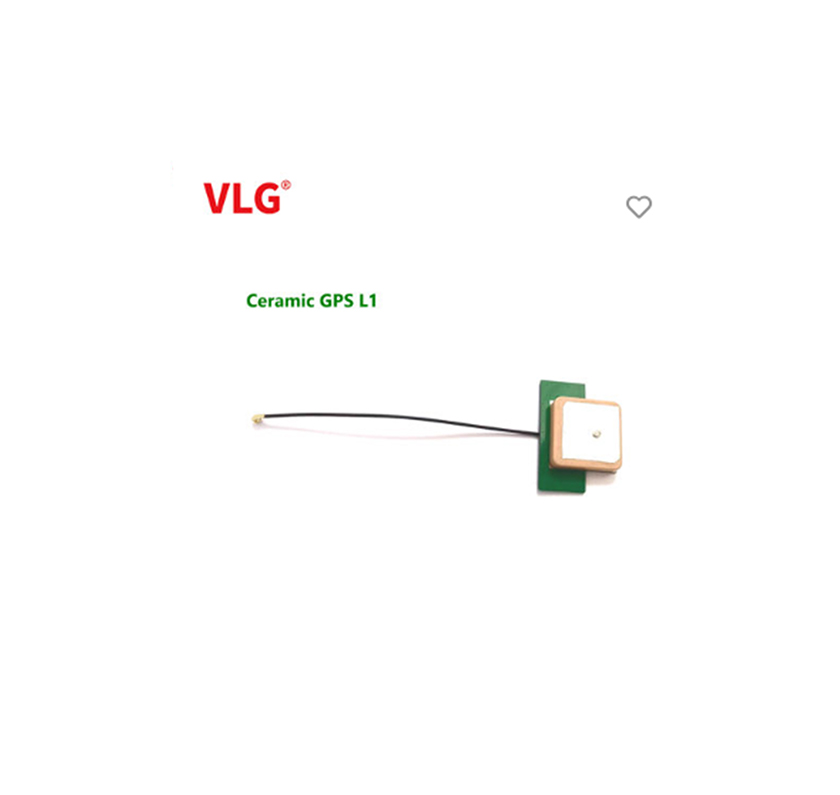

High efficiency 1575 – 1602MHz GPS L1 ceramic Antenna Detail

Ceramic Antenna

High efficiency 1575 – 1602MHz GPS L1 ceramic Antenna

V1831-233-A-01 Frequency :1575–1602 MHz Impedance:  50Ω Gain (LNA): L1:16±2dBi Dimension : 40.38mm(L)×28.87mm(W)×7.6mm(H) Connectors and cables: IPEX+φ1.13(Customizable)

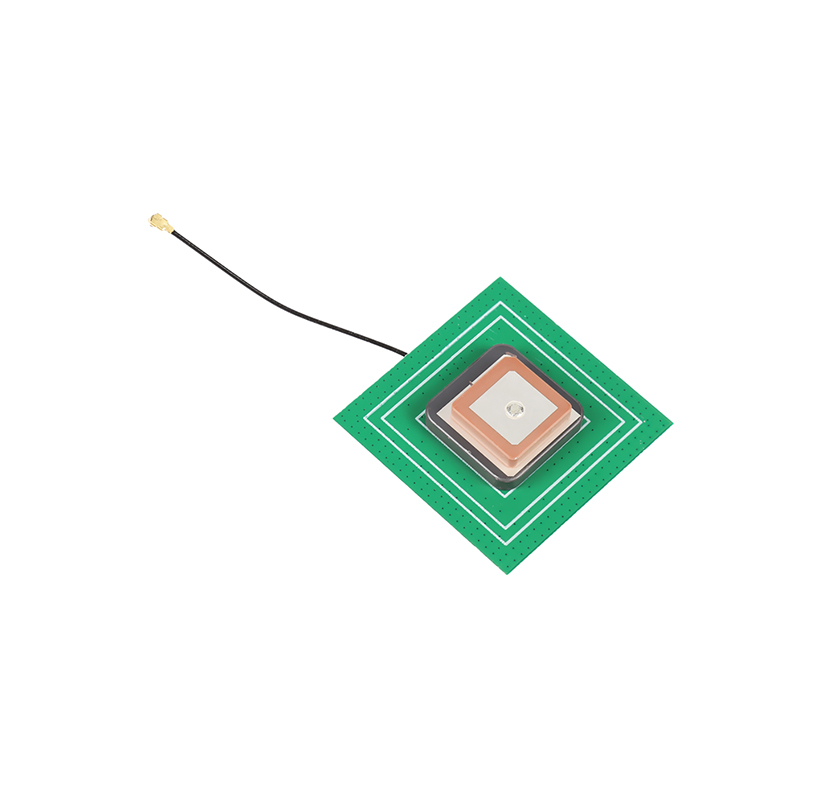

High precision GPS L5+L1 dual band Antenna passive ceramic Antenna 1176.45MHz /1575.42MHz Detail

Ceramic Antenna

High precision GPS L5+L1 dual band Antenna passive ceramic Antenna 1176.45MHz /1575.42MHz

Main specifications/performance: Frequency : GPS L5: 1176.45MHz GPS L1: 1575.42MHz Impedance:  50Ω Polarization type: RHCP Dimension : 50mm(L)×50mm(W) ×23mm(H) Connectors and cables: Customizable

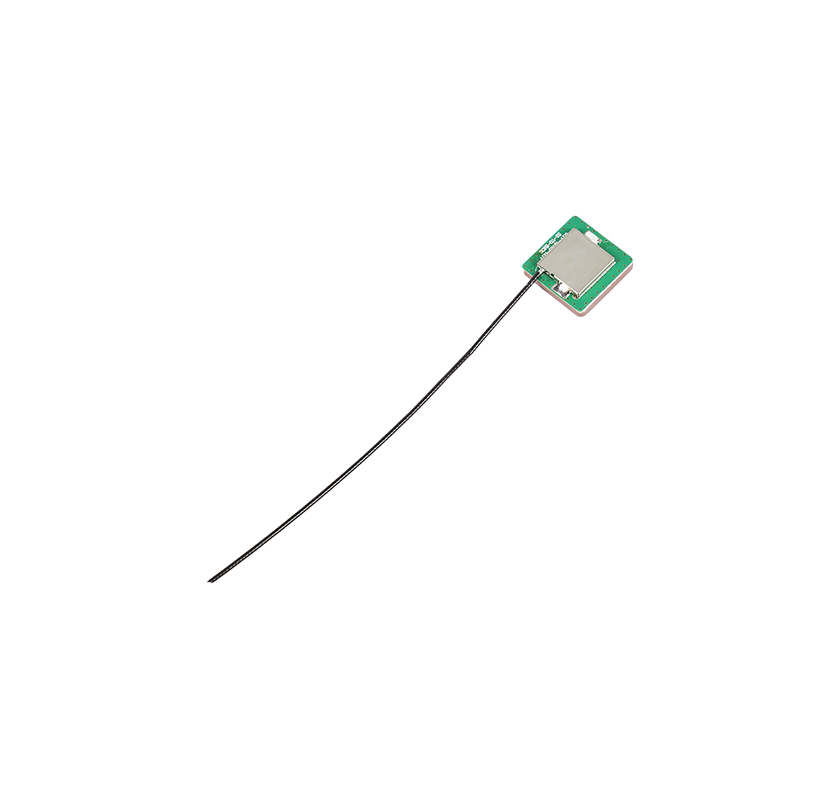

GPS Ceramic Antenna 0.5db For Geological Hazard Monitor Detail

Ceramic Antenna

GPS Ceramic Antenna 0.5db For Geological Hazard Monitor

Frequency :1559.05MHz-1605.89MHz Impedance:  50Ω Output VSWR: ≤2.0 max Dimension : 25mm(L)×25mm(W)×7.2mm(H) Connectors and cables: IPEX+φ1.13(150mm，Customizable)

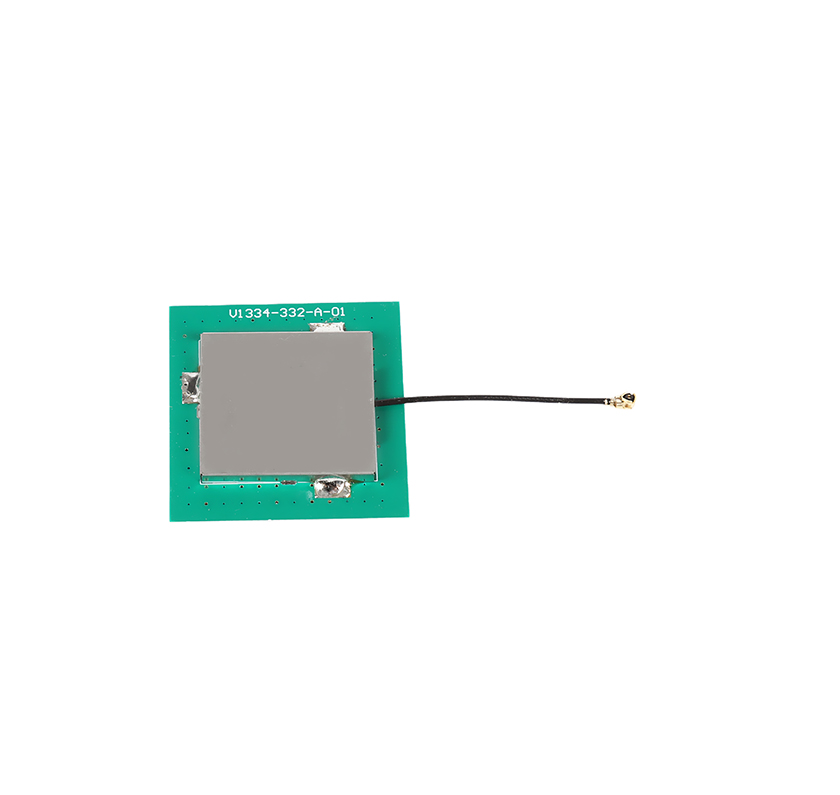

Built-in GPS Antenna: ceramic+PCB+wire Detail

Ceramic Antenna

Built-in GPS Antenna: ceramic+PCB+wire

Model:V1334-369-A-01 Frequency ：1561.098MHz~1575.42MHz Output VSWR： ≤2.0 Output Impedance： 50ohm Dimensions： 41mm(L)×43mm(W)×8.8mm(H) typ Peak Gain ≥1 dBi Efficiency ≥55% Polarization： R.H.C.P Customizable Applications: Car navigation systems, drones and robots, IOT trackers, high-end smart devices, emergency communication systems.
