Ceramic Antenna

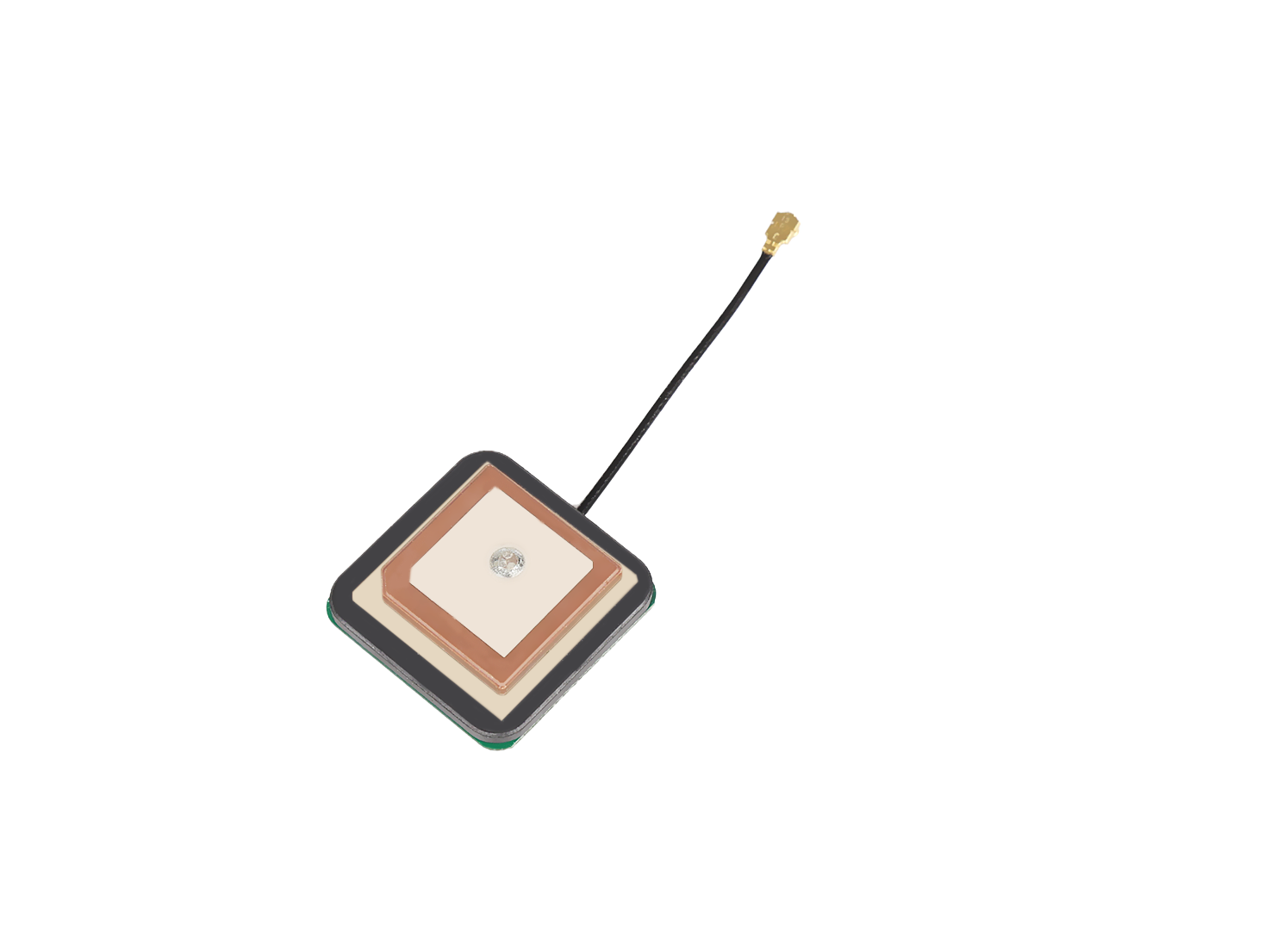

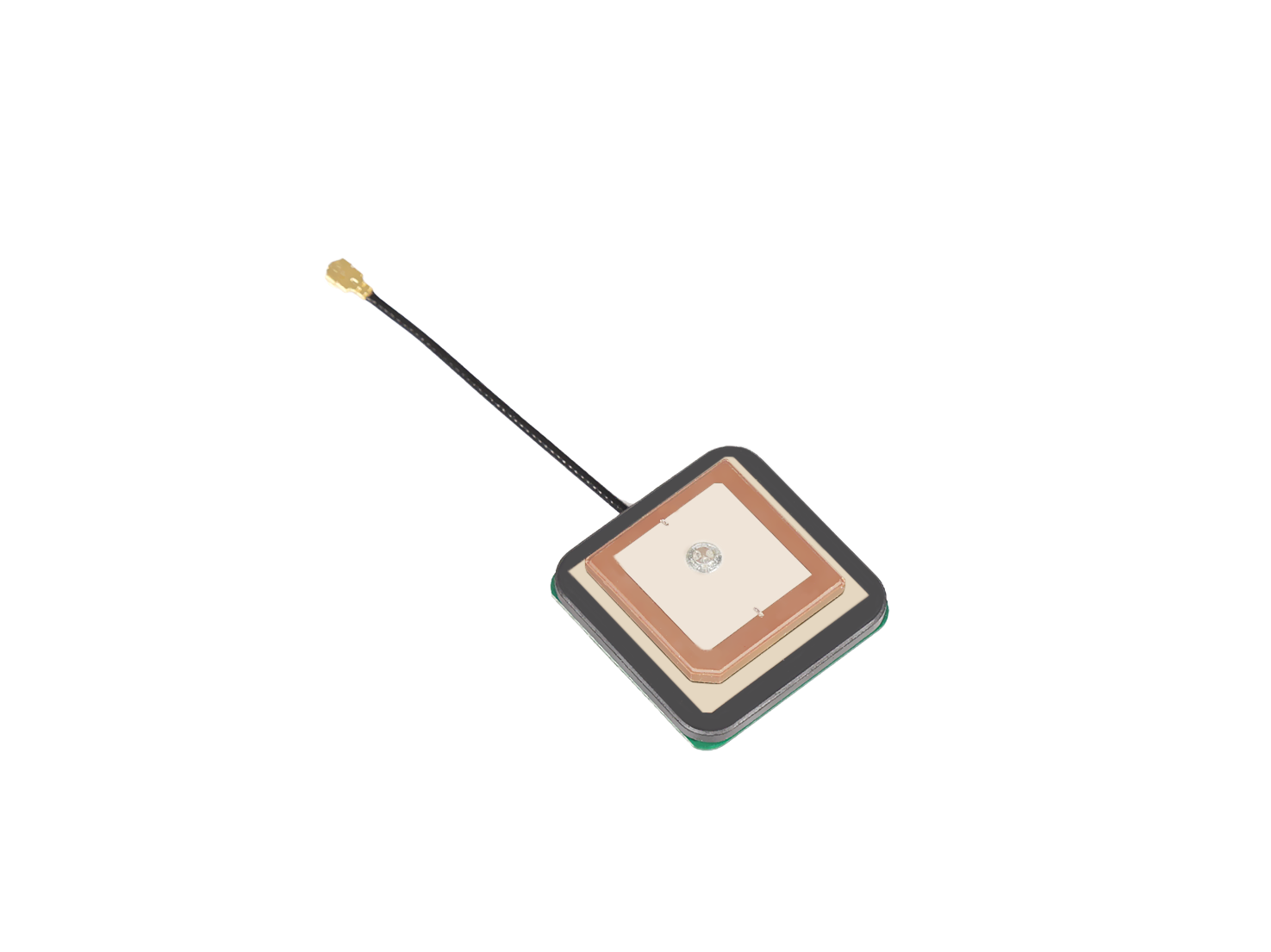

High Precision GPS GLONASS Active Ceramic Antenna 19dBi 18*25

GPS L5: 1176.45MHz

GPS L1: 1575.42MHz

Glonass L1:1602MHz

Impedance:  50Ω

Polarization type: RHCP

Dimension : 25mm(L)×25mm(W) ×11.9mm(H)

Connectors and cables: IPEX+φ1.13(Customizable)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactHigh Precision GPS GLONASS Active Ceramic Antenna 19dBi 18*25
26b929f63d79d7c
9ef25426c4cd3ef
b77c4950b06b

Overview

This is a high-efficiency ceramic antenna with the characteristics of light weight, low noise coefficient, low axial ratio, and high gain.



Suitable for: shared bicycles, drones, scooters, trackers, anti-theft devices, portable terminals, in car mobile terminals, various GPS modules OEM and GSM GPRS communication modules.

Key Features

• With the advantage of high sensitivity, this active antenna can significantly improve the ability to receive weak signals, especially suitable for environments with weak signals.



• Excellent anti-interference performance design, able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.

Specification

Passive Electrical Specifications:
Frequency Range: GPS L5: 1176.45MHz/GPS L1: 1575.42 MHz/Glonass L1:1602MHz
Input Impendence: 50Ω
VSWR: ≤ 3.0
Max Etotal Gain: GPS L5＞-3 dBi/GPS L1＞-1 dBi
Polarization Type: RHCP
LNA Electrical Properties:
Gain: 19±3 dBi
Noise Figure: ＜2.5 dB
Output VSWR: < 2.0
Impedance: 50Ω
Voltage: VDC2.7–3.3 V
Working current: ≤45mA@3V

Mechanical Specifications:

Working Temperature: -40 °C to +85 °C
Antenna Size: 25 × 25 ×11.9mm
Connectors and cables: IPEX+φ1.13(120 mm,Customizable)
Environmental protection: ROHS



Applications
