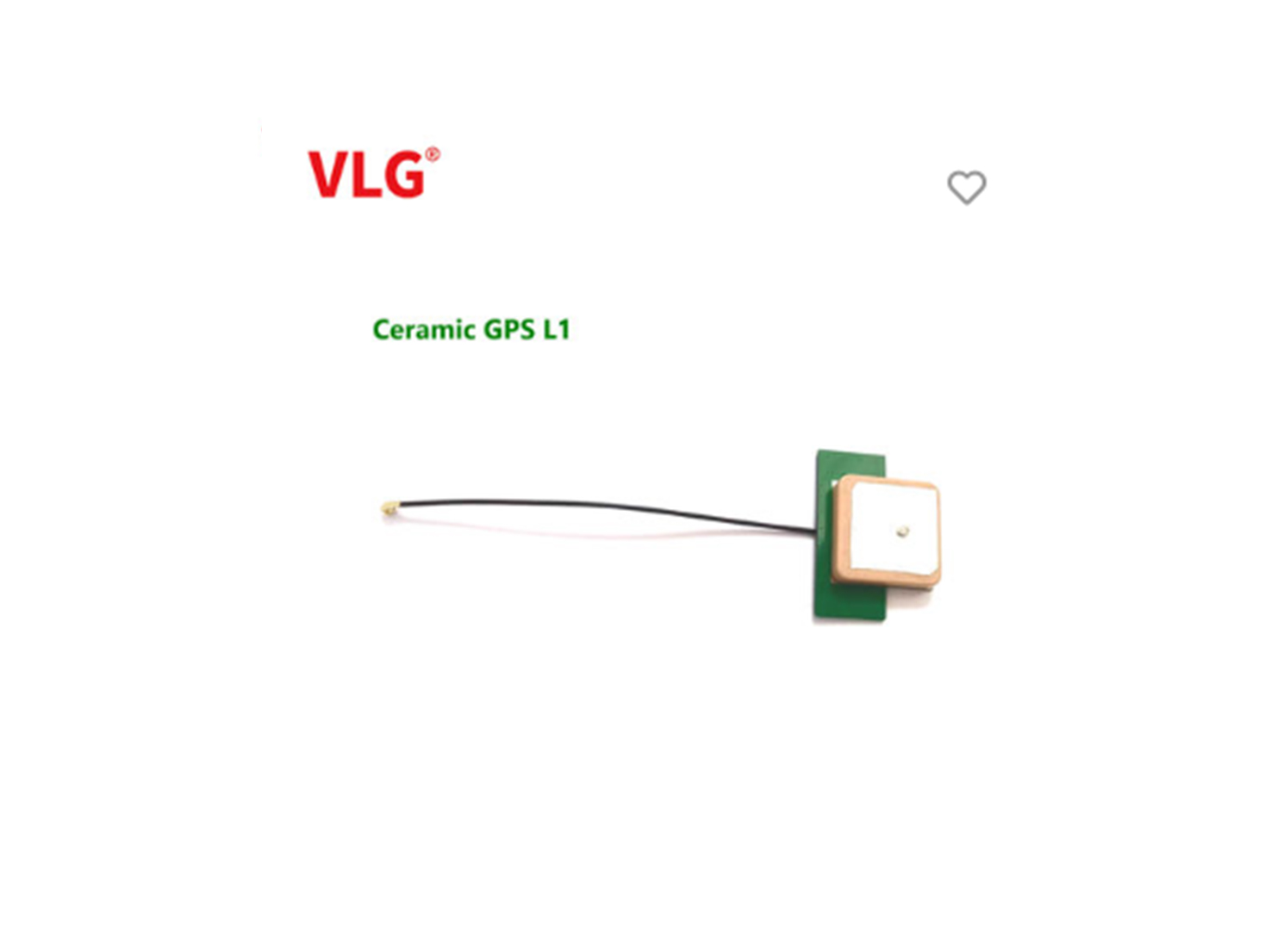

Ceramic Antenna

High efficiency 1575 – 1602MHz GPS L1 ceramic Antenna

V1831-233-A-01

Frequency :1575–1602 MHz

Impedance:  50Ω

Gain (LNA): L1:16±2dBi

Dimension : 40.38mm(L)×28.87mm(W)×7.6mm(H)

Connectors and cables: IPEX+φ1.13(Customizable)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactHigh efficiency 1575 – 1602MHz GPS L1 ceramic Antenna
ff224229e15285e
d30d80929bb2e20
3b405d4b8981e53

Overview

This antenna is a high-performance antenna integrated with ceramic materials. It has excellent signal reception capability and stability. It can accurately capture GPS signals in complex environments and achieve precise positioning and navigation functions. At the same time, its small size, light weight and low power consumption make it one of the indispensable components in modern portable electronic devices.

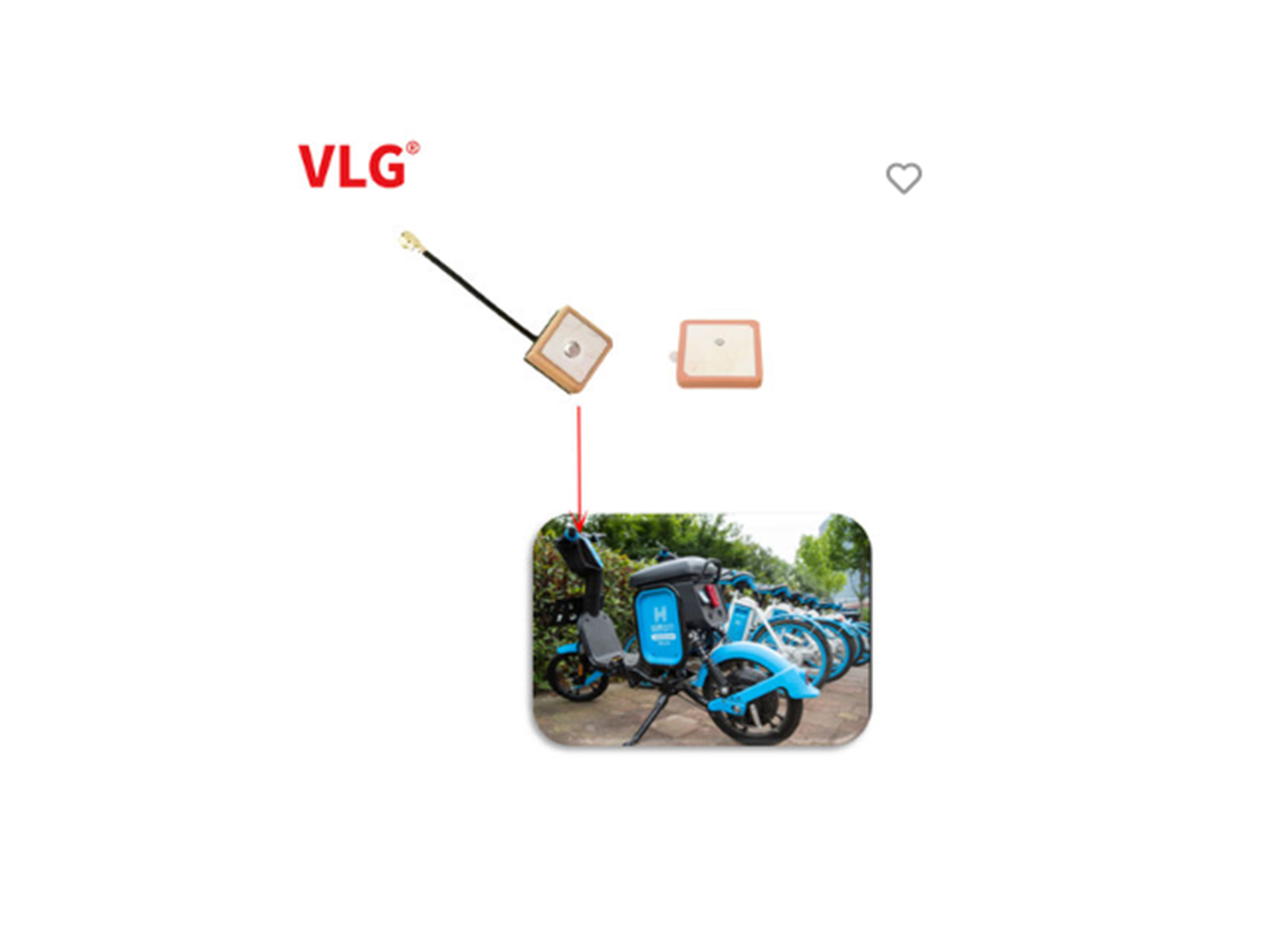

Suitable for: shared bicycles, drones, scooters, trackers, anti-theft devices, portable terminals, in vehicle mobile terminals, etc.

Key Features

• With the advantage of high sensitivity



This active antenna can significantly improve the ability to receive weak signals, especially suitable for environments with weak signals.



• Excellent anti-interference performance design



Able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.



Specification

Passive Electrical Specifications
Frequency Range L1: 1575–1602 MHz
Input Impedance 50Ω
VSWR ≤2
Peak Gain ≤ 0.5dBi
Efficiency ≤ 70%
Polarization Type RHCP
Active Electrical Specifications
Gain (LNA) L1:16±2dBi
Output VSWR ≤ 2.0
Operation Voltage 2.7–3.6V
Current < 28 mA
Mechanical Specifications
Working Temperature -40 °C to +85 °C
Antenna Size 40.38 × 28.87 ×7.6mm
Connectors and cables IPEX+φ1.13(Customizable)
Environmental protection ROHS

Applications
