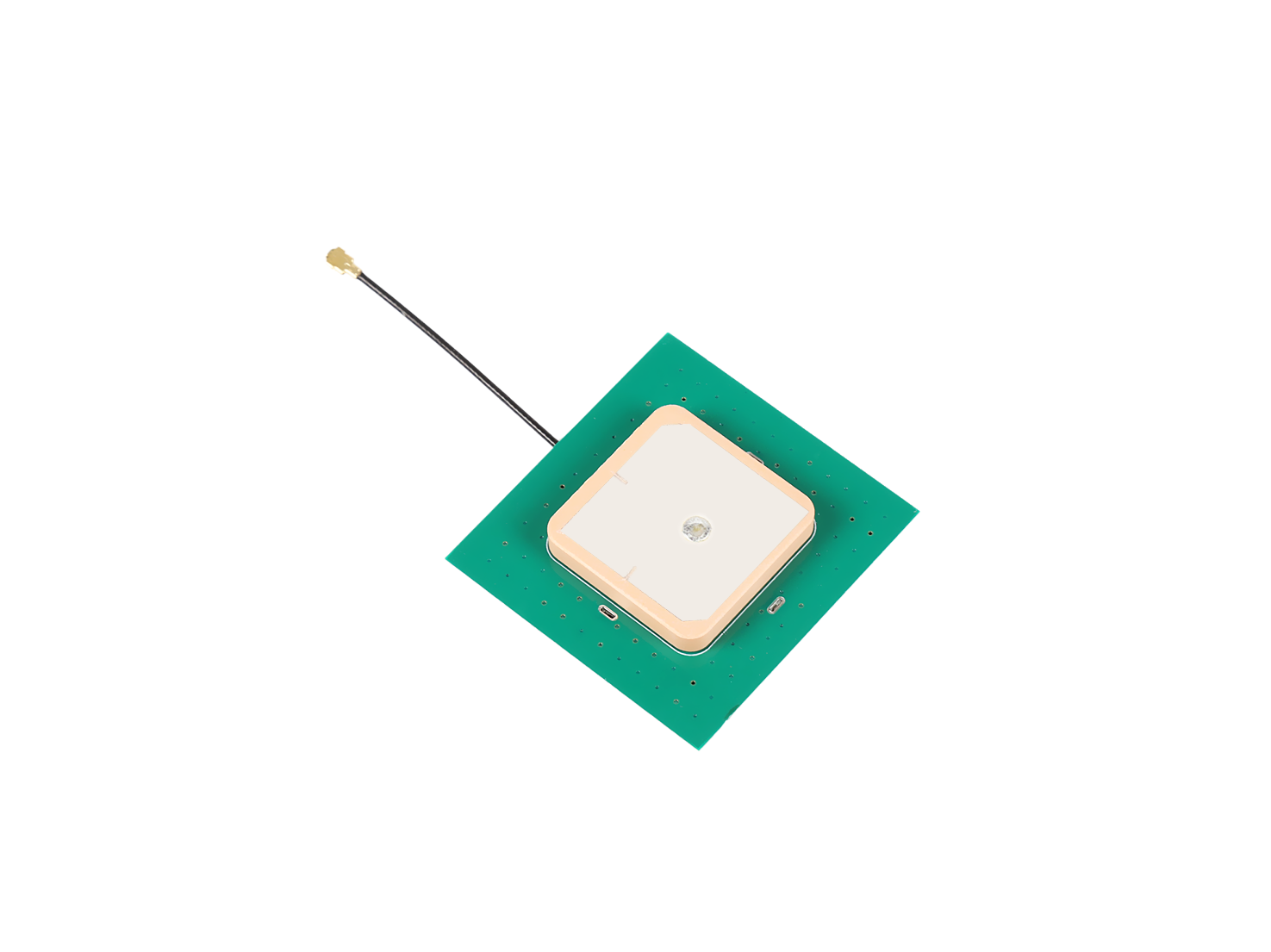

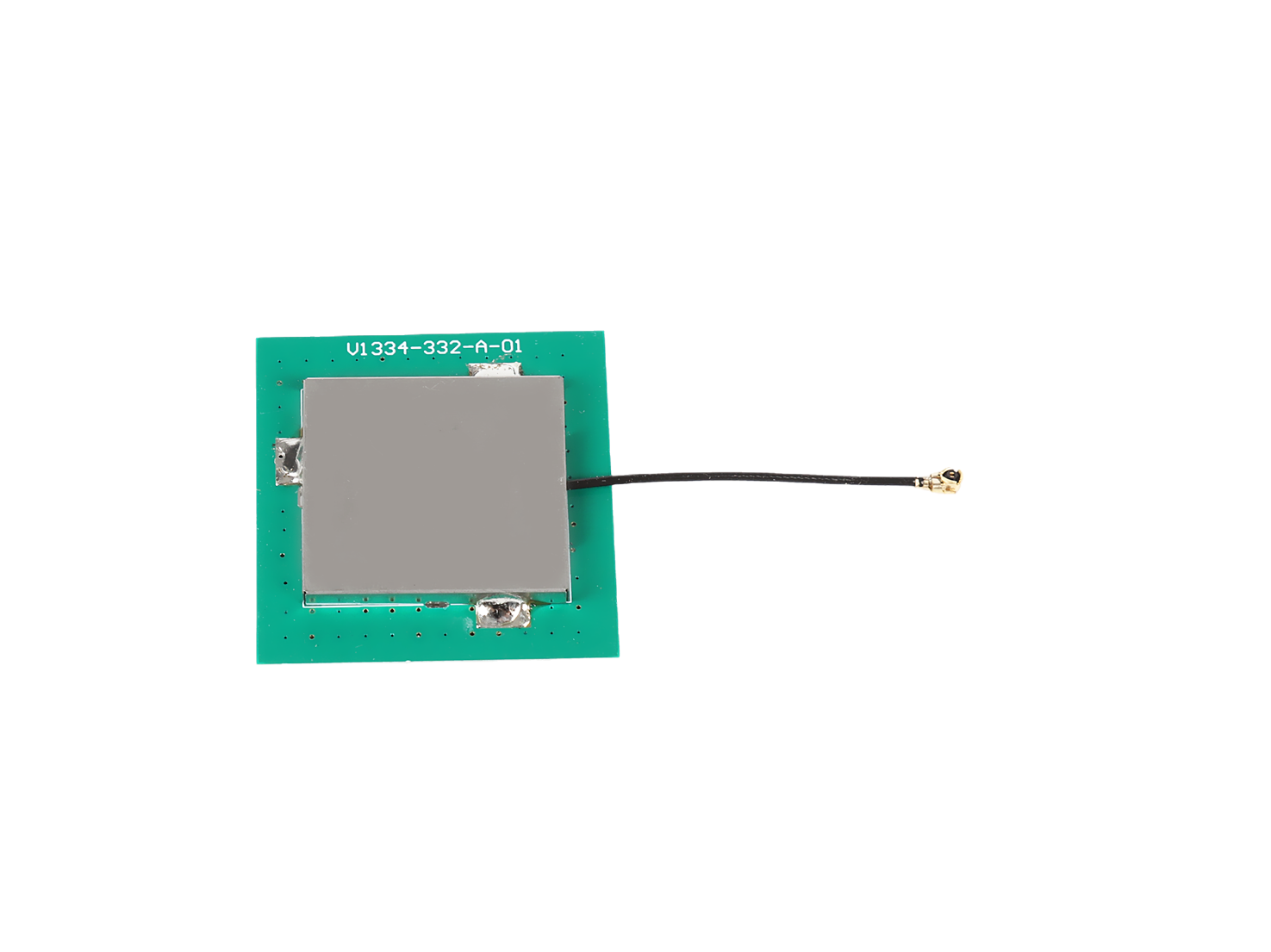

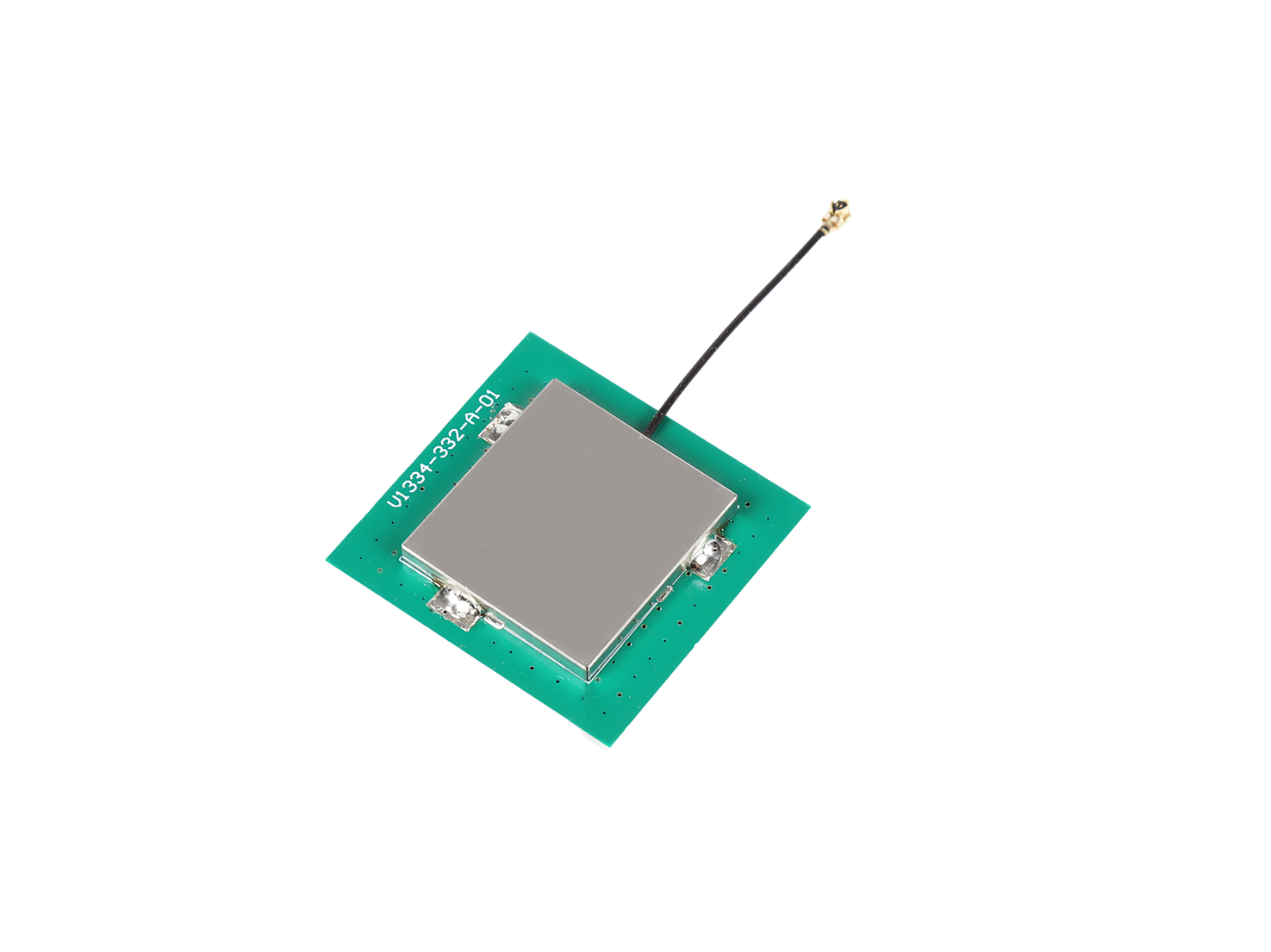

Built-in GPS Antenna: ceramic+PCB+wire

Ceramic Antenna

Built-in GPS Antenna: ceramic+PCB+wire

Model:V1334-369-A-01

Frequency ：1561.098MHz~1575.42MHz

Output VSWR： ≤2.0

Output Impedance： 50ohm

Dimensions： 41mm(L)×43mm(W)×8.8mm(H) typ

Peak Gain ≥1 dBi

Efficiency ≥55%

Polarization： R.H.C.P

Customizable

Applications: Car navigation systems, drones and robots, IOT trackers, high-end smart devices, emergency communication systems.

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

This antenna is a passive ceramic antenna designed for GPS systems, with excellent electrical performance and compact size. Its central operating frequency range covers 1561.098MHz to 1575.42MHz, perfectly matching the GPS signal frequency band. The voltage standing wave ratio (VSWR) of the antenna does not exceed 2.0, ensuring efficient transmission and reception of signals and reducing energy reflection and loss.

Key Features

• Broadband coverage

The central operating frequency range is wide, covering 1561.098MHz to 1575.42MHz, suitable for a variety of wireless communication protocols.

• Low standing wave ratio

The output voltage standing wave ratio (VSWR) is ≤2.0, which ensures efficient energy conversion during signal transmission and reduces signal reflection and energy loss.

• Standard impedance

The output impedance is 50 ohms, which is compatible with most wireless communication devices on the market and is easy to integrate and connect.

• Efficient gain

The peak gain is ≥1dB, which effectively enhances the radiation intensity and coverage of the signal.

• Right-hand circular polarization

The R.H.C.P (right-hand circular polarization) method is adopted to enhance the anti-interference ability of the signal, especially in complex multipath propagation environments.

• Wide temperature operation

It can work stably in a wide temperature range of -40℃ to +80℃, and adapt to various extreme climatic conditions.

• Compact design

The overall size is 41mm (L) × 43mm (W) × 8.8mm (H). Combined with the small internal ceramic components, the antenna is small in size, light in weight, and easy to install and integrate.

Specification

Frequency	1561.098MHz~1575.42MHz
Output VSWR	≤2.0
Output Impedance	50ohm
Peak Gain	≥1 dB
Dimensions	41mm(L)×43mm(W)×8.8mm(H)
Polarization	R.H.C.P
Efficiency	≥55%
Temperature	-40℃ to +80℃

Applications

1.Shared bicycles and scooters

Provide GPS positioning function for shared bicycles and scooters to help users accurately find the location of the vehicle and optimize the pick-up and return process.

2. Car navigation system
Provide accurate GPS positioning services for vehicles to ensure accurate navigation information.

3. Drones and robots
Support accurate positioning and communication of drones and robots during flight or movement to ensure smooth execution of tasks.

4. Internet of Things devices
Such as smart logistics trackers, asset positioning tags, etc., to achieve remote monitoring and real-time tracking.
