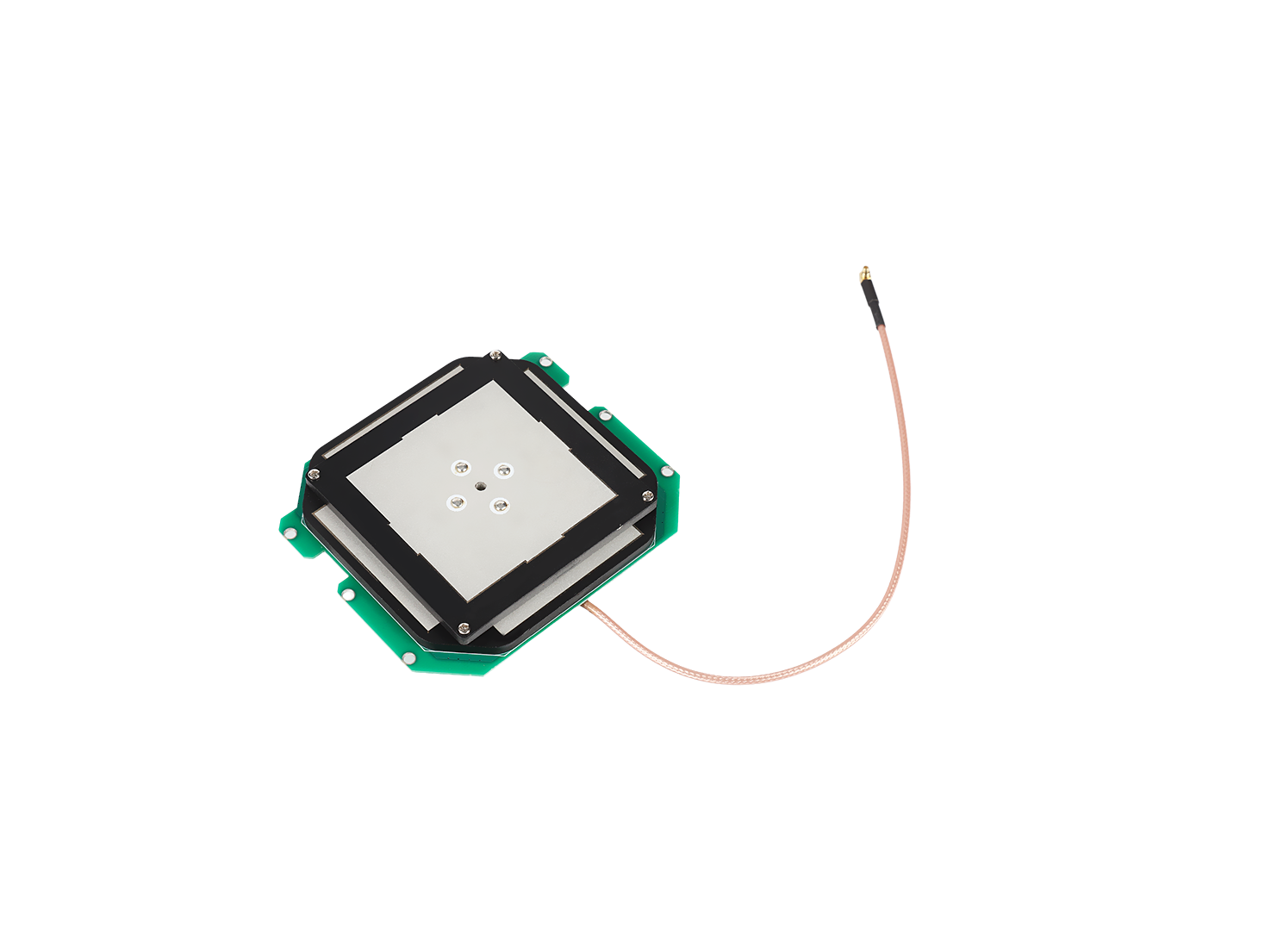

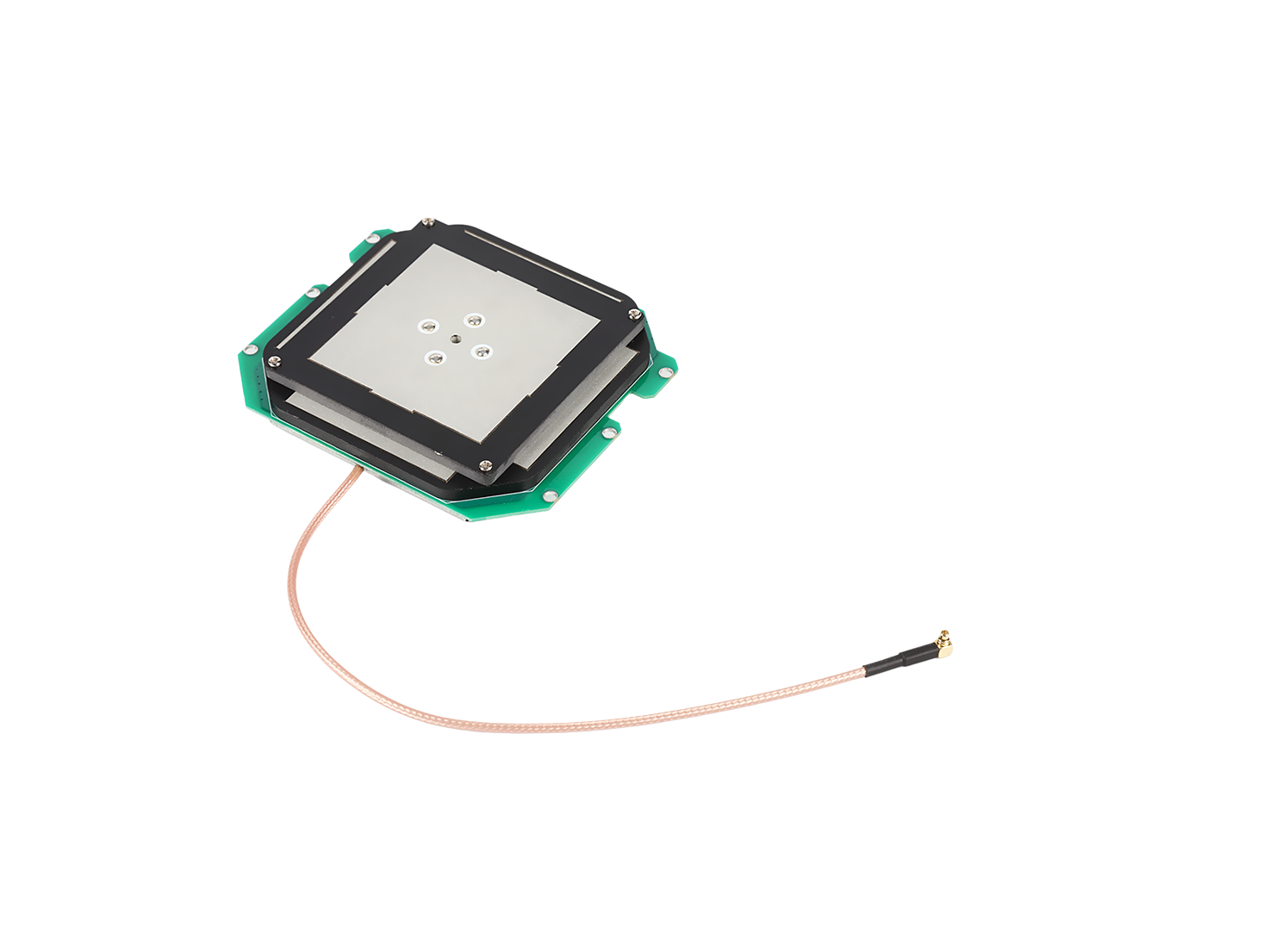

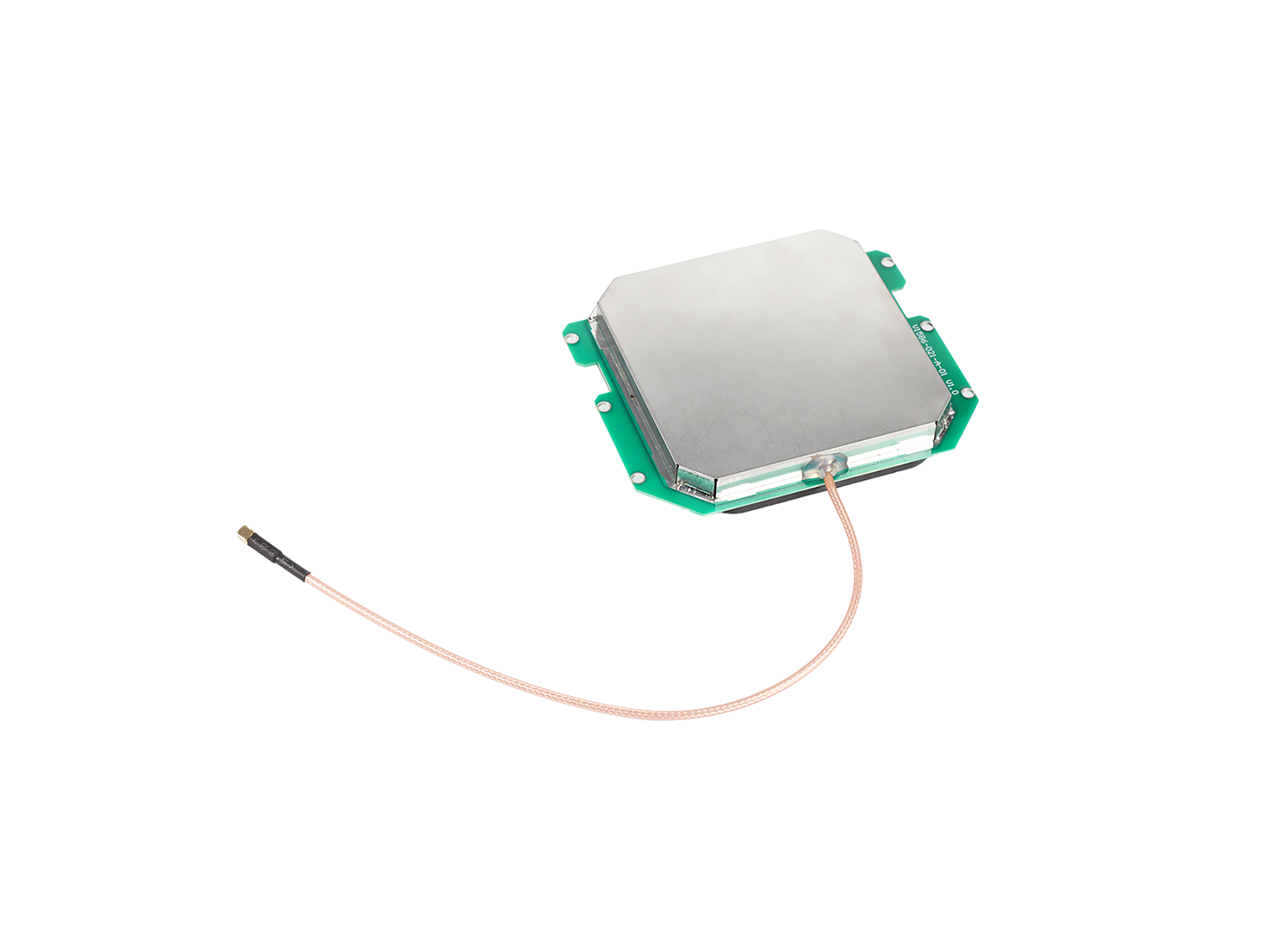

Built-in Antenna High-precision positioning Antenna full frequency band

Overview

The antenna supports multiple satellite signal frequency bands including GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2 and Galileo E1/E5a/E5bz, and is suitable for a variety of high-precision positioning, navigation and timing (PNT) applications. By optimizing electrical performance and structural design, the antenna achieves miniaturization, high integration and easy installation while ensuring signal reception quality.

Key Features

• Multi-band support

The antenna supports the frequency bands of multiple GNSS systems, ensuring reliable satellite signal reception worldwide.

• High-performance LNA

The built-in low-noise amplifier (LNA) has a low noise figure and high gain, which effectively improves the sensitivity and anti-interference ability of signal reception.

• Good electrical performance

The output standing wave ratio (VSWR) is low and the output impedance matching is good, which ensures efficient signal transmission. At the same time, the antenna has high efficiency and low axial ratio, which helps to improve positioning accuracy.

• Miniaturized design

The antenna is compact in size and suitable for integration in miniaturized devices such as tablets, car navigation systems, etc.

• Excellent out-of-band suppression performance

Through the carefully designed filter, the antenna has excellent suppression performance in the out-of-band frequency band, which effectively reduces the impact of interference signals.

• Lightning surge protection

The antenna has lightning surge protection function, which improves the reliability and safety of the equipment.

Specification

1.Passive Electrical Specifications
CHARACTERISTICS	SPEC
Center Frequency	GPS L1/L2/L5、BDS B1/B2/B3、GLONASS L1/L2、Galileo E1/E5a/E5bz
Output VSWR	≤2.0 max
Output Impedance	50ohm
Peak Gain	≥1dBi
Efficiency	≤65%
Axial Ratio	≤3
Polarization	R.H.C.P
2.LNA Electrical Properties
CHARACTERISTICS	SPEC
Frequency Range	GPS L1/L2/L5、BDS B1/B2/B3、GLONASS L1/L2、Galileo E1/E5a/E5bz
LNA Gain	40±2 dB
Output V.S.W.R	2.0dB max
Voltage Range	3.3 V ~ 5.5 V
Current	15~45 mA
Impedance	50 Ω
GNSS Passband Ripple (dB)	<2
GNSS Noise Figure (dB)	<2
GNSS Out of Band Rejection (dBc)	f0 =1561.098MHz-30MHz：≥12
	f0 =1561.098MHz-50MHz：≥35
	f0 =1561.098MHz-100MHz：≥50
	f0 =1602MHz+30MHz：≥12
	f0 =1602MHz+50MHz：≥35
	f0 =1602MHz±100MHz：≥50
Surge resistion	5ka differential mode 8/20us ±5 times
3.Mechanical Specifications
Dimensions(mm)	1049218.3（H）
Cable	RG316
Connector	MMCX
Working Temperature	-40℃ to +85℃

Applications

1.High-precision positioning applicationssuch as self-driving cars, drones, robots and other devices that require high-precision location information.

2. Portable navigation devices

such as tablets, handheld GPS navigators, etc., require miniaturized, high-performance antennas to support global satellite signal reception.

3. In-vehicle navigation systems

provide accurate navigation and positioning services for vehicles to help drivers plan the best driving routes.

4. Internet of Things (IOT) devices

provide reliable positioning and data transmission services for various IOT devices in smart cities, agriculture, logistics and other fields.

5. Outdoor adventure and sports navigation and positioning equipment

provide accurate positioning and navigation support for outdoor enthusiasts such as hikers, climbers, skiers, etc.
