首页图标Home >  Product > IOT Antenna > 2G、3G、4G 、5G built-in antenna
a6d23727408515f
676166813e082f3
2G、3G、4G 、5G built-in antenna

NFC Antenna 42*32*0.27mm with a Reverse Ferrite Layer And adhesive backing

NFC antenna for near-field communication and mobile payments

Frequency ：  13.56Mhz

Inductance: 2.0uH

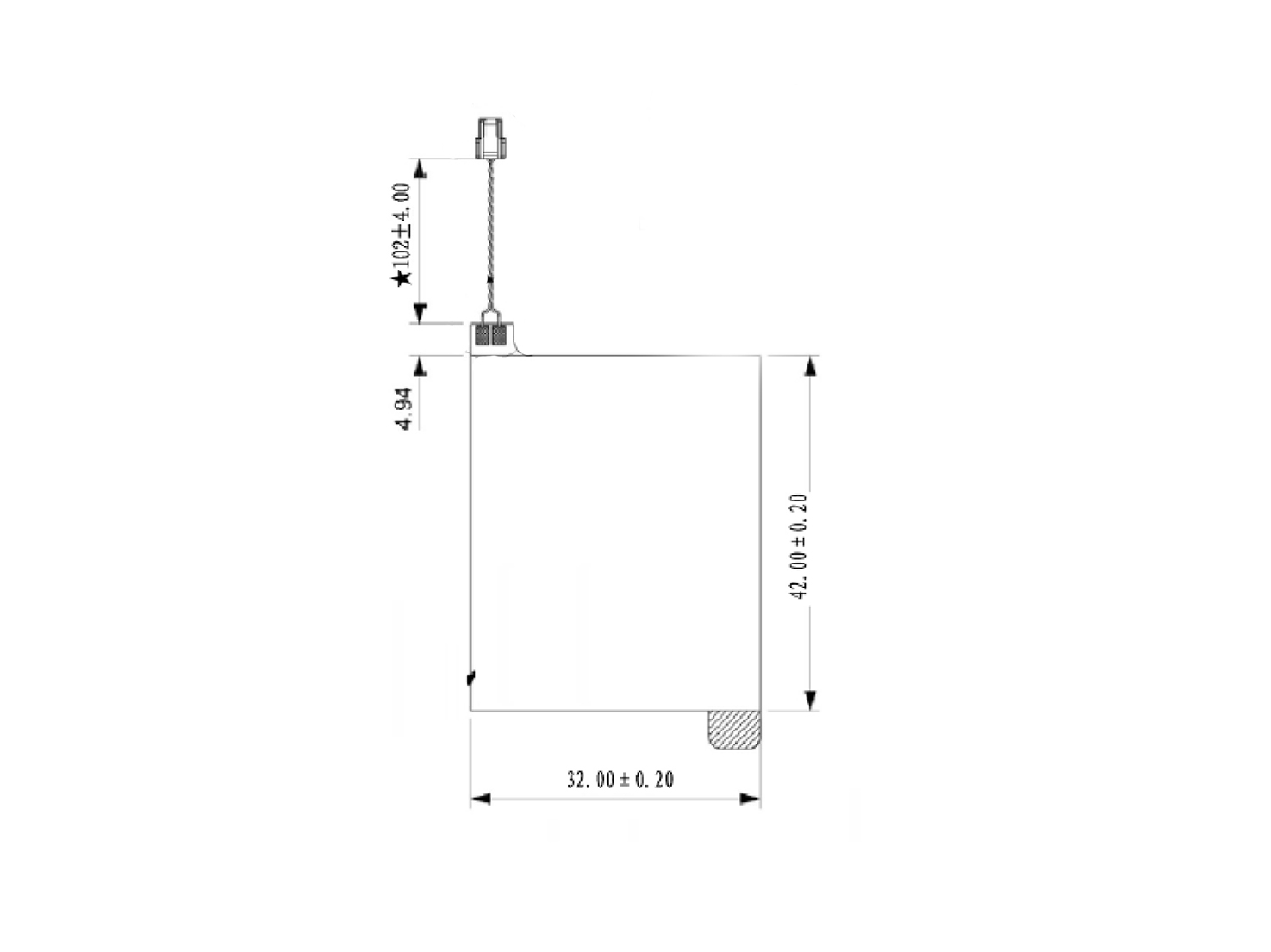

Dimension :   42mm(L)×32mm(W)×0.27mm(H)

Cable length and spec: 102mm (28AWG ，Customizable）

Flexible Polymer Adhesive

Layered with an Upward-Facing Ferrite Flux Director



Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactNFC Antenna 42*32*0.27mm with a Reverse Ferrite Layer And adhesive backing
5434c093f7868c8
a6d23727408515f
676166813e082f3

Overview

NFC can exchange data in close proximity to each other by integrating inductive card readers, inductive cards, and point-to-point communication functions on a single chip Suitable for: Mobile payment, electronic ticketing, access control, mobile identity recognition, anti-counterfeiting and other applications

Key Features

• Double sided NFC antenna, widely used in NFC applications with superior performance



• Small size and flexible installation, Size:  42×32×0.27mm, Adhesive and magnetic



• Wide application,Various models, Mobile payment, access control, and mobile identity recognition

Specification

Electrical/mechanical parameters:
Basic information: Double sided 2.0uH NFC antenna with mini lock connector
Frequency: 13.56Mhz
Inductance: 2.0uH
Cable Length: 102mm(Customizable)
Length: 42mm
Width: 32mm
Thickness: 0.27mm
Installation method: Adhesive
Cable: 28AWG
Environment protection: ROHS

Applications

1716292084285017

Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)
