Four-port Wall Mounted Antenna

Indoor coverage antenna

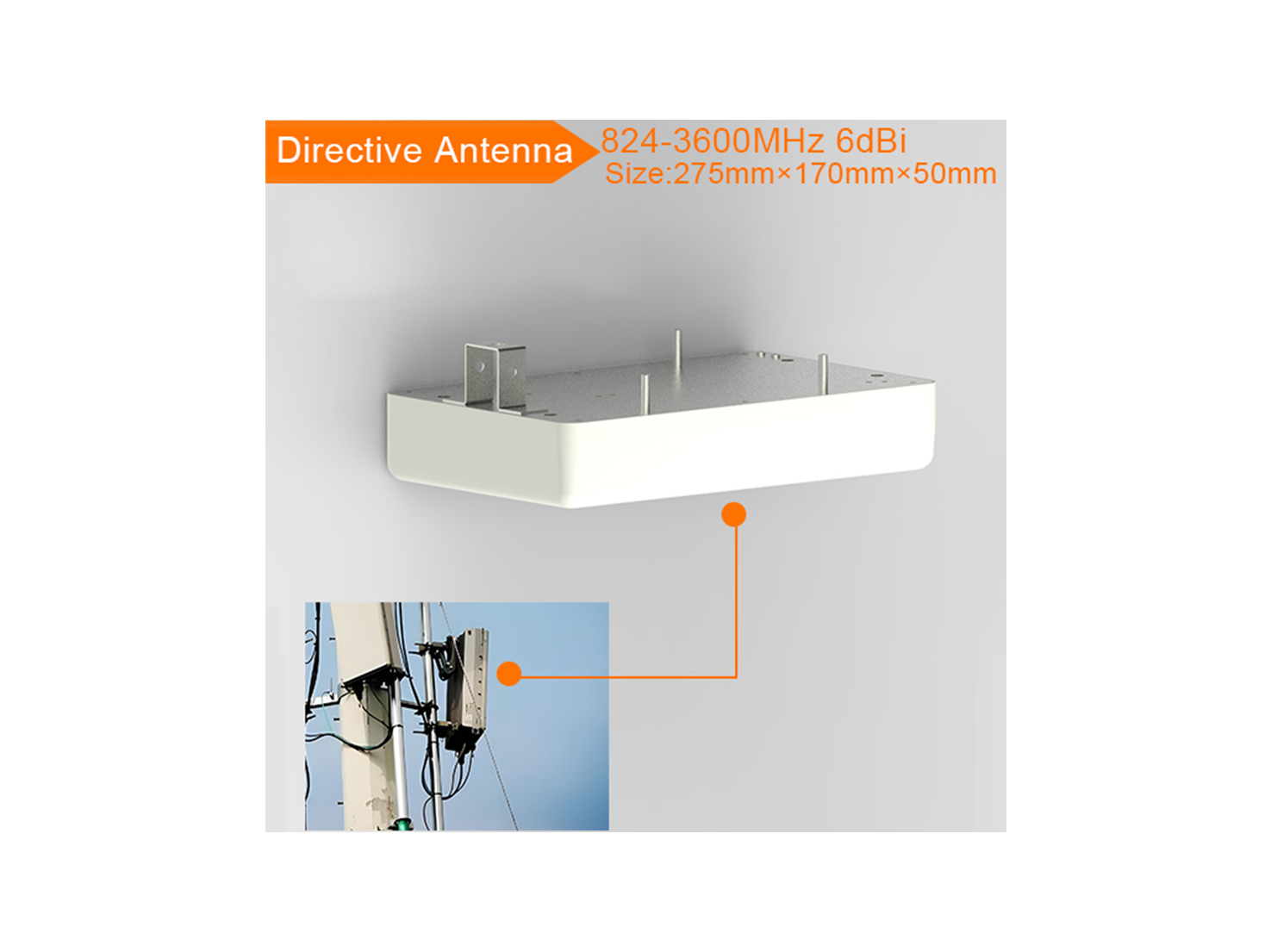

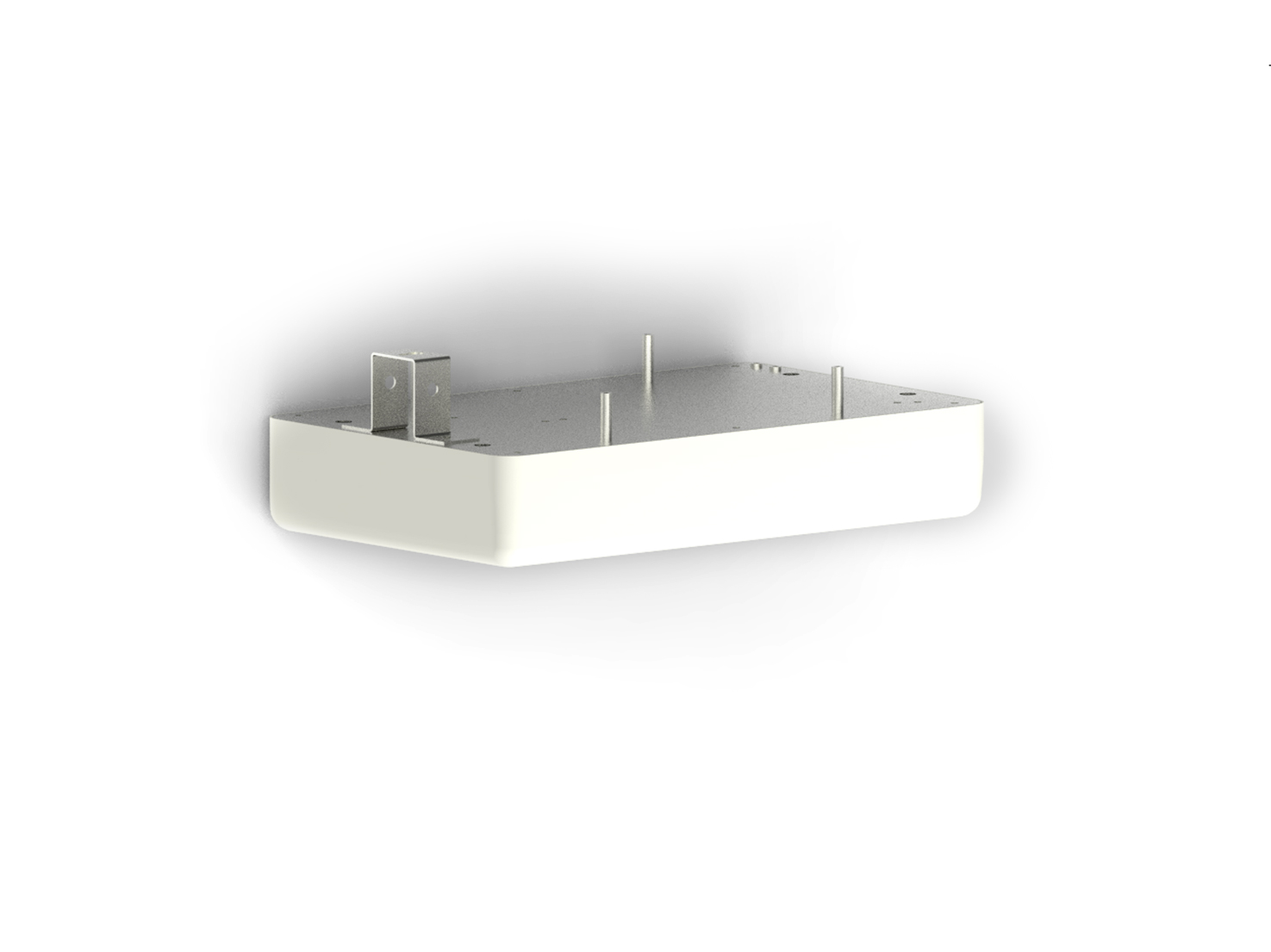

Four-port Wall Mounted Antenna

Model:V2235-014-A-01

Frequency Rang: 805-960MHz & 1710-2690MHz 1710-2690MHz 3300-3600MHz 3300-3600MHz

VSWR ≤:1.8

Isolation (dBi): ≤-25dBi

Efficiency: 60%

Gain (dBi): 5.5dBi (824-960MHz) 6dBi (1710-2690MHz);6dBi (3300-3600MHz)

Size:275mm x170mm x50mm

Port model:4*MCX Direct male head

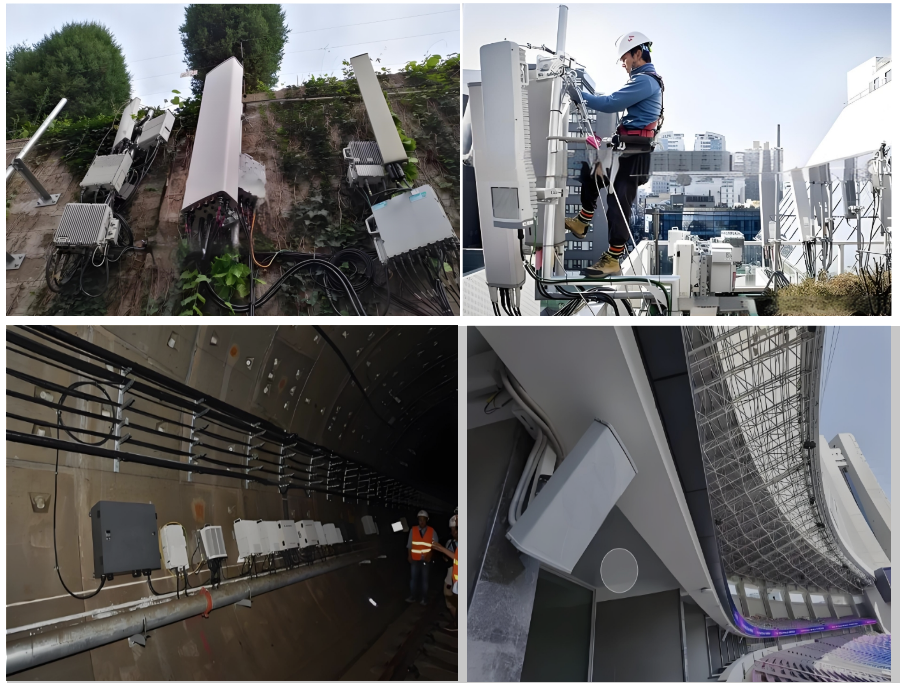

Application：Mobile communication networks, wireless network coverage, Internet of Things (IOT) deployment and other areas provide broad signal coverage and optimiz

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

Four-port wall mounted antenna wireless communication equipment with four independent signal output ports, wall mounted, easy deployment and use in a variety of environments, support multi-band, 805-960MHz, 1710-2690MHz and 3300-3600MH, in mobile communication networks, wireless network coverage, Internet of Things (IOT) deployment and other fields, Provides wide coverage and optimizes network performance.

Key Features

• Multi-band support

Supports operations in multiple bands at the same time

• Efficient performance

It can provide efficient wireless signal transmission performance, reduce signal attenuation and interference, and improve communication quality

• Flexibility

Signal coverage and performance can be optimized by adjusting antenna parameters such as direction, Angle and power, which can be configured and adjusted according to actual needs

• Easy installation and maintenance

it can be easily fixed on the wall, ceiling and other positions, through a simple connection with the wireless communication system integration.

Specification

parameter (unit)	Port 1	Port 2	Port 3	Port 4
Frequency Rang（MHz）	805-960MHz & 1710-2690MHz	1710-2690MHz	3300-3600MHz	3300-3600MHz
VSWR	≤1.8
Isolation(dB)	≤-25dB
Efficiency	60%
Gain(dBi)	5.5dBi（824-960MHz）；6dBi（1710-2690MHz）；		6dBi
connector	4*MCX Direct male head
Size（mm）	275 x170 x50
