Embedded NFC Antenna Solutions for IoT & Payment Devices

Many smart devices fail not because of software, but because of unstable wireless performance inside compact structures. When signal coupling is weak, systems such as payment terminals, IoT modules, and access control devices may experience delays or communication loss.

A well-designed embedded antenna solves this issue by integrating RF functionality directly into the device structure. It ensures stable near-field communication while saving internal space.

VLG, founded in 2005, develops RF and antenna solutions for global industries. With ISO9001, ISO14001, and IATF 16949 certification systems, VLG supports OEM and ODM projects across IoT, automotive, and smart device markets.

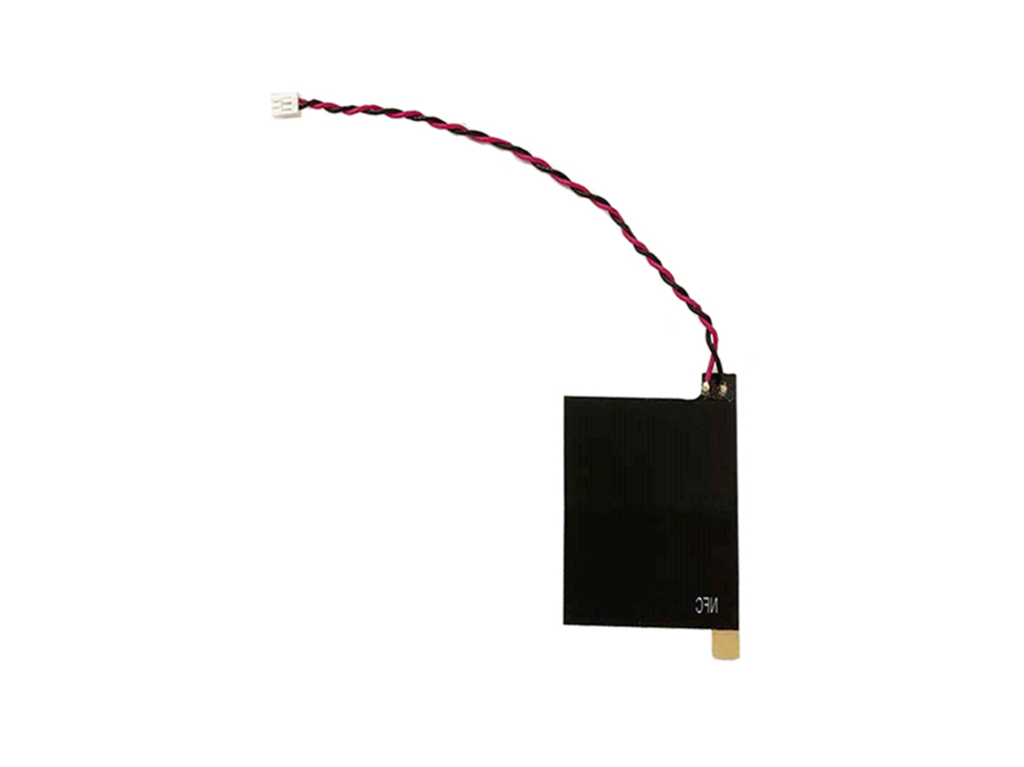

Embedded Antenna for NFC Communication Systems

The NFC antenna solution operates at 13.56MHz, which is the global standard for near-field communication.

Key specifications include:

• Frequency: 13.56MHz
• Inductance: 2.0uH
• Size: 42 × 32 × 0.27mm
• Flexible adhesive installation

This type of antenna is widely used in:

• Mobile payment terminals
• Smart access control systems
• Identity authentication devices
• IoT communication modules

According to NFC Forum technical standards, coil design and inductance matching directly affect communication efficiency.

Key Features of VLG Embedded NFC Design

VLG focuses on integration-friendly antenna engineering for compact electronics.

Product features:

• Double-sided coil structure
• Ferrite layer for signal stability
• Flexible polymer adhesive backing
• Custom 28AWG cable length (102mm standard)
• ROHS-compliant materials

These features improve signal consistency in dense electronic environments.

Embedded vs External Antenna Comparison

Embedded structures are preferred in compact smart devices where space efficiency matters.

Embedded Antenna Manufacturing Process

VLG uses a controlled RF development process to ensure stability and repeatability.

Process steps:

1. Application requirement analysis
2. RF coil simulation
3. Prototype development
4. Inductance tuning
5. Adhesive + ferrite optimization
6. Mass production under IATF 16949

Each unit is tested to ensure stable electrical performance before shipment.

Application Scenarios

VLG antenna solutions are used in:

• NFC mobile payment systems
• Smart access control devices
• RFID identification terminals
• Electronic ticketing systems
• IoT smart modules

In payment systems, stable near-field coupling ensures fast and secure authentication.

Certifications & Manufacturing Reliability

VLG ensures global production reliability through:

• ISO9001 quality management system
• ISO14001 environmental system
• IATF 16949 automotive-grade standard
• Amazon SPN supply chain capability
• FMC-aligned export support system

These systems support long-term OEM cooperation and stable delivery performance.

FAQ

1. What is an embedded antenna used for?

It is used inside devices to enable NFC, RFID, IoT, and mobile payment communication.

2. What frequency does this NFC antenna use?

It operates at 13.56MHz, the global NFC standard frequency.

Conclusion

A high-performance embedded antenna is essential for stable NFC and IoT communication systems. VLG combines RF engineering expertise, certified manufacturing, and global R&D capability to deliver reliable antenna solutions for smart devices and payment systems.
