RFID antenna

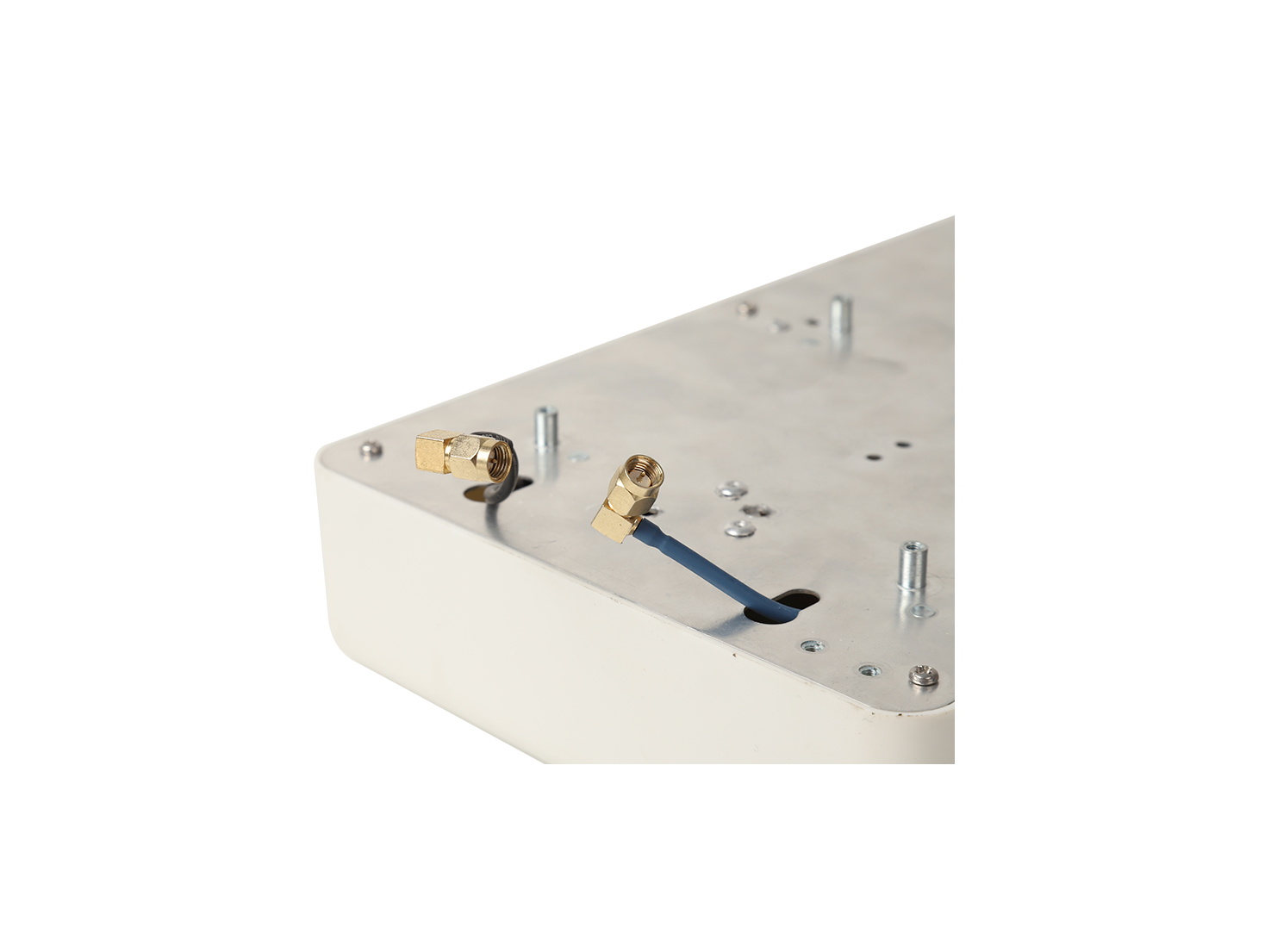

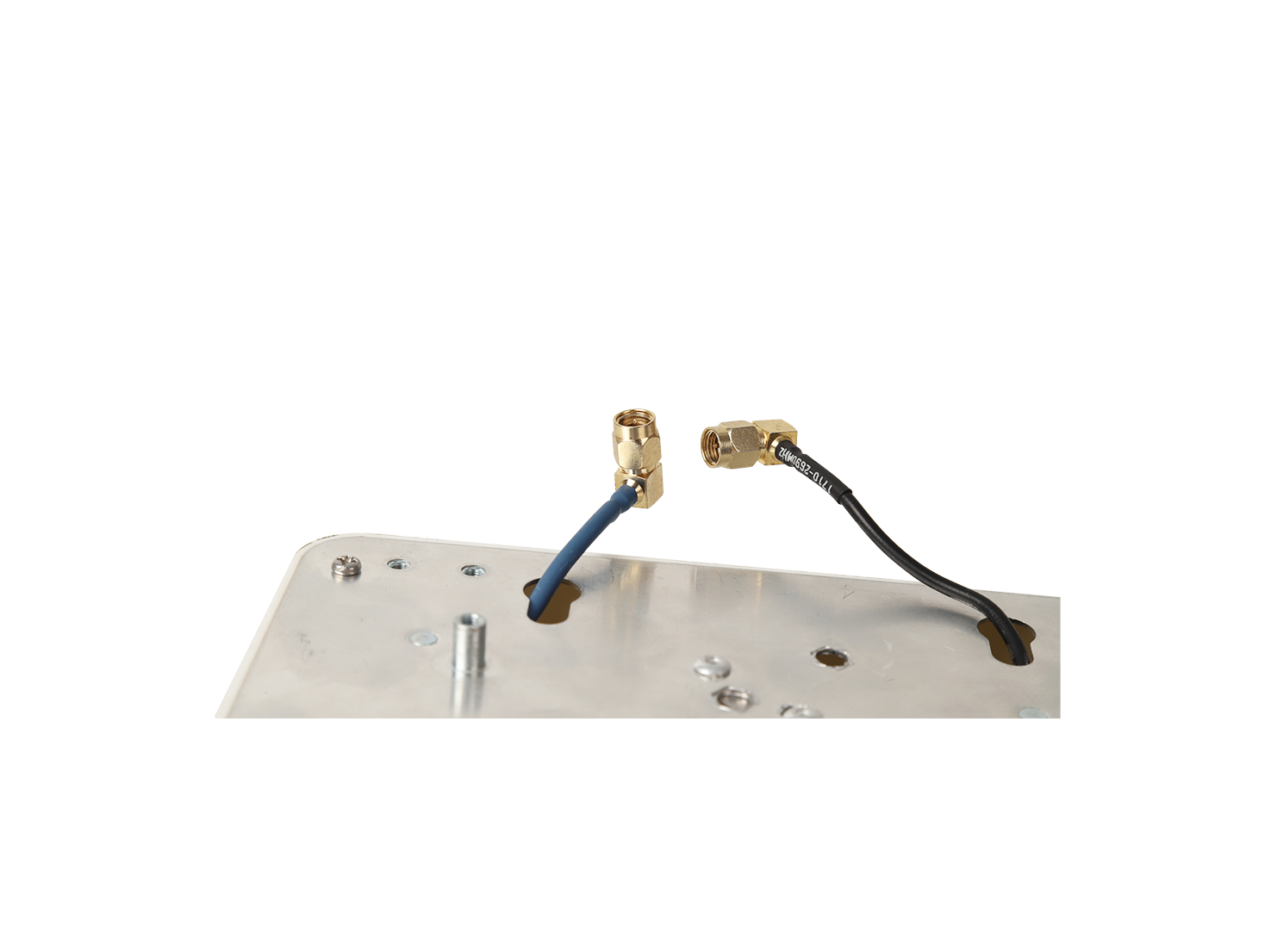

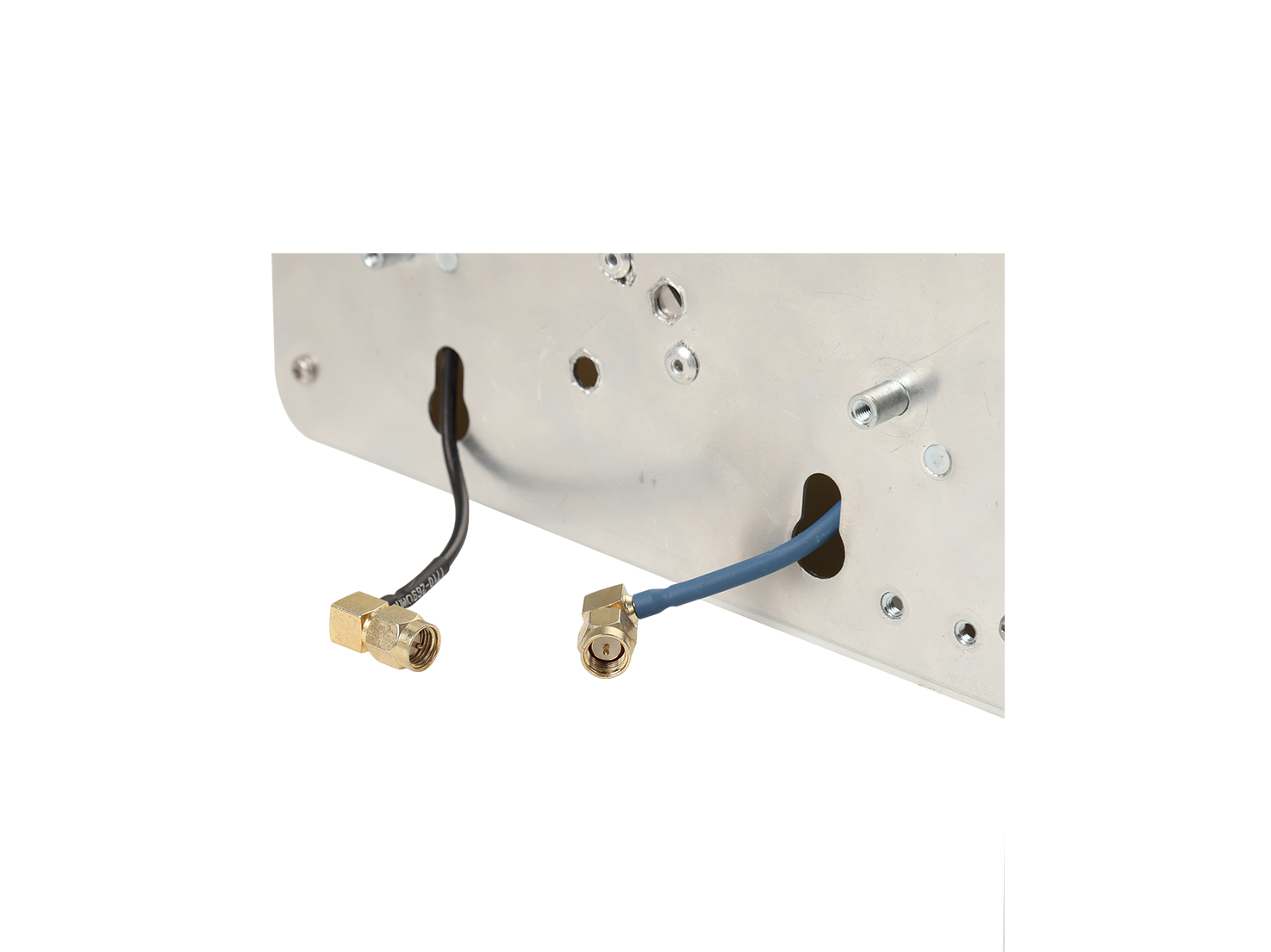

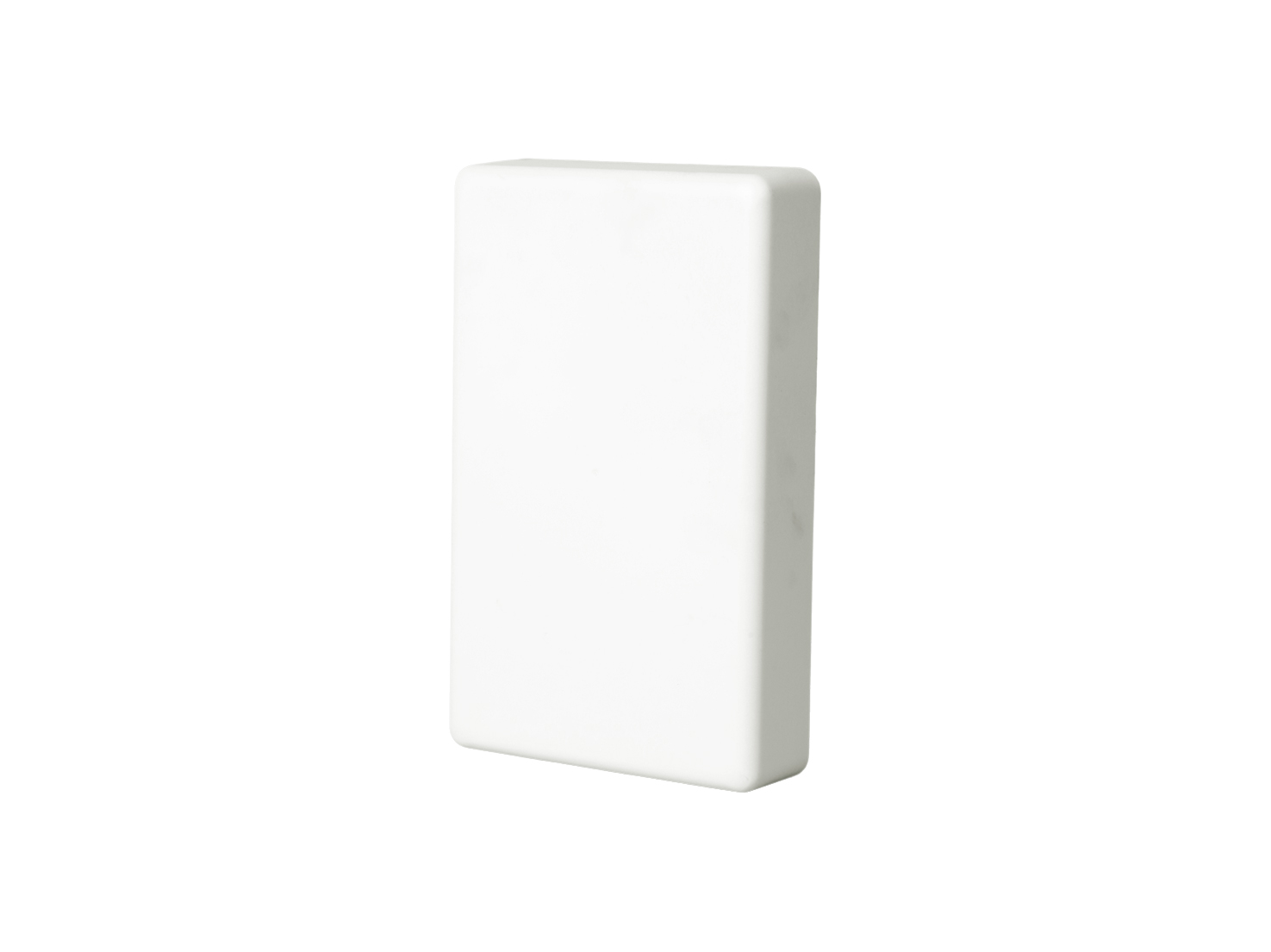

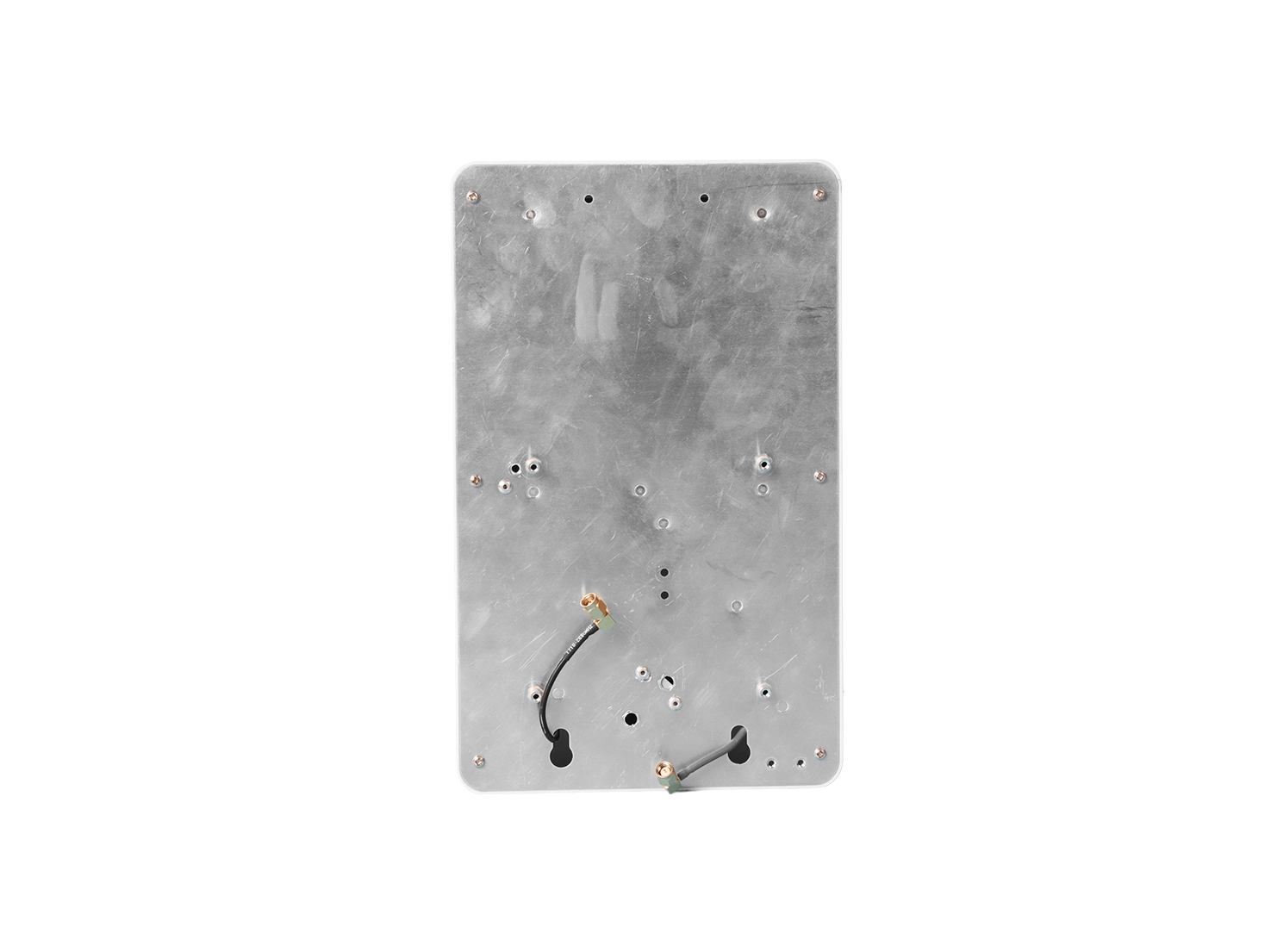

8dBi WD-BG02C two-port Antenna custom Antennas

WD-BG02C is a two-port antenna, port 1: 820-960/1710-2690/3300-3600MHz; port 2: 1900-2690/3300-3600MHz.

Model:V2235-016-A-01

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact8dBi WD-BG02C two-port Antenna custom Antennas
9358b6a07a6279a
36c24548bd42555
2c409962f6540a0
5b59d0ea730027b
8fc17137d1cc6a1

Overview

This high-gain (8 dBi) directional antenna offers superior focus for UHF RFID tag reading in the 820-960/1710-2690/3300-3600MHz; 1900-2690/3300-3600MHz. frequency range. Its narrow beamwidth (Hor: 70° Ver: 60°) ensures strong, targeted signals for applications like access control, warehouse management, asset tracking, and more. The compact and weatherproof design (IP67) makes it ideal for diverse environments, both indoors and outdoors.

Key Features

★ Stable product performance, good front and back ratio, narrow sidelobe, beautiful appearance

★ Light weight, small size, low profile, easy installation

★ Read and write distance is moderate, read and write speed is fast, there is no blind spot identification label, high data security,

★ Waterproof class: IP67

Specification

Parameter (unit) Port 1 Port 2
General parameters Operating frequency band (MHz) 820-960/1710-2690/3300-3600MHz 1900-2690/3300-3600MHz
VSWR of each port ≤1.8
Isolation(dB) ≤-20dB （820-960MHz）

≤-25dB  （1710-2690/1900-2690/3300-3600MHz）
Efficiency 60%
Radiation parameters Gain(dBi) 6dBi（820-960MHz）；

6.5dB:（1710-2690MHz/3300-3600MHz）；

 8dBi；（1900-2690/3300-3600MHz）；
Beam width (°) ≥35
Polarization Vertical polarization -45° polarization

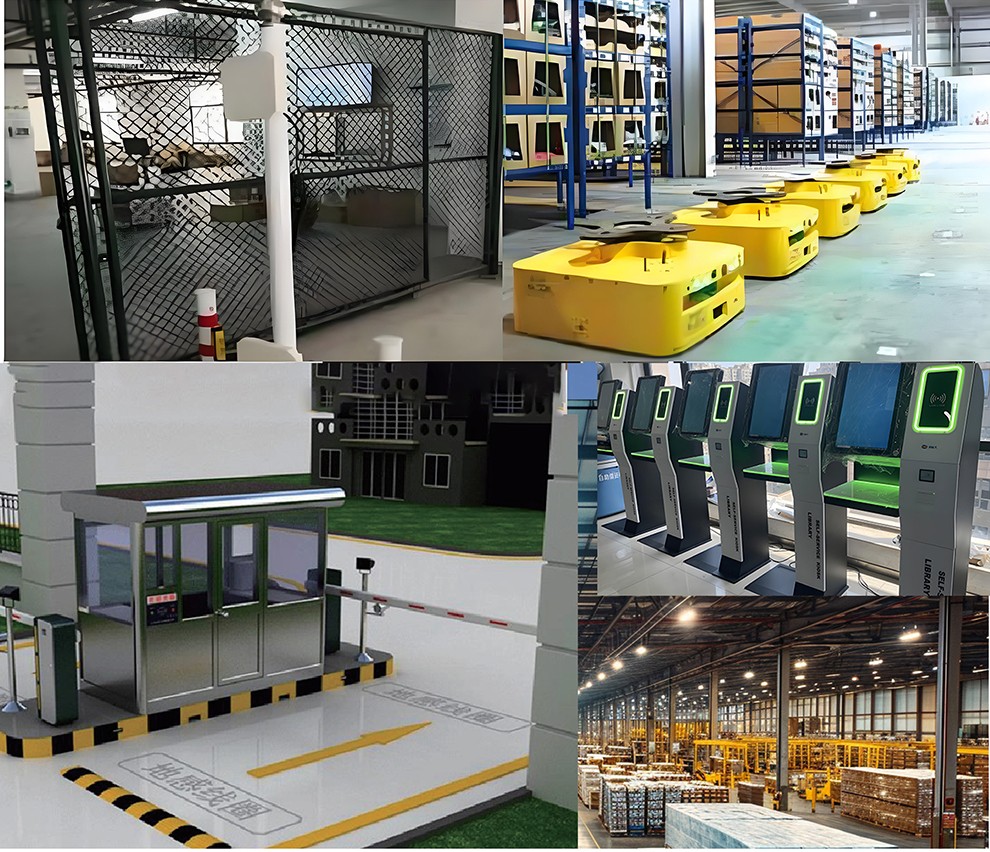

Applications

★902-928MHz RFID radio frequency identification system.★ Customizable European standard (860-868MHZ)

★ Logistics and warehousing management, forklift cargo reading

★ Access control channel management

★ Production line shelf management

★ Material management, medical, power, military equipment,

Finance, ticket, animal husbandry and other systems are widely used.
