RFID antenna

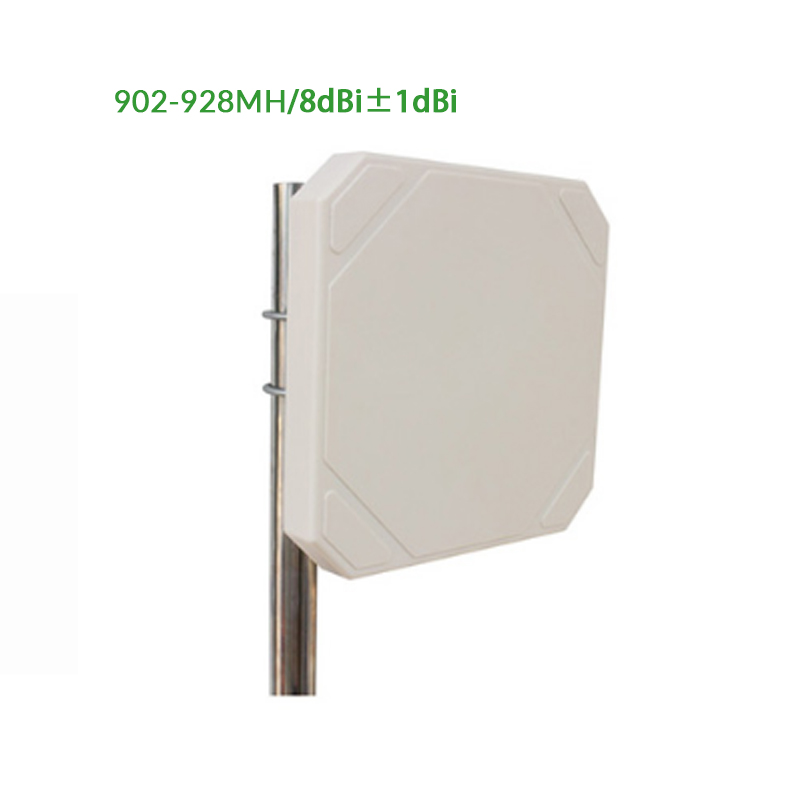

8dBi 902-928MHz/915MHz RFID Antenna for Warehouse Management

Frequency:902-928MHz

Gain: 8dBi±1dBi

VSWR: ≤1.3

Dimension: 255*255*30(mm)

Model:VLG-AX-RFID09C09

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact8dBi 902-928MHz/915MHz RFID Antenna for Warehouse Management
b7a3b6466618373
3e588e79ab59d2b
4c84fd75b4ce415
ea55cf4f01bf667
a84466e4cbd52a5

Overview

This 8 dBi omnidirectional RFID antenna offers reliable tag reading performance in the 902-928 MHz frequency range. Its balanced beamwidth (Hor: 60° Ver: 60°) provides good coverage for applications that prioritize consistent reading within a designated area, such as warehouse management, door control systems, and industrial management systems. The compact and weatherproof design (IP65/IP67) makes it suitable for various indoor and outdoor environments.

Key Features

★ Antenna and reader separate.

★ Light weight, small size, low profile, easy to install and use.

★ Fast read and write speed, multi-label reading, high data security, long read and write distance.

★ Waterproof class: IP67

Specification

Frequency 902-928 MHz (915±5 MHz)
Gain 8dBi±1dBi
Beam Width Hor: 60° Ver: 60°
Polarization Circular
VSWR ≤ 1.3
Impedance 50Ω
Lightning Protection DC Ground
Connector N-Female/Male, TNC
Dimension 255*255*30(mm)
Radome Material ABS
Radome Color White
Operating Temperature -20°C to 60°C
Waterproof Rate IP65/IP67

Applications

★902-928MHz RFID radio frequency identification system★ Customizable European standard (865-868MHz)★ Logistics and warehousing, production line shelf management.

★ Access control, parking management.

★ Retail industry, clothing industry.

★ Anti-counterfeiting management.

★ Material management, medical, electricity, military equipment, finance,

Tickets, animal husbandry, etc., have been widely used.
