2G、3G、4G 、5G built-in antenna

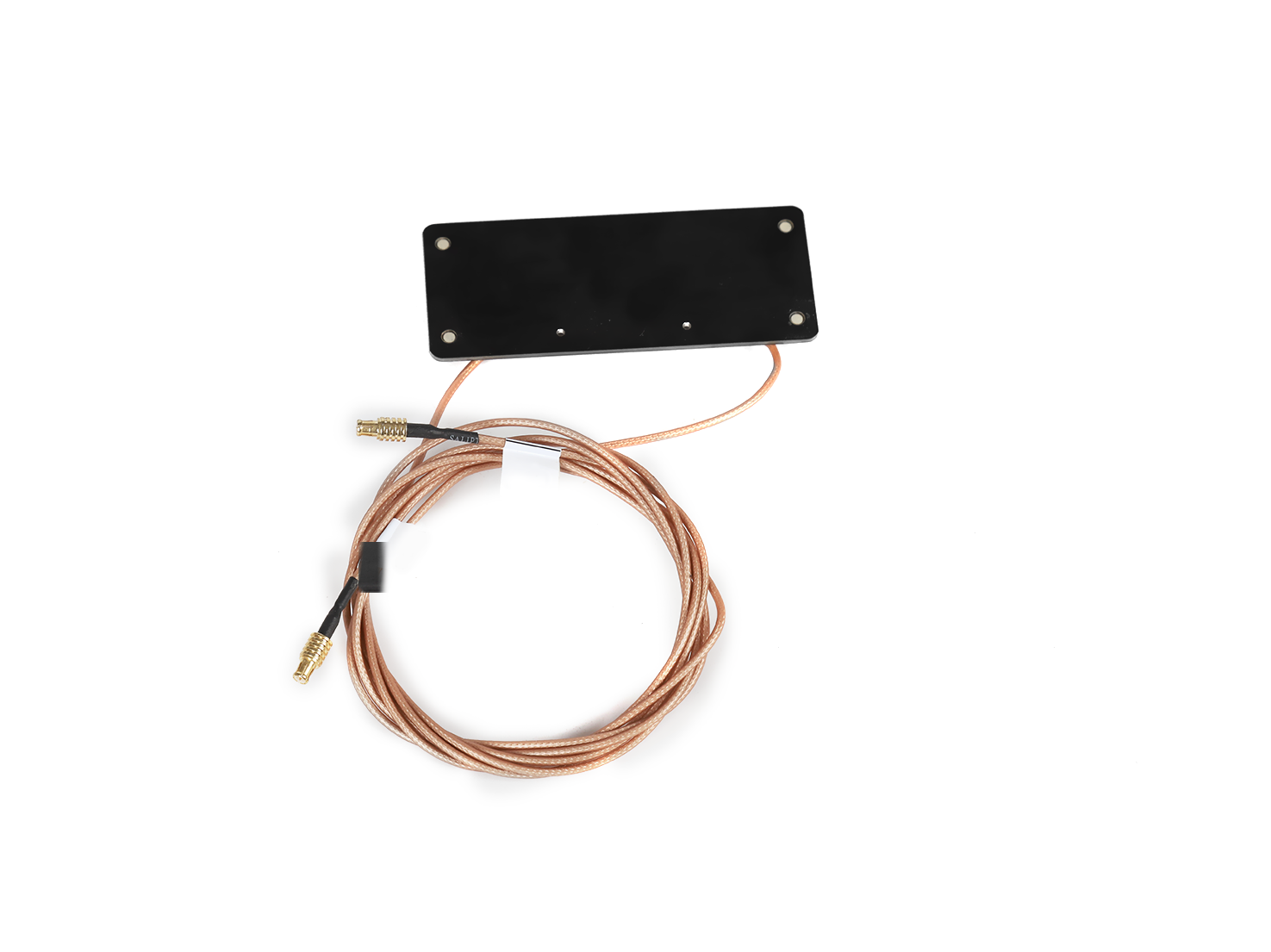

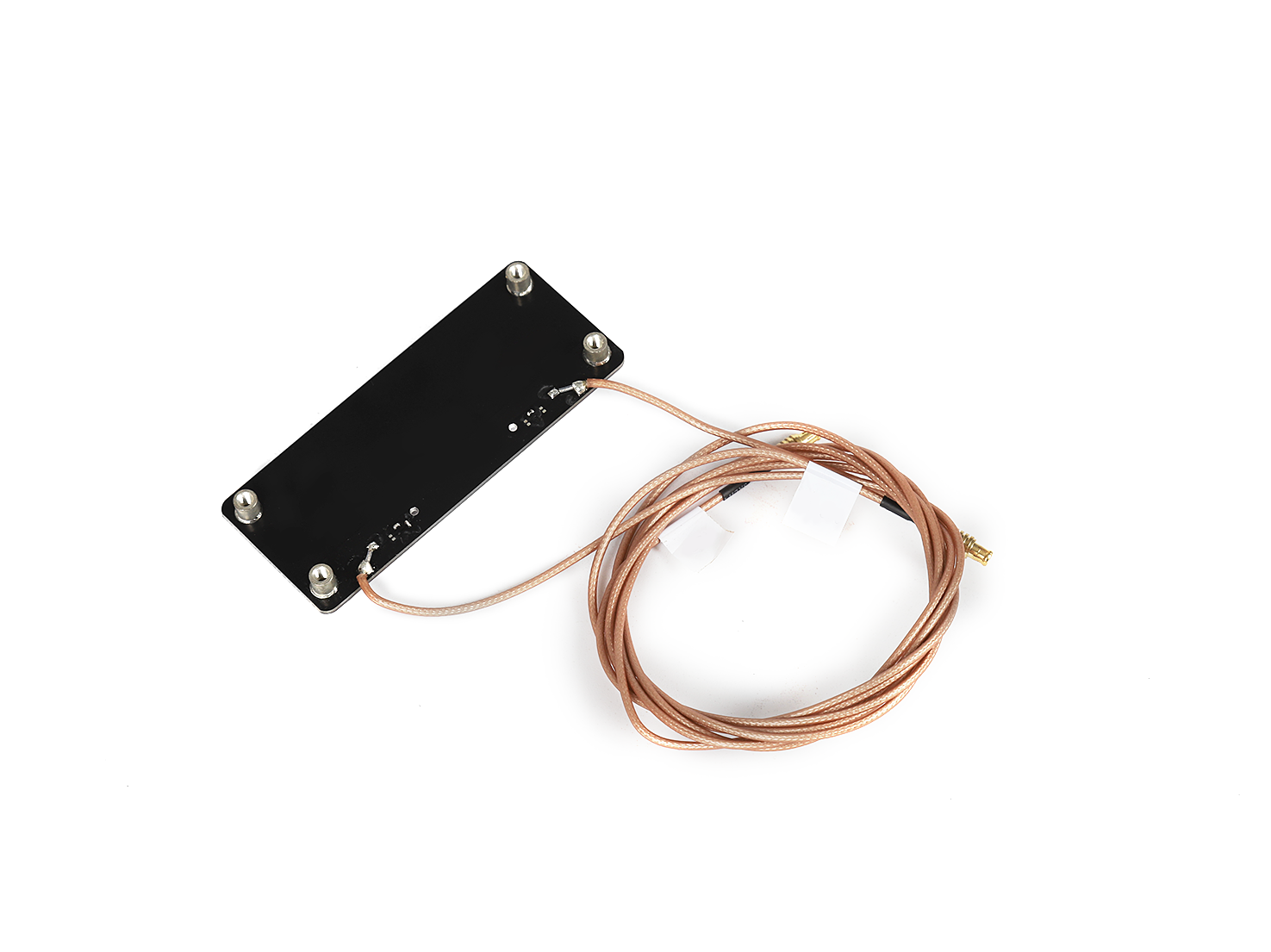

868MHz and WIFI Gate Antenna PCB Built-in Antenna

Model: V1334-336-A-02

Operating frequency: 868 & 2400-2500MHz

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact868MHz and WIFI Gate Antenna PCB Built-in Antenna
23d2993e7b093bb
70f9066a81c012c
2d4c3b689ac44d2
485f69d2dd19874

Overview

The operating frequency of this gate antenna is 868&2400-2500MHz.

Key Features

Dual-band support

It supports both 868MHz and 2400-2500MHz frequency bands, realizing multi-technology integration, which can be used for both short-range identification and long-range data transmission and network connection.

High-speed data transmission

The Wi-Fi part supports high-speed data transmission, and can upload recognition results and related data in real time, improving the response speed and efficiency of the system.

High sensitivity

The 868MHz antenna has high sensitivity and can still accurately read information under weak signal conditions, ensuring the reliability of the system.

Specification

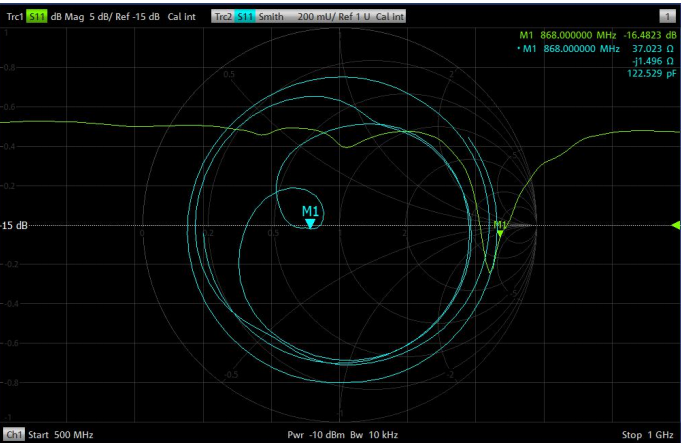

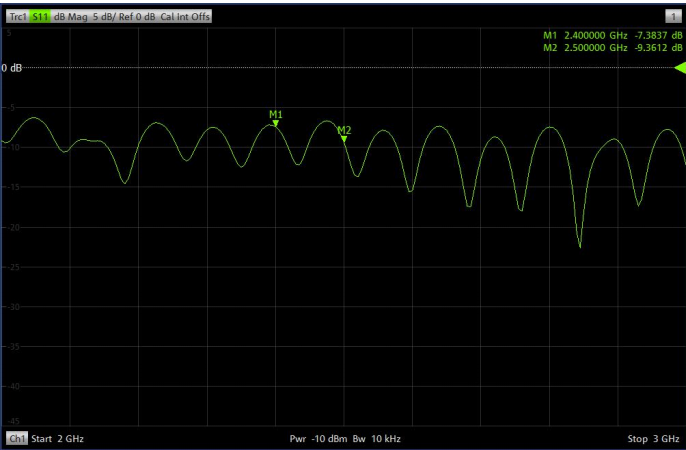

The following table shows the return loss values at the edge frequency points of the antenna’s operating frequency band. The return loss values and related waveforms obtained from the test are shown in the attached





MHz Return loss
868 868 -16.48
2.4G WiFi 2400 -7.38
2500 -9.36









Applications

Application scenarios: stations, airports, shopping malls, corporate buildings, and gate systems of various units. Its functions include access, security protection, data collection, etc.

Overview

Key Features

Specification

Applications
