2G、3G、4G 、5G built-in antenna

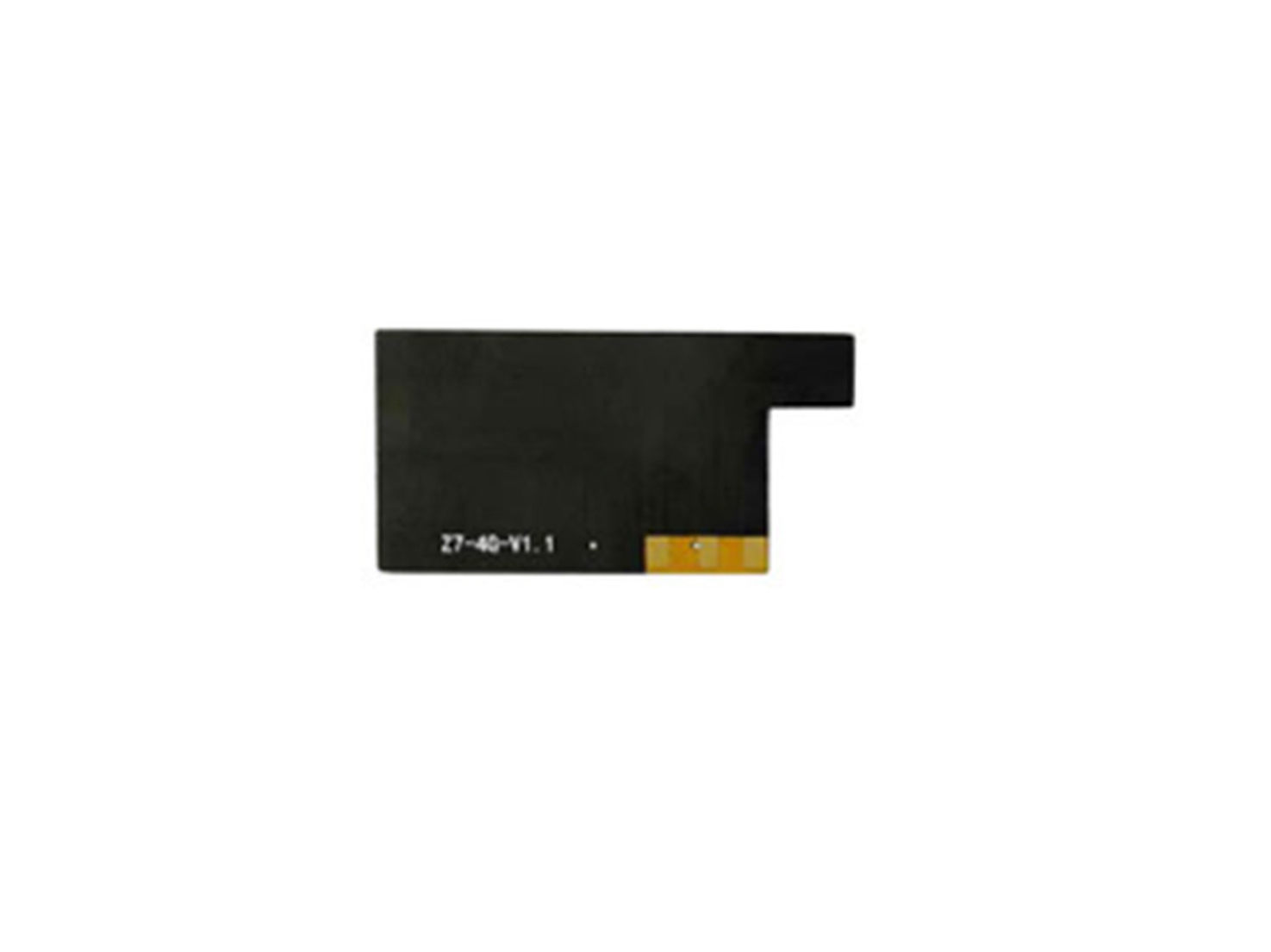

4G Internal Antenna 45.70mm*22.55mm FPC Antenna

Applications:Consumer electronics, automotive electronics, aerospace, medical equipment

Frequency :824-960/1710-2690MHz

Gain:-2.34 ~ 5.49 dBi

Impedance:  50Ω

Polarization type: linear

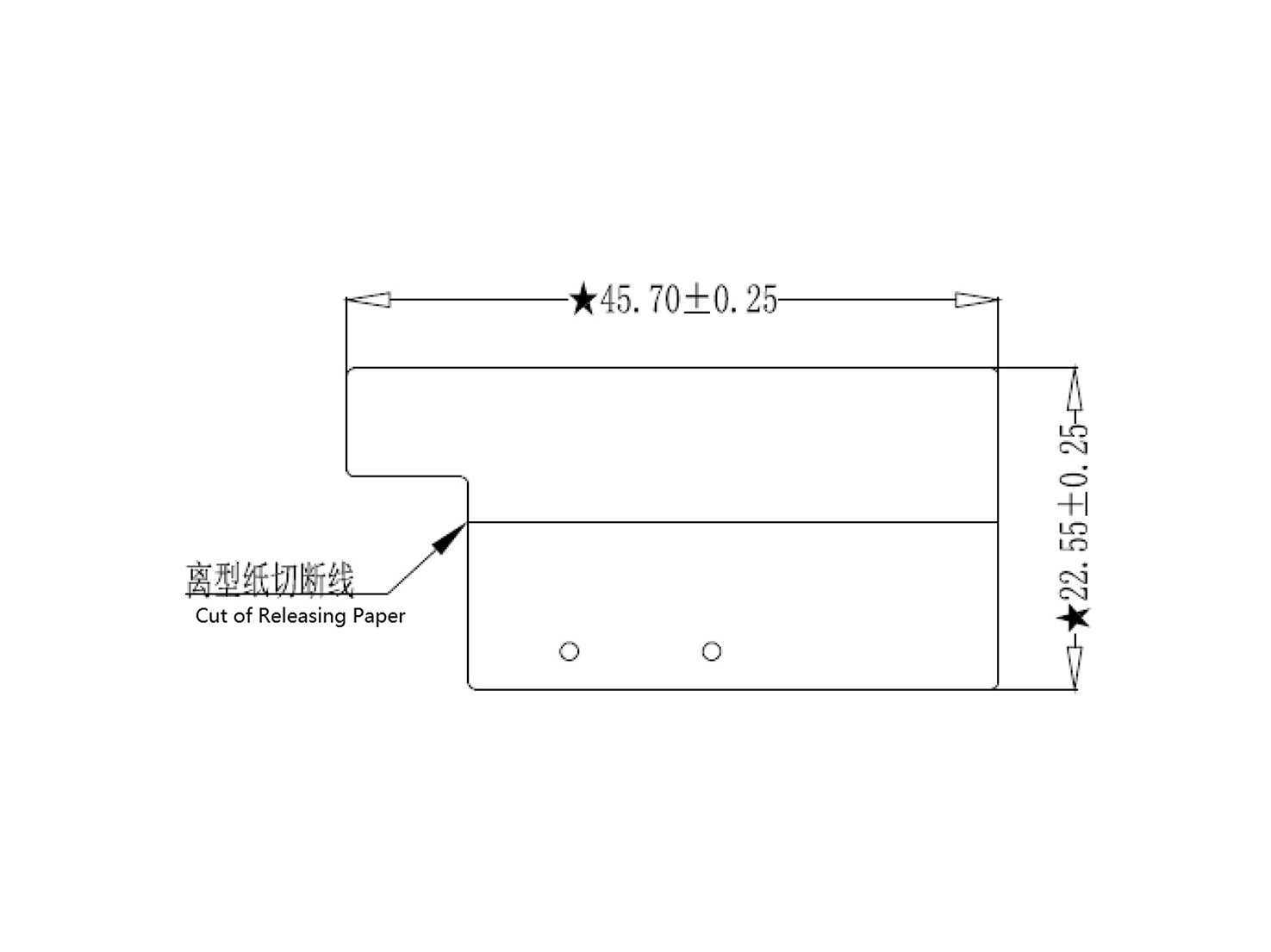

Dimension :   45.70mm(L)×22.55mm(W)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact4G Internal Antenna 45.70mm*22.55mm FPC Antenna
3fa46d216552bd2
98ff0abe02466
8f19d04976931ad
adb7c0e46257

Overview

This built-in 4G antenna has the characteristics of small size, excellent performance, and high integration, making it an ideal choice for wireless connectivity solutions VLG can customize the size, shape, and position of antennas according to different device requirements to achieve optimal signal reception and meet diverse product design requirements

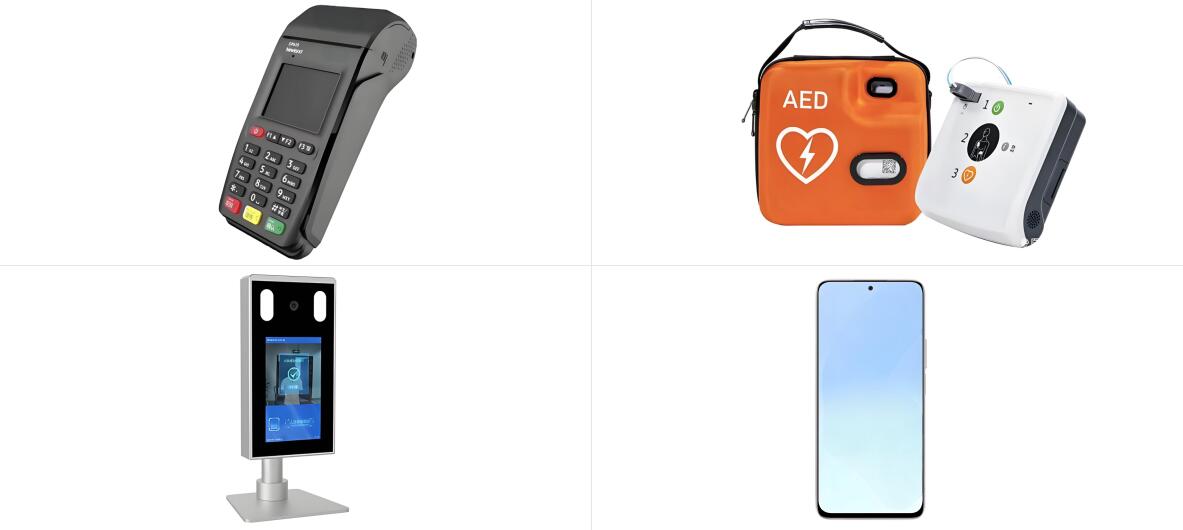

Suitable for: mobile phones, computers, security monitoring, drones, unmanned vending, shared devices, wearable devices, smart healthcare, agricultural technology, mobile POS machines and payment terminals, etc

Key Features

• High efficiency and low loss characteristics, high flexibility and customization, can meet the compatibility of all networks



• Small size, easy to install: 45.70×22.55mm, 3M double-sided adhesive installation

Specification

Electrical/mechanical parameters:
Frequency Range: 824-960/1710-2690MHz
VSWR: <6
Input Impendence: 50Ω
Gain: -2.34 ~ 5.49 dBi
Polarization: linear polarization
Working Temperature: -30 °C to +70°C

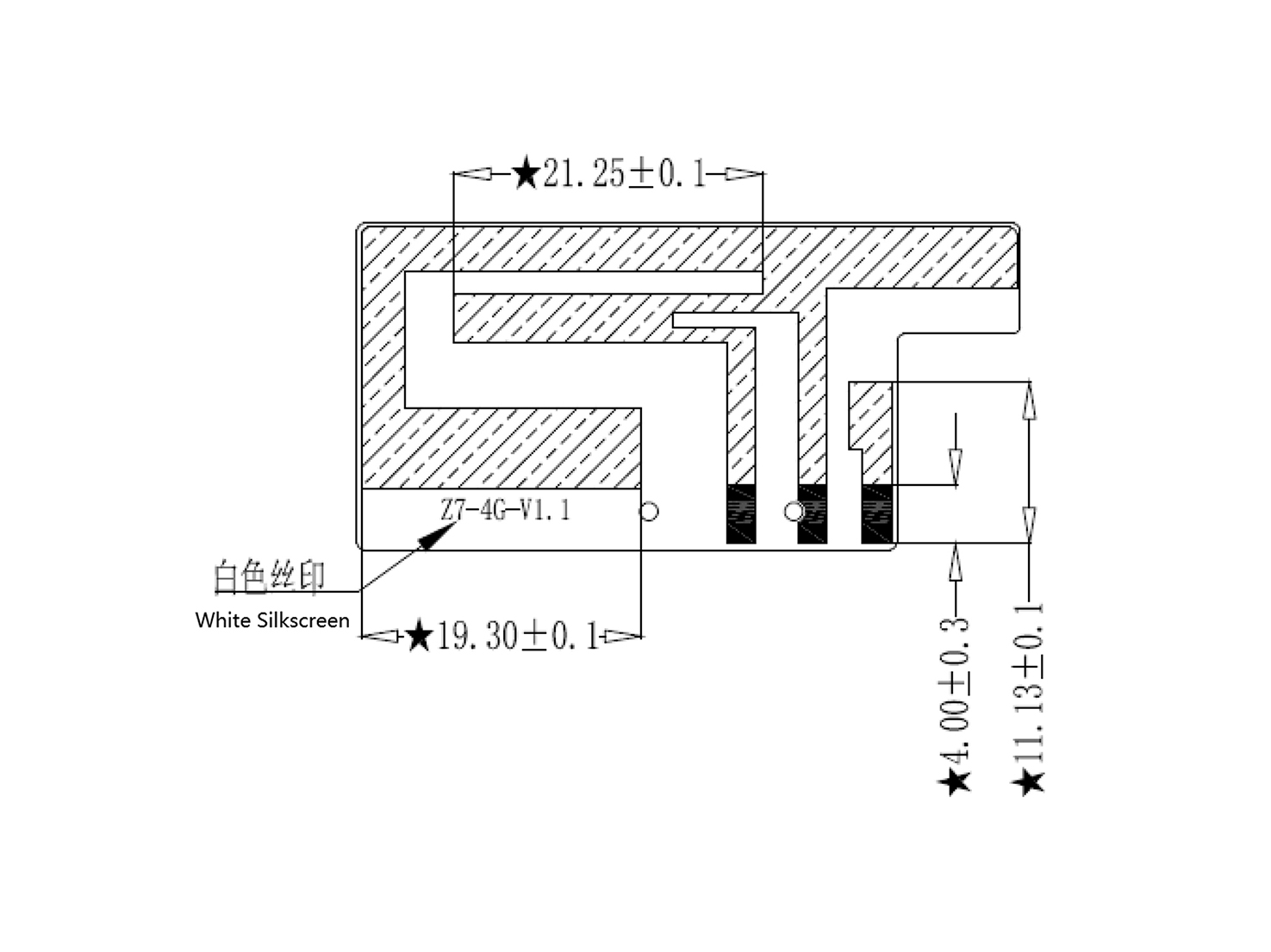

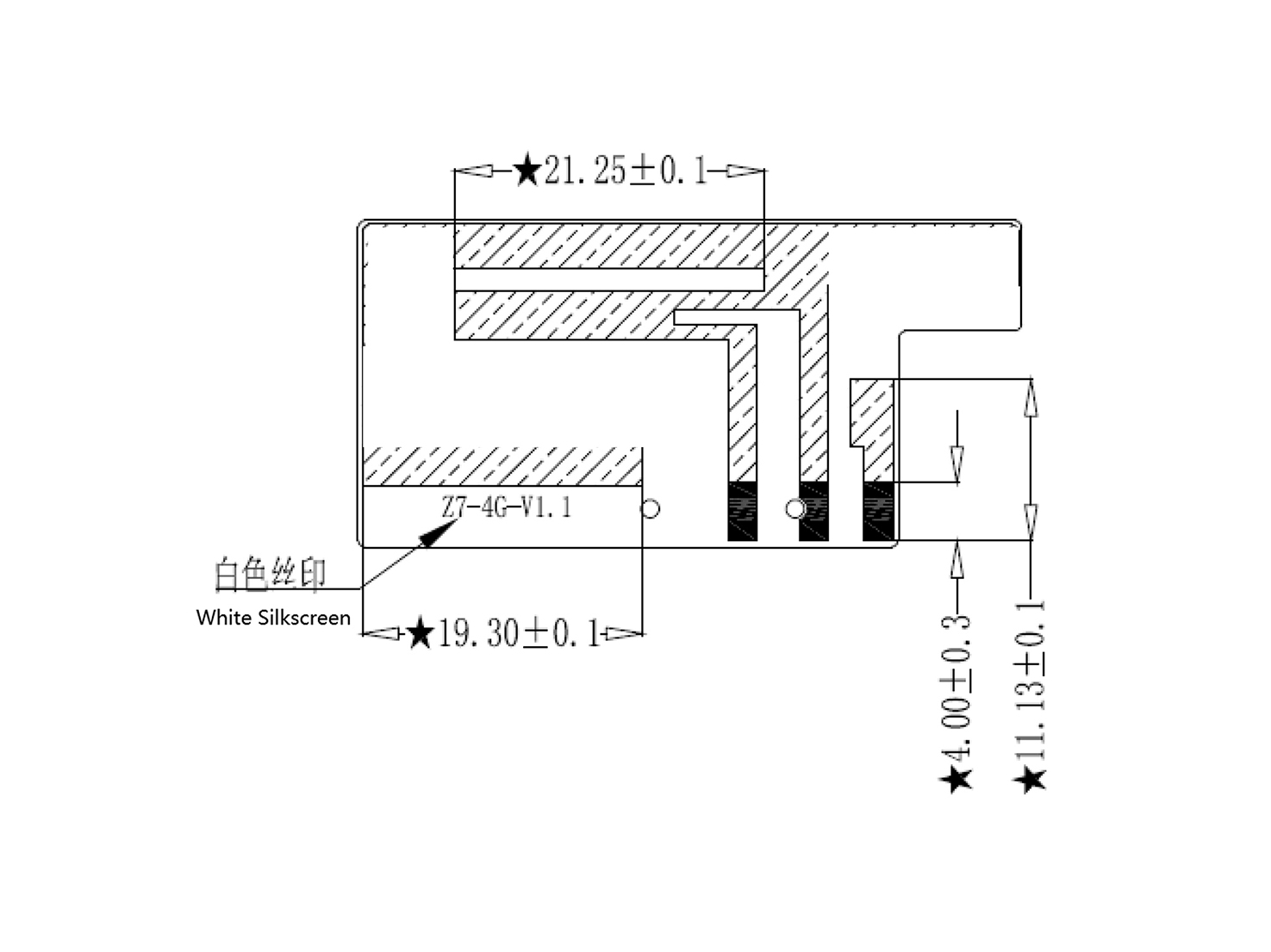

Antenna Size: 45.70×22.55mm
Radiation direction: omnidirectional
Efficiency: 23.37 ~ 71.41 %
Environmental protection: ROHS

Applications
