首页图标Home >  Product > IOT Antenna > RFID antenna
003a6c4c559d52a
61572193d379244
RFID antenna

10dBi RFID Antenna 902-928MHz Antenna for rail Rail transit antenna custom Antennas

Model:VLGAX-RFID09VH10-700

Frequency: 902-928MHz

Gain: 10dBi

VSWR: ≤1.5

Dimension: 710*155*90mm

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact10dBi RFID Antenna 902-928MHz Antenna for rail Rail transit antenna custom Antennas
47f351729659d03
003a6c4c559d52a
61572193d379244

Overview

This high-gain (10 dBi) directional antenna offers superior focus for long-range UHF RFID tag reading in the 902-928 MHz frequency range. Its narrow beamwidth (Hor: 120° Ver: 30°) directs a powerful signal for applications like automatic train identification (ATI), railcar inventory management, and freight container tracking. The compact and weatherproof design (IP65/IP67) makes it ideal for harsh outdoor railway

Key Features

• Extended Reading Distance

Packing a powerful 10 dBi gain, this antenna transmits a strong, focused signal, enabling reliable tag reads over longer distances. This is crucial for applications like automatic train identification (ATI) where you need to capture data from fast-moving trains.



• Multi-Lane Coverage

Featuring a narrow horizontal beamwidth of 120 degrees, the antenna effectively covers multiple lanes simultaneously. This is ideal for rail yards where you might need to track inventory on trains with several carriages.



• Linear Polarization

The antenna utilizes linear polarization, which offers efficient signal transmission when tags are consistently oriented in a specific direction. While this may require some planning for tag placement, it can be very effective in controlled environments like railway yards



• Rugged Construction

Built to withstand harsh outdoor conditions, the antenna features a rugged IP65/IP67 waterproof rating. This protects it from dust, rain, and even temporary submersion, ensuring reliable operation year-round.

Specification

Frequency 902-928 MHz
Gain 10 dBi
Beam Width Hor: 120° Ver: 30°
Polarization Linear
VSWR ≤ 1.5
F/B Ratio ≥ 18 dBi
Impedance 50Ω
Lightning Protection DC Ground
Connector N-Female/Male, TNC
Dimension 710 x 155 x 90 mm
Radome Material ABS
Radome Color White
Pole Diameter Φ30-50 mm
Operating Temperature -20°C to 60°C
Waterproof Rate IP65/IP67

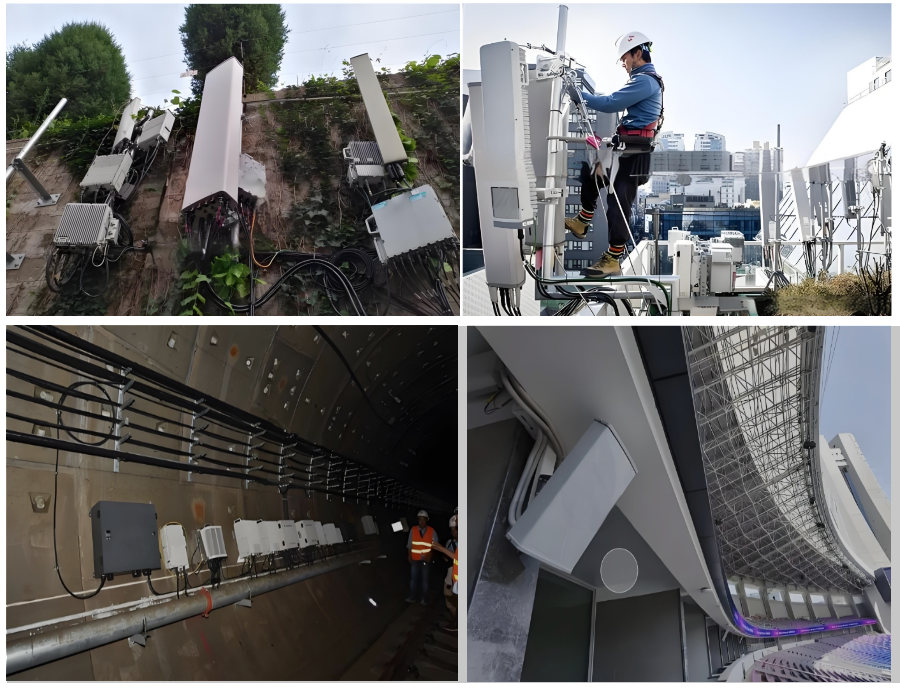

Applications

This high-gain directional antenna optimizes railway operations by enabling automatic train identification, real-time railcar inventory management, freight container tracking, and asset monitoring within rail yards

Overview

Key Features

Specification

Applications
