首页图标Home >  Product > IOT Antenna > Fiberglass antenna
3012200d577ed5
63d6d0dd45ed93b
Fiberglass antenna

Wi-Fi fiberglass Antenna

Key Specifications/ Special Features:

OEM/ODM Wi-Fi/LoRa/LTE/5G/V2X/GPS omni fiberglass antenna with N-female N-K connector

Example- 2.4G 6dBi model

Gain              6.0±1 dBi

Frequency    2400-2500Mhz

Impedance    50Ω

VSWR            ≤2

Beamwidth    360°

Connector    N-K/N-J optional

Structure        Fiberglass

Length           350±5mm

Diameter       25mm (Tube)

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactWi-Fi fiberglass Antenna
23e36859cedb9d1
3012200d577ed5
63d6d0dd45ed93b

Overview

The application range of Wi-Fi fiberglass antennas is very wide. In outdoor environments, it can resist the erosion of harsh weather such as strong winds, rain, snow, hail, etc., ensuring stable wireless signal transmission. Whether it’s high-rise buildings in cities, remote mountainous areas, or ocean platforms, Wi-Fi fiberglass antennas can provide reliable network coverage to meet communication needs in various complex environments.

Key Features

• Improving signal quality

Enhancing signal strength and stability, reducing signal attenuation and interference, making data transmission more reliable.



• Enhanced signal coverage

It can effectively expand the coverage range of wireless networks, allowing signals to reach farther distances and more corners.



• Aesthetic appearance

Compared to some other antennas, the design is relatively more regular and has certain advantages in appearance.

Specification

Model 2dB-2.4 4dB-2.4 6dB-2.4 4dB-5.8 6dB-5.8 6dB-2.4/5.8
Frequency Range 2400-2500MHz 2400-2500MHz 2400-2500MHz 5150-5850MHz 5150-5850MHz 2400-2500/5150-5850MHz
Gain 2dBi 4±1dBi 6.0±1 dBi 4±1dBi 5.0±1 dBi 4.0dBi /6.0dBi
VSWR ≤1.5 ≤2.0 ≤2.0 ≤2.0 ≤2.0 ≤3.0
ovality(dB) ≤±2 ≤±2 ≤±2 ≤±2 ≤±2 ≤±2
Impedance 50Ω 50Ω 50Ω 50Ω 50Ω 50Ω
Max input power 50W 50W 50W 50W 50W 50W
Dimensions（mm） ɸ20*215 ɸ20*220 ɸ20*350 ɸ20*185 ɸ20*185 ɸ20*270
Connector type N-K/J N-K/J N-K/J N-K/J N-K/J N-K/J
Radome material Fiberglass Fiberglass Fiberglass Fiberglass Fiberglass Fiberglass

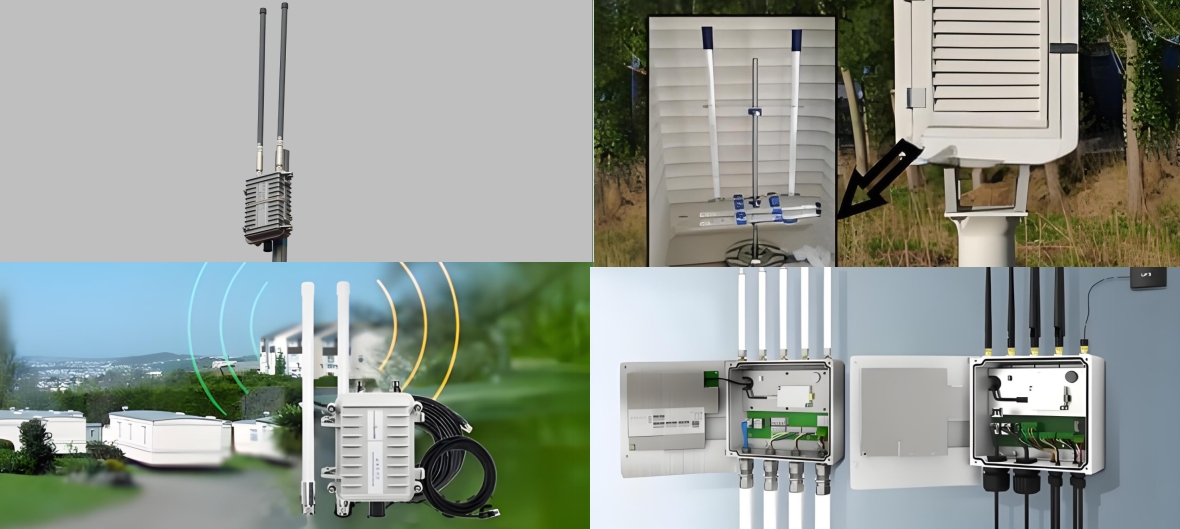

Applications

18

Overview

Key Features

Specification

Applications
