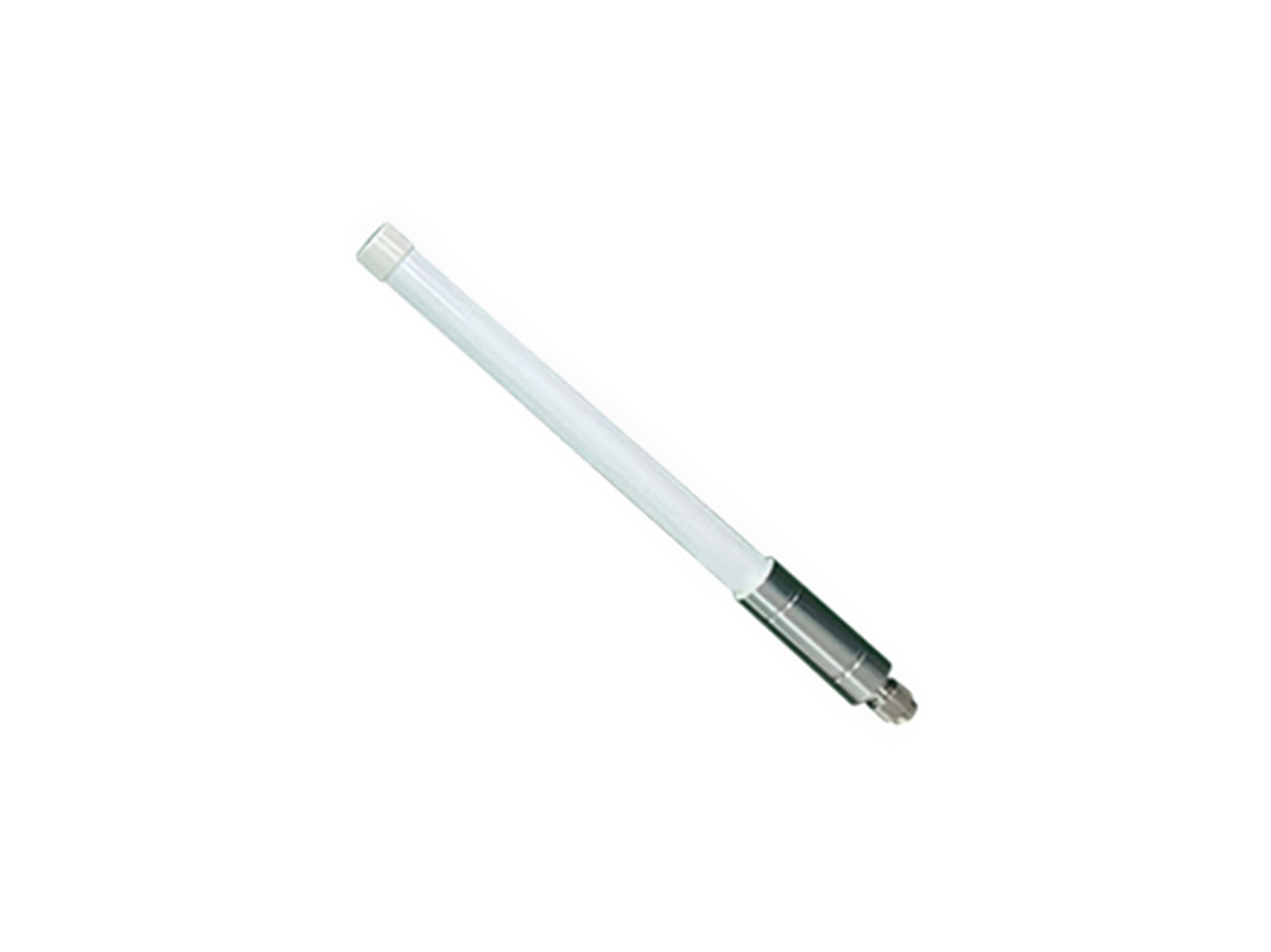

6.7dBi 2.4GHz/5.8GHz Omni WiFi fiberglass Antenna

Fiberglass antenna

6.7dBi 2.4GHz/5.8GHz Omni WiFi fiberglass Antenna

Key Specifications/ Special Features:

6dBi 2.4GHz Omni Wifi antenna

Gain 6.7±1 dBi(max)

Frequency 2400-2500MHz and 5770-5930MHz

Model V971I-003-A-01

Impedance 50Ω

VSWR ≤2

Beamwidth 360°

Connector NJ dual tooth connector

Structure Fiberglass

Length 200±5mm

Diameter 25mm (Tube)

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

6.7dBi 2.4GHz/5.8GHz Omni WiFi fiberglass Antenna

Overview

Wi-Fi fiberglass antennas are gradually becoming a star product in the field of wireless communication due to their unique materials and excellent performance. This antenna is made of high-quality fiberglass material, which not only has excellent mechanical strength and weather resistance, but also is lightweight and easy to install, providing a new solution for wireless network coverage.

Key Features

• High gain

Can achieve high signal gain, enhance signal reception and transmission capabilities, improve network coverage and signal strength.

• Good directionality

Able to better focus signals and provide better signal transmission effects in specific directions.

• Long distance transmission

It helps to achieve stable signal transmission over longer distances and is suitable for scenarios with high requirements for transmission distance.

• Aesthetic appearance

Compared to some other antennas, the design is relatively more regular and has certain advantages in appearance.

Specification

Frequency	2400-2500MHz and 5770-5930MHz
Impedance	50Ω
VSWR	＜2.0
Gain	6.7±1 dBi(max)
Max efficiency	70%(max)
Beamwidth	360°
Connector	N-J dual tooth connector
Structure	Fiberglass
Length	200±5mm
Diameter	20mm (Tube)
Model	V971I-003-A-01

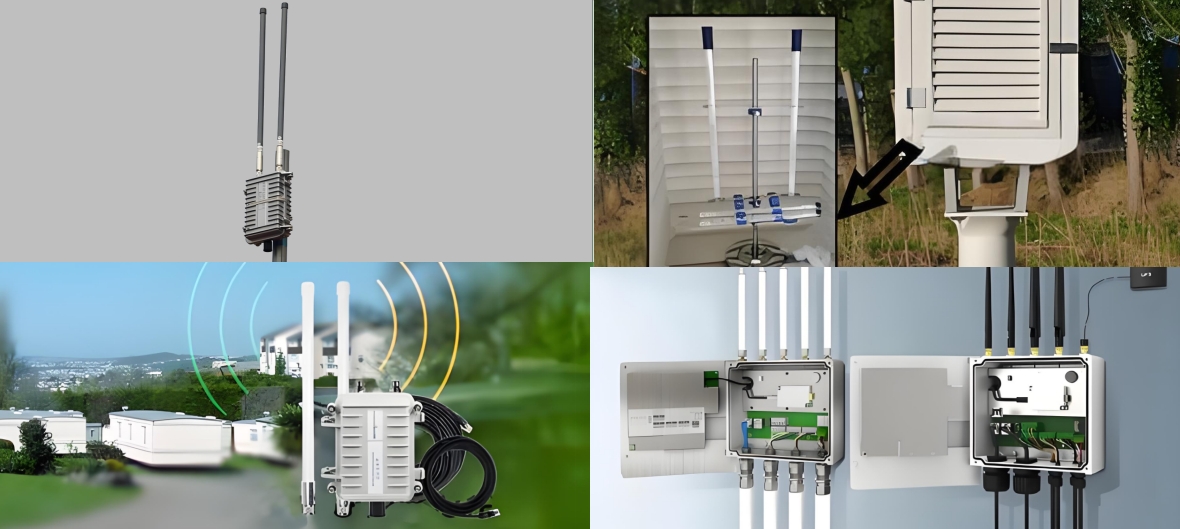

Installation suggestion

we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.

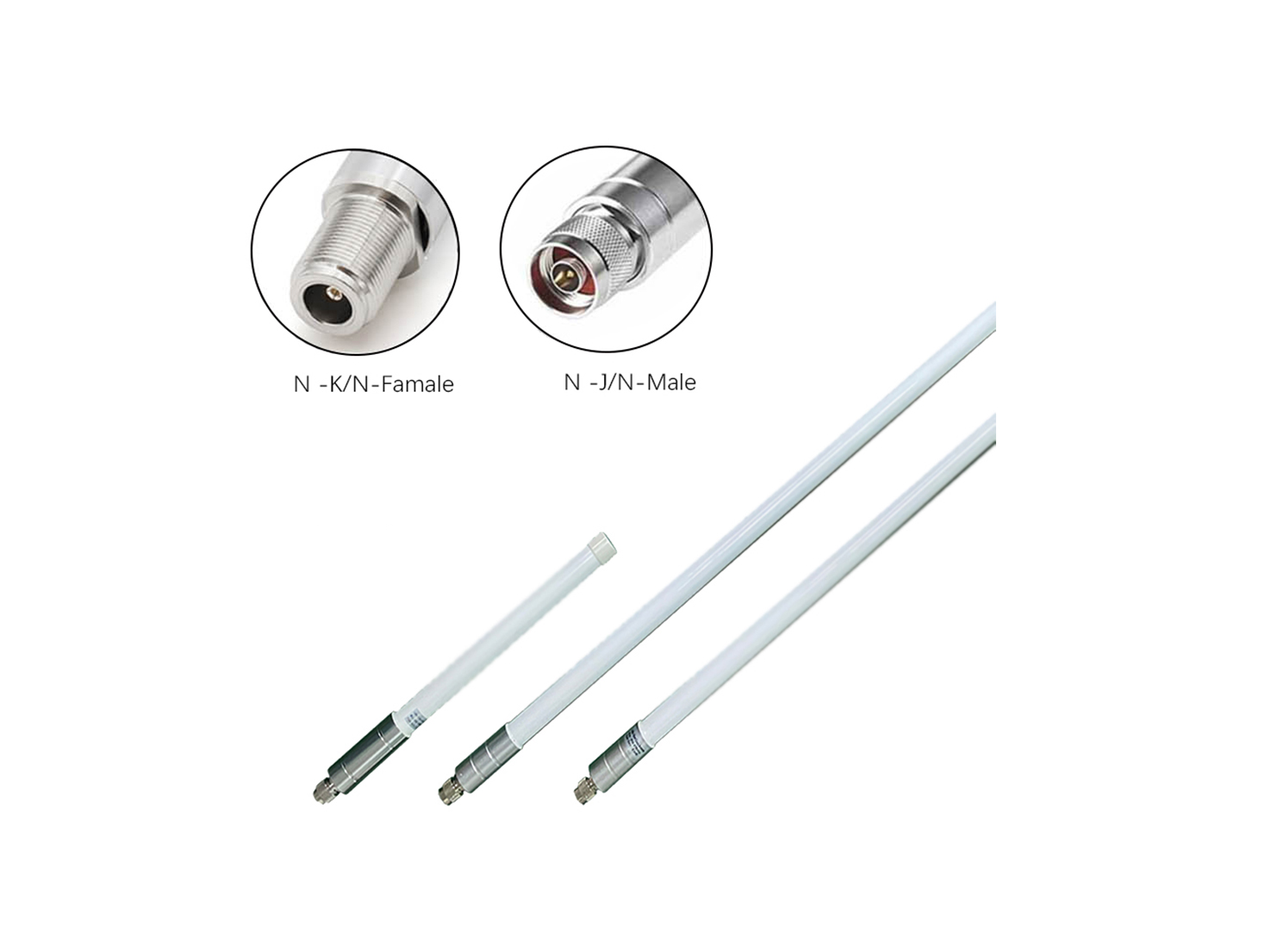

Optional connector and accessories are availiable. Please share your requirement with us to get the best offer.	The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments.

VLG glass antenna series

Model	2dB-2.4	4dB-2.4	6dB-2.4	4dB-5.8	6dB-5.8	6dB-2.4/5.8
Frequency Range	2400-2500MHz	2400-2500MHz	2400-2500MHz	5150-5850MHz	5150-5850MHz	2400-2500/5150-5850MHz
Gain	2dBi	4±1dBi	6.0±1 dBi	4±1dBi	5.0±1 dBi	4.0dBi /6.0dBi
VSWR	≤1.5	≤2.0	≤2.0	≤2.0	≤2.0	≤3.0
ovality(dB)	≤±2	≤±2	≤±2	≤±2	≤±2	≤±2
Impedance	50Ω	50Ω	50Ω	50Ω	50Ω	50Ω
Max input power	50W	50W	50W	50W	50W	50W
Dimensions（mm）	ɸ20*215	ɸ20*220	ɸ20*350	ɸ20*185	ɸ20*185	ɸ20*270
Connector type	N-K/J	N-K/J	N-K/J	N-K/J	N-K/J	N-K/J
Radome material	Fiberglass	Fiberglass	Fiberglass	Fiberglass	Fiberglass	Fiberglass
