Plate high gain elevator shaft Antenna

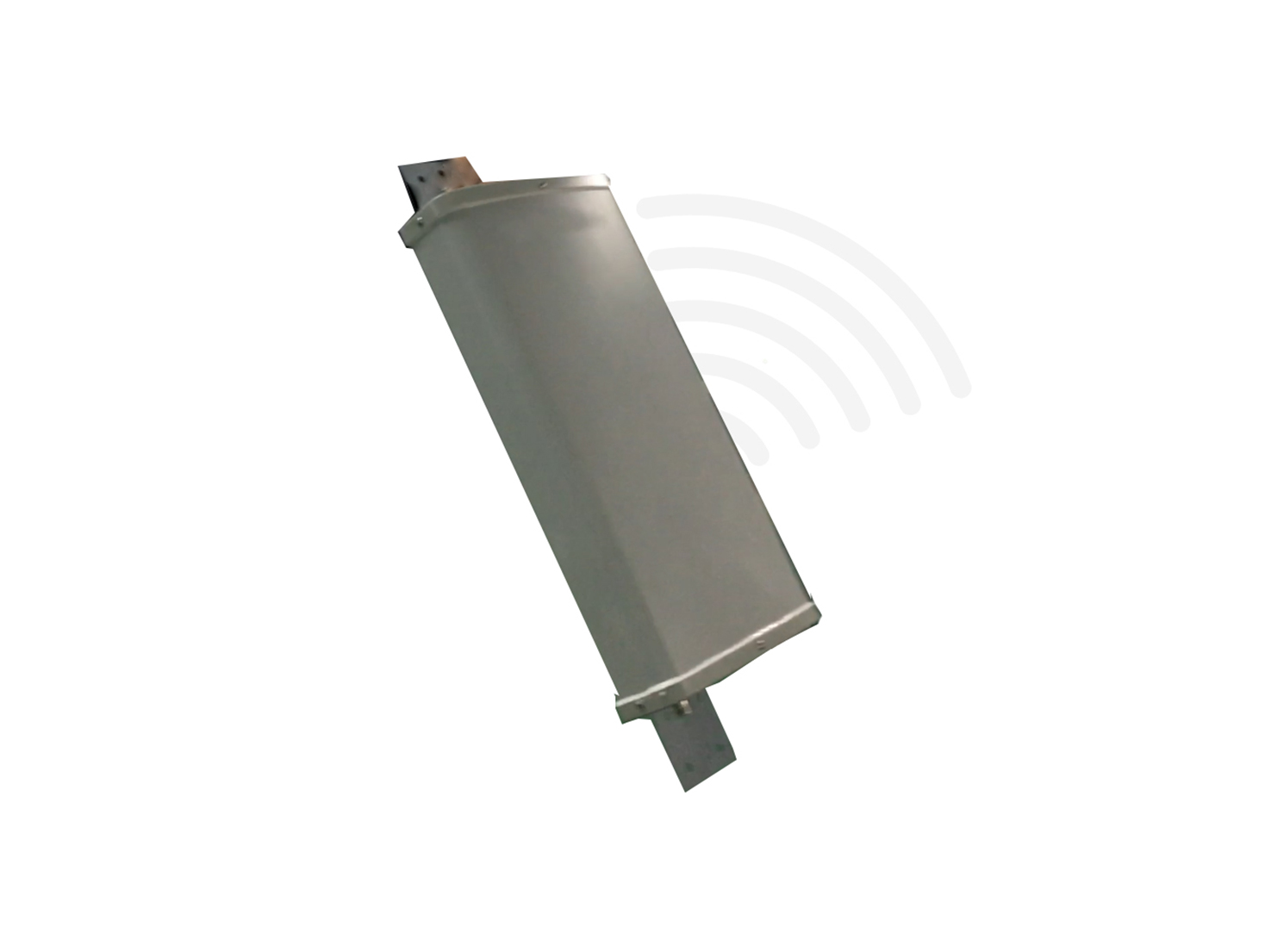

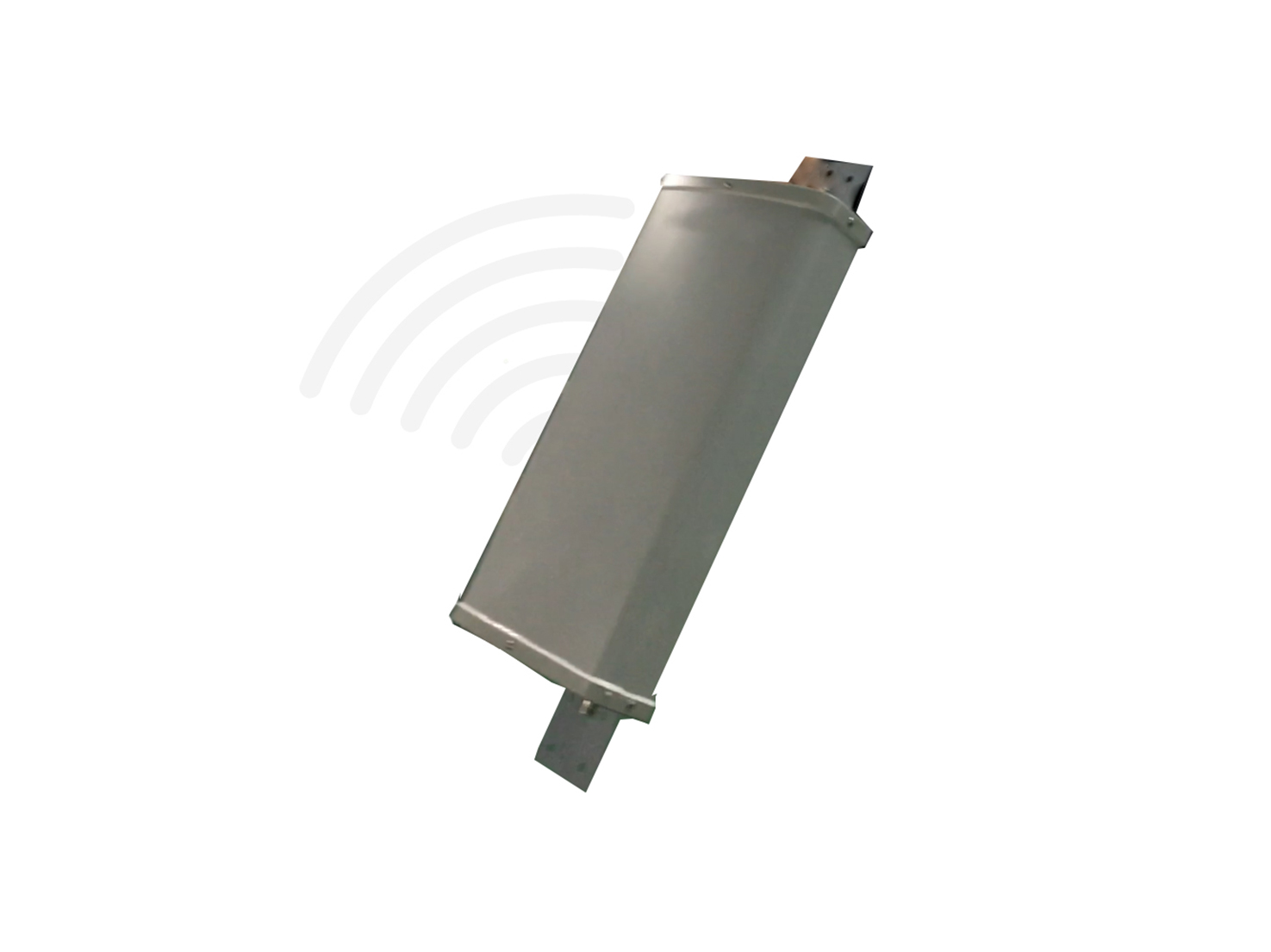

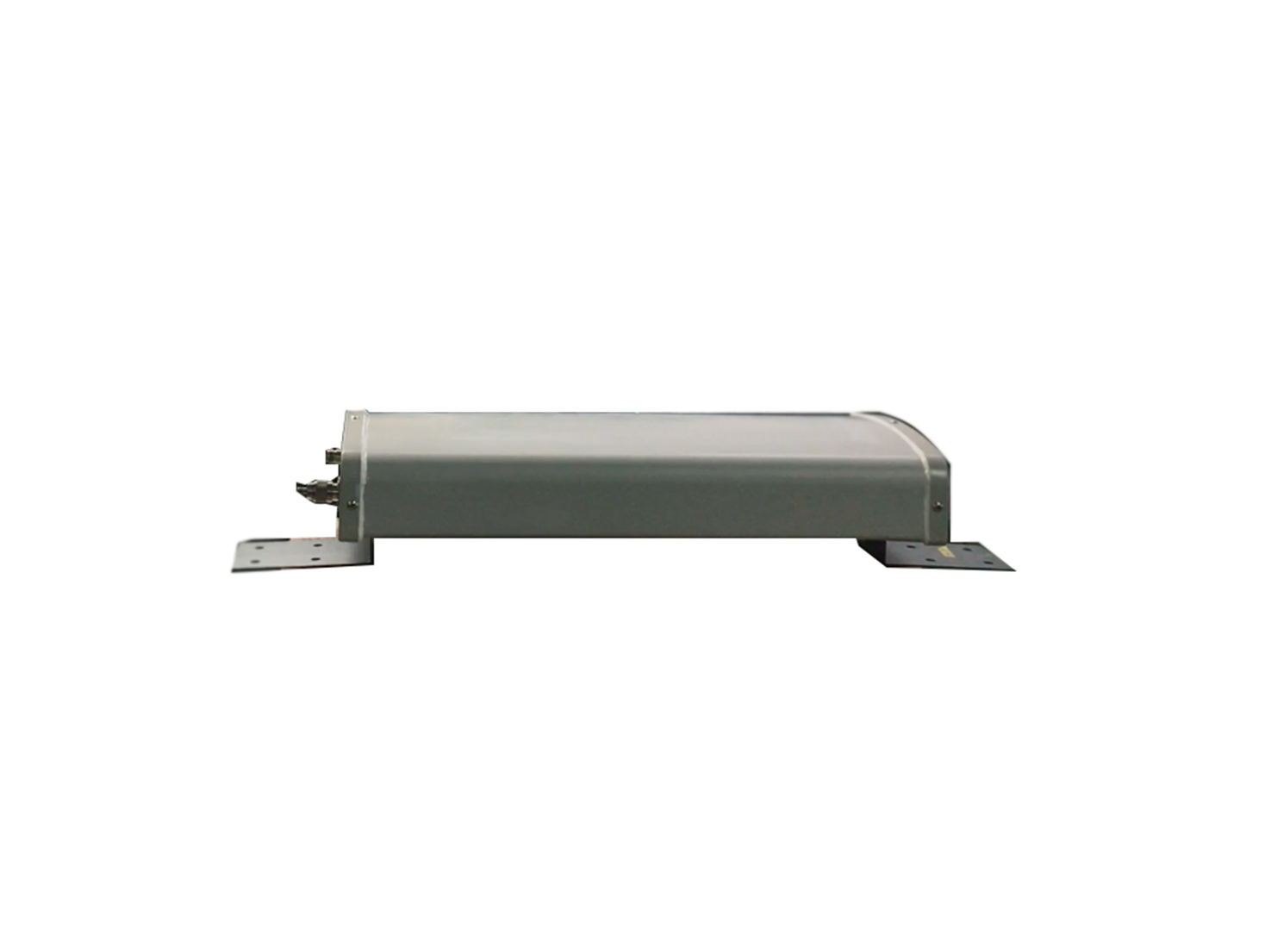

Product name: Plate high gain elevator shaft antenna
Model：V2164-009-A-01
Frequency range:1710-2170MHz，3300-3600MHz
Gain：15dBi@1710-2700MHz；17dBi@3300-3600MHz
VSWR：≤1.5
H-Beamwidth：30±10@1710-2700MHz；15±5@3300-3600MHz
V-Beamwidth：30±10@1710-2700MHz；10±5@3300-3600MHz
VSWR：≤1.8
Impedance（Ω）：50
size（mm）：550×280×85
Connector：2*N Female
Application : wireless communication in elevators, communication coverage between floors, and public safety communication

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

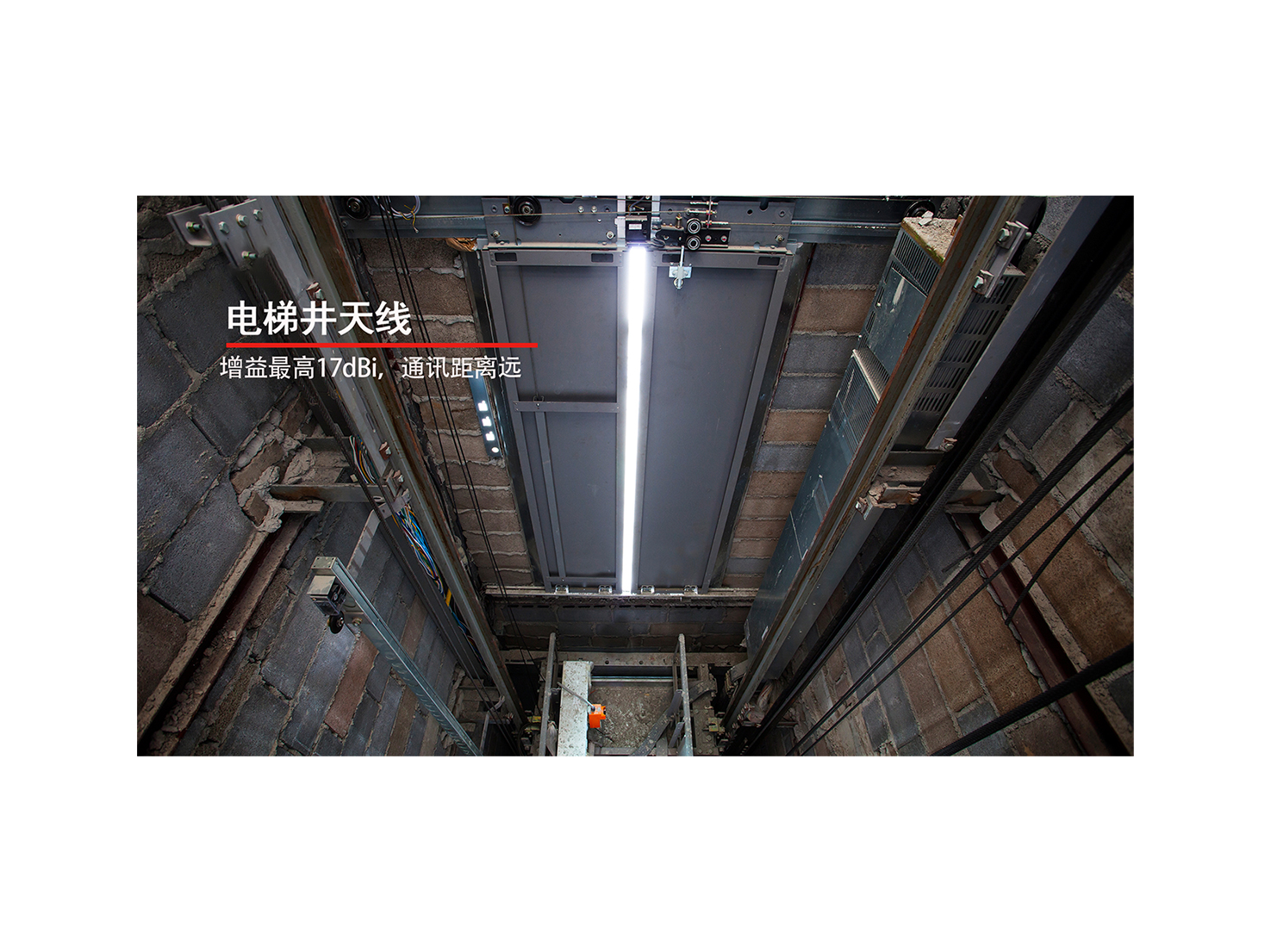

Elevator shaft antennas are designed with high gain antennas, with wide beamwidth and low vertical lobe width, to enhance wireless signal coverage inside elevators, and have a wide range of applications in providing wireless network coverage, supporting communication systems, monitoring and security systems, wireless sensor networks, asset management, intelligent building integration, Internet of Things applications and signal relays.

Key Features

Powerful signal coverage

It can effectively penetrate the metal structure of the elevator shaft to ensure stable wireless signal coverage throughout the elevator shaft area

Strong anti-interference performance

It can effectively reduce the influence of external interference on the signal and ensure the stability of communication.

Directional signal transmission

Using directional signal transmission technology, the signal is concentrated in a specific direction, reducing signal diffusion and attenuation, and providing a more reliable communication connection.

Easy to install and maintain

It can be installed on the wall, ceiling or other suitable locations for flexible deployment. Easy installation for regular inspection and maintenance.

Specification

Electrical parameter
Frequency range (MHz)	1710-2170	3300-3600
Polarization	Horizontal polarization
Gain (dBi)	15	17
Horizontal half power lobe width (°)	30±10	15±5
Vertical half power lobe width (°)	30±10	10±5
F/B Ratio (dB)	≥23
VSWR	≤1.8
Impedance（Ω）	50
Crossover （dBm）	≤ -145（@33dBm）
Max. Power(W)	200
Mechanical Specifications
Connector location	side
Connector	2*N Female
size（mm）	550×280×85
Weight（Kg）	3.4
Working wind speed (km/h)	≥110
Maximum wind speed (km/h)	200
Operating temperature (℃)	-40～+60
Limit temperature (℃)	-55～+75
Cover material	ABS
Protection level	Waterproof and dustproof level meets IP55, flame retardant, metal parts that meet GB 8624-2012 B1 level products and related supporting facilities are hot-dip galvanized to fully meet the requirements of rust prevention
Lightning protection	Direct grounding (top lightning rod with lightning rod directly connected to the bottom steel frame)
Installation	Top installation
