Fiberglass antenna

Omnidirectional fiberglass antenna TY-5153-10Q9AWD1E

Model No.: TY-5153-10Q9AWD1E

Frequency Range: 5150-5350MHz

Gain(dBi): 10±1dBi

VSWR: ≤2.0

Polarization:  Vertical

Horizontal Beamwidth(0°): 360°

Vertical Beamwidth(0°): 9±2°

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactOmnidirectional fiberglass antenna TY-5153-10Q9AWD1E
imgi_1_e24be1bf6dbc

Specification

Model No. TY-5153-10Q9AWD1E
Electrical Specifications
Frequency Range 5150-5350MHz
Gain(dBi) 10±1dBi
VSWR ≤2.0
Polarization  Vertical
Horizontal Beamwidth(0°) 360°
Vertical Beamwidth(0°) 9±2°
Ovality(dB) ±2dB
Input Impedance（Ω） 50Ω
Maximum input power(W) 100W
Inpur connector type N-J（Embedded）
Lightning Protection DC Ground
Mechanical Specifications
Dimensions­mm(Height/Width/Depth) ɸ25*600mm（φ29*125mm）
Packing size(mm) 660*300*240mm
Antenna weight(kg) 0.4±0.1KG
Operational Humidity(％) 10-95
Radome Color Matte black
Radome material Fiberglass
Operating temperature(°C) -30～65°
Installution Method Machine installation

Installation Instructions

1: Remove the antenna and accessories;

2: Align the antenna with the installation connector and tighten it clockwise to complete the installation.

Precautions

1: The installation of the antenna must be carried out uniformly by professionals;

2: The installation height of the antenna can be adjusted according to the actual installation environment, with no tall buildings or large metal objects nearby, and no obstructions.

Specification

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

Fiberglass 3300- 5000MHz 5G Antenna 3dBi for RSU Detail

Fiberglass antenna

Fiberglass 3300- 5000MHz 5G Antenna 3dBi for RSU

Key Specifications/ Special Features: Fiberglass 3300- 5000MHz 5G antenna 3dBi for RSU Frequency 3300-5000MHz Impedance 50Ω VSWR＜2.5 Gain 3dBi

Omnidirectional fiberglass antenna TY-1516-6Q23AWD1E Detail

Fiberglass antenna

Omnidirectional fiberglass antenna TY-1516-6Q23AWD1E

Model No.: TY-1516-6Q23AWD1E Frequency Range: 1560-1630MHz Gain(dBi): 6±1dBi VSWR: ≤2.0 Polarization:  Vertical Horizontal Beamwidth(0°): 360° Vertical Beamwidth(0°): 23±5°

6.49dBi 868MHz(863-870MHz) Fiberglass LoRa Antenna For Helium Miner HNT Hotspot Detail

Fiberglass antenna

6.49dBi 868MHz(863-870MHz) Fiberglass LoRa Antenna For Helium Miner HNT Hotspot

Helium miner/HNT hotspot 915MHz fiberglass Lora antenna  8dBi Frequency: 863-870MHz Gain: 6.49dBi Length: 800±20mm Mode: V1799-037-A-01 Impedance: 50Ω VSWR: ≤2.0 Beamwidth: 360° Connector: NJ dual tooth connector Structure: Fiberglass Application: 863-870MHZ Band LORA Communications/ Wireless Data transmission system/ Wireless Paging System

Omnidirectional fiberglass antenna TY-2425-8Q17AWD1E Detail

Fiberglass antenna

Omnidirectional fiberglass antenna TY-2425-8Q17AWD1E

Model No.: TY-2425-8Q17AWD1E Frequency Range: 2400-2500MHz Gain(dBi): 8±1dBi VSWR: ≤1.5 Polarization:  Vertical Horizontal Beamwidth(0°): 360° Vertical Beamwidth(0°): 17±5°

2-6dBi Wi-Fi Antenna 2.4/5.8GHz Single Band And amp; Dual band option Detail

Fiberglass antenna

2-6dBi Wi-Fi Antenna 2.4/5.8GHz Single Band And amp; Dual band option

Key Specifications/ Special Features: 2-6dBi Wifi antenna 2.4/5.8GHz Single Band & Dual band optional Gain              6.0±1 dBi Frequency    2400-2500MHz Impedance    50Ω VSWR            ≤2 Beamwidth    360° Connector    NJ dual tooth connector Structure        Fiberglass Length          […]

6dBi Omni 5.8GHz Wi-Fi Antenna Detail

Fiberglass antenna

6dBi Omni 5.8GHz Wi-Fi Antenna

6dBi Omni 5.8GHz Wifi antenna Brand VLG Frequency  5.8GHz Impedance 50Ω VSWR   ≤2.0 Gain   6±1dBi

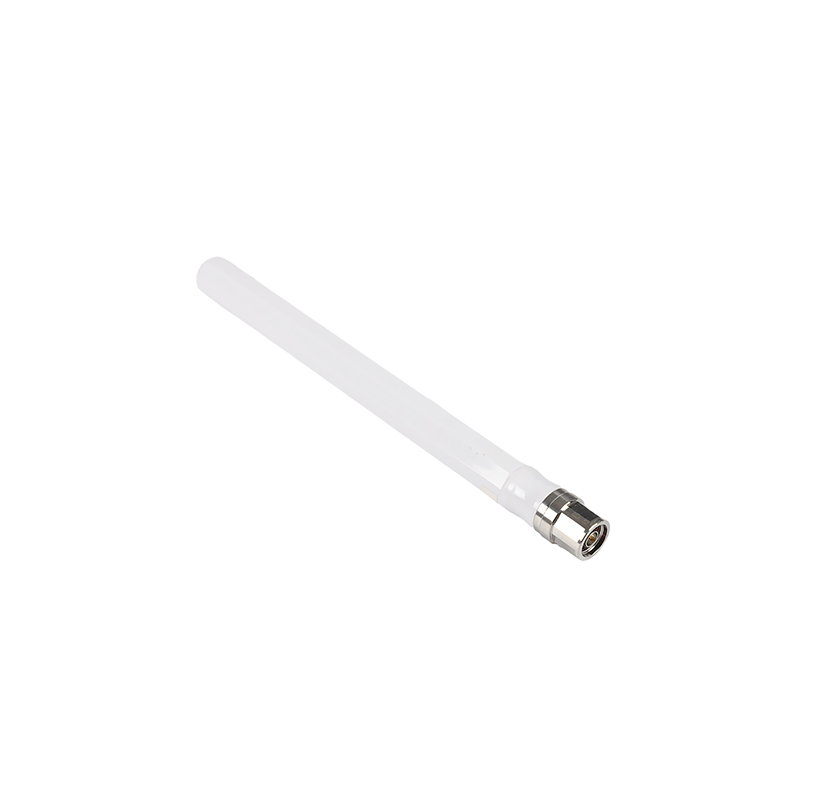

600-6000MHz Omnidirectional All-band Fiberglass Antenna Detail
