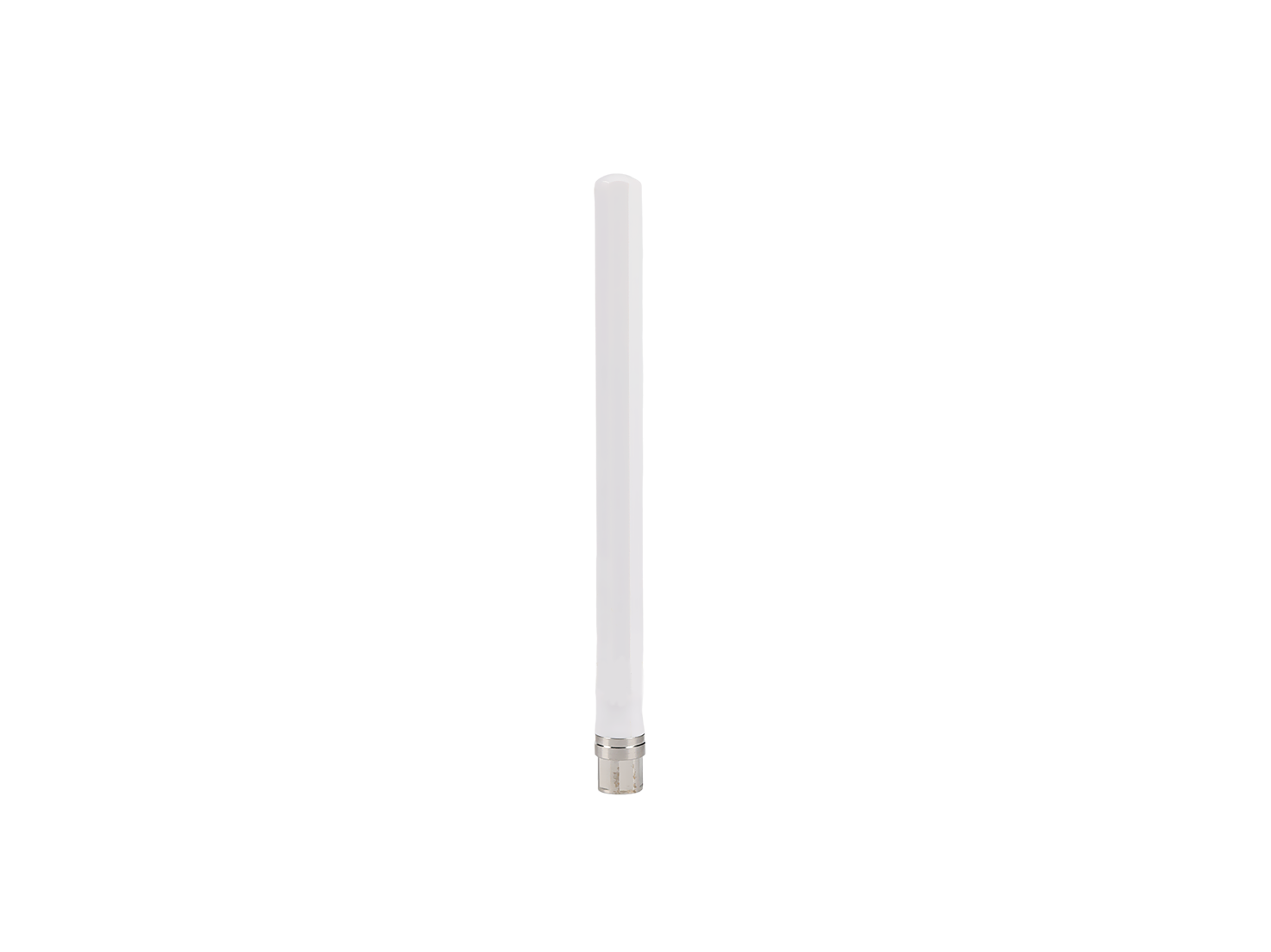

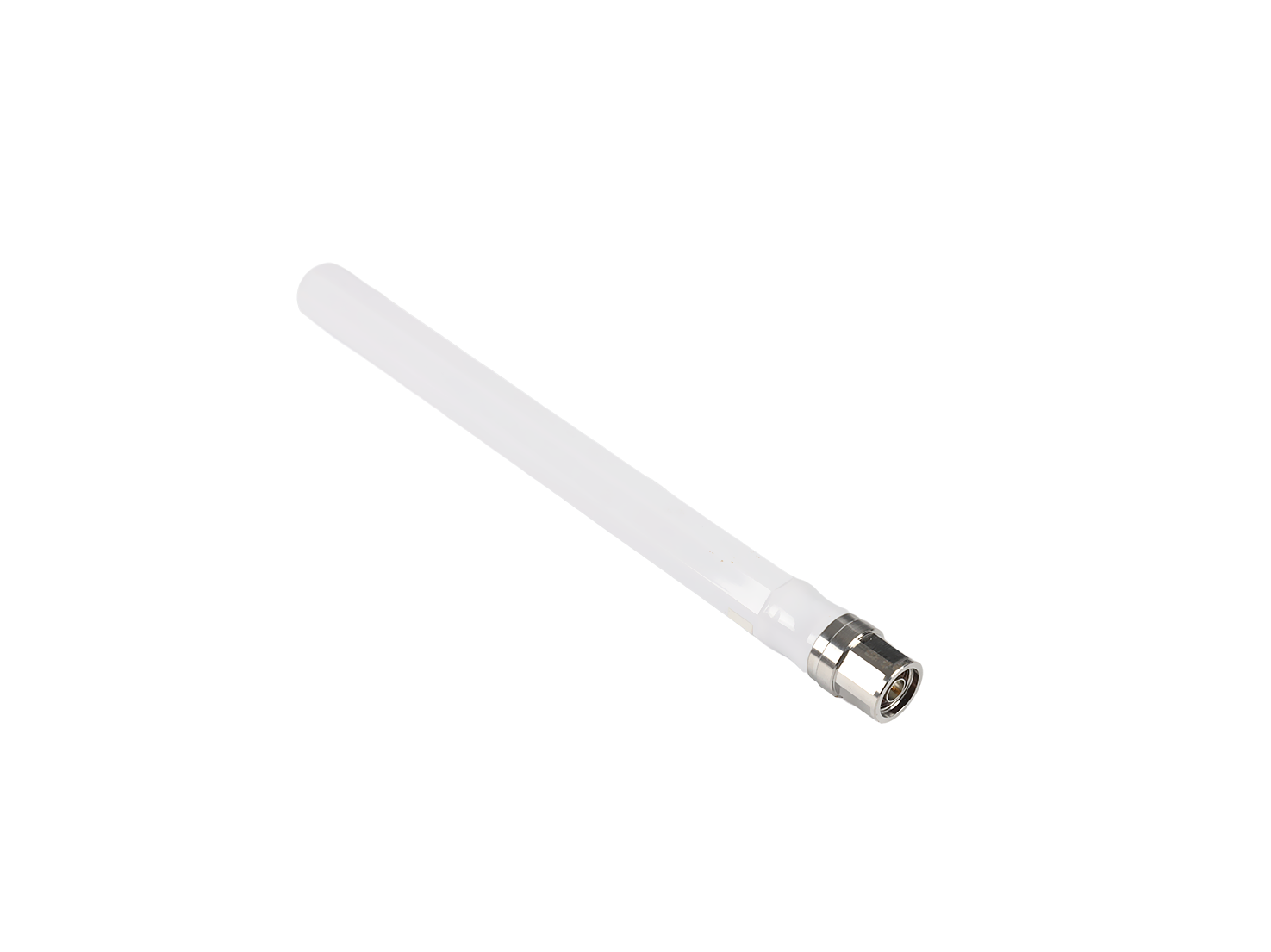

600-6000MHz Omnidirectional All-band Fiberglass Antenna

Fiberglass antenna

600-6000MHz Omnidirectional All-band Fiberglass Antenna

Frequency range 600-6000MHz

Maximum gain (dBi) 6.0 dBi

Model:V2240-001-A-01

VSWR ≤ 3

vertical polarization

Horizontal Beamwidth(0°) 360°

Input Impedance（Ω）50Ω

Input connector typeN type head （Customizable）

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

600-6000MHz Omnidirectional All-band Fiberglass Antenna

Overview

This high-performance fiberglass antenna is designed to optimize your 5G experience. With a wide operating frequency range of 600-6000MHz, it covers most global cellular bands, ensuring compatibility with various 5G networks. This antenna is particularly well-suited for boosting signal reception for ZTE and Huawei 5G routers and Customer Premises Equipment (CPE), providing a reliable and powerful connection for your devices.

Key Features

• Unmatched Connectivity Across 5G Bands

This antenna boasts exceptional versatility with its broad spectrum support (600-6000MHz) encompassing all major 5G bands. Regardless of your location or carrier, you can expect excellent network performance.

• Enhanced Signal Strength for a Robust Connection

This antenna delivers a maximum gain of 6.0 dBi, effectively amplifying cellular signals. This translates to improved reception, faster data transfer speeds, and a more stable connection for all your devices.

• Reliable Communication with Minimized Signal Loss

Featuring a low VSWR (Voltage Standing Wave Ratio) of ≤ 3, this antenna minimizes signal loss on the transmission line. This ensures efficient communication and a reliable connection for uninterrupted calls, streaming, and downloads.

Specification

Feature	Specification
Frequency Range	600-6000MHz
Max Gain	6.0 dBi
VSWR	≤ 3
Polarization	Vertical
Horizontal Beamwidth (0°)	360°
Input Impedance (Ω)	50Ω
Input Connector Type	N-Type (Customizable)
Dimensions (mm) (H / W / D)	Ø25 x 270mm

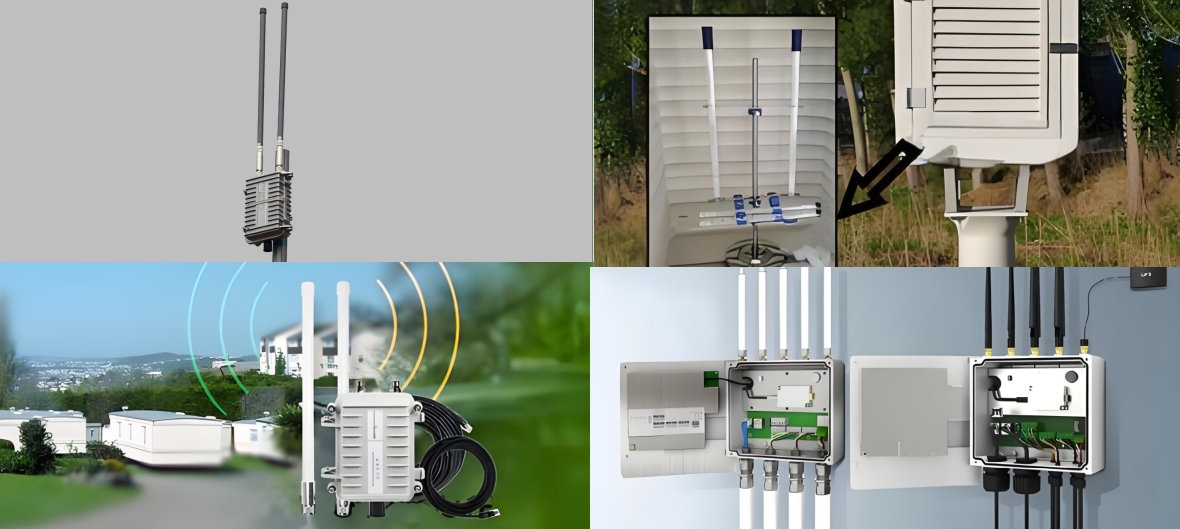

Applications

Boosting 5G Signal Strength for ZTE & Huawei Devices: Enhance cellular reception in homes, offices, and remote locations with weak signal issues, particularly optimized for ZTE and Huawei devices.Improved Mobile Hotspot Performance: Amplify signal strength for mobile hotspots and internet gateways, ensuring better internet connectivity for multiple devices.

Strengthening Signal for Cellular Devices: Improve signal reception for security cameras, industrial equipment, and other cellular-based devices.

Long-Range 4G/5G Communication: Support reliable 4G/5G data transfer for applications requiring extended range connectivity.
