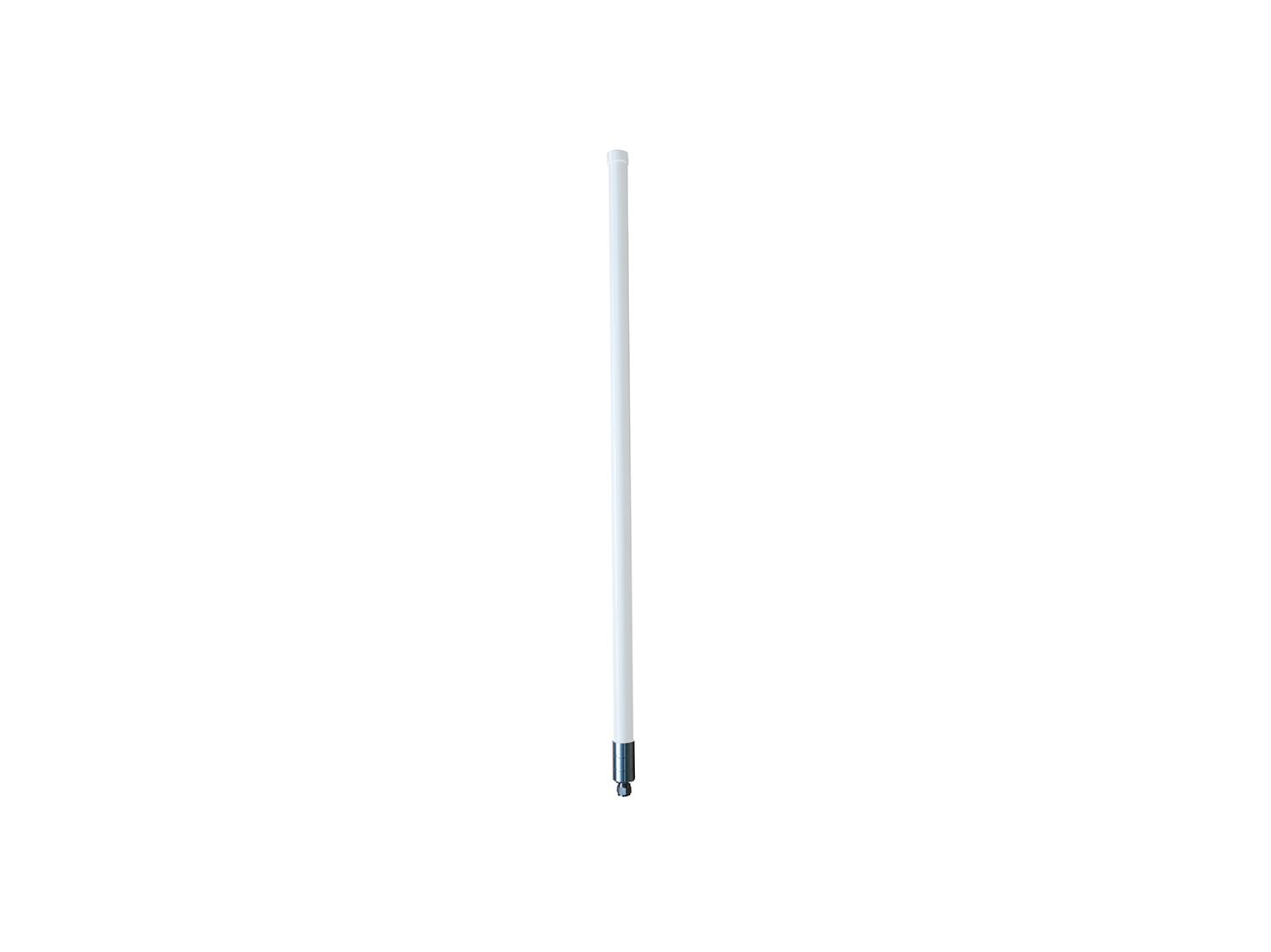

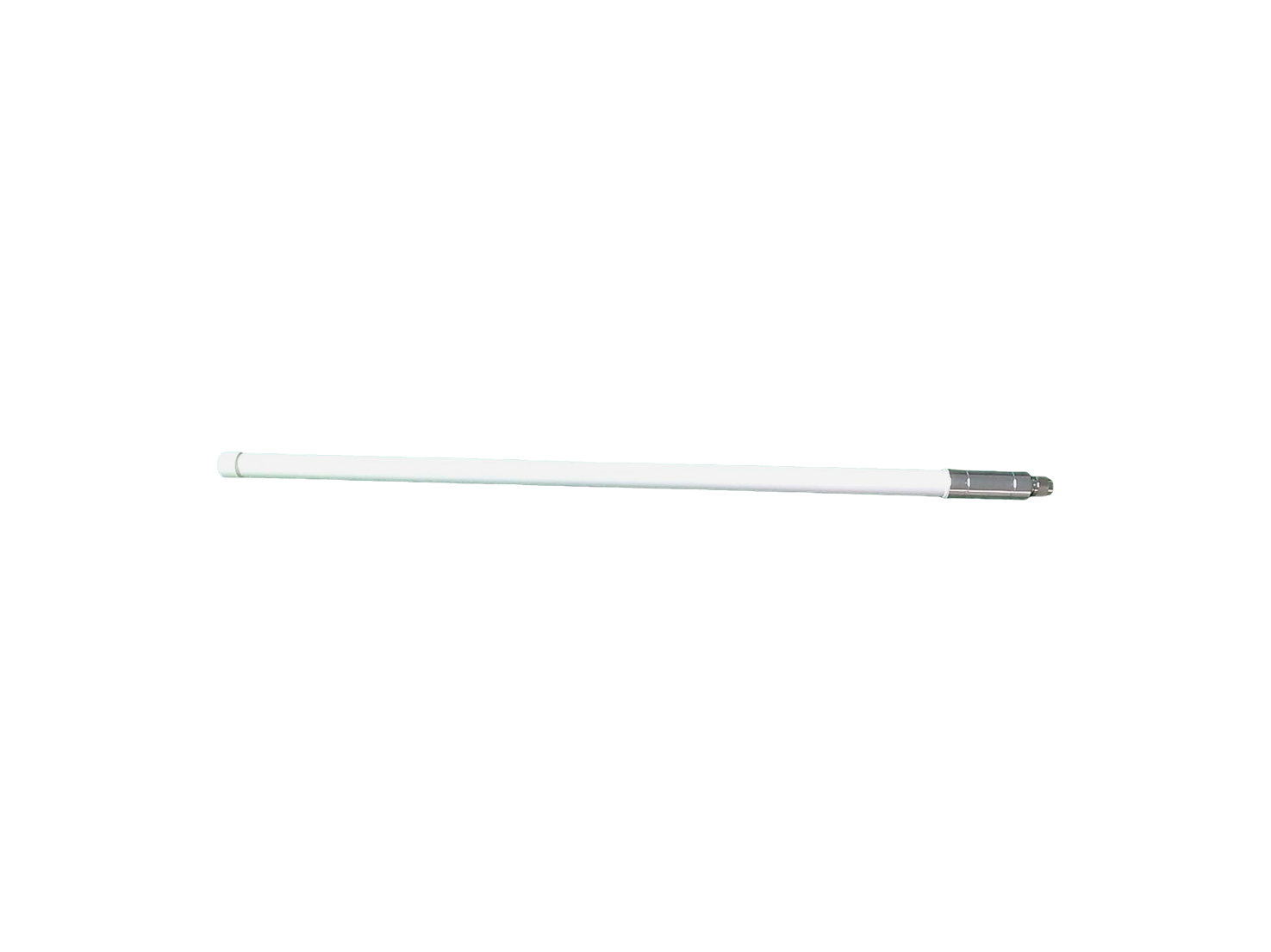

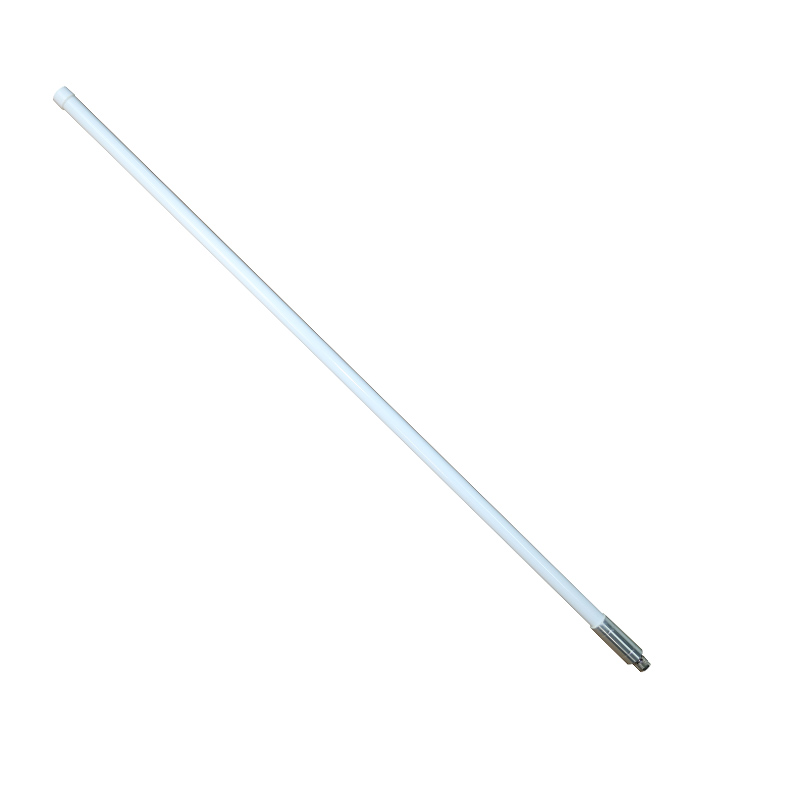

6.49dBi 868MHz(863-870MHz) Fiberglass LoRa Antenna For Helium Miner HNT Hotspot

Fiberglass antenna

6.49dBi 868MHz(863-870MHz) Fiberglass LoRa Antenna For Helium Miner HNT Hotspot

Helium miner/HNT hotspot 915MHz fiberglass Lora antenna 8dBi

Frequency: 863-870MHz

Gain: 6.49dBi

Length: 800±20mm

Mode: V1799-037-A-01

Impedance: 50Ω

VSWR: ≤2.0

Beamwidth: 360°

Connector: NJ dual tooth connector

Structure: Fiberglass

Application: 863-870MHZ Band LORA Communications/ Wireless Data transmission system/ Wireless Paging System

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

6.49dBi 868MHz(863-870MHz) Fiberglass LoRa Antenna For Helium Miner HNT Hotspot

Overview

Low VSWR, guranteen the good performance of antenan and good coverage.Fiberglass structure, good water proof for Outdoor Installation.Special suitable for Urban area (Not suggest for Rural area which far away from Urban area.Wide Beamwidth, radiation distance can reach up to 3km.

Key Features

• No induction eddy current

This reduces signal interference and improves the stability of communication.

• Compact structure

FRP antenna design is more compact, occupy a small space, suitable for installation in a limited space.

• Light and high strength

The high strength and lightweight characteristics of FRP make the antenna structure strong but light weight, easy to install and transport, reducing the burden on the support structure.

• Good electrical performance

Fiberglass antennas have excellent electrical insulation and wave permeability (transmittance of more than , which means that there is almost no loss in signal transmission, ensuring the quality of communication.

Specification

Frequency	863-870MHz
Impedance	50Ω
VSW	＜2.0
Gain	6.49dBi
Max. Efficienc	>75%
Polarization	Linear polarization/Vertical
Radiation pattern	Omni-directional
Connector	N-J

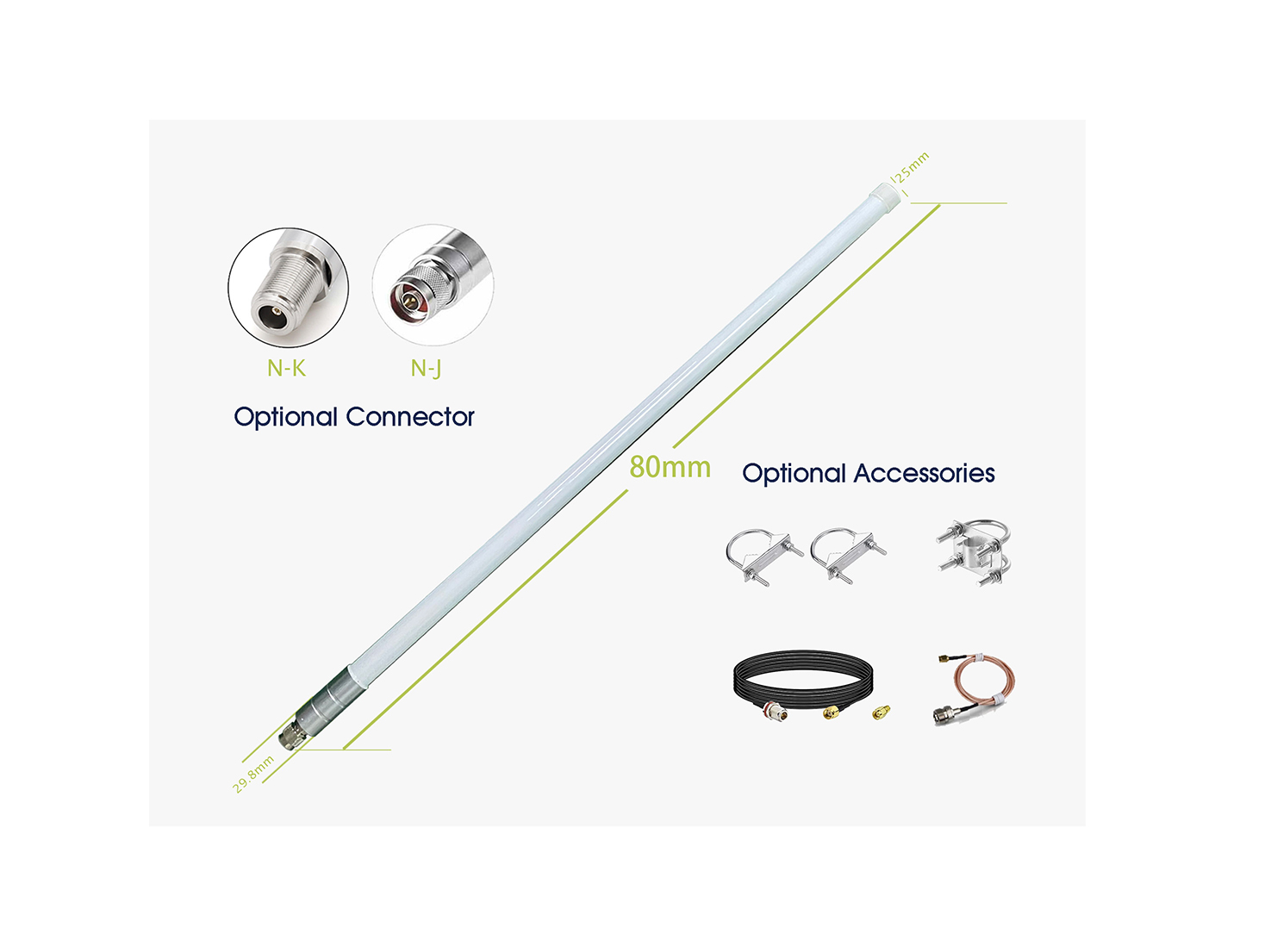

Length	800±15mm
Salt Spray Test	48H
Operation Temperature	-30℃~65℃
Storage Temperatur	-30℃~75℃

Installation suggestion

we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.

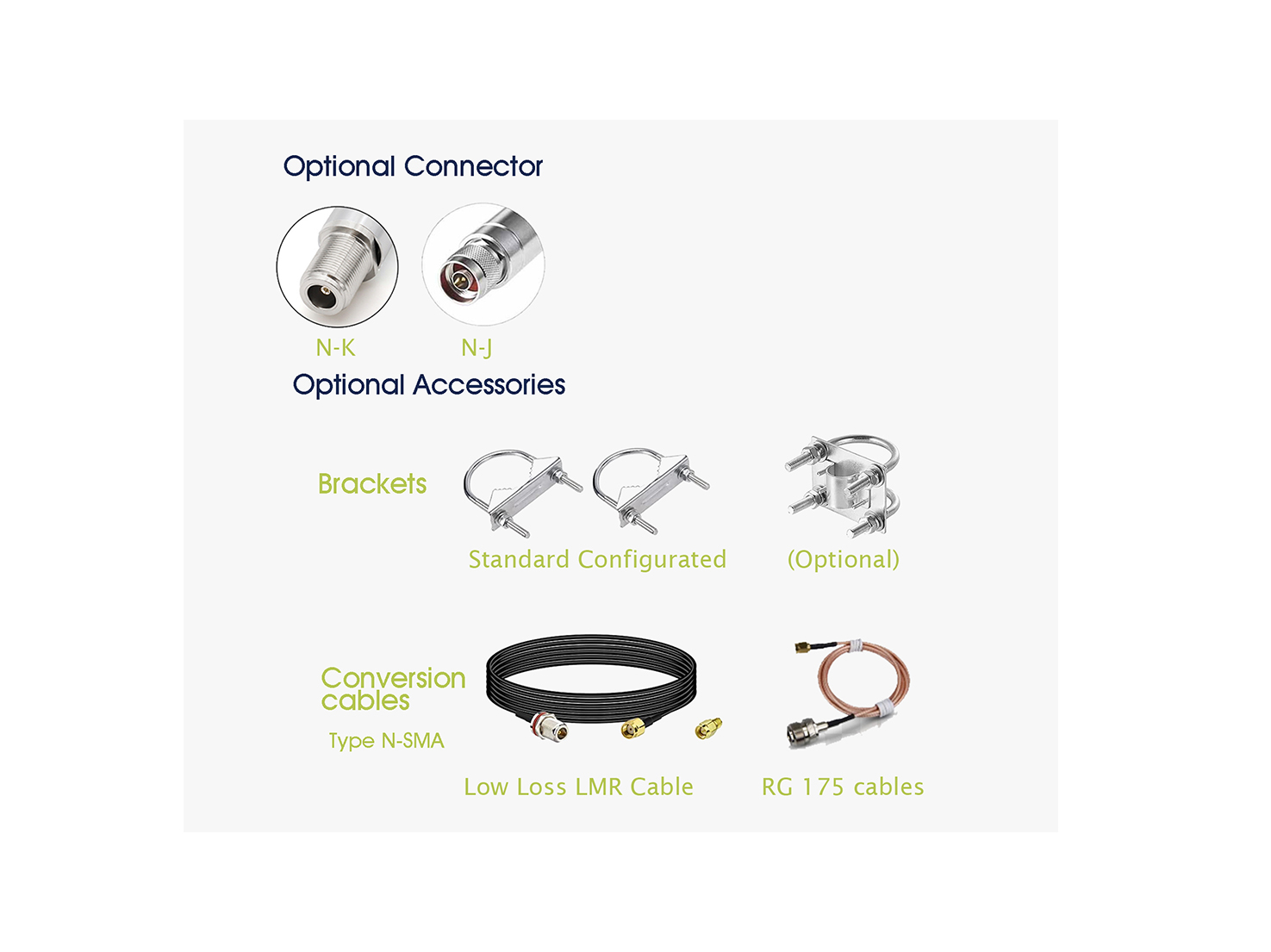

Optional connector and accessories are availiable. Please share your requirement with us to get the best offer.	The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments.
