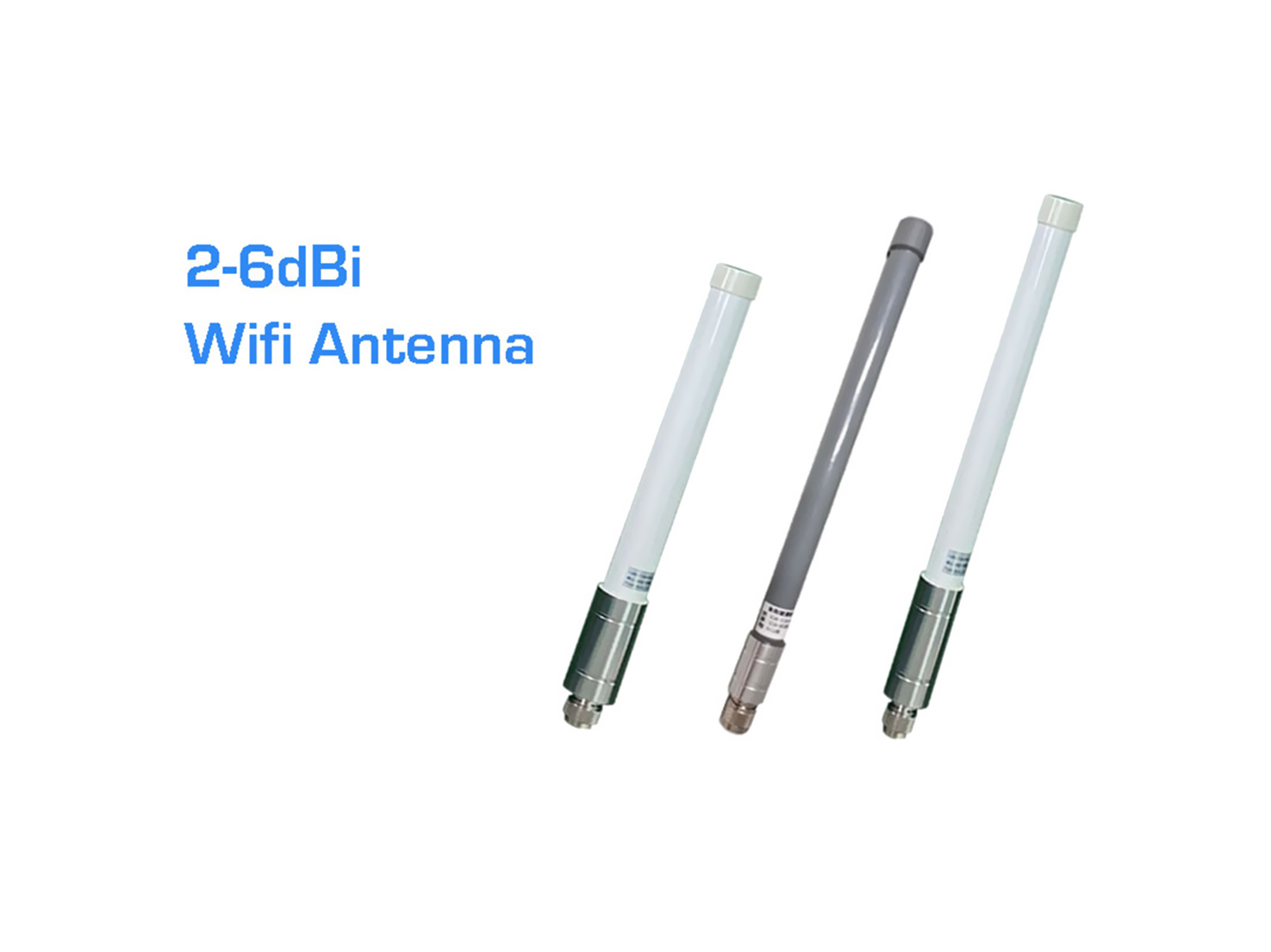

2-6dBi Wi-Fi Antenna 2.4/5.8GHz Single Band And amp; Dual band option

Fiberglass antenna

2-6dBi Wi-Fi Antenna 2.4/5.8GHz Single Band And amp; Dual band option

Key Specifications/ Special Features:

2-6dBi Wifi antenna 2.4/5.8GHz Single Band & Dual band optional

Gain 6.0±1 dBi

Frequency 2400-2500MHz

Impedance 50Ω

VSWR ≤2

Beamwidth 360°

Connector NJ dual tooth connector

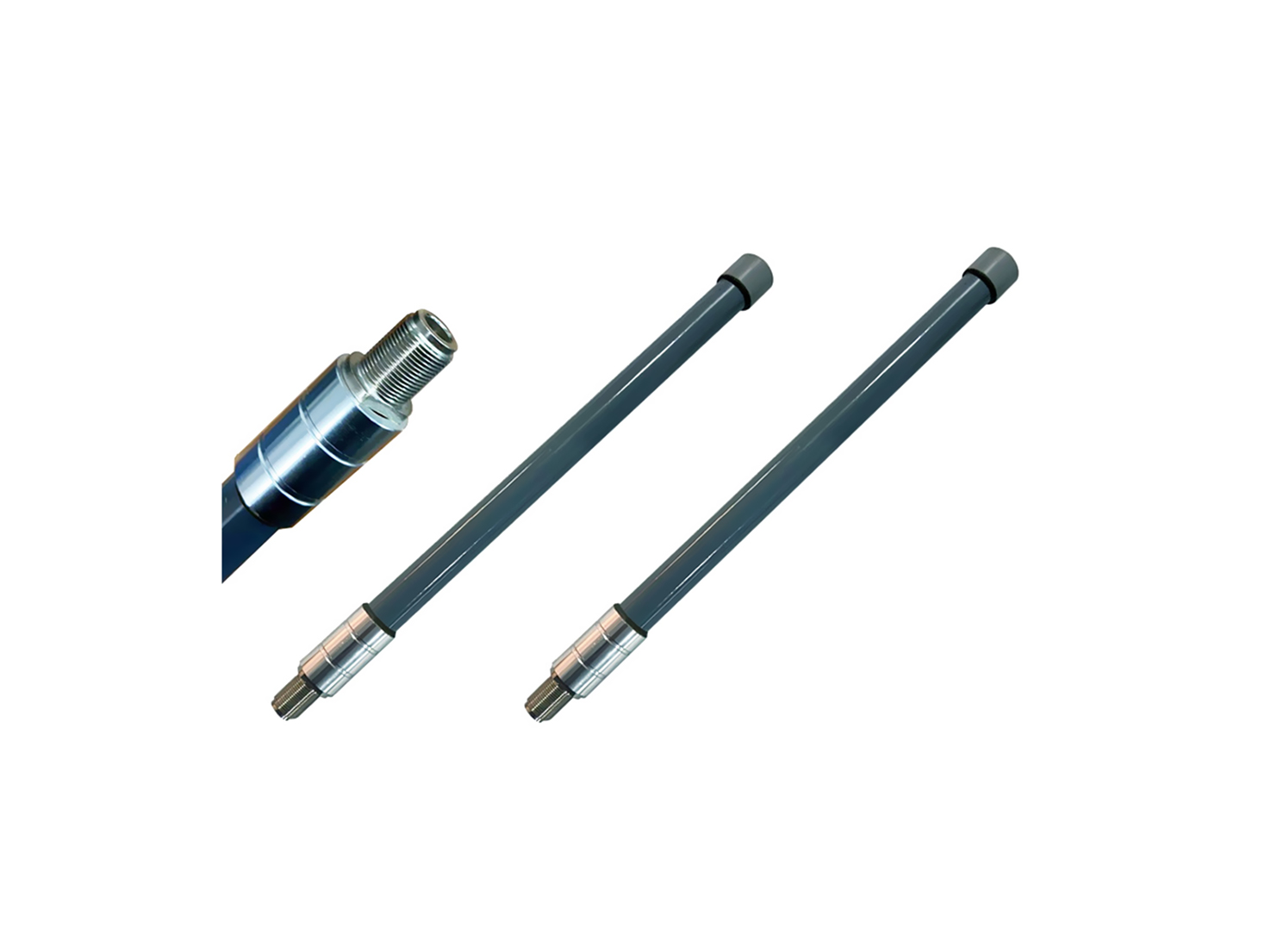

Structure Fiberglass

Length 350±5mm

Diameter 25mm (Tube)

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

2-6dBi Wi-Fi Antenna 2.4/5.8GHz Single Band And amp; Dual band option

Overview

Low VSWR, guranteen the good performance of antenan and good coverage.Fiberglass structure, good water proof for Outdoor Installation.Special suitable for Urban area .

Key Features

• Accuracy and high gain

The high temperature and high pressure molding technology ensures the consistency and high precision of the antenna, which is conducive to improving the signal gain

• Compact structure

FRP antenna design is more compact, occupy a small space, suitable for installation in a limited space.

• Light and high strength

The high strength and lightweight characteristics of FRP make the antenna structure strong but light weight, easy to install and transport, reducing the burden on the support structure.

• Accuracy and high gain

The high temperature and high pressure molding technology ensures the consistency and high precision of the antenna, which is conducive to improving the signal gain

Specification

Frequency	2400-2500Mhz
Impedance	50Ω
VSWR	＜2.0
Gain	6.0±1 dBi
Max. Efficienc	>75%
Polarization	Linear polarization/Vertical
Radiation pattern	Omni-directional
Connector	N-J
Length	350±5mm
Salt Spray Test	48H
Operation Temperature	-30℃~65℃
Storage Temperatur	-30℃~75℃

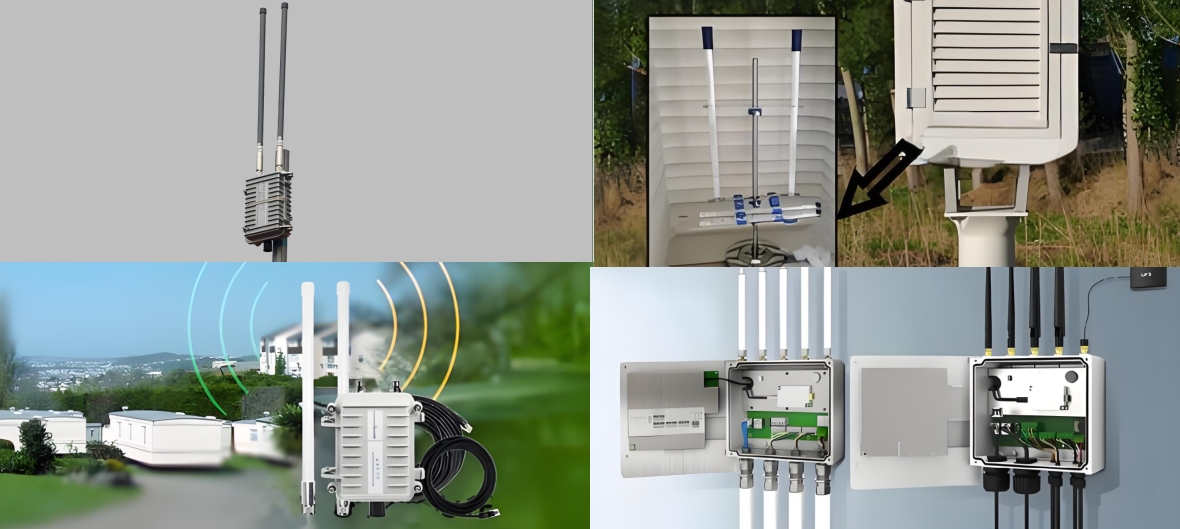

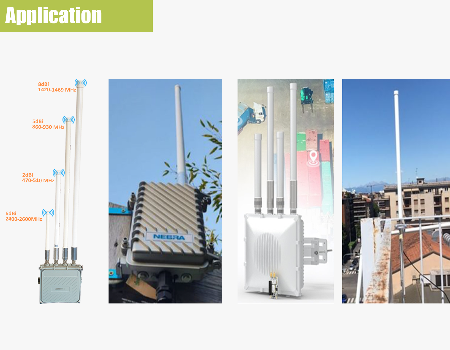

Installation suggestion

we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.

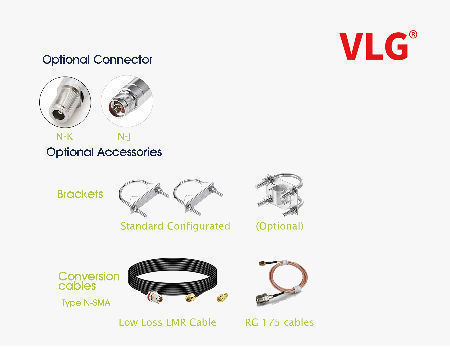

Optional connector and accessories are availiable. Please share your requirement with us to get the best offer.	The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments.

VLG glass antenna series

Model	2dB-2.4	4dB-2.4	6dB-2.4	4dB-5.8	6dB-5.8	6dB-2.4/5.8
Frequency Range	2400-2500MHz	2400-2500MHz	2400-2500MHz	5150-5850MHz	5150-5850MHz	2400-2500/5150-5850MHz
Gain	2dBi	4±1dBi	6.0±1 dBi	4±1dBi	5.0±1 dBi	4.0dBi /6.0dBi
VSWR	≤1.5	≤2.0	≤2.0	≤2.0	≤2.0	≤3.0
ovality(dB)	≤±2	≤±2	≤±2	≤±2	≤±2	≤±2
Impedance	50Ω	50Ω	50Ω	50Ω	50Ω	50Ω
Max input power	50W	50W	50W	50W	50W	50W
Dimensions（mm）	ɸ20*215	ɸ20*220	ɸ20*350	ɸ20*185	ɸ20*185	ɸ20*270
Connector type	N-K/J	N-K/J	N-K/J	N-K/J	N-K/J	N-K/J
Radome material	Fiberglass	Fiberglass	Fiberglass	Fiberglass	Fiberglass	Fiberglass
