GNSS Antenna

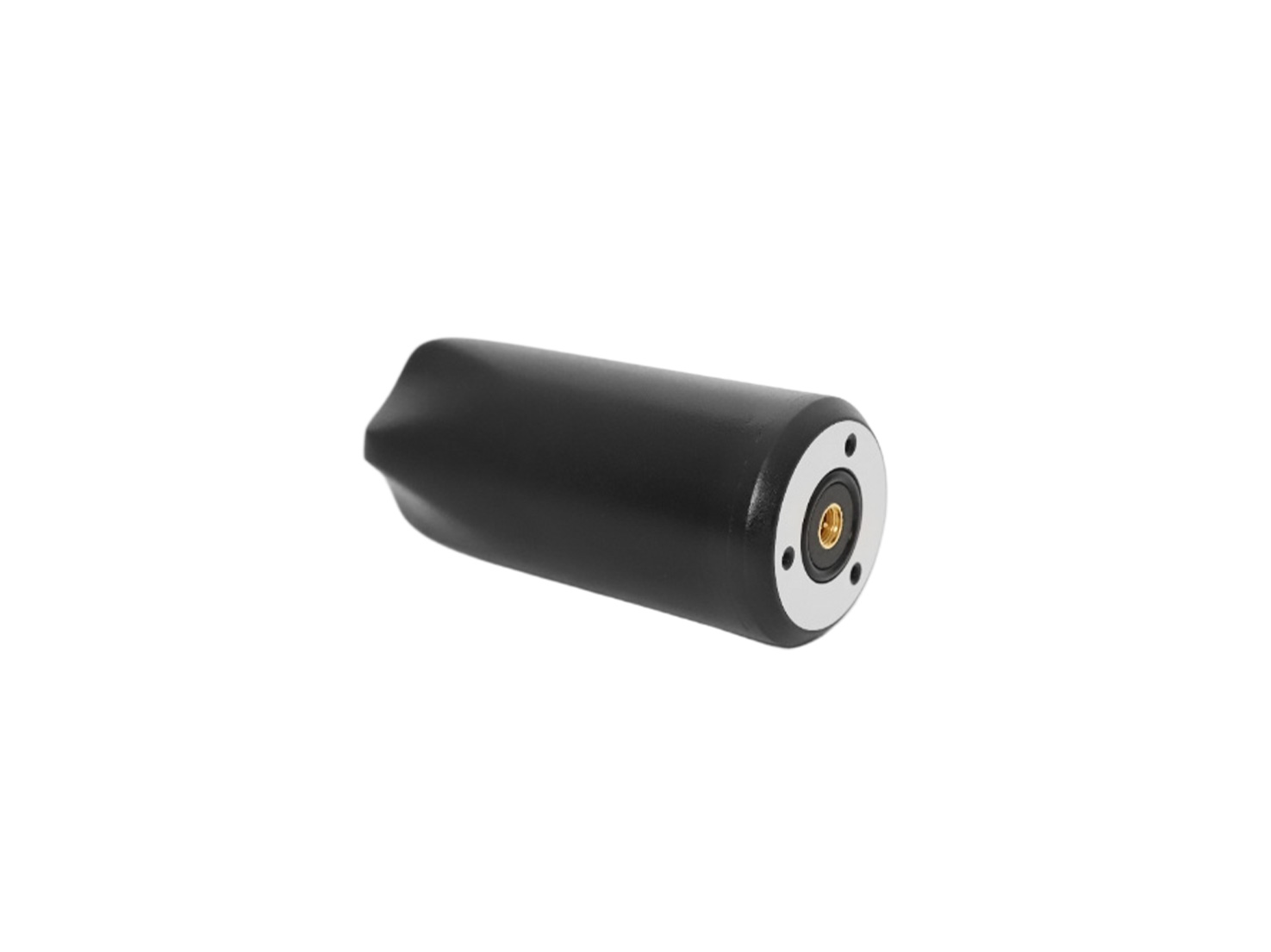

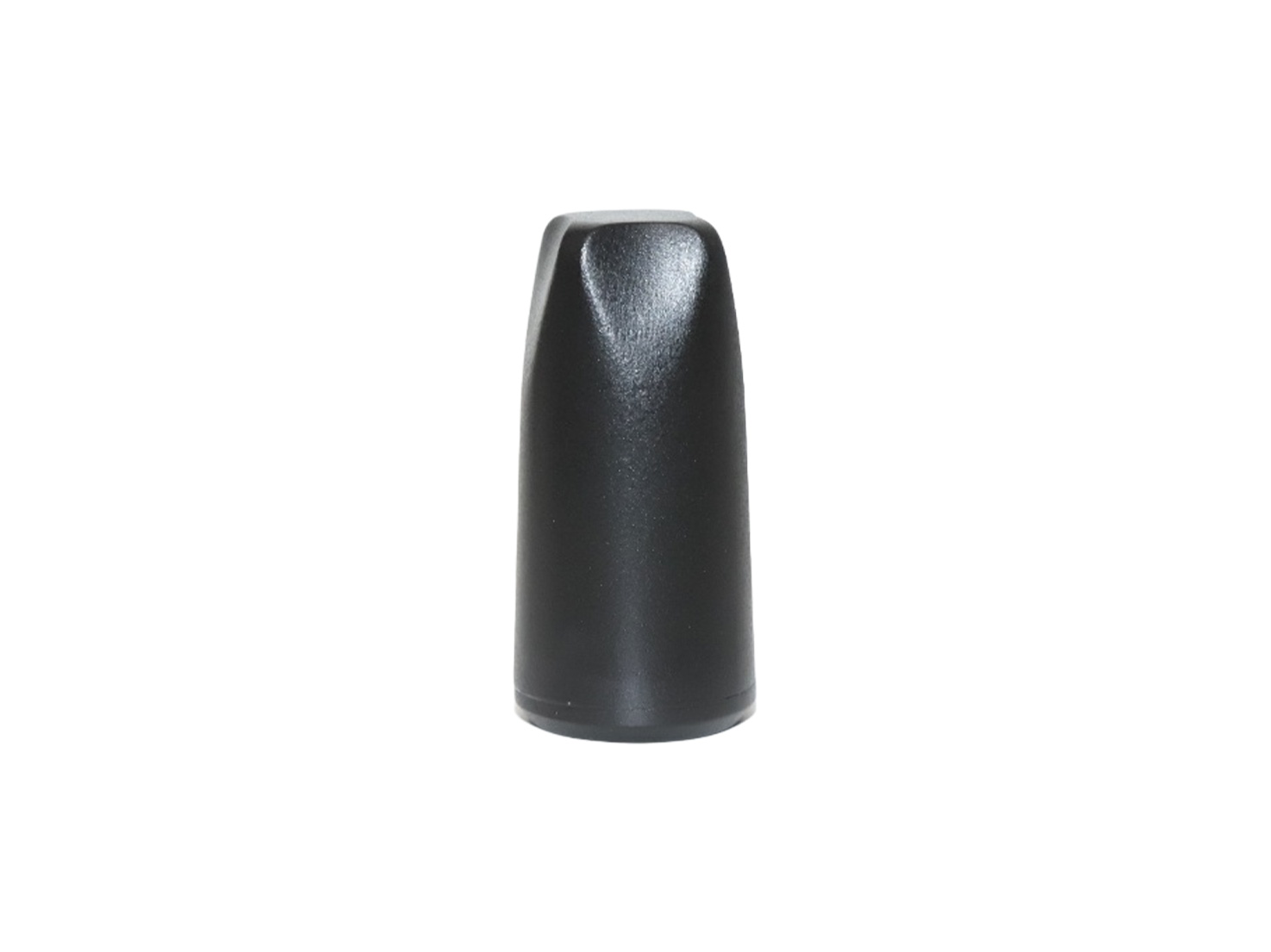

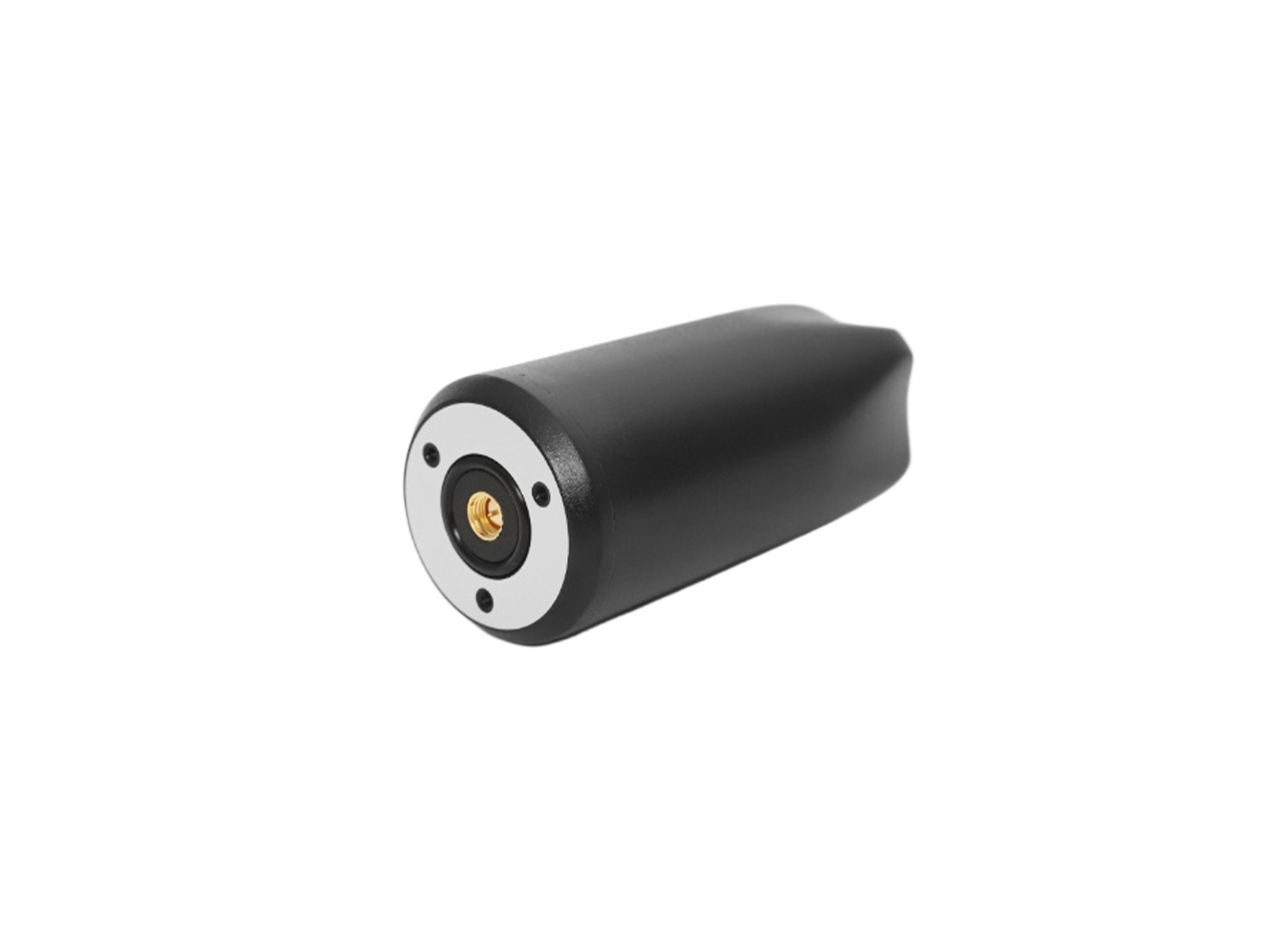

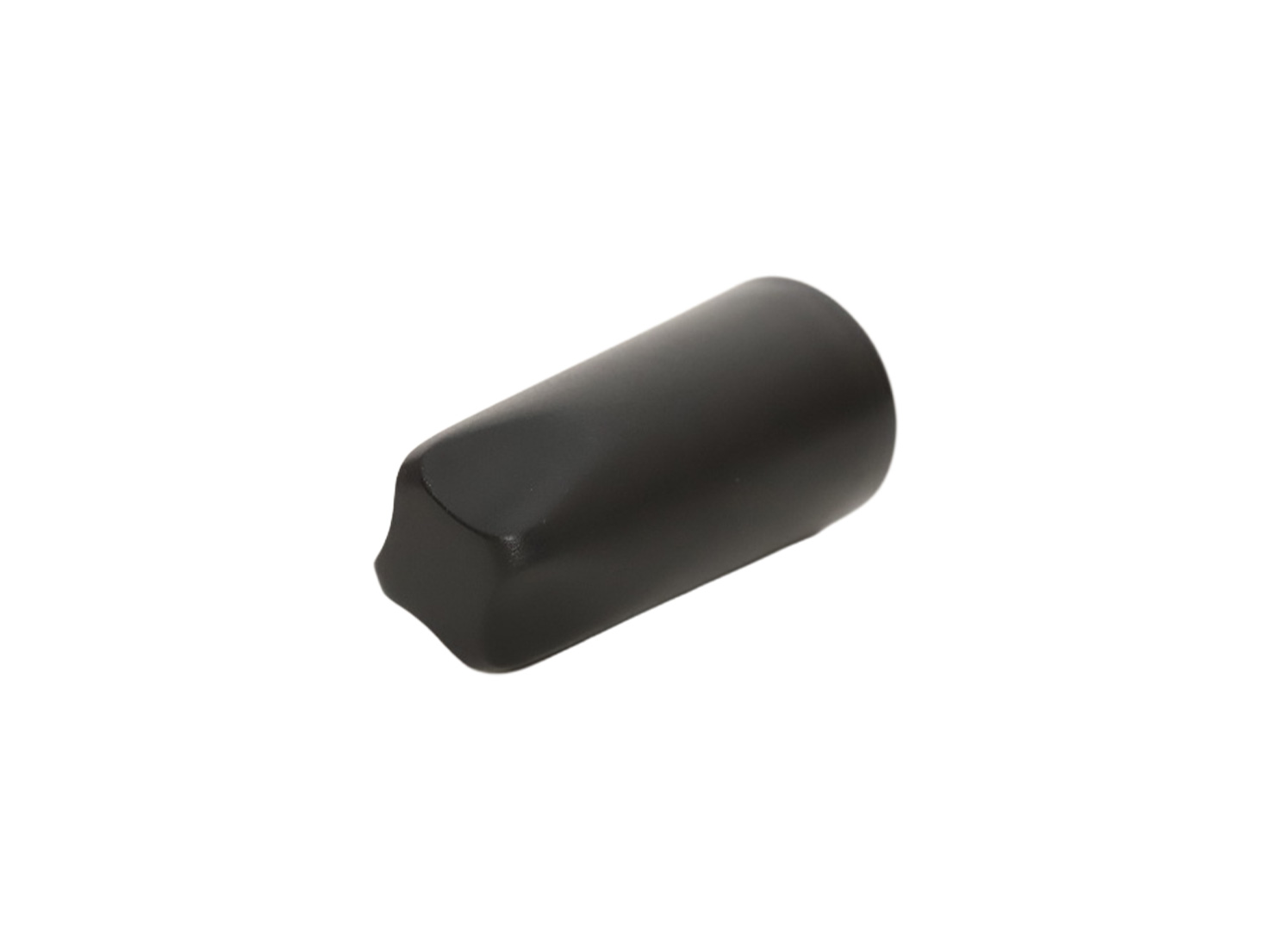

VLG-609 Multi-star Multi-frequency Spiral Antenna

High precision positioning four-arm spiral antenna

Applicable frequency bands: GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, GALILEO: E1/E5/E6, L-Band

Product Usage: This antenna is a multi-star multi-frequency four-arm spiral active antenna covering GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, GALILEO: E1/E5/E6, L-Band, widely used in navigation scheduling, tracking monitoring, measurement and control fields. Especially suitable for UAV and many other applications, such as aerial photography, traffic monitoring, remote telemetry, etc., but also can be used in a variety of handheld terminals, high-precision positioning modules.



Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactVLG-609 Multi-star Multi-frequency Spiral Antenna
4722bc1dd9e4286
26890b51a9ef665
e4471fe78380e6e
6c27b8eac1cc18f

Overview

High precision positioning four-arm spiral antenna

Applicable frequency bands: GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, GALILEO: E1/E5/E6, L-Band



Product Usage:

This antenna is a multi-star multi-frequency four-arm spiral active antenna covering GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, GALILEO: E1/E5/E6, L-Band, widely used in navigation scheduling, tracking monitoring, measurement and control fields. Especially suitable for UAV and many other applications, such as aerial photography, traffic monitoring, remote telemetry, etc., but also can be used in a variety of handheld terminals, high-precision positioning modules.

Specification

Electrical performance index
Passive antenna indicators
Frequency Range(MHz)

GPS L1/L2/L5

BDS B1/B2/B3

GLONASS L1/L2

GALILEO: E1/E5/E6

L-Band
Polarization Right-hand circular polarization
Gain(dBi) 2.37dBi@1227Mhz
Axial Ratio(dB) Elevation Angle: 90 degrees：≤3
Impedance(Ω) 50
VSWR ≤2
Horizontal coverage Angle（°） 360° omnidirectional
LNA index
Signal Gain(dB) 35±3
Noise Figure(dB) ≤2
VSWR ≤2
Voltage（VDC） 3~16
Current (mA) 62.5%@1227Mhz
Inband Spectrum Ripple（dB） ≤2
Impedance(Ω) 50
Physical properties
Dimensions(mm) Φ42.2*87.2
Weight（g） ≤35g
Connector Type sma-J
Operating Temperature(℃) -40~+70
Storaging Temperature(℃) -40~+70
Humidity 95%

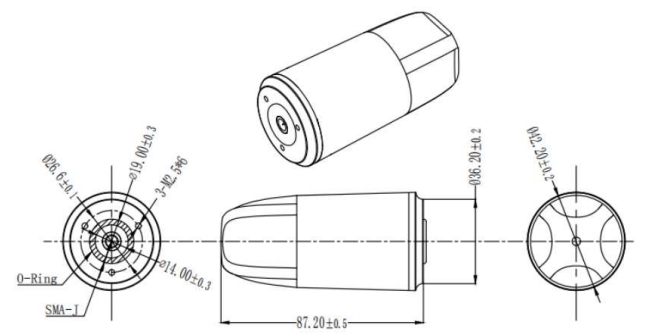

Outline dimension drawing：
