RFID Antenna

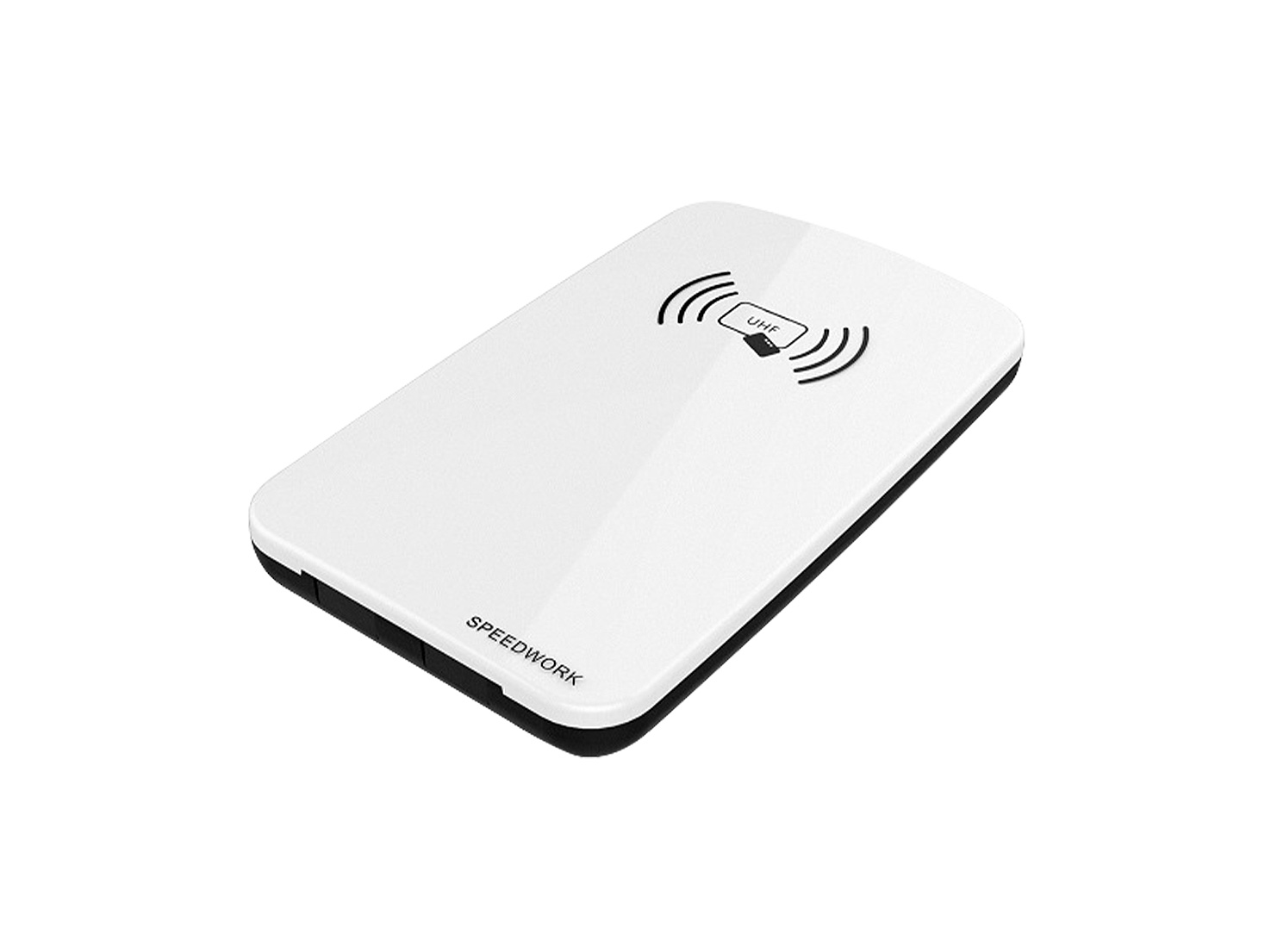

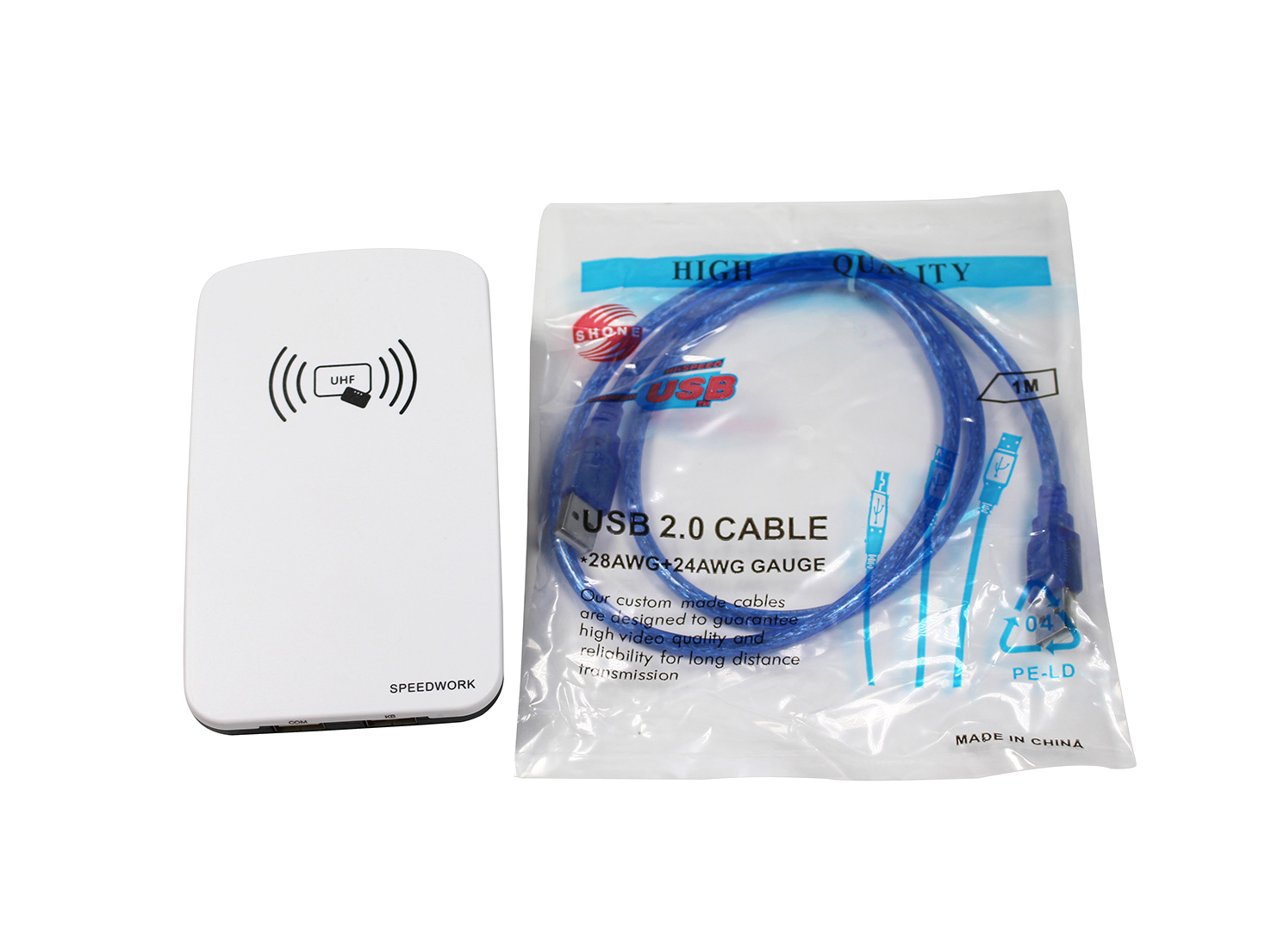

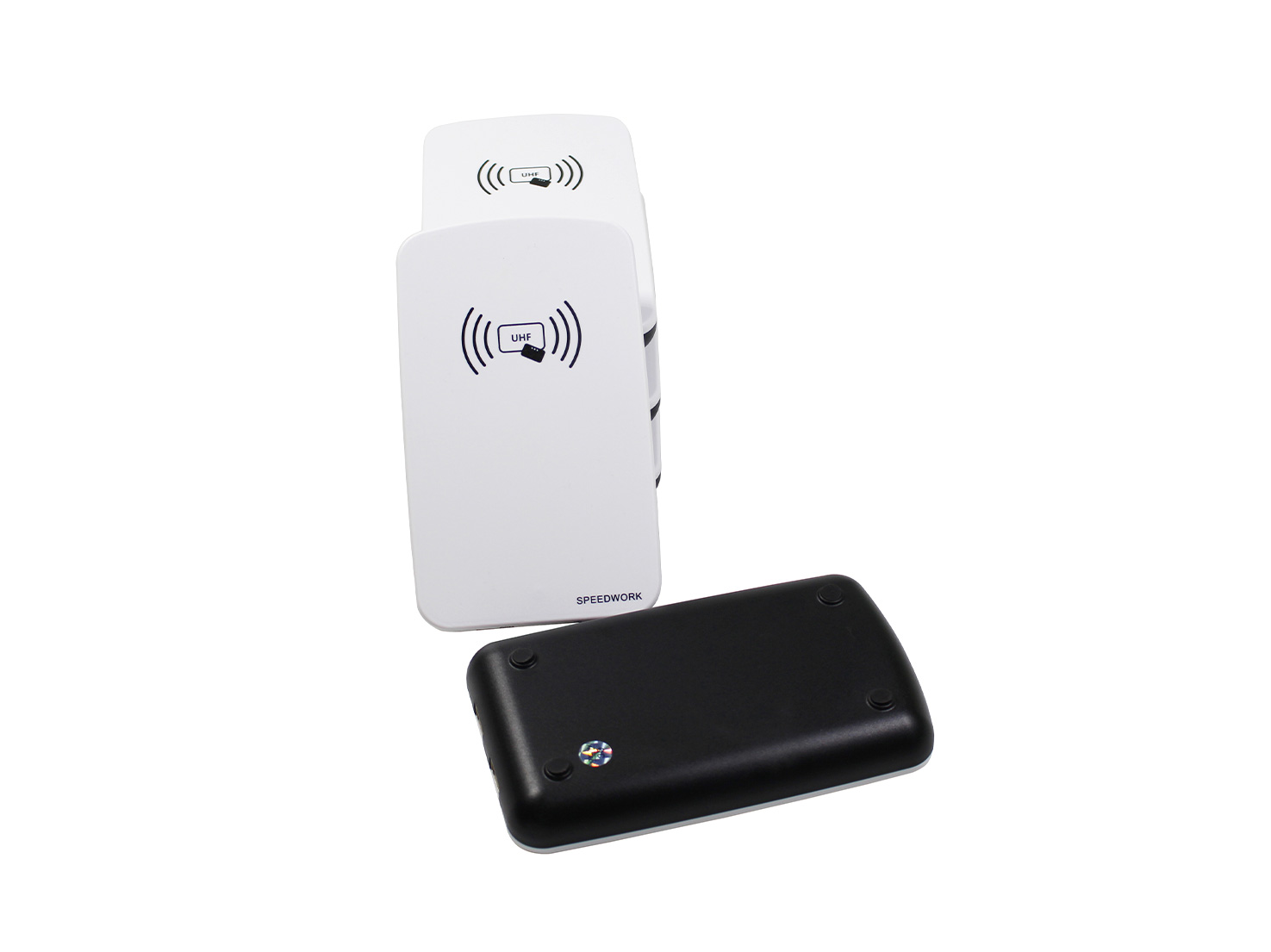

UHF RFID Desktop Reader

This UHF RFID Reader is designed to increase inventory visibility, efficiency and business profitability. Supporting a global frequency range of 860MHz - 960MHz, this reader is capable of reading and writing all tags that conform to the EPC Global Gen2 and ISO18000-6C standards.Reader support USB cable firmware upgrade;hex, ASCII, Wiegand 26,34 etc format output (can be customized ) ;continuously write tag and export/import excel file.

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactUHF RFID Desktop Reader
adc575881915f20
5bb4eeaaa6338c6
74a1222907a405a
36517208df0eaf6
5c58867b2069549
5ec693c92e5a742
b96b37f783495de
3147f9cdfe67674
5bffebb2e690d8e
263239a9dca9c99

Overview

This UHF RFID Reader is designed to increase inventory visibility, efficiency and business profitability. Supporting a global frequency range of 860MHz – 960MHz, this reader is capable of reading and writing all tags that conform to the EPC Global Gen2 and ISO18000-6C standards.Reader support USB cable firmware upgrade;hex, ASCII, Wiegand 26,34 etc format output (can be customized ) ;continuously write tag and export/import excel file.

Key Features

• Support online firmware upgrade;

• Support hexadecimal, ASCII, Wiegand 26 \ 34 \ 36 \ 66 data output;

• Support EPC data continuous writing to tags and Excel file export / import;

• Built-in 40mm double feed point ceramic antenna, stable reading distance;

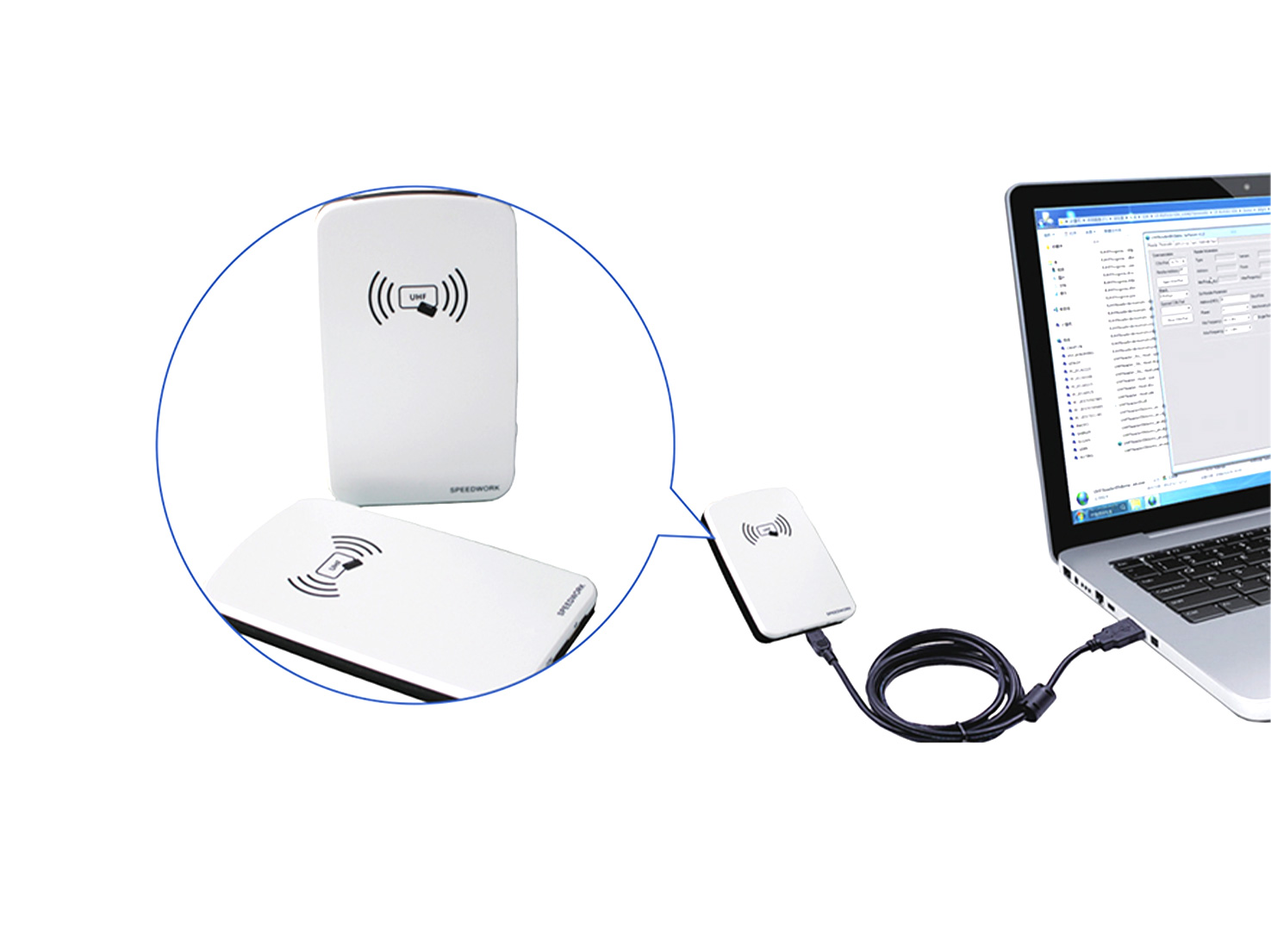

• Dual USB, the left COM is connected to the SDK, and the right KB port EPC / TID data is directly output;

• Stable reading distance: 0-80cm;

• Can be encrypted, anti-copy;

• Provide SDK development kit C ++, C #, JAVA,Delphi, Android;

• Support multi-byte reading and writing;

Specification

Working frequency 902-928MHz(US),865-868MHz(EU)
Protocol EPC C1 Gen2,ISO18000-6C
Size 142*85*20mm
Weight About 200g
Shell material ABS
Antenna gain 3dBi
Output Power 0~18±1dBm
Interfaces 1, USB to serial port ;2, USB to keyboard output
Power USB powered
Way of working Buzzer and LED lights
SDK Demo and C++, C#,JAVA,Delphi,Android
Communication port USB
Frequency mode Fixed frequency / frequency hopping
Reading distance Reading standard white card: about 0 ~ 80cm
Writing distance

Write standard white card: about 0 ~ 15cm
Reading mode Single recognition, continuous recognition; analog keyboard KB port output
Writing mode Support batch rewriting of labels
Storage humidity 5% ～ 95% RH without condensation
Storage temperature -20℃~+75℃
Working temperature -40℃~+85℃
