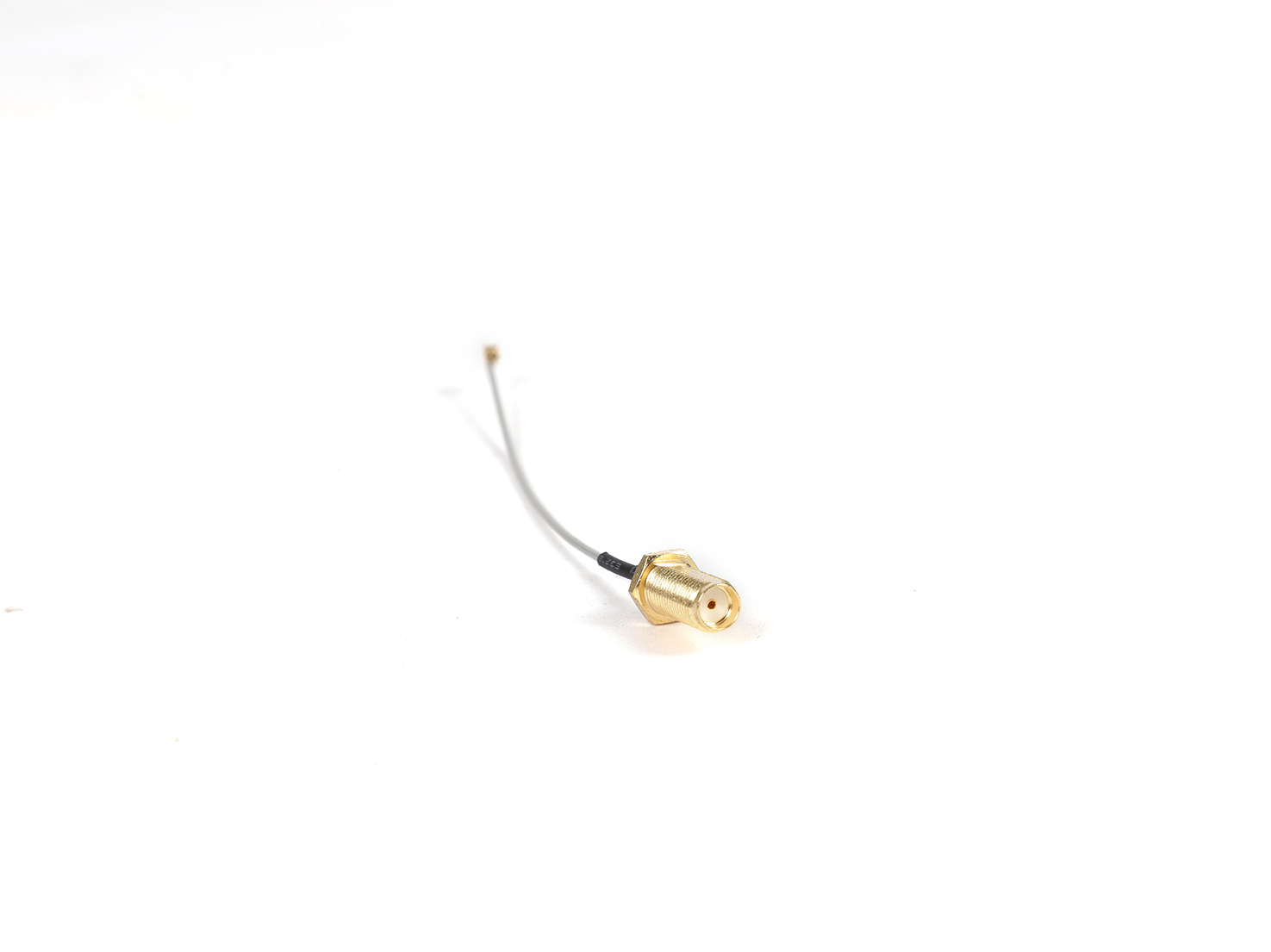

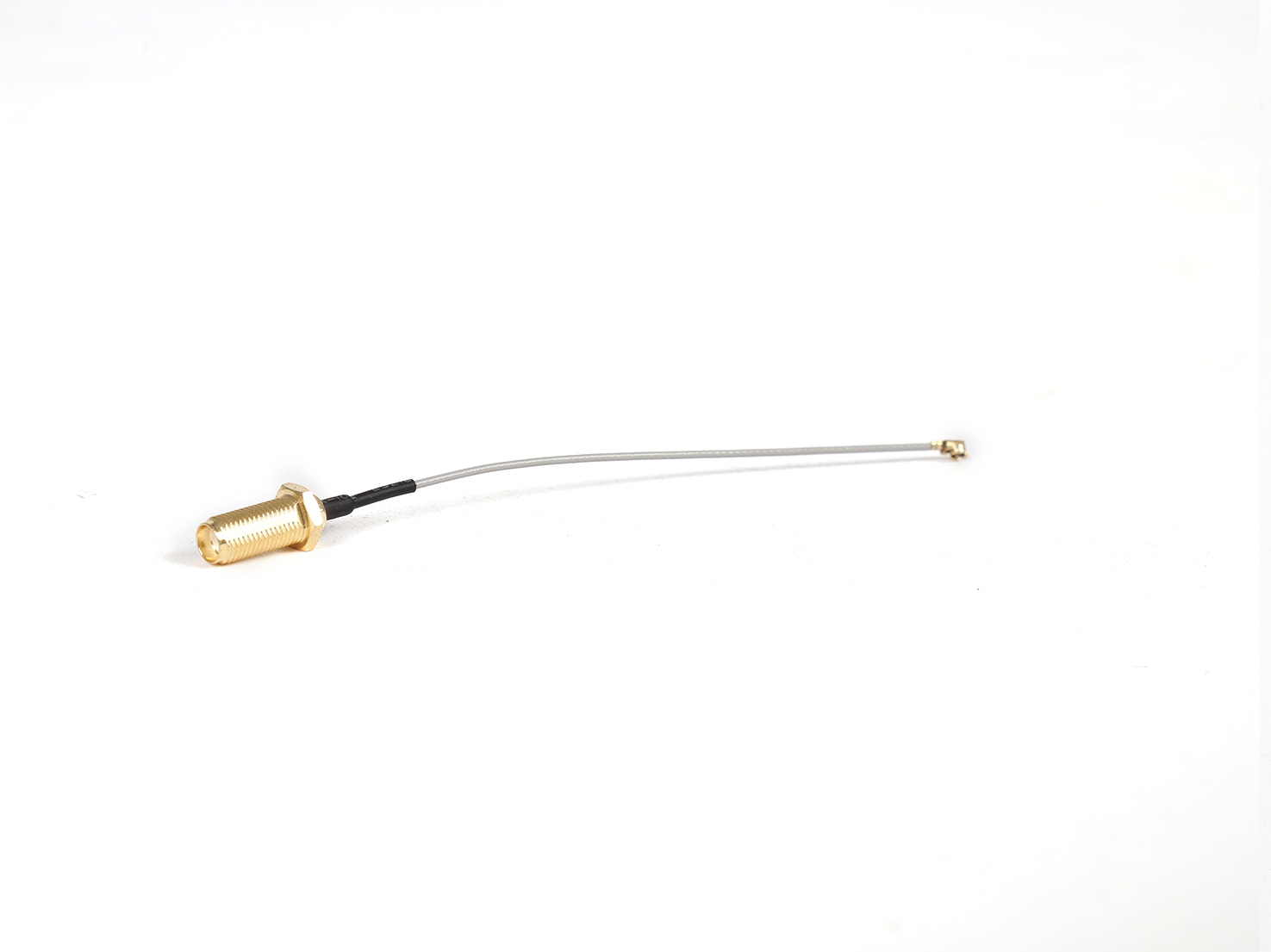

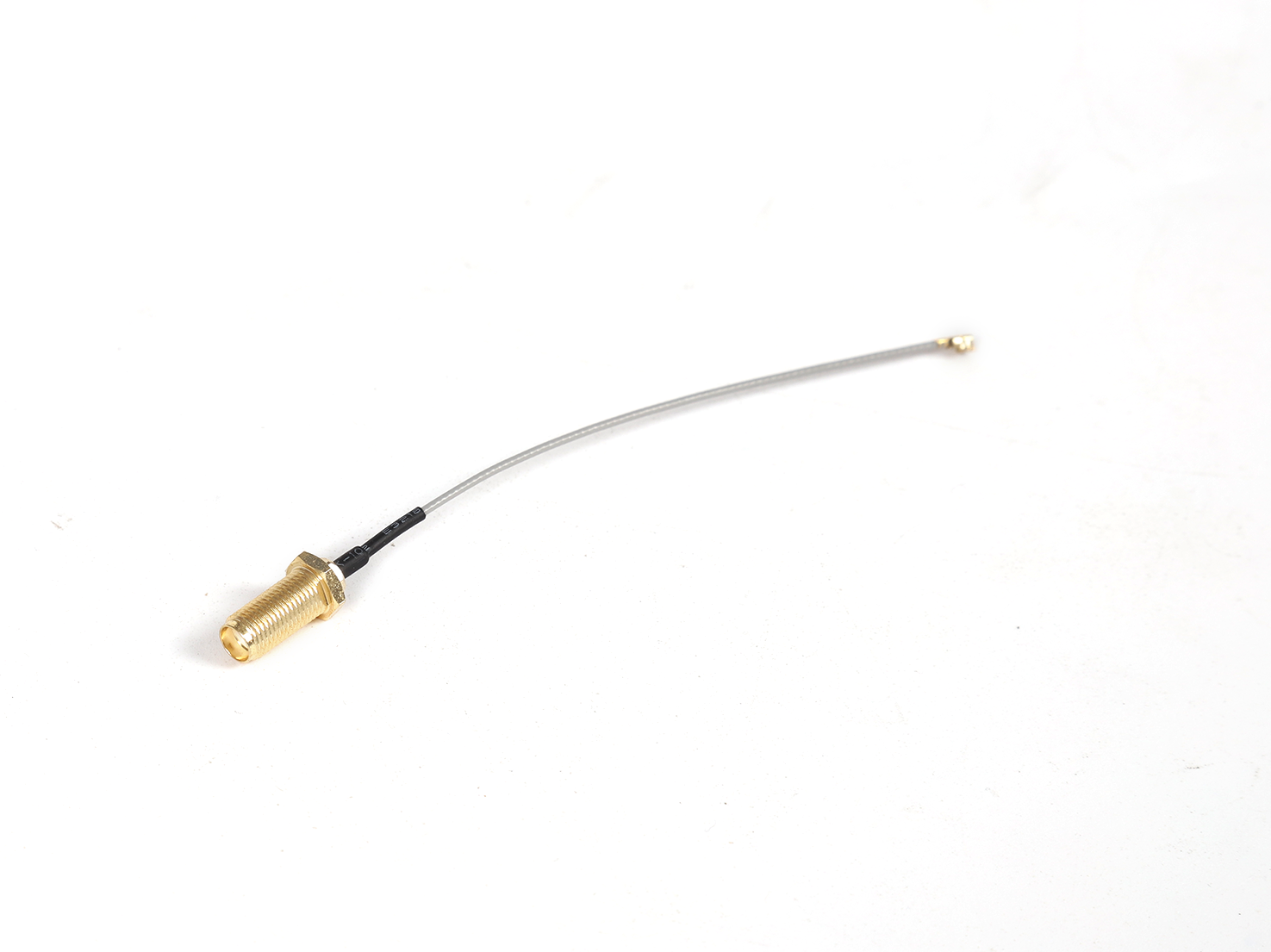

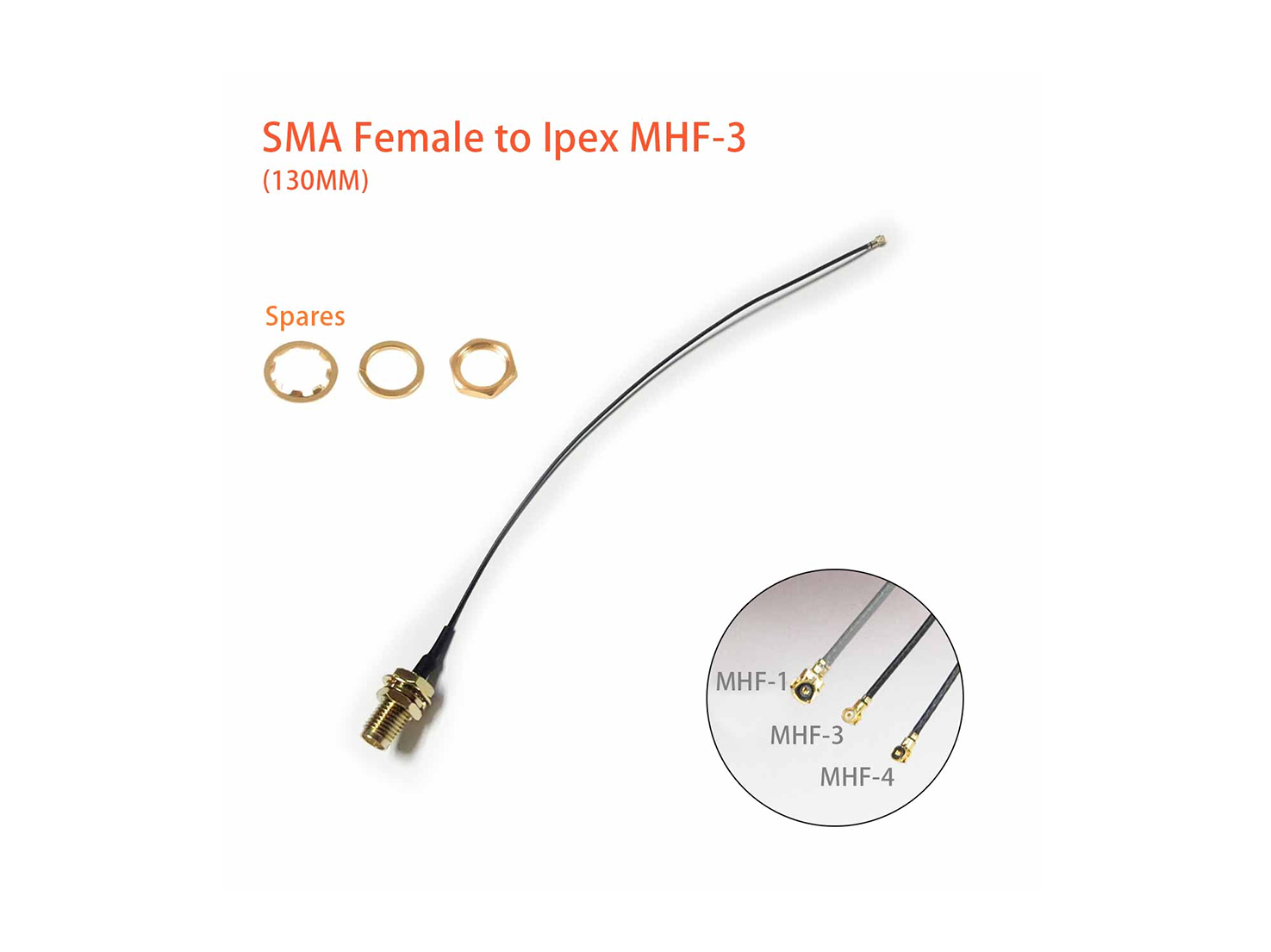

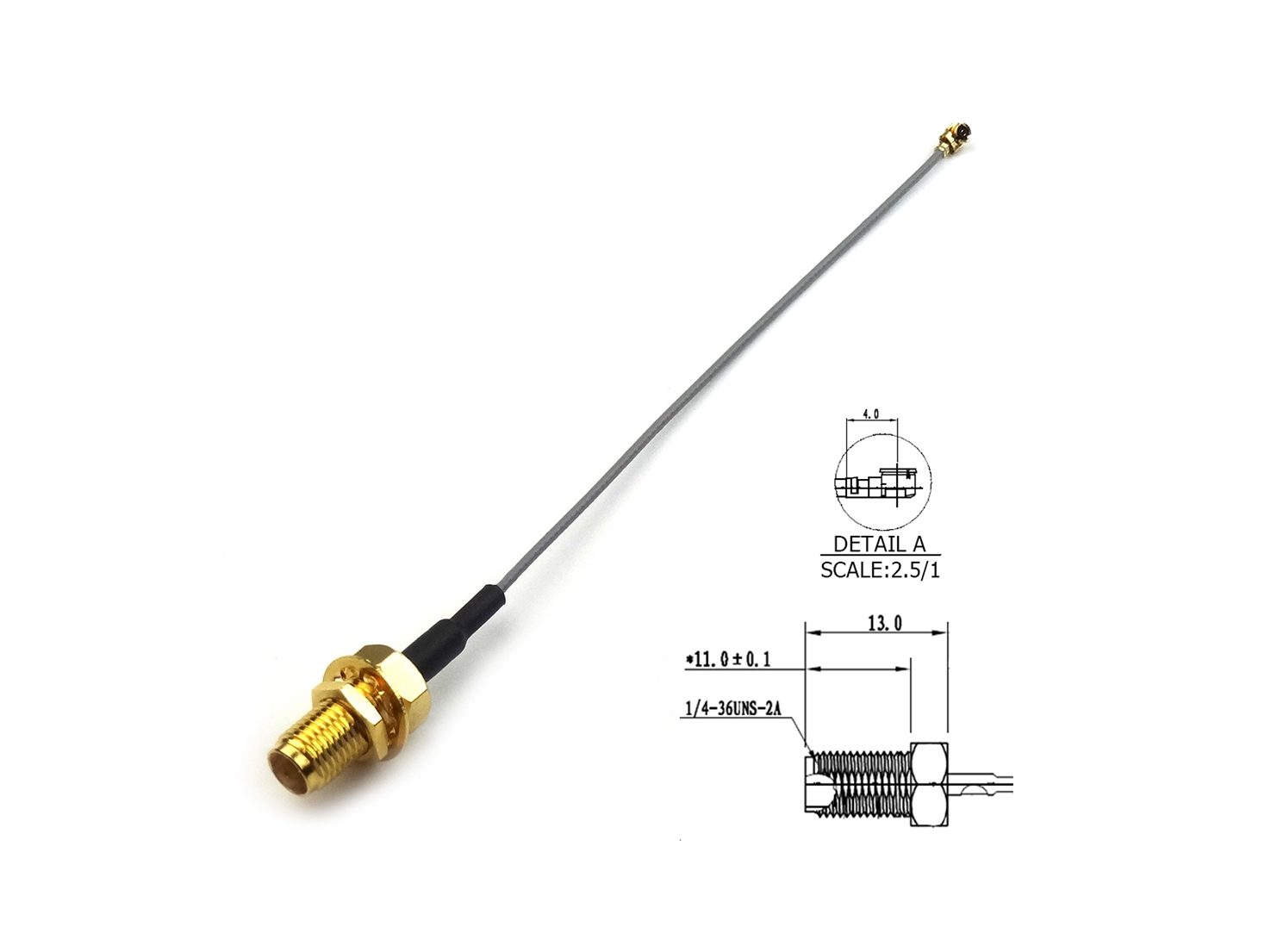

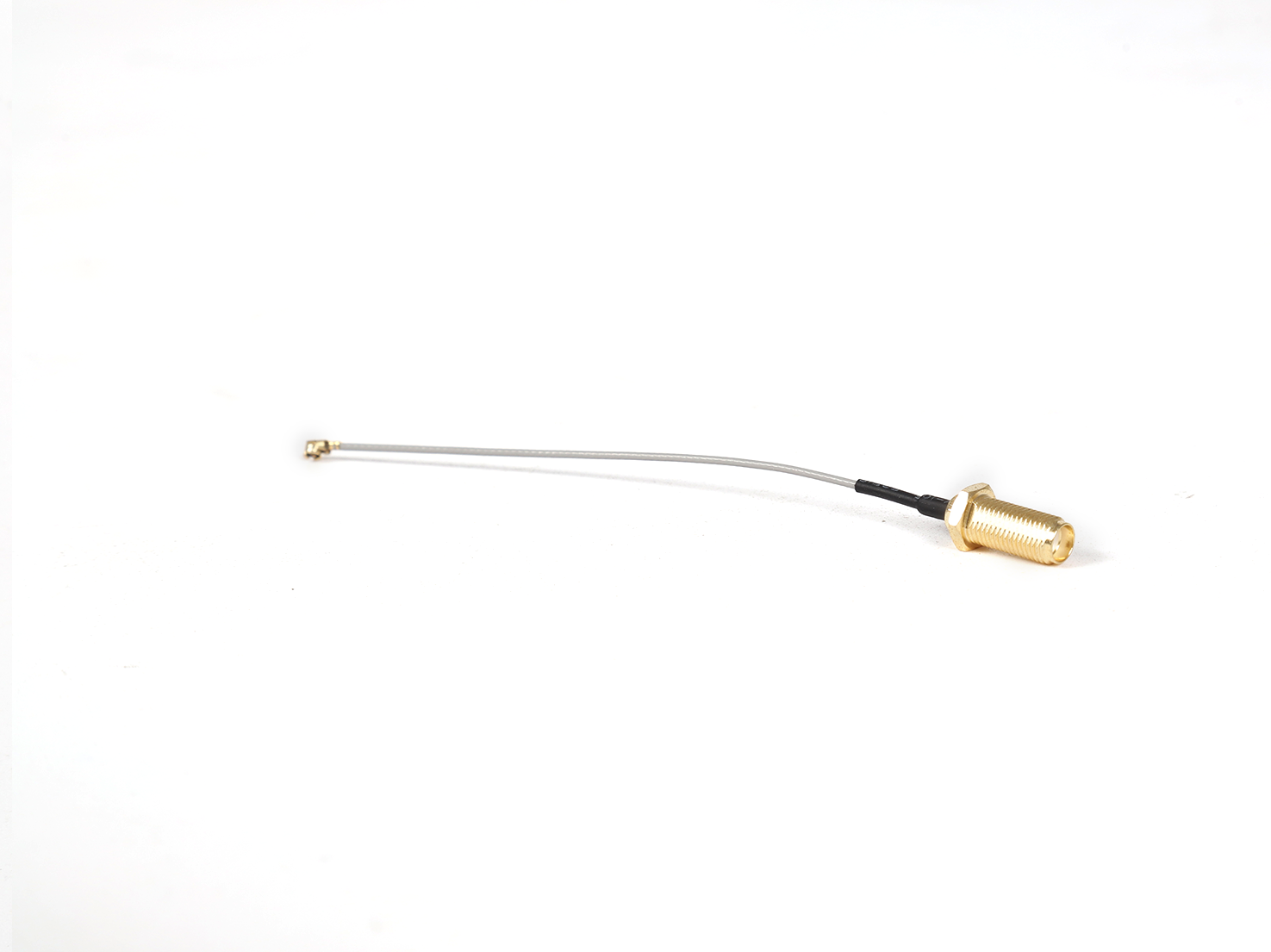

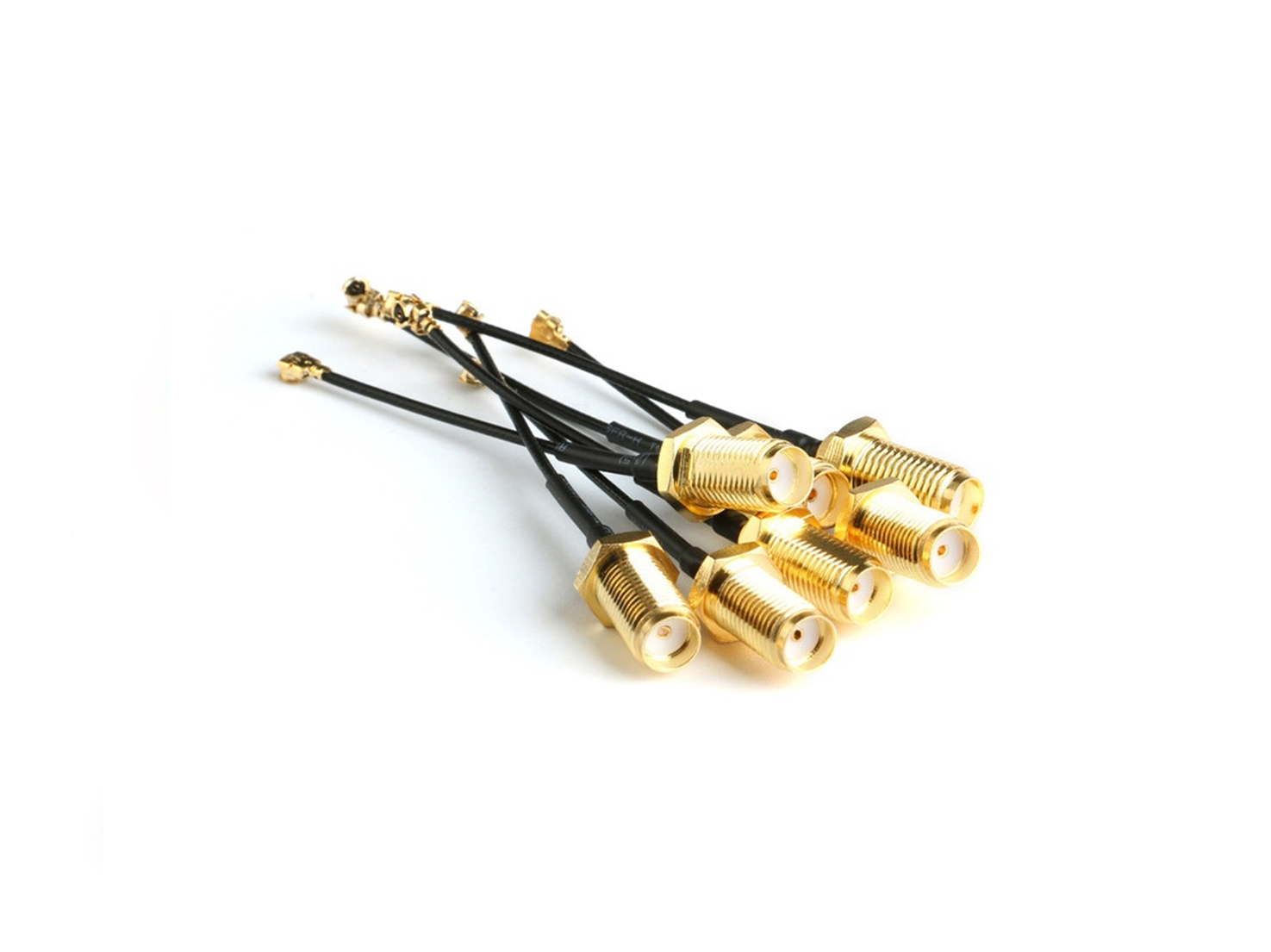

SMA-F To IPEX 3 Coaxial Cable

Overview

SMA female head turn IPEX (also known as U.F.L or UMCC) 3 converter cables are mainly used for the transmission and connection of RF signals, especially in situations where space is limited or miniaturized connectors are required. The main uses of this adapter include, but are not limited to:

1. Wireless communication equipment:

In mobile communication equipment such as Wi-Fi, Bluetooth modules, GSM, 3G, 4G/LTE, the antenna is usually connected to the motherboard through the IPEX 3 generation connector, and the RF circuit on the motherboard may use the SMA interface. This adapter connects SMA-standard test equipment or external antennas to miniaturized wireless modules with IPEX ports.

2. Rf testing:

When performing RF performance tests in the R&D laboratory, engineers may use standard test instruments with SMA interfaces,and the device under test (DUT) may be designed using IPEX connectors. At this point, the SMA female head-turn IPEX adapter cable is used to establish an accurate and stable connection to ensure the accuracy of the measurement data.

3. Embedded systems and Internet of Things (IOT) devices:

Due to their compact size, IPEX connectors are often used for RF signal transmission inside embedded systems and IOT devices.

If these devices need to be used with external test equipment or larger antennas, such conversion cables are needed to complete the transition.

4. Drones, satellite navigation systems, radio equipment:

In order to be lightweight and miniaturized, equipment in these fields will also choose IPEX connectors to connect antennas, and in the process of maintenance, upgrade or commissioning, SMA to IPEX conversion cables may be required for flexible configuration.

Key Features

• Wide compatibility

It can adapt to various IOT devices and different interface types, achieving convenient connections between different devices.

• Stable and reliable signal transmission

Ensure stable data transmission, reduce signal loss or interference, and ensure the normal operation of the Internet of Things system.

• Compact and portable

compact in size, not taking up too much space, convenient to carry and use, suitable for different scene needs.

• Easy to install and use

Easy to operate, no need for complex settings or professional skills, plug and play.

Specification

Frequency Range	0-6G
VSWR	≤2.0
Length	100mm
OEM/ODM	YES

Applications

SMA female head to IPEX 3 adapter cables play a key role in a variety of scenarios where RF signals need to be converted between different interface standards.
