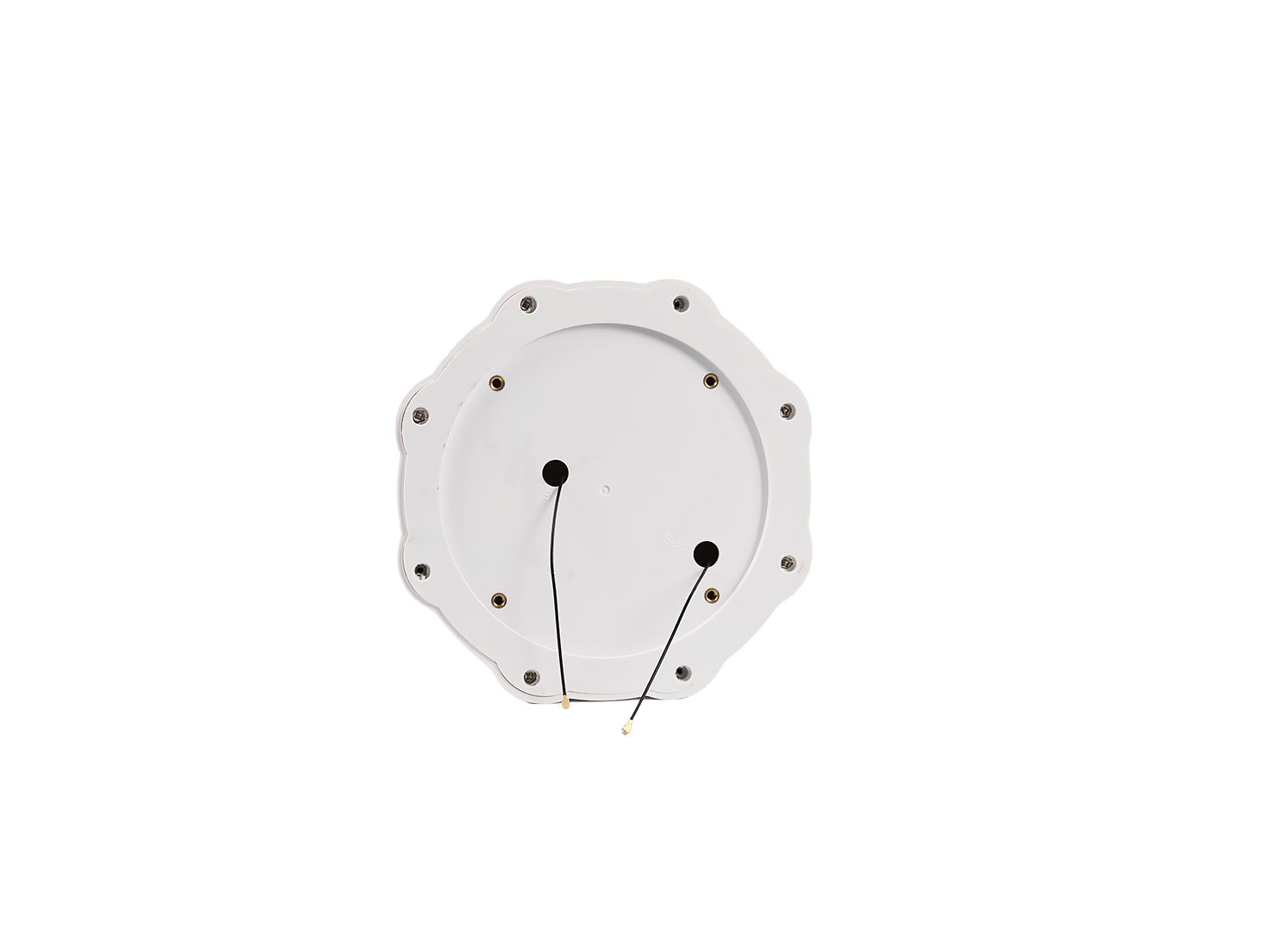

Single-system Dual-frequency Shipborne Antenna

Satcom Antenna

Single-system Dual-frequency Shipborne Antenna

Model:V1810-012-A-01

Frequency Range(MHz)：

1980-2010MHz，2170-2200MHz

1561MHz，1575MHz

Polarization ：

(Tiantong) left circular polarization (L)

B1/L1 ）Right-handed circular polarization (L)

Gain (dBi)（Tiantong）：Vertex gain ≥2.0dBi

Gain (dBi)（Tiantong）：Elevation 40° Minimum ≥2.0dBi

Gain (dBi)（B1/L1）：Vertex gain ≥1dBi

LNA Gain (dBi) （B1/L1）：30±2 dBi

VSR：≤2

Impedance (Ω)：50Ω

Dimension (mm)：Φ158*124.9

Connector：IPEX 1代（Tiantong）/MMCX-JW（B1/L1）

Application: Ship-borne, vehicle-borne.

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Single-system Dual-frequency Shipborne Antenna

Overview

This antenna is a high-performance, multi-band compatible communication antenna, supporting 1980-2010MHz, 2170-2200MHz, 1561MHz and 1575MHz and other frequency bands, its unique design and advanced manufacturing technology, so that the antenna can provide stable signal reception and transmission capability in multiple frequency bands. It is widely used in ship-borne, vehicle-mounted, fixed station and other communication scenarios.

Key Features

• Multi-band compatibility

Support 1980-2010MHz, 2170-2200MHz, 1561MHz and 1575MHz multiple bands to meet the requirements of different communication systems and application scenarios.

• High Gain

LAN Gain 30dB, which can provide stronger signal reception and transmission capability to ensure the stability and reliability of communication.

• Helical structure

The antenna part adopts helical structure design, which has the characteristics of small volume, light weight and easy installation.

• Waterproof and dust-proof

The shell adopts waterproof and dust-proof design, which can work normally in harsh environments.

Specification

Electrical Specification:
Frequency Range(MHz)	1980-2010MHz，2170-2200MHz 1561MHz，1575MHz
Polarization	(Tiantong) left circular polarization (L) （B1/L1 ）Right-handed circular polarization (L)
Gain (dBi)（Tiantong）	Vertex gain ≥2.0dBi
Gain (dBi)（Tiantong）	Elevation 40° Minimum ≥2.0dBi
Gain (dBi)（B1/L1）	Vertex gain ≥1dBi
LNA Gain (dBi) （B1/L1）	30±2 dB
VSR	≤2
Impedance (Ω)	50Ω
Mechanical specifications :
Dimension (mm)	Φ158mm*124.9mm
Connector	IPEX 1代（Tiantong） MMCX-JW（B1/L1）
Environmental requirement:
Relative Humidity	95%
Operating Temperature (℃)	-30～+65
Store Temperature (℃)	-30～+75
