Satellite Call/ Msg/ Internet Antenna

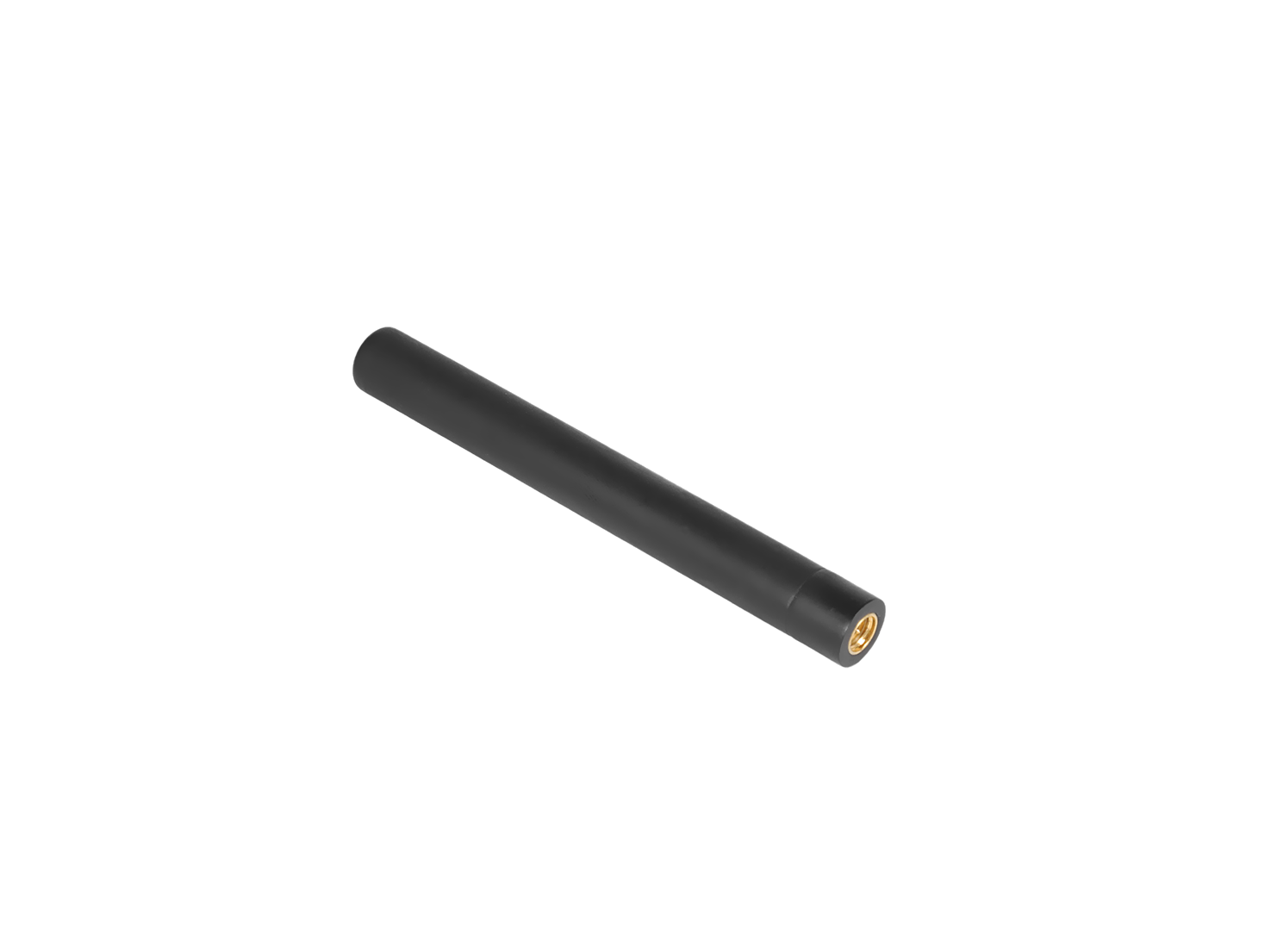

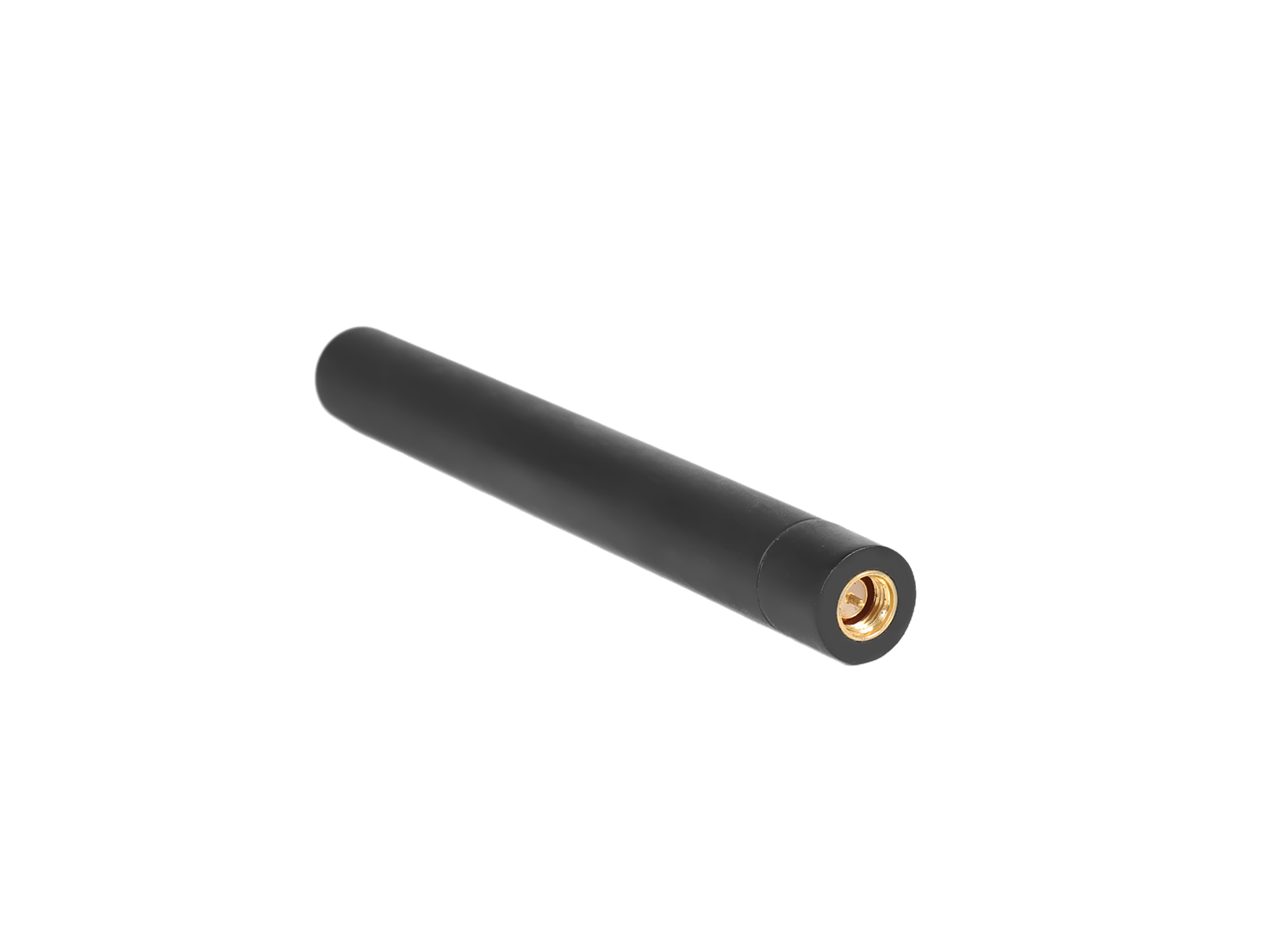

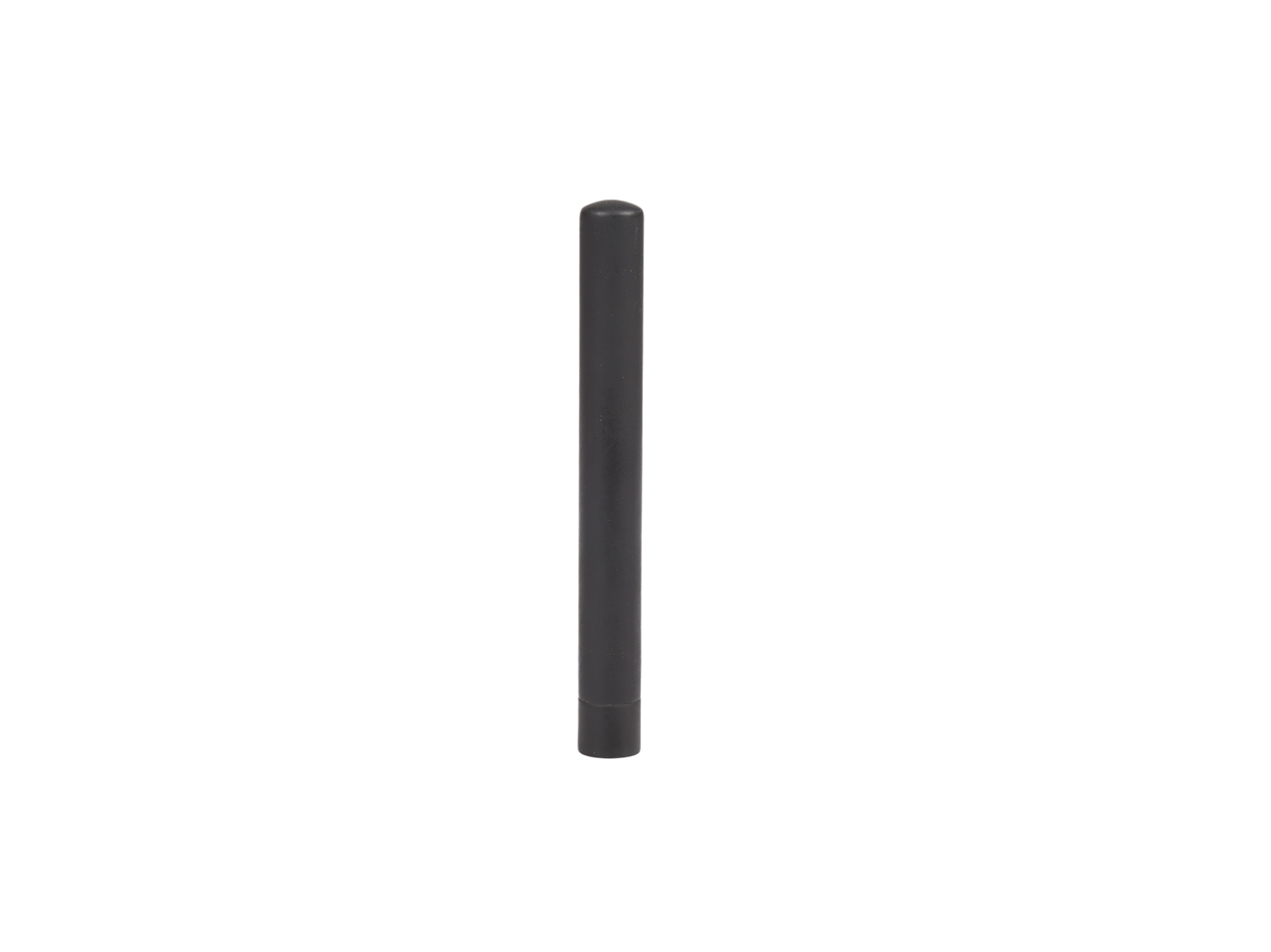

Dual-band antenna for Satellite Mobile

Product model：V1983-002-A-01

Frequency Range(MHz):1980-2010MHz，2170-2200MHz

Polarization：LHCP

Gain (dBi):Elevation 55° ≥2dBi

VSWR:≤2

Impedanc(Ω):50

Dimension (mm):Φ13mm*108mm

Connector:SMA_J

Relative Humidity:95%

Operating Temperature (℃):-30～+65

Widely used in navigation and dispatching, tracking and monitoring, measurement and control, military and other fields

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

This product is a communication antenna designed for S-band, which is suitable for various wireless communication systems, including terrestrial mobile communication networks and satellite communication systems. Through carefully designed frequency band allocation, it is able to receive signals efficiently in the range of 2.17 to 2.2G and transmit signals stably in the range of 1.98 to 2.01GHz, ensuring smooth and reliable communication.The structure features a compact cylindrical design with a diameter of only 13.2mm and a length of 108mm, making it easy to install and integrate into a variety of communication devices. This compact size not only saves space, but also reduces the limitations on the overall design of the device and improves the flexibility of the system.The structure features a compact cylindrical design with a diameter of only 13.2mm and a length of 108mm, making it easy to install and integrate into a variety of communication devices.

Key Features

• High efficiency

Requency Range：1980-2010MHz，2170-2200MHz, The antenna has excellent transceiver performance in the S-band, which can ensure the stable transmission of communication signals.

• High gain, wide beam width of directional pattern

Good reception effect for low elevation signal, ensuring normal star reception in some occasions with serious occlusion.

• Easy installation

Size：Φ13mm*108mm, Connector: SMA ,Small size, directly connected by SMA connector, convenient antenna installation

• Reliability

Made of high-quality materials and advanced processes, the antenna has excellent durability and reliability, and can work normally in a variety of harsh environments.

Specification

Frequency Range(MHz)	1980-2010MHz，2170-2200MHz
Polarization	Left-hand circular polarization (L)
Gain (dBi)	Elevation 55° ≥2dBi
VSWR	≤2
Impedance (Ω)	50
Dimension (mm)	Φ13mm*108mm
Connector	SMA_J
Relative Humidity	95%
Operating Temperature (℃)	-30～+65
Store Temperature (℃)	-30～+75
