Timing Antenna

RSU GPS Antenna

RSU antenna GPS 28dBi (Y2000)

Frequency range: GPS LI &BDS B1

Passive gain: 2.0dBi

LAN gain :28±2dBi

Connector: N-J/N-K

Application:Highway toll management，Urban road management，Management of parking lot,Vehicle networking application.

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactRSU GPS Antenna
cebc16faf96a035
7fee66673458343
800d2cc4fbcc

Overview

The timing antenna is compact in size, covers the GPS and Beidou satellite frequency bands, has a beautiful appearance, and is waterproof, corrosion-resistant, and has good high-temperature resistance. The antenna can work reliably and continuously for a long time and is not affected by the external environment. It plays an important role in intelligent transportation systems and electronic non-stop toll collection systems, and provides a convenient and efficient solution for modern traffic management.

Key Features

• High gain, precise timing

LNA:28DB, strong anti-signal interference



• Small size, strong, waterproof

Able to withstand harsh weather conditions and long-term use



• Able to communicate with a variety of on-board units (OBUs)

ABS durable and drop resistant

Specification

Specification- Type 1

Frequency Range(MHz) BD B1（1561.098MHz）、GPS L1（1575.42MHz） GPS-antenna
MHzPolarization RHCP
LNA Gain(dB) 28±2
V.S.W.R <2.5
Impedance(Ω) 50
Dimensions (mm)  Φ42×57
Operation Temp. -40℃ to +75℃
Connector N-K
Environment Outdoor
Waterproof Grade IP66



Specification- Type 2

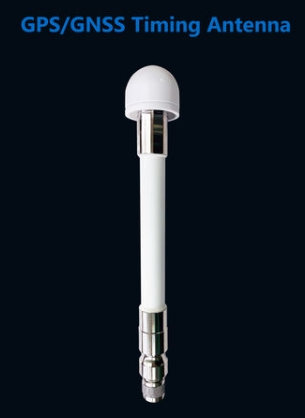

Frequency Range(MHz) BD B1（1561.098MHz）、GPS L1（1575.42MHz） 1716553824750897
Polarization RHCP
Peak Gain  (dBi) 2
LNA Gain(dB) 28±2
V.S.W.R ≤2.0
Dimensions (mm) Φ42×270
Operation Temp. -40℃ to +75℃
Connector N-J
Environment Outdoor
Waterproof Grade IP66

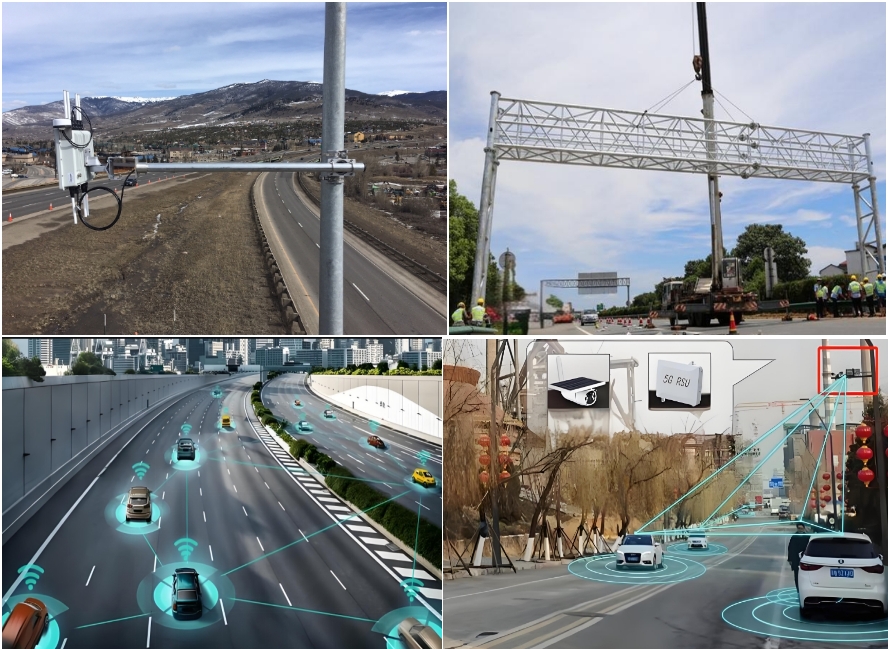

Applications

微信截图_20240913154958
