NFC+BLE reader

The NFC reader includes the main MCU, NFC chip, and is connected to the private CAN of the Bluetooth module. NFC communication authentication needs to be run through the ESE in the Bluetooth module. The recommended locations for the external card reader VLG are the B-pillar trim, the exterior mirror, and integrated with the door handle module. The static current of the external card reader is less than 0.5mA.

NFC operating frequency 13.56MHz, Maximum recognition distance Up to 40 mm Support ISO/IEC 14443 Type read/write mode, support FOTA function, allowing the master node to wirelessly upgrade the NFC Reader firmware.

NFC+BLE reader features

• Use NXP's NFC transceiver NCF3320 chip
• Support LIN bus communication
• Stable and sensitive antenna design
• Wide input supply voltage range
• Designed to be easily embedded in the car door handle
• External debugging interface for easy development
• Universal software library can be easily ported between different MCUs

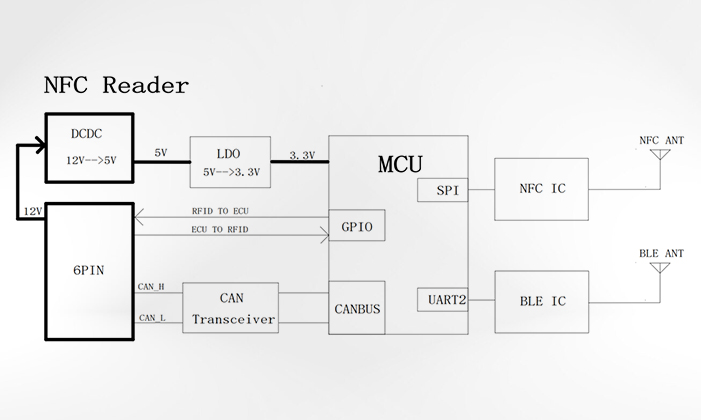

NFC+BLE reader principle

As shown in the figure

NFC+BLE reader application

The VLG NFC reader+antenna main controller is small in size, safe and reliable, and can be embedded in the car door handle to realize the NFC access control function. It has been mass-produced in well-known brand models.
