NFC Antenna For Car Keyless Entry System

Overview

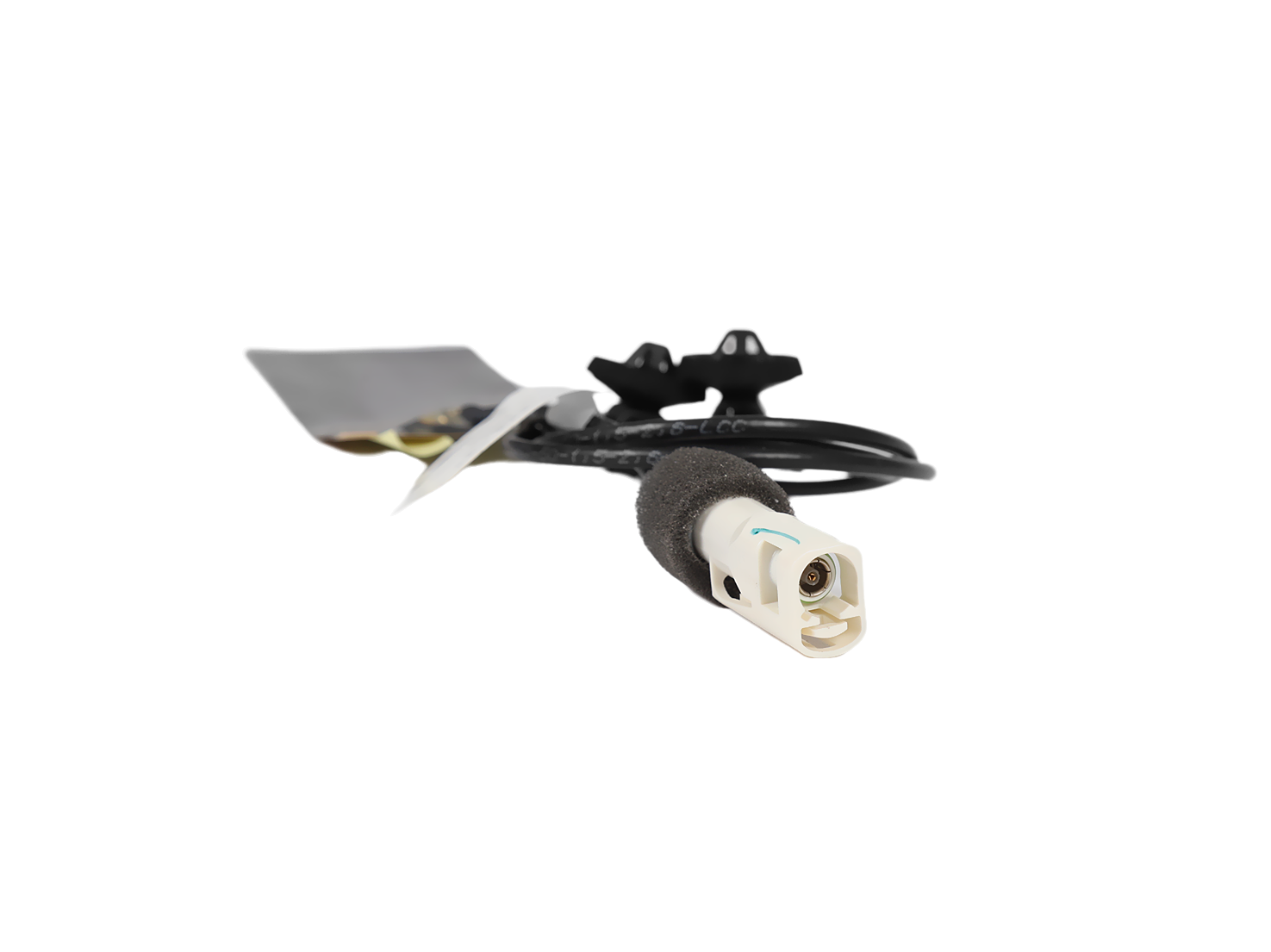

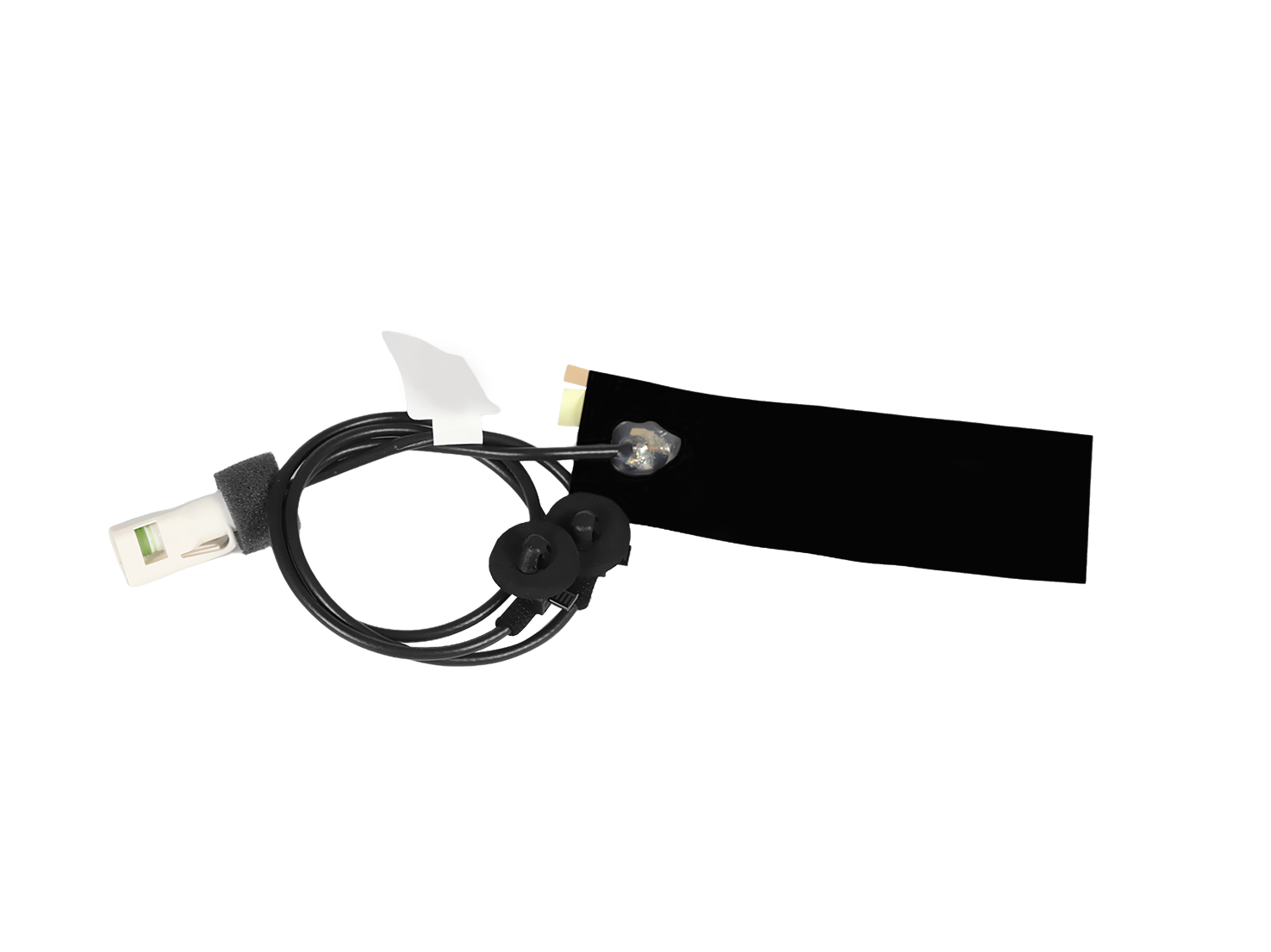

This in-vehicle NFC (Near Field Communication) antenna has an operating frequency of 13.56MHz and is a high-performance antenna designed for vehicle communication systems. It has a low standing wave ratio (V.S.W.R. <2.0) and a stable impedance (50±3Ω), ensuring efficient and stable communication performance. The NFC antenna communicates with other devices contactlessly through electromagnetic fields, providing a convenient interactive experience for vehicles.

Key Features

• Efficient communication

The operating frequency is 13.56MHz, which complies with the NFC standard and ensures high-speed and stable communication performance.

• Low standing wave ratio

V.S.W.R.<2.0, which reduces signal reflection and improves communication efficiency.

• Stable impedance

The impedance is controlled within the range of 50±3Ω, which ensures the stability and consistency of signal transmission.

• Strong adaptability

The antenna design takes into account space constraints and efficiency, and is suitable for a variety of vehicle models and communication systems.

Specification

Function	NFC
Frequency	13.56MHz
V.S.W.R	< 2.0
lmpedance	50±3Ω
Polarization	Linear
Environmental Requirements
Operating temperature	-40℃ ~ +85℃
Connector pulling force	≥80N

Applications

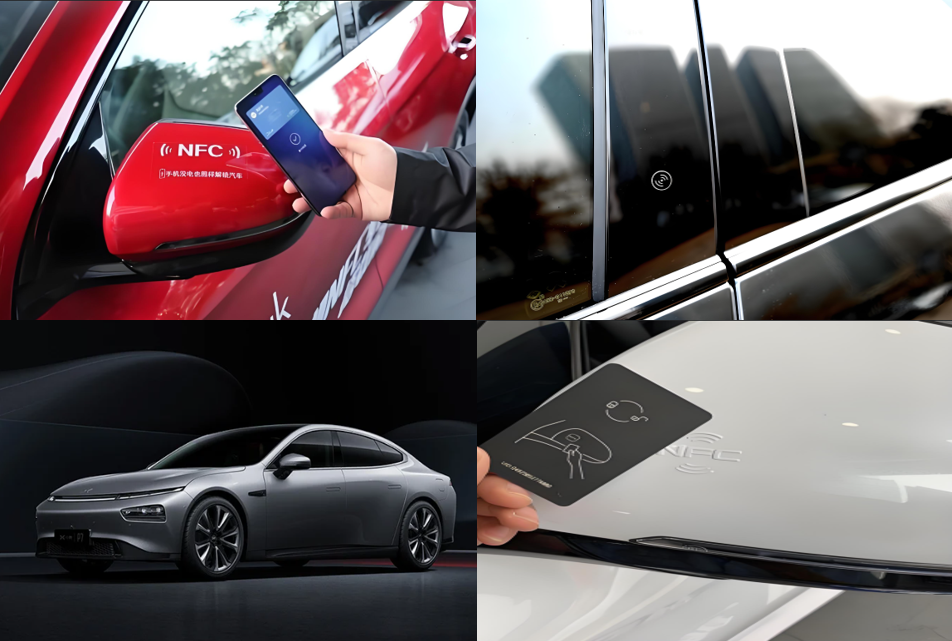

1. Vehicle payment: Supports in-vehicle NFC payment system. Users can complete payment transactions such as parking fees and highway tolls by placing NFC-enabled bank cards, mobile phones and other devices close to the antenna. 2. Vehicle access control: Applied to vehicle access control system, users only need to place NFC-enabled cards or devices close to the antenna to quickly open the door, improving safety and convenience. 3. Vehicle information sharing: Supports information sharing between vehicles, such as vehicle status, driving records, etc., which are transmitted through NFC antennas to improve the intelligent level of vehicle management. 4. Smart accessory connection: Applicable to the connection of in-vehicle smart accessories, such as smart rearview mirrors, driving recorders, etc., and realizes fast pairing and data transmission through NFC antennas.
