Mini Size UHF RFID Reading Module with JT-2510 Single Port Can Work with Integrated Circuits Boards

Overview

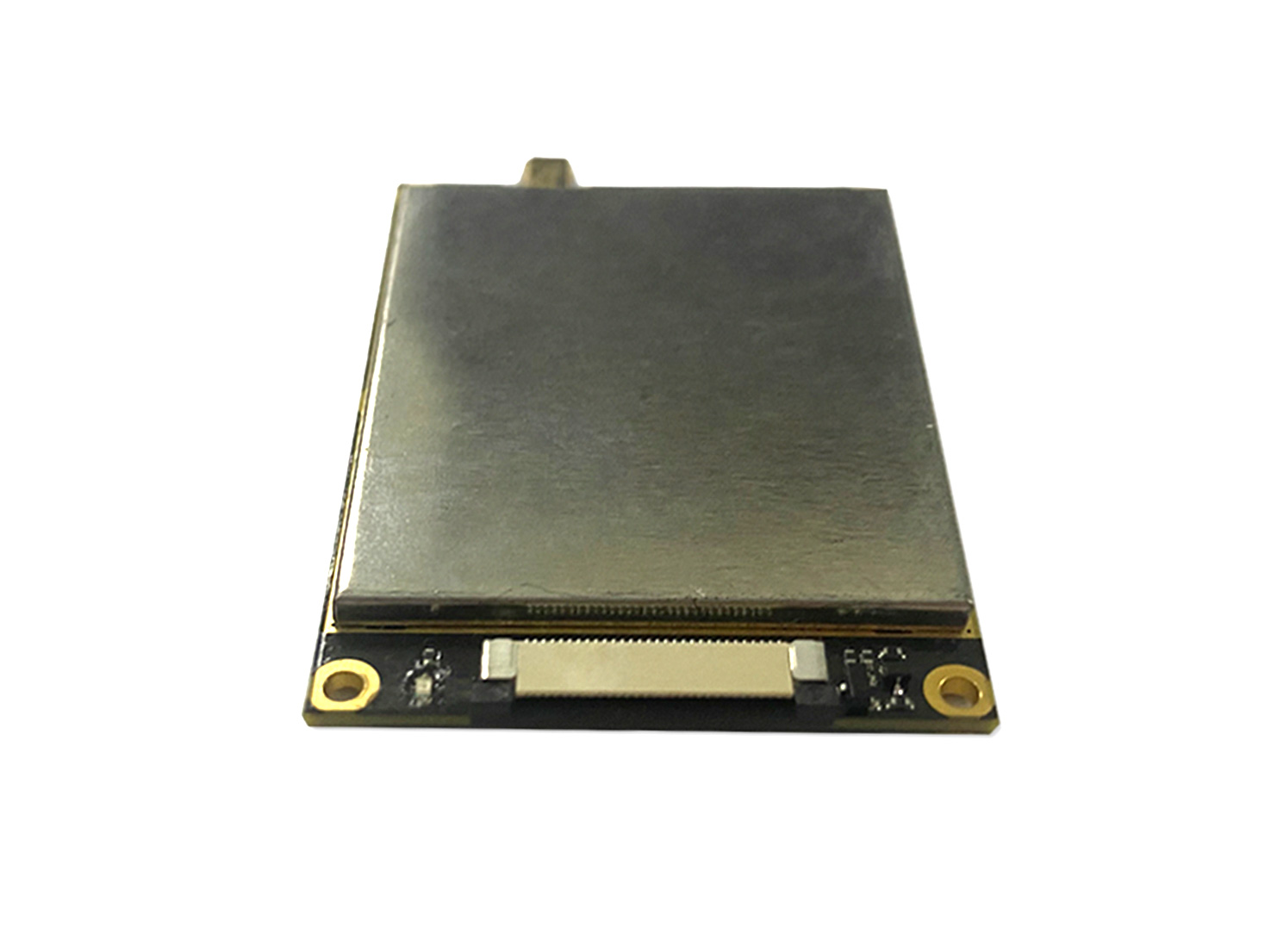

UHF long-distance reading and writing module T-2510 is a professional-grade, high-performance UHF reading and writing module based on the domestic TM200 platform. With complete independent intellectual property rights, the default working frequency of this module is 902MHz～928MHz, supports ISO18000-6C (EPC C1 GEN2) protocol, has the characteristics of strong multi-tag recognition ability, long distance reading card, etc., in the standard 8dBi antenna and corresponding tags With cooperation, the reading distance can be more than 7 meters stable, and with simple power supply and interface circuits, a low-cost RFID identification system can be quickly built. It is suitable for warehouse logistics, material control, identification, access control and other fields.

Key Features

• Patented design, independent intellectual property rights;

• Good heat dissipation effect ensures module stability;

• Excellent reading and writing performance and anti-collision ability;

• Adjustable output power up to 32dbm;

• Support high precision return signal strength (RSSI);

• Global multi-frequency standard support;

• Using integrated radio frequency chip, the module performance is more stable, and it is more suitable for harsh and demanding application environments;

• Excellent anti-interference performance;

• Use standard API interface, provide DEMO and source code, support C#, Java, VC, VB and other development routines, easy to integrate with RFI software;

• Applicable to: vehicle access control, non-stop automatic toll collection, personnel access control management, logistics monitoring, production automation management and other fields.

Specification

Specifications
Working frequency	902~928MHz； 865~868 MHz
Support protocol	EPC C1 Gen2 /ISO18000-6C
RF power	0~32dBm(Software adjustable)
Reading range	7 meters (white card with 8dBi antenna test, the reading distance is related to tag type, transmitting power and application environment)
Reading rate	＞200 times/second
Tag detection	Support RSSI value detection
Working mode	Fixed frequency / frequency hopping optional
Antenna detection	Support
RF connector	MMCX Connector
Communication parameters
Communication Interface	RS232
RS232	115200 bps(default)
Power parameters
Reader power supply	5VDC
Peak current	1.3A
Environmental parameters
Operating temperature	-20℃～55℃
storage temperature	-30℃～80℃
Storage humidity	5%～95%RH non-condensing
Physical parameter

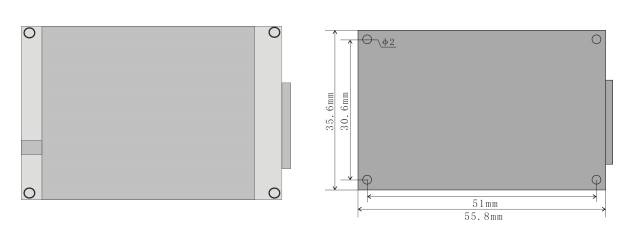

Size	55.8×33.6×4.1mm
Weight	About 44g
Material	PCBA

Reader interface description

Interface diagram	Name	Dec
	RF connector	mmcx connector
	PIN interface	12 PIN,the detailed interface definition is as follows

FPC 12pin interface

PIN	Definition	Instruction
1	VDD_IN	5.0 VDC
2	VDD_IN	5.0 VDC
3	GND	Power ground (signal ground)
4	GND	Power ground (signal ground)
5	/	/
6	GPIO3	MODULE_GPIO3
7	GPIO1	MODULE_GPIO1
8	GPIO2	MODULE_GPIO2
9	RXD	MODULE_RXD
10	TXD	MODULE_TXD
11	MCU_RSTN	MODULE MUC_RSTN
12	/	/
