JT-M2320 (M100) reader module is a self-developed small, ultra-low power, reader module. With complete independent intellectual property rights, the reader's default operating frequency band is 902MHz ~ 928MHz, supporting ISO18000-6C (EPC C1 GEN2) protocol. It can be easily embedded in handheld terminals such as tablet computers and PDAs to realize the RFID expansion function of such devices, and is widely used in logistics management, product quality inspection, personnel management and other fields.

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

JT-M2320 (M100) reader module is a self-developed small, ultra-low power, reader module. With complete independent intellectual property rights, the reader’s default operating frequency band is 902MHz ~ 928MHz, supporting ISO18000-6C (EPC C1 GEN2) protocol. It can be easily embedded in handheld terminals such as tablet computers and PDAs to realize the RFID expansion function of such devices, and is widely used in logistics management, product quality inspection, personnel management and other fields.

Key Features

• Patent design, independent intellectual property rights;

• Sensitivity -10dBm -65dBm under local blocking, test false alarm rate is 1%;

• Support LBT and FHSS FM mode;

• Support TTL serial communication.

Specification

Working frequency	902-928MHz(US),865-868MHz(EU)
Protocol	EPC C1 Gen2,ISO 18000-6C
Size	31.17263mm
Antenna interface	IPEX
RF power	0~26dBm(Software adjustable)
Reading distance	0~3m(depend on antenna,tag and environment )
Writing distance	0~30cm
Working mode	Fixed frequency / frequency hopping
Communication port	TTL
Power	DC 5V
Power consumption	2W
Read rate	＞ 300 times / second
Label detection	Support RSSI value detection
SDK	Demo and C++, C#,JAVA,Android
Reading mode	Multiple tag read
Storage humidity	5% ～ 95% RH without condensation
Storage temperature	-20℃~+75℃
Working temperature	-40℃~+85℃

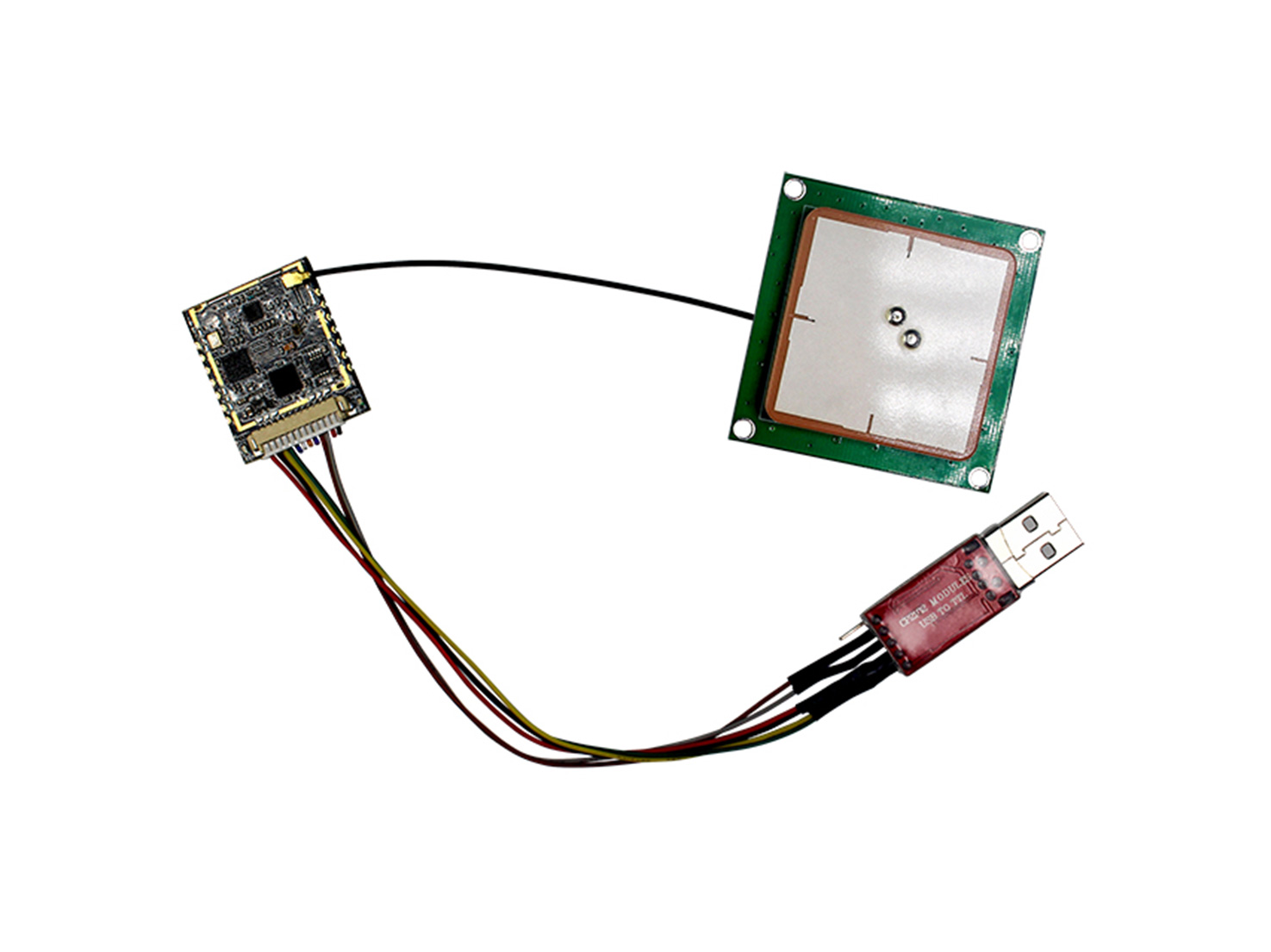

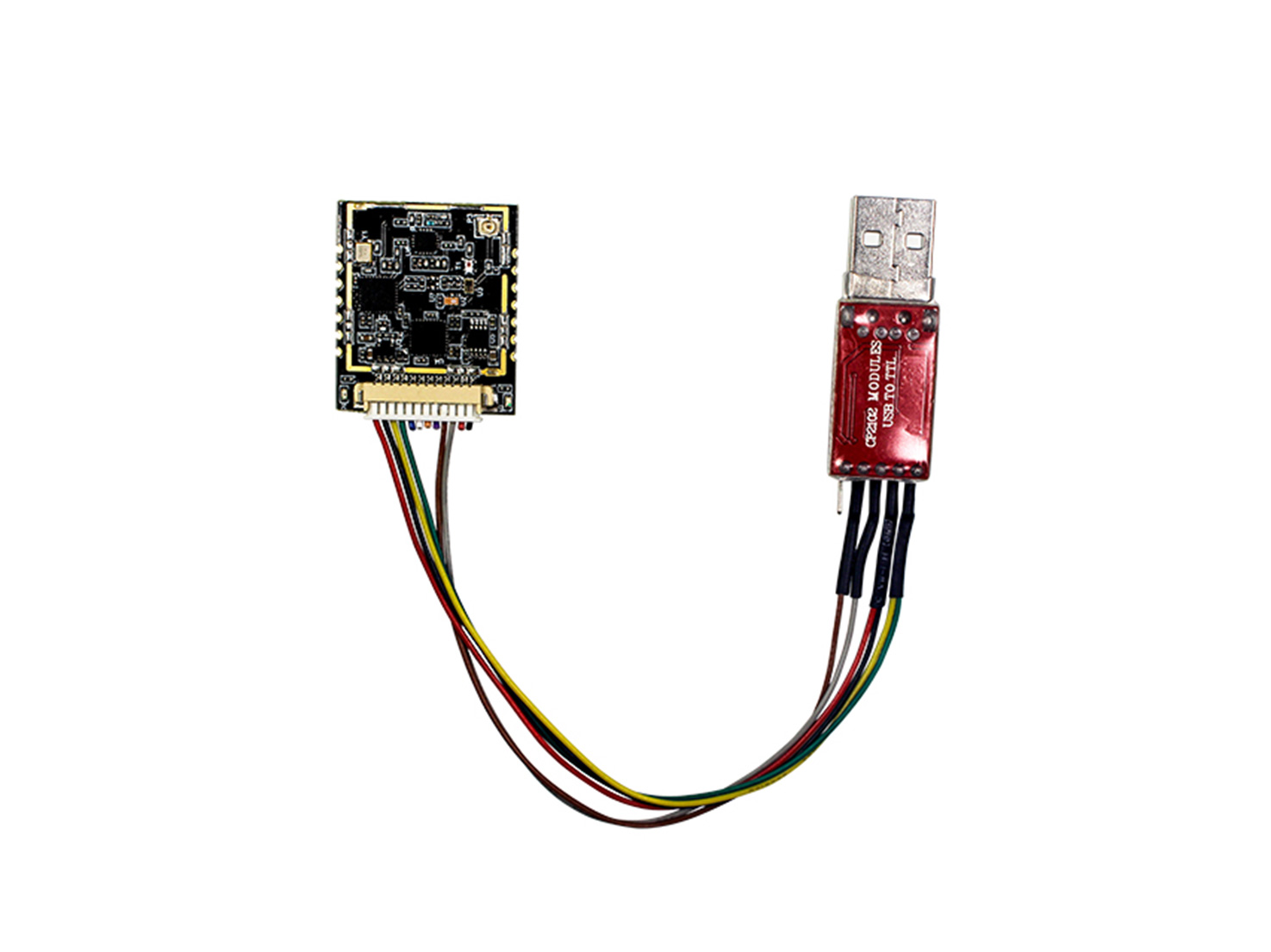

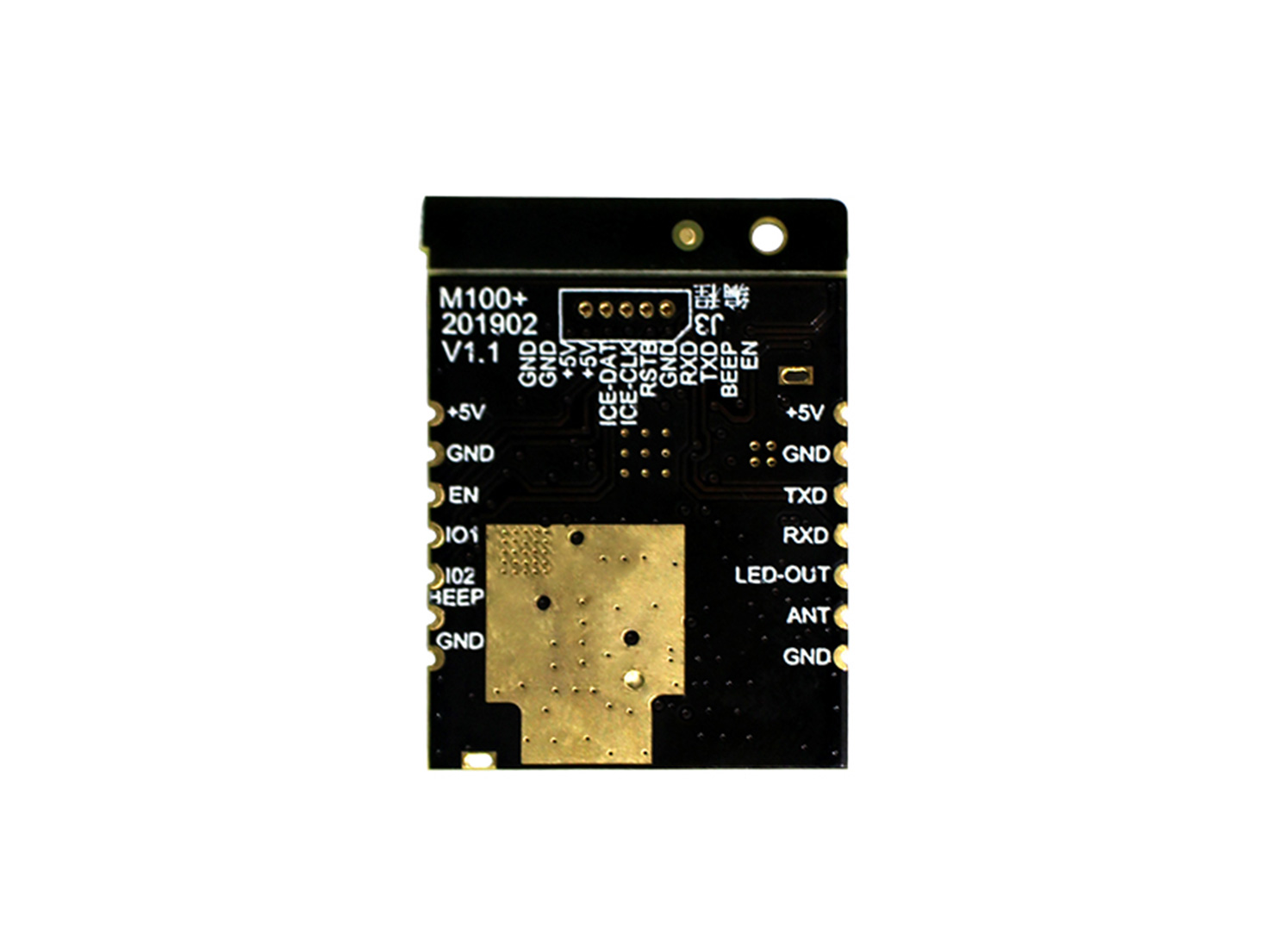

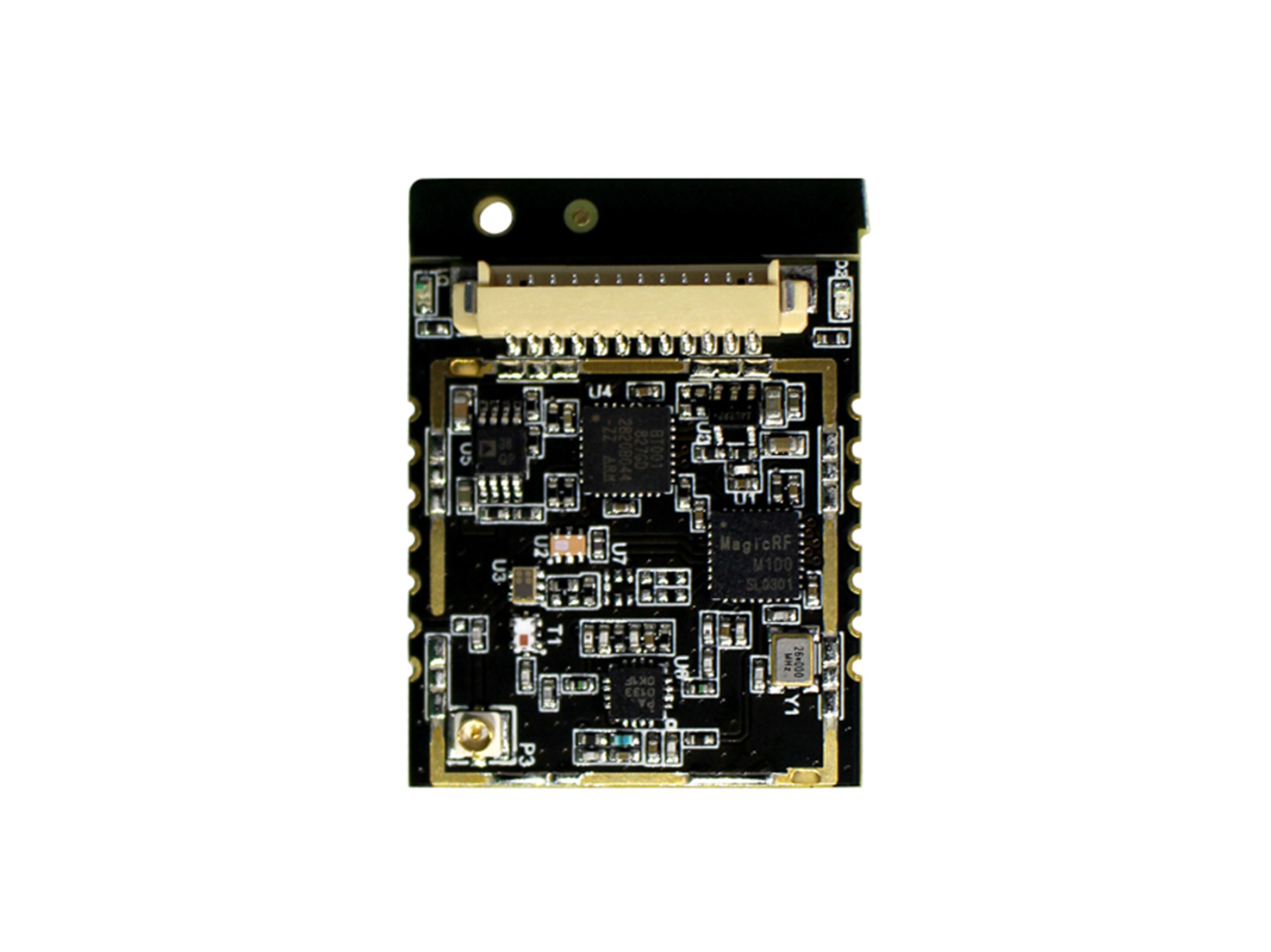

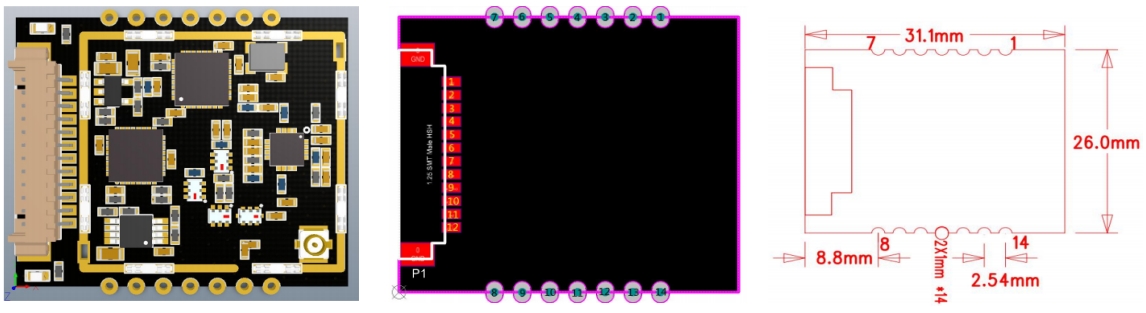

JT-M2320 STRUCTURE

JT-M2320 UHF RFID Module

Interface number	Interface name	Interface definition	Interface number	Interface name	Interface definition
LCC			WF type P1 interface
1	GND	Ground	1	GND	Ground
2	BEEP	Buzzer control foot	2	GND	Ground
3	IO4	GPIO interface	3	+5V	Power input
4	IO3	GPIO interface	4	+5V	Power input
5	EN	Power enable pin	5	EN	Power enable pin
6	GND	Ground	6	IO3	GPIO interface
7	+5V	Power input	7	IO4	GPIO interface
8	+5V	Power input	8	BEEP	Buzzer control foot
9	GND	Ground	9	RXD	TTL serial port receiving
10	TXD	TTL serial port transmission	10	TXD	TTL serial port transmission
11	RXD	TTL serial port receiving	11	GND	Ground
12	LED-OUT	LED status indicator pin	12	LED-OUT	LED status indicator pin
13	ANT	Antenna interface
14	GND	Ground
