JT-9380 Middle Distance UHF RFID Integrated Reader(Multiple Tag)

Overview

JT-9380 is a new generation of ultra high frequency (UHF) electronic label reader developed by our company. Compatible with FCC ISM (902~ 928MHz) standard ETSI (865.6~867.6 MHz) (customer needs to be customized), used to read and write ISO18000-6C (EPC C1 GEN2) electronic tags. JT-9380 provides API functions suitable for specific applications to facilitate users’ secondary development. And integrated network interface, with management software and database, can be easily and quickly applied to warehousing logistics, VMI-HUB, pallet management, flow board management, production line workpiece control, material control, identification, access control and other fields.

Key Features

• This product has a fast reading rate and a waterproof appearance design, which meets the requirements of the harsh working environment;

• With high stability, 60×24 hours high temperature copy machine, uninterrupted and stable operation;

• Support multiple communication methods such as RS232,TCP/IP,WIFI ,GPRS etc

• The output power is adjustable up to 30dbm, and supports multiple working modes such as timing mode, master-slave mode, trigger mode, etc.;

• Excellent anti-interference performance and circuit lightning protection design;

• Use standard API interface, provide DEMO and source code, support C#, VC, VB, JAVA and other development routines, easy to integrate with RFID software;

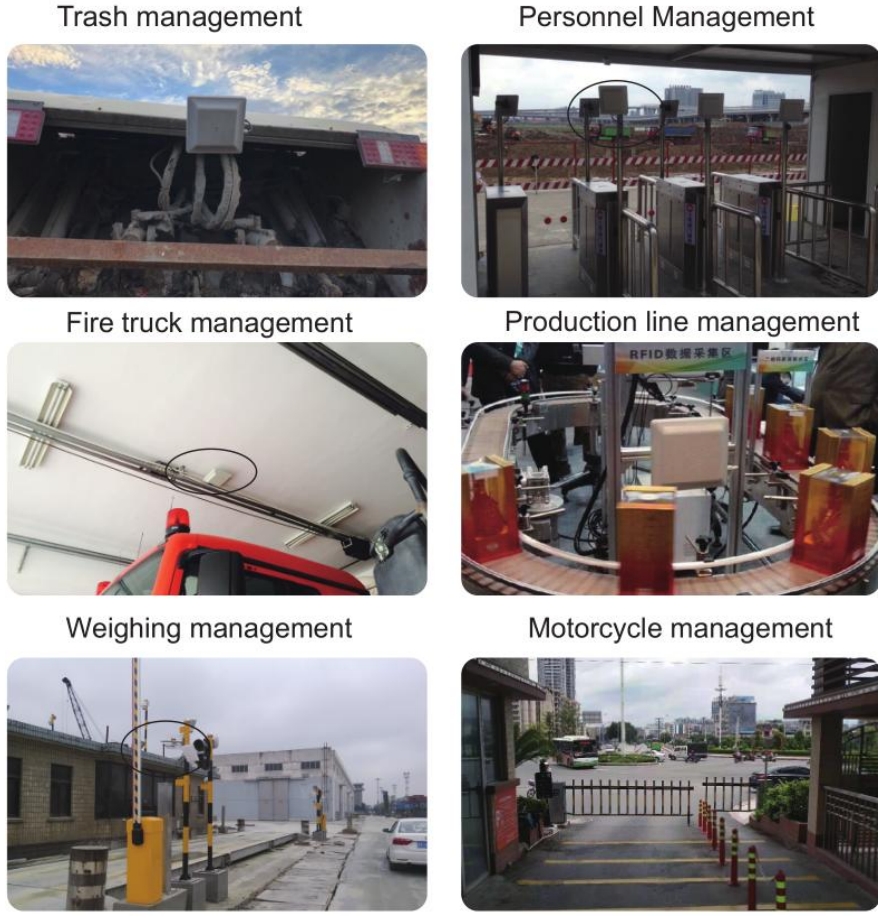

• Suitable for applications: vehicle access control, automatic toll collection without stopping, personnel access control management, logistics monitoring, production automation management and other fields.

Specification

Working frequency	902-928MHz(US),865-868MHz(EU)
Protocol	EPC C1 Gen2,ISO18000-6C
Size	20820846mm
Weight	About 2kg
Shell material	ABS and aluminum alloy
Chip	TM200 Multaple read 500-700 tags once time
RF power	0~30dBm(Software adjustable)
Reading distance	Stable 0-8m(depend on antenna and environment)
Antenna gain	8dBi circular polarization
SDK	Demo and C++,C#,JAVA,Android
I/O interface	1 trigger input and 2 relay outputs(customized)
Communication port	RS232(standard),TCP/IP,WiFi,4G&GPS(optional)
RS232 baud rate	115200 bps (default)
Power supply	DC 9-24V/3A
Storage Temp.	-30℃~+80℃
WorkingTemp.	-20℃~+65℃
Interface available
JT-9380A	RS232,RS485,Wiegand
JT-9380C	RS232
JT-9380B	RS232,TCP/IP
JT-9380W	RS232,WiFi
JT-9380G	RS232,GPRS

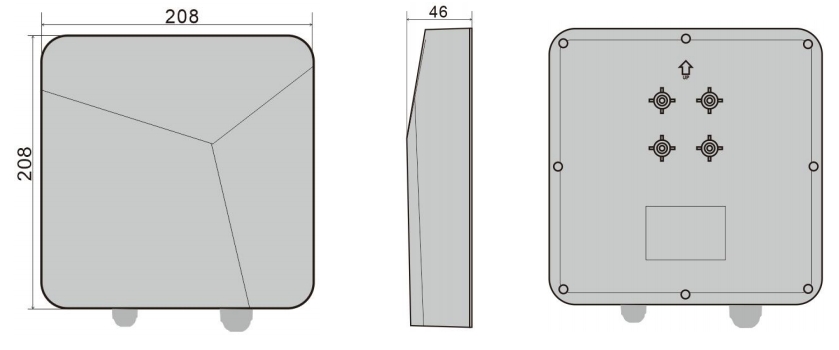

JT-9380 STRUCTURE

JT-9380 Middle Distance UHF RFID Integrated Reader(Multiple Tag)

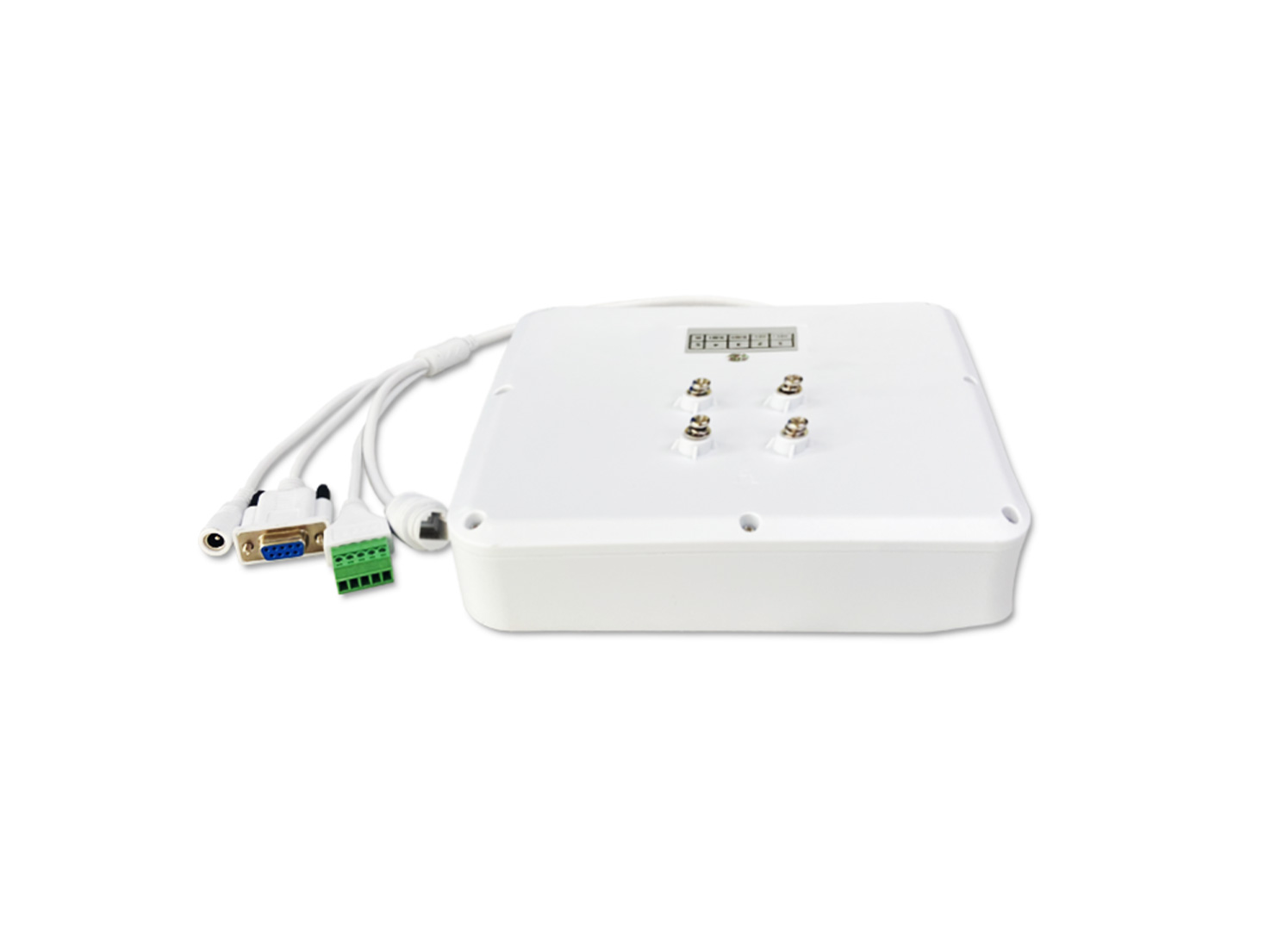

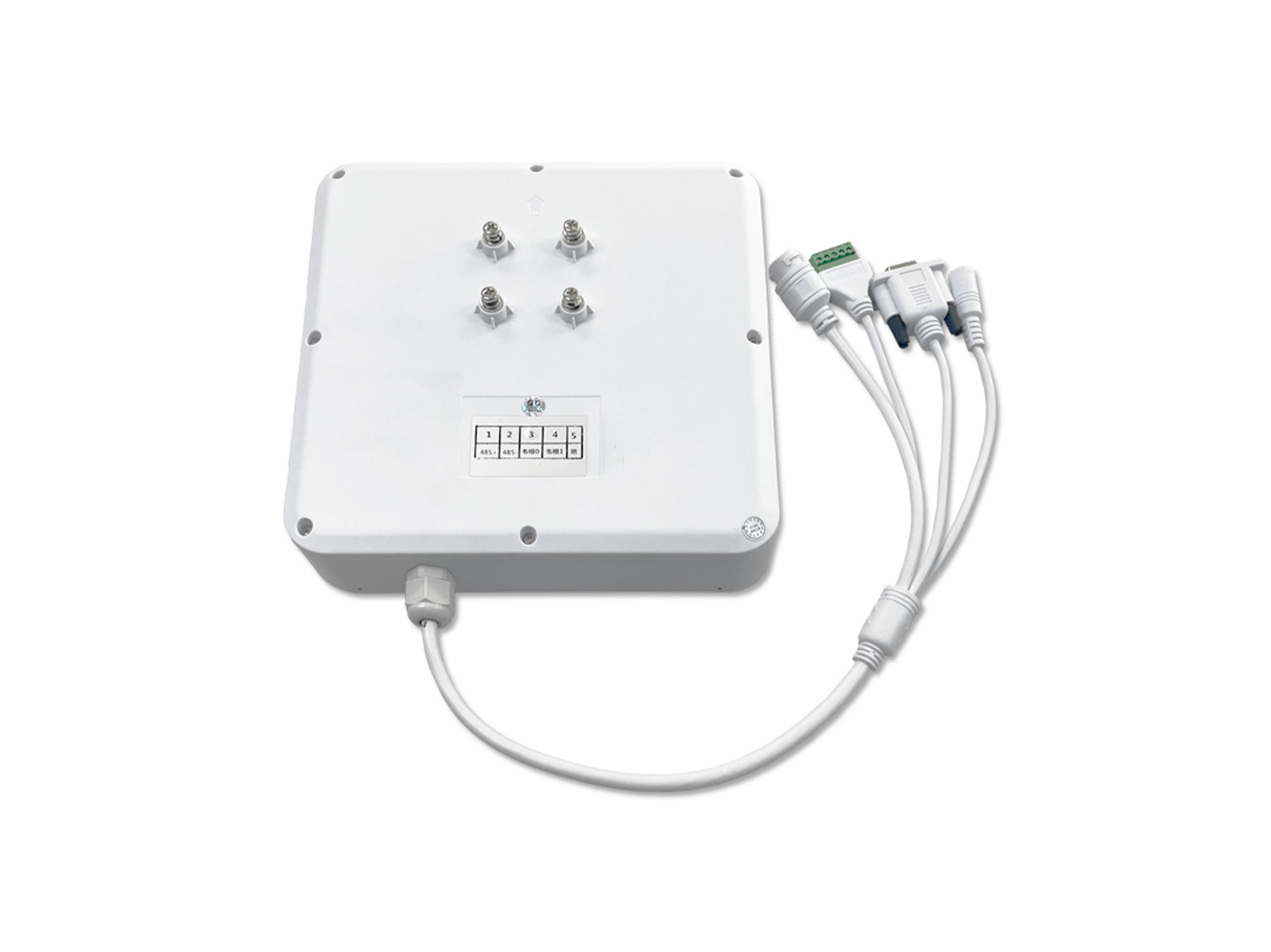

Interface Description

Pic	Name	Dec
	RS232	Serial communication
	RJ45	Network port(TCP/IP) communication
	Power	DC12V power connector
	I/O	1,RS485+ 2,RS485- 3,Wiegand 0 4,Wiegand 1 5,Ground
