JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

JT-9292 is a new generation of ultra high frequency (UHF) electronic label reader developed by our company. Compatible with FCC ISM (902~ 928MHz) standard ETSI (865.6~867.6 MHz) (customer needs to be customized), used to read and write ISO18000-6C (EPC C1 GEN2) electronic tags. JT-9292 provides API functions suitable for specific applications to facilitate users' secondary development. And integrated network interface, with management software and database, can be easily and quickly applied to warehousing logistics, VMI-HUB, pallet management, flow board management, production line workpiece control, material control, identification, access control and other fields.

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

JT-9292 is a new generation of ultra high frequency (UHF) electronic label reader developed by our company. Compatible with FCC ISM (902~ 928MHz) standard ETSI (865.6~867.6 MHz) (customer needs to be customized), used to read and write ISO18000-6C (EPC C1 GEN2) electronic tags. JT-9292 provides API functions suitable for specific applications to facilitate users’ secondary development. And integrated network interface, with management software and database, can be easily and quickly applied to warehousing logistics, VMI-HUB, pallet management, flow board management, production line workpiece control, material control, identification, access control and other fields.

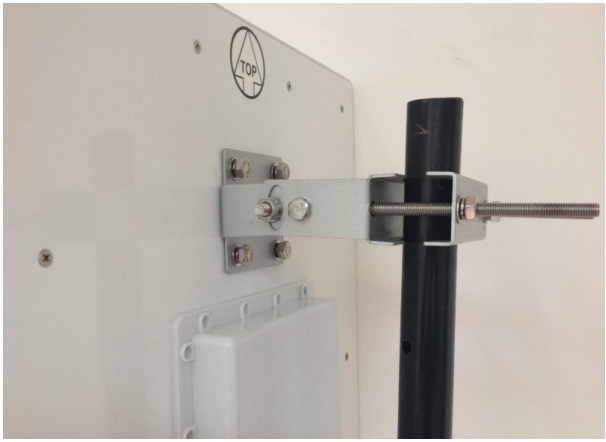

HOW TO INSTALL THE READER

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

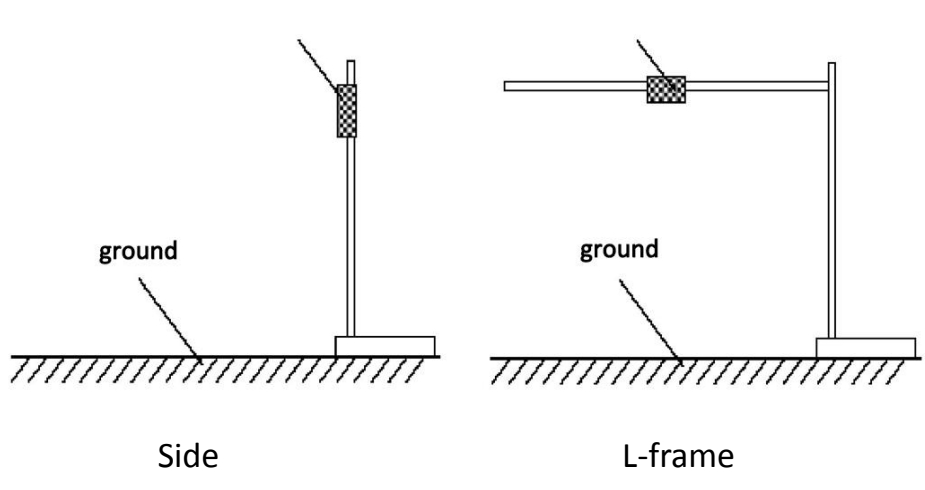

There are two ways to install the JT-9292 reader stand: “Side-side installation” and “L-frame installation” are as follows: The installation method can be selected according to the application requirements and the actual situation. The read and write distance is closer, but the installation is simple; the top-loading method reads and writes farther, but the installation is complicated.

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

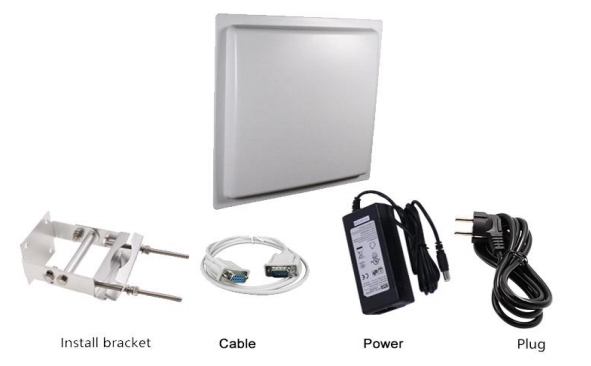

Packing

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Key Features

• This product has multi-protocol compatibility, fast reading speed and waterproof design to meet the demanding working environment.

• Full support for ISO 18000-6C (EPC C1 G2) electronic tags;

• Support TCP/IP, RS232,WiFi ,GPRS and other communication methods;

• The output power is adjustable up to 30dbm, supporting various working modes such as timing mode, master-slave mode and trigger mode;

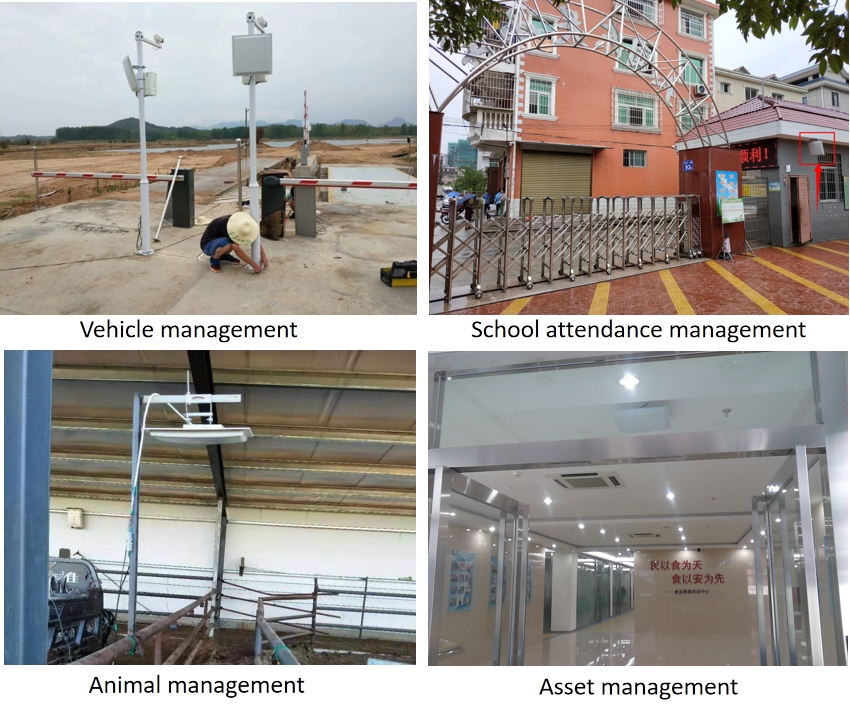

• Application is suitable: warehouse management, marathon racing, hospital management, personnel access control, logistics monitoring, production automation management, etc.

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Specification

Working frequency	902-928MHz(US),865-868MHz(EU)
Protocol	EPC C1 Gen2,ISO18000-6C

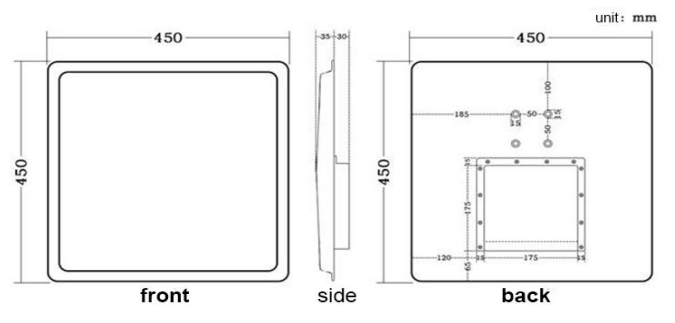

Size	45045050mm
Weight	About 5kg
Shell material	ABS and aluminum alloy
RF power	0~30dBm(Software adjustable)
Reading distance	Stable 0-30m(depend on antenna and environment)
Writing distance	＞6m(depend on antenna and environment)
Chip	Impinj R2000
Read Rate	>300 times/second
Antenna gain	12dBi linear polarization
SDK	Demo and C#,JAVA,Android
Communication port	RS232(standard),TCP/IP,WiFi,4G(optional)
Power supply	DC 12V/3A
Storage temperature	-45℃~+95℃
Working temperature	-40℃~+65℃
JT-9292A	RS232
JT-9292B	RS232,TCP/IP
JT-9292W	RS232,WiFi
JT-9292G	RS232,GPRS
