GNSS Antenna

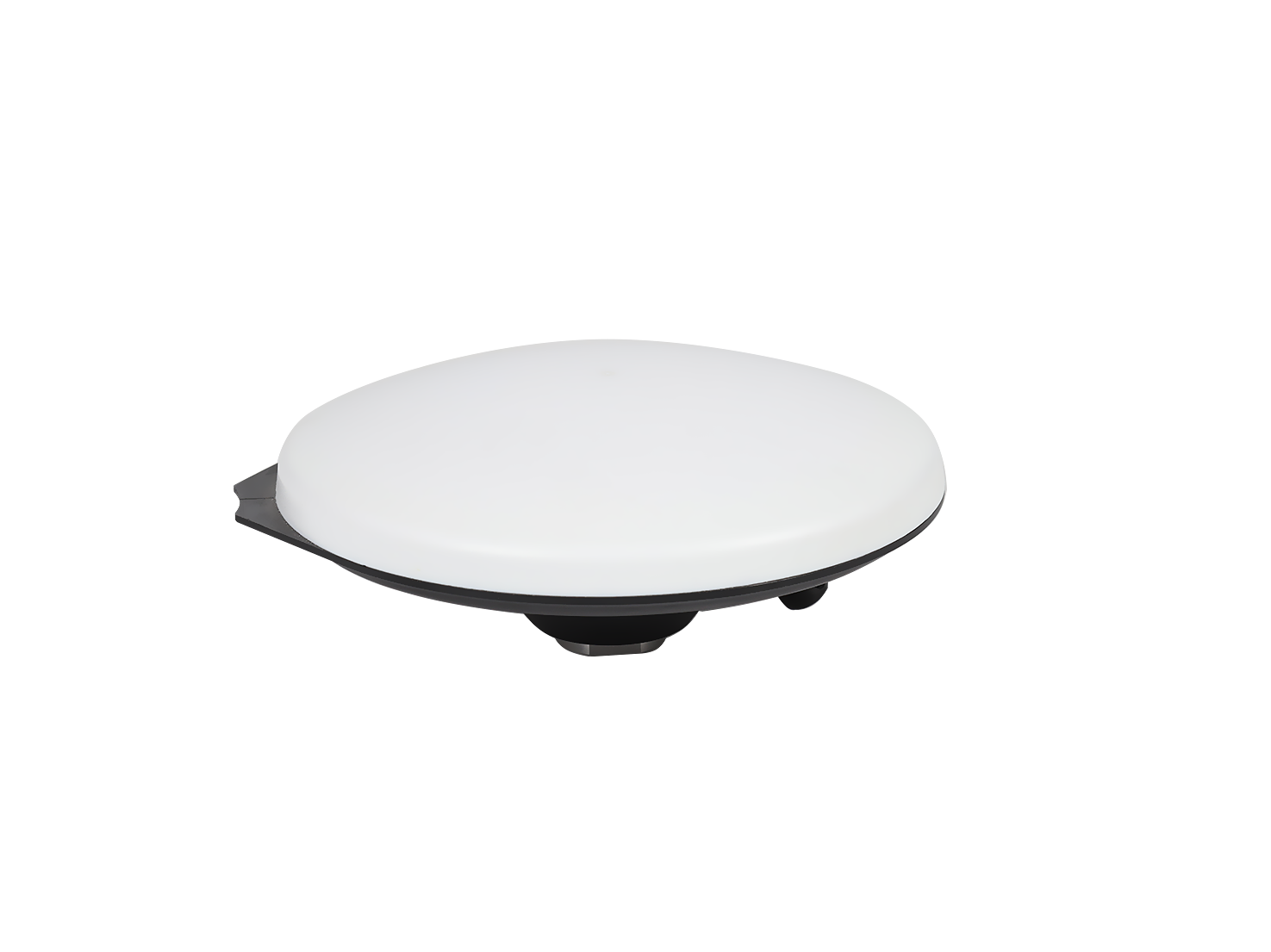

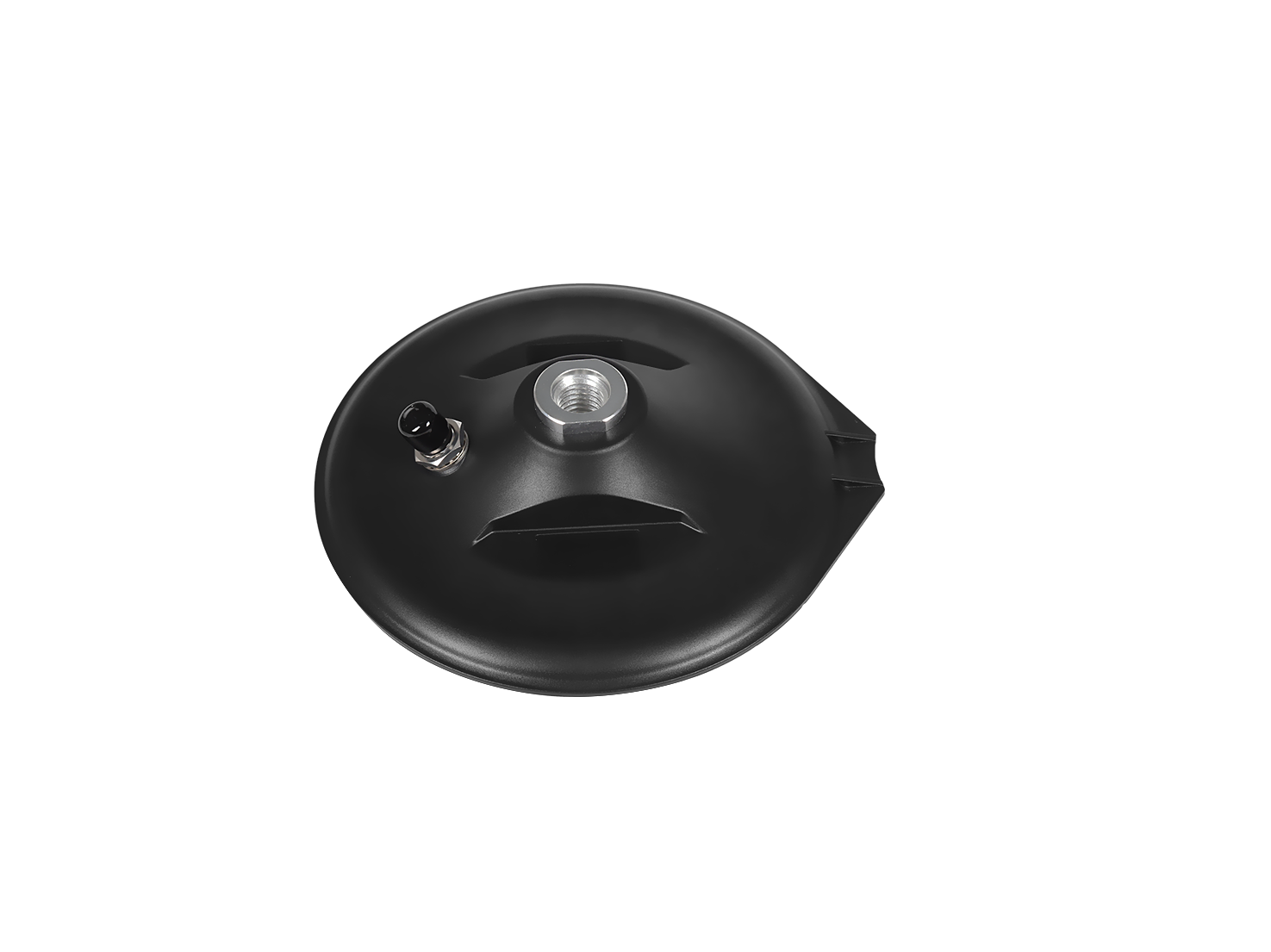

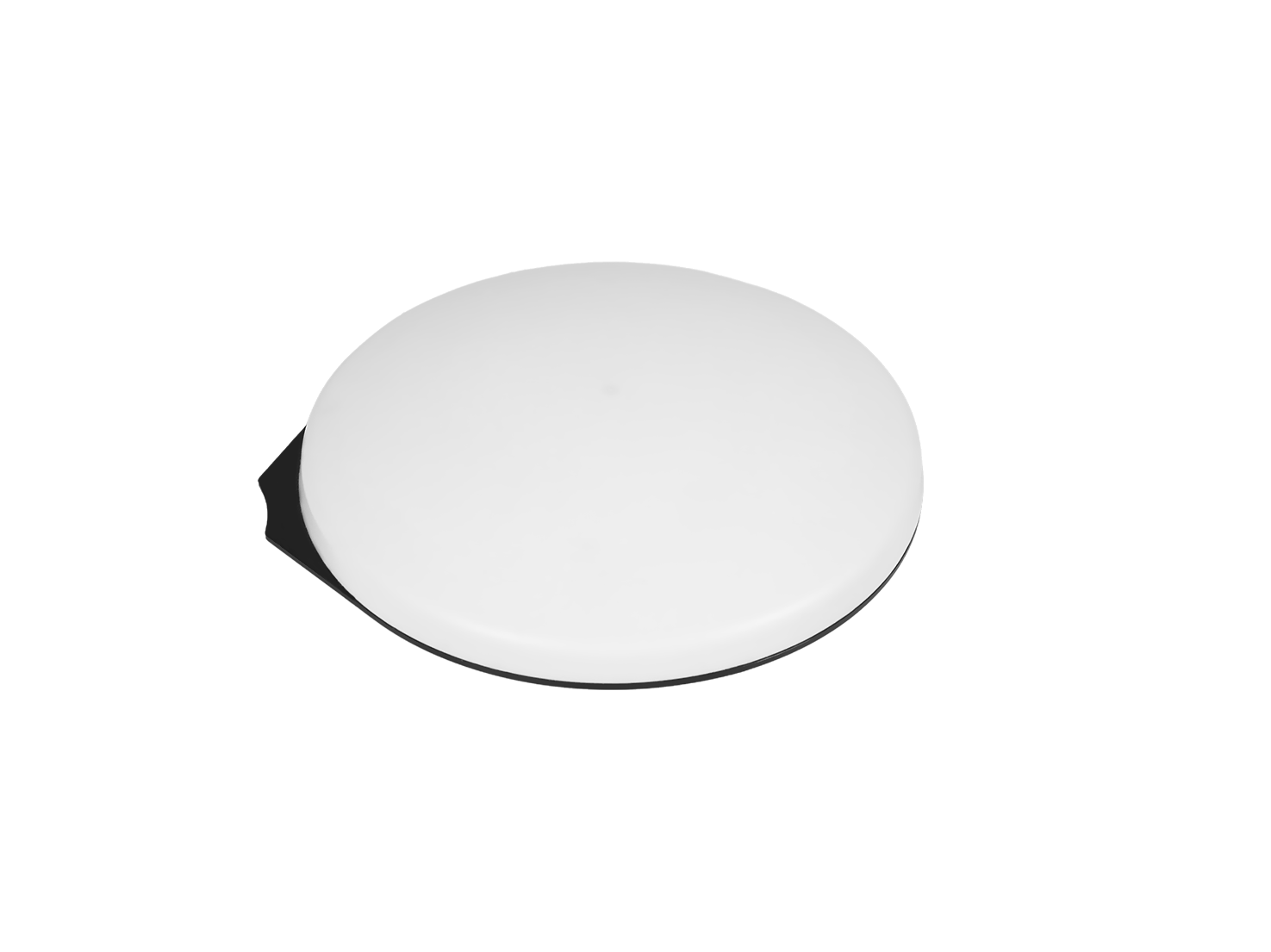

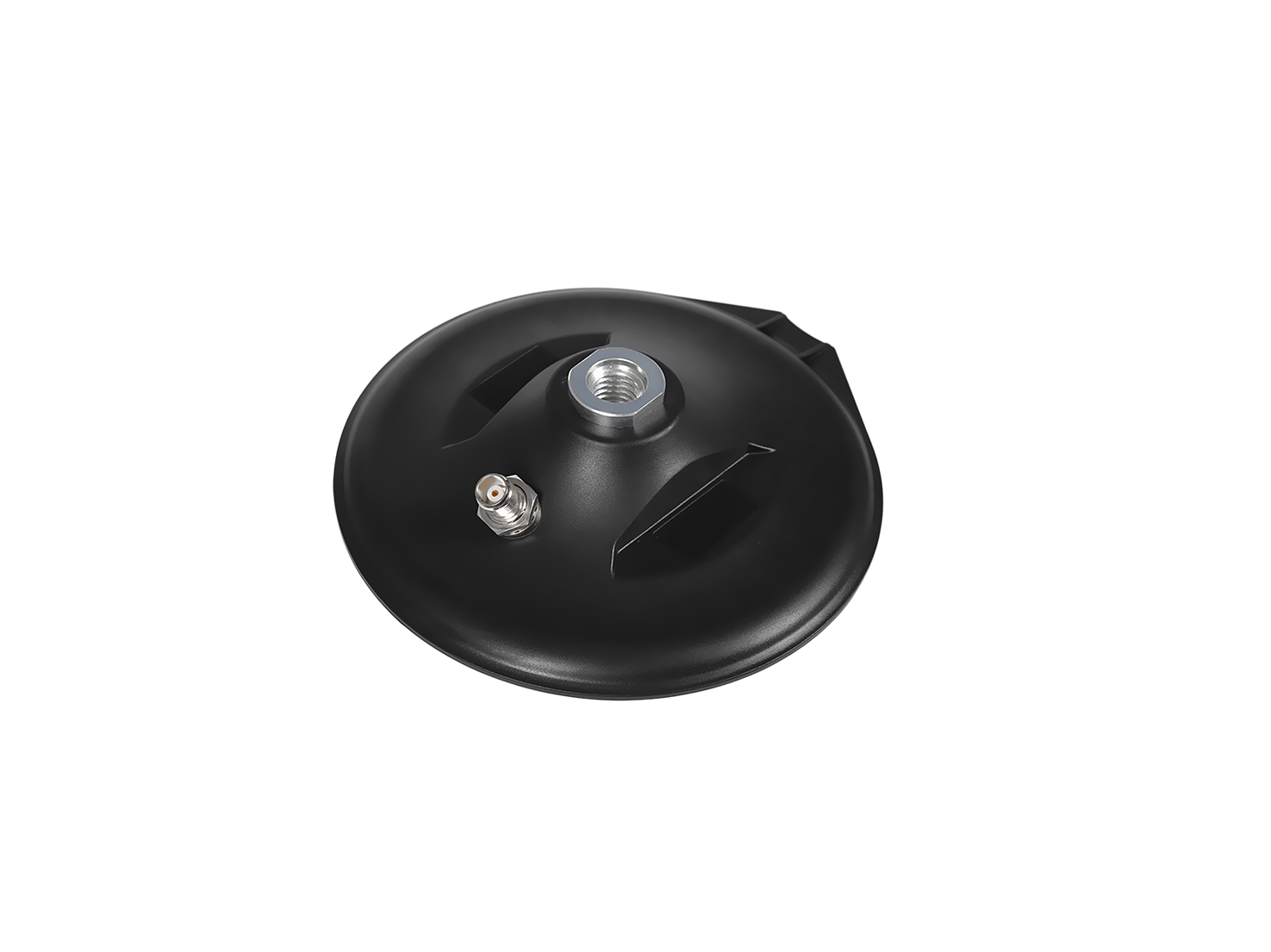

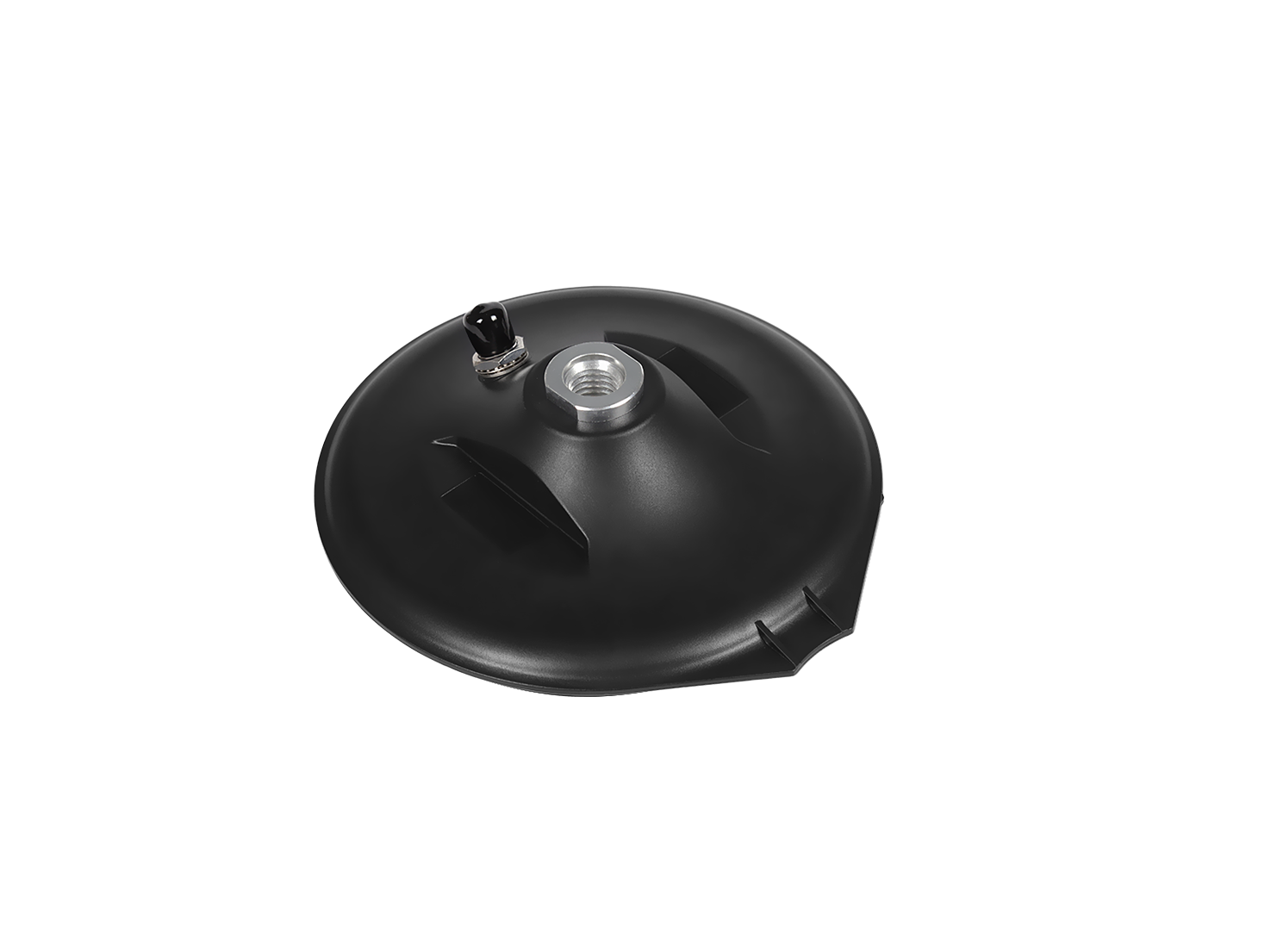

High-Precision Multi-System RTK GNSS Survey Antenna

Model Number：V1194-132-A-01


Frequency Range：GPS L1/L2/L5、BDS B1/ B2/ B3、GLONASS L1/L2、Galileo  E1/E5a/E5b/E6、L-band


LAN Gain:40±2  dBi


VSWR：≤ 2


Noise Figure：＜2.5 dBi


Axial Rati＜3 dBi


Voltage DC 3.3–18 V


Current：＜45 mA


Phase center error：±2mm


Polarization ：RHCP


Impedance：50 Ω


Size：Φ165×68.8mm


Casing：ASA


Connector Type：TNC-K


Working Temperature：-40 °C to +85 °C


IP Rating：IP66

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactHigh-Precision Multi-System RTK GNSS Survey Antenna
aa6037e7a19893b
0c131184bef15a1
04fe11965391b08
2561c2661dd0b99
053f926f26ab810

Overview

This antenna is a full-frequency measurement antenna covering GPS L1/L2/L5, BDS B1/ B2/ B3, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, L-band, to meet the current GNSS measurement equipment multi-system compatibility and high-precision measurement needs. Widely used in geodetic mapping, Marine survey, geological deformation monitoring, micro displacement monitoring, precision positioning, mobile mapping, large construction machinery control and fine agriculture and other fields.

Key Features

• Full-band

GPS L1/L2/L5、BDS B1/ B2/ B3、GLONASS L1/L2、Galileo  E1/E5a/E5b/E6、L-band

• Strong anti-interference performance

The pre-filtering scheme is adopted to effectively suppress out-of-band interference

• RTK positioning accuracy

Multi-feed point design and symmetrical antenna structure are adopted to realize the coincidence of phase center and geometric center, and reduce the influence of antenna on measurement error.

• Good reliability

Lightning and waterproof design.

Specification

Passive Electrical Specifications
Frequency Range GPS L1/L2/L5、BDS B1/ B2/ B3、GLONASS L1/L2、Galileo  E1/E5a/E5b/E6、L-band
Input Impendence 50 Ω
VSWR ≤ 2
Gain ≥ 5 dBi
Axial Ratio ＜3 dB
Phase center error ±2mm
Polarization Type RHCP
LNA Electrical Properties
Center Frequency GPS L1/L2/L5、BDS B1/ B2/ B3、GLONASS L1/L2、Galileo  E1/E5a/E5b/E6、L-band
Gain 40±2  dB
Noise Figure ＜2.5 dB
Output VSWR < 2.0
Input VSWR < 2.0
Voltage DC 3.3–18 V
Current ＜45 mA
Impedance 50 Ω
Mechanical Specifications
Antenna Size Φ165×68.8mm
Casing ASA
Connector Type TNC-K
Working Temperature -40 °C to +85 °C
Radome Color White+Black
IP Rating IP66

Applications

This antenna  widely used in geodetic mapping, Marine survey, geological deformation monitoring, micro displacement monitoring, precision positioning, mobile mapping, large construction machinery control and fine agriculture and other fields

Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

Three-system seven-band four-arm helical Antenna Detail

GNSS Antenna

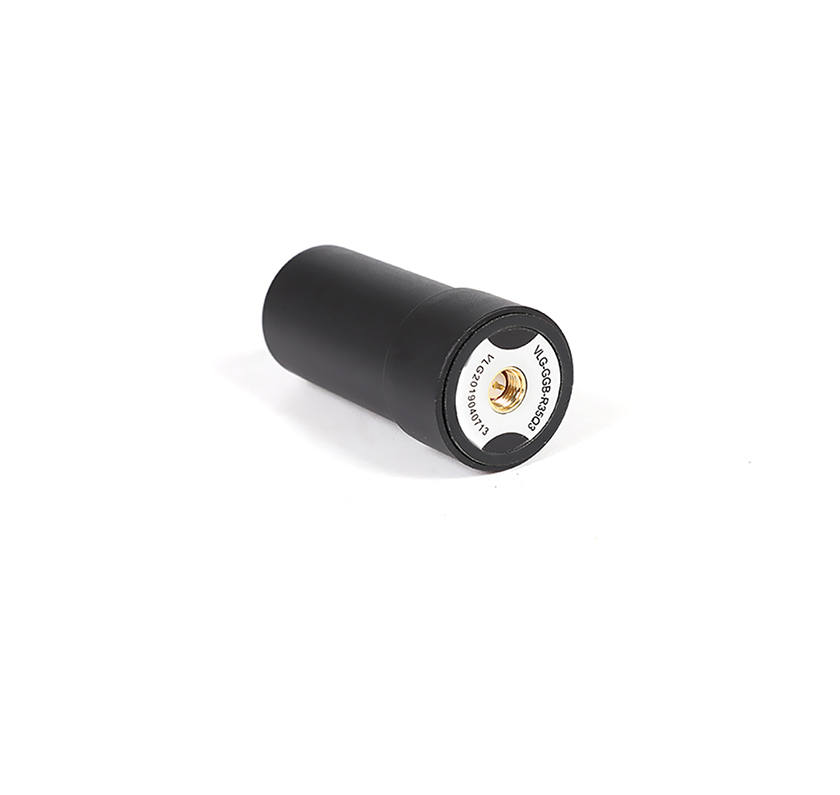

Three-system seven-band four-arm helical Antenna

Product model: V1194-150-A-01 Frequency Range(MHz)：GPS L1L2/& BDS B1/B2/B3&GLONASS L1/L2 Polarization:Right-hand circular polarization Impedance(Ω):50 VSWR:≤2 Horizontal coverage Angle (°):360° omnidirectional Gain(dBi):35±2 Voltage（VDC）:3~5 Current (mA):≤20 Dimensions(mm):57*Φ27.5 Weight（g）:≤25 Connector Type:SMA-J Applications: navigation scheduling, tracking and monitoring, drones, measurement and control and other fields.

High accuracy L1+L5 GNSS Antenna for Vehicles Detail

GNSS Antenna

High accuracy L1+L5 GNSS Antenna for Vehicles

Antenna adopted multi-feed point and completely symmetrical structure, which lower the influence of antenna to measurement error while surveying. Antenna has high Gain, with pattern wide beam, with good reception with low elevation signal, insure the normal satellite signal reception even in serious occlusion environment. The Low noise amplifier section adopted pre-filtering scheme to effectively […]

GNSS High Precision Antenna Supporting GPS L1/L5 and BD B1 Detail

GNSS Antenna

GNSS High Precision Antenna Supporting GPS L1/L5 and BD B1

Model ：V1561-029-A-01 Center Frequency：GPS L1/L5+ BD B1 antennas GNSS car antenna VSWR：≤2.0 LNA Gain:26±2dBi Voltage Range：3.0 V ~ 3.6 V Impedance：50Ω Connector:SMA-J Size：78*52.5*20.4（mm） Applications: Shared bicycles, shared electric vehicles, shared cars, self-driving cars, skateboards, through cooperation with various navigation and positioning systems, to provide users with more accurate and reliable positioning and navigation services.

GPS BD Positioning Navigation Antenna Detail

GNSS Antenna

GPS BD Positioning Navigation Antenna

active GPS antenna for automobile, EV car Frequency ：  BD B1 /GPS L1 Working Voltage ： DC 3~5V Gain： 28dBi VSWR:    2.0 max Impedance:  50ohm Dimension :   50.3mm(L)×38.4mm(W)×17.1mm(H) Cable length and spec: 3000±30 mm (RG 174 ） Application:  all types of front and rear loads, passenger cars, engineering vehicles, electric vehicles, bicycles

Megnetic 28db active GPS Antenna with 3m RG-174, SMA-J Detail

GNSS Antenna

Megnetic 28db active GPS Antenna with 3m RG-174, SMA-J

Frequency: 1559~1577MHz Working Voltage: DC 1.8~3.6V Working Current: 8±2mA@3V Gain: 28dBi typical Noise Factor: 2dBi max Band width: 10MHz min VSWR: 2.0 max Impedance: 50ohm Dimension: 50.3mm(L)×38.4mm(W)×17.1mm(H) Model Number: V1750-002-A-1 Cable length and spec: 3000±30 mm (RG 174 Φ=2.8mm) Connector type: SMA-J/Fakra Application: Positioning and navigation: front and back

High-Precision Multi-System RTK GNSS Survey Antenna Detail

GNSS Antenna

High-Precision Multi-System RTK GNSS Survey Antenna

Model Number：V1194-132-A-01 Frequency Range：GPS L1/L2/L5、BDS B1/ B2/ B3、GLONASS L1/L2、Galileo  E1/E5a/E5b/E6、L-band  LAN Gain:40±2  dBi VSWR：≤ 2 Noise Figure：＜2.5 dBi Axial Rati＜3 dBi Voltage DC 3.3–18 V Current：＜45 mA Phase center error：±2mm Polarization ：RHCP Impedance：50 Ω Size：Φ165×68.8mm Casing：ASA Connector Type：TNC-K Working Temperature：-40 °C to +85 °C IP Rating：IP66

L1L5 Helical Antenna (D18) L1L5 Helical Antenna (D18) Detail

GNSS Antenna

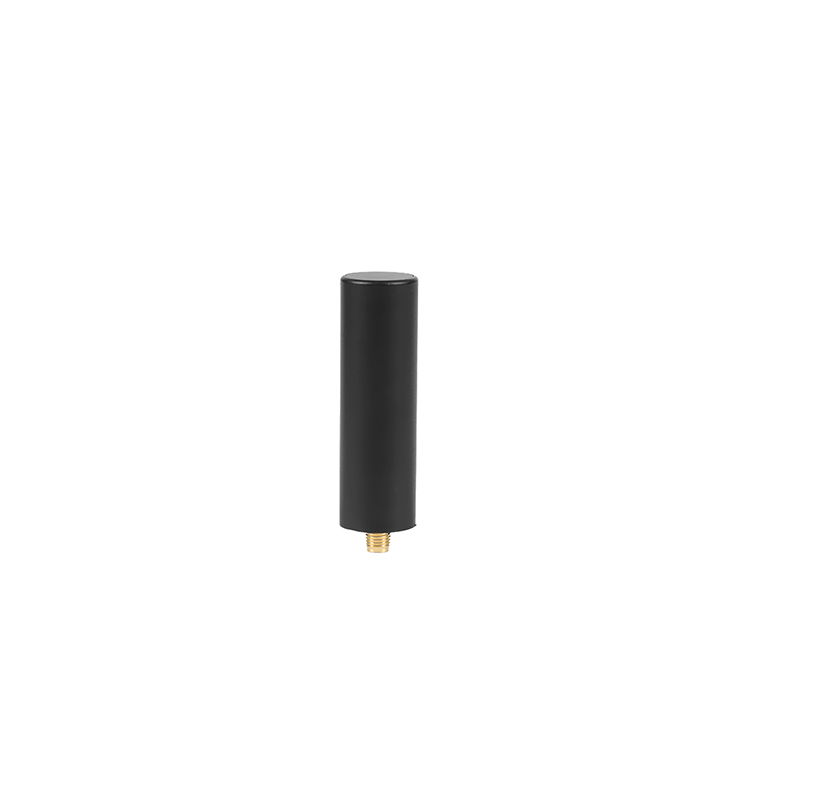

L1L5 Helical Antenna (D18) L1L5 Helical Antenna (D18)
