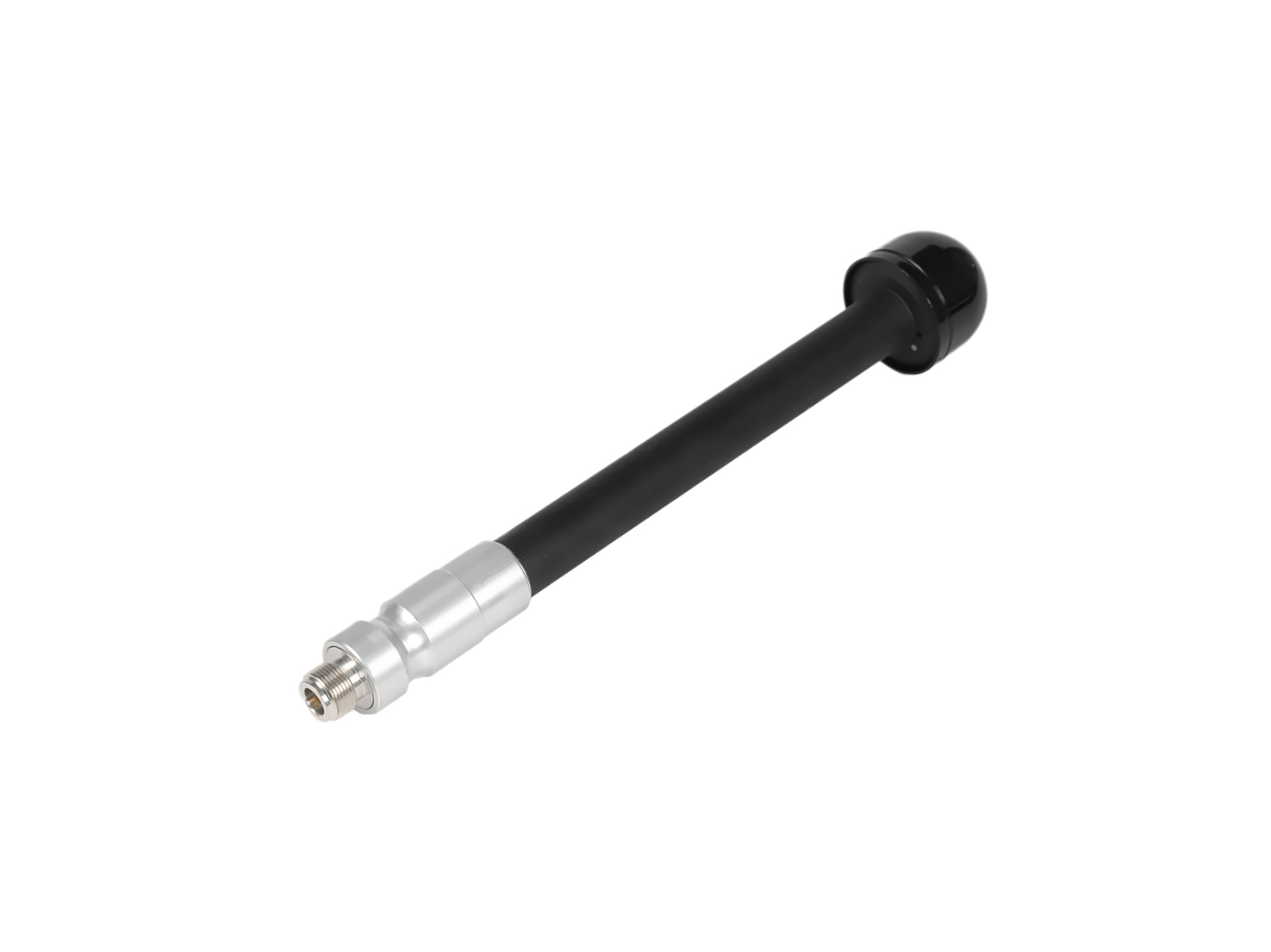

Satcom Antenna

GPS Positioning And amp;Timing Antenna

RSU antenna GPS 28dB

Frequency range: GPS LI &BDS B1

Passive gain: 2.0dB

LAN gain :28±2dB

Standing wave: ≤3

Connector: N-J/N-K

Size: φ42mm×270mm(H)

Voltage: 3-5V

Application:Highway toll management，Urban road management，Management of parking lot,Vehicle networking application

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactGPS Positioning And amp;Timing Antenna
8f5c51dcf428bf7-1
95d650db1422ec-1
81407eaaba40759-1
37a7b64962517d-1

Overview

This compact timing antenna offers exceptional durability and performance. Its small size makes it ideal for space-constrained applications. The antenna simultaneously covers both GPS and Beidou satellite bands, ensuring reliable signal reception for precise timing applications. Furthermore, its construction boasts superior water resistance, corrosion resistance, and high-temperature tolerance, allowing continuous operation in harsh environments. This robust design guarantees reliable and long-term functionality without environmental interference. This timing antenna plays a vital role in modern traffic management systems, such as intelligent transportation and electronic toll collection, by providing a convenient and efficient solution for accurate time synchronization

Key Features

• High gain, precise timing

LNA:28DB, strong anti-signal interference



• Small size, strong, waterproof

Able to withstand harsh weather conditions and long-term use



• Strong compatibility

Able to communicate with a variety of on-board units (OBUs)

Specification

Frequency Range(MHz) BD B1（1561.098MHz）、GPS L1（1575.42MHz）
Polarization RHCP
Peak Gain  (dBi) 2
LNA Gain(dB) 28±2
V.S.W.R ≤2.0
Dimensions (mm) Φ42×270
Operation Temp. -40℃ to +75℃
Connector N-J
Environment Outdoor
Waterproof Grade IP66



Applications

微信截图_20240828174206

Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

BDS+GPS dual-mode satellite communication Antenna Detail

Satcom Antenna

BDS+GPS dual-mode satellite communication Antenna

Frequency Range(MHz)：BeiDou Launch: L (1615.68±4.08MHz)、 Beidou reception: S (2491.75±4.08MHz)、 Positioning: BDS B1, GPS L1 Gain (Beidou) ：Vertex gain ≥3.5dBi Gain (Beidou) ：Elevation angle 70°≥1dBi Gain (Beidou)： Elevation angle 20°≥-3.5dBi Gain (B1/L1) ： Vertex gain ≥1dBi VSWR ≤2.0 Input impedance : 50Ω Antnna size Dimension: Φ104mm*12.8mm (excluding cable size) Applications: In-vehicle navigation, drones, marine fisheries, outdoor adventures, […]

GPS Positioning And amp;Timing Antenna Detail

Satcom Antenna

GPS Positioning And amp;Timing Antenna

RSU antenna GPS 28dB Frequency range: GPS LI &BDS B1 Passive gain: 2.0dB LAN gain :28±2dB Standing wave: ≤3 Connector: N-J/N-K Size: φ42mm×270mm(H) Voltage: 3-5V Application:Highway toll management，Urban road management，Management of parking lot,Vehicle networking application

1.2-1.3G Black V-shaped Image Transmission Antenna L=80mm Detail

Satcom Antenna

1.2-1.3G Black V-shaped Image Transmission Antenna L=80mm

External antenna /50Ω/1200-1300MHz/4.0dBi±0.5/RG086 black wire L=80mm/SMA male head male pin gold-plated/Black V-shaped image transmission antenna

Satellite Call/ Msg/ Internet Antenna Detail

Satcom Antenna

Satellite Call/ Msg/ Internet Antenna

Dual-band antenna for Satellite Mobile Product model：V1983-002-A-01 Frequency Range(MHz):1980-2010MHz，2170-2200MHz Polarization：LHCP Gain (dBi):Elevation 55° ≥2dBi VSWR:≤2 Impedanc(Ω):50 Dimension (mm):Φ13mm*108mm Connector:SMA_J Relative Humidity:95% Operating Temperature (℃):-30～+65 Widely used in navigation and dispatching, tracking and monitoring, measurement and control, military and other fields

Single-system Dual-frequency Shipborne Antenna Detail

Satcom Antenna

Single-system Dual-frequency Shipborne Antenna

Model:V1810-012-A-01 Frequency Range(MHz)： 1980-2010MHz，2170-2200MHz 1561MHz，1575MHz Polarization ： (Tiantong) left circular polarization (L) B1/L1 ）Right-handed circular polarization (L) Gain (dBi)（Tiantong）：Vertex gain ≥2.0dBi Gain (dBi)（Tiantong）：Elevation 40° Minimum ≥2.0dBi Gain (dBi)（B1/L1）：Vertex gain ≥1dBi LNA Gain (dBi) （B1/L1）：30±2 dBi VSR：≤2 Impedance (Ω)：50Ω Dimension (mm)：Φ158*124.9 Connector：IPEX 1代（Tiantong）/MMCX-JW（B1/L1） Application: Ship-borne, vehicle-borne.

Drone, UAV 5.8G FPV Antenna (Mushroom shape) Detail

Satcom Antenna

Drone, UAV 5.8G FPV Antenna (Mushroom shape)

3.0dBi±0.5@5.8GHz external antenna, RG141 red wire L=78mm, SMA male pin female pin gold-plated, black mushroom pin antenna

2.4G 6dBi Black Annular Image Transmission Antenna L=40mm Detail

Satcom Antenna

2.4G 6dBi Black Annular Image Transmission Antenna L=40mm

External antenna /50Ω/2400-2500MHz/6.0dBi±0.5/RG086 black wire L=40mm/SMA male head male pin gold-plated/black ring image transmission antenna

BeiDou third generation RD+ high-precision positioning Antenna Detail

Satcom Antenna

BeiDou third generation RD+ high-precision positioning Antenna

Beidou third generation RD+ high-precision positioning antenna Model:V2214-002-A-02 Frequency  Range(MHz): Beidou launch：L（1615.68±4.08MHz） Beidou reception：S（2491.75±4.08MHz） location：BDS B1、GPS L1 Polarization : Beidou launch left circular polarization(L) Beidou reception right-handed circular polarization(R) B1/L1 right-hand Circular polarization (R) AntennaGain (dBi):Vertex gain ≥2.0dBi Axis ratio (dBi):≤3.0 VSWR:≤2.0 Input Impedance (Ω): 50 Application ：deep sea, shipborne.

Dual-Band Vehicle-Mounted LHCP Satellite Antenna Detail

Satcom Antenna

Dual-Band Vehicle-Mounted LHCP Satellite Antenna

Antenna gain Vertex gain emission ≥5.0dBi. Reception ≥4.5dBi Theta,35° Minimum ≥3.0dBi. Theta 45° Minimum ≥2.0dBi Theta 60° Minimum value ≥0dBi VSR≤2 Impedance：50Ω Application :automotive, conventional communications, smart home, etc
