首页图标Home >  Product > Satellite Antenna > GNSS Antenna
ce3bca23bb3428e
2d7ba1d1dd91c3b
a522e57b78452c6
02764f919498586
f7dda6a92984088
5fd2c1d37fc121d

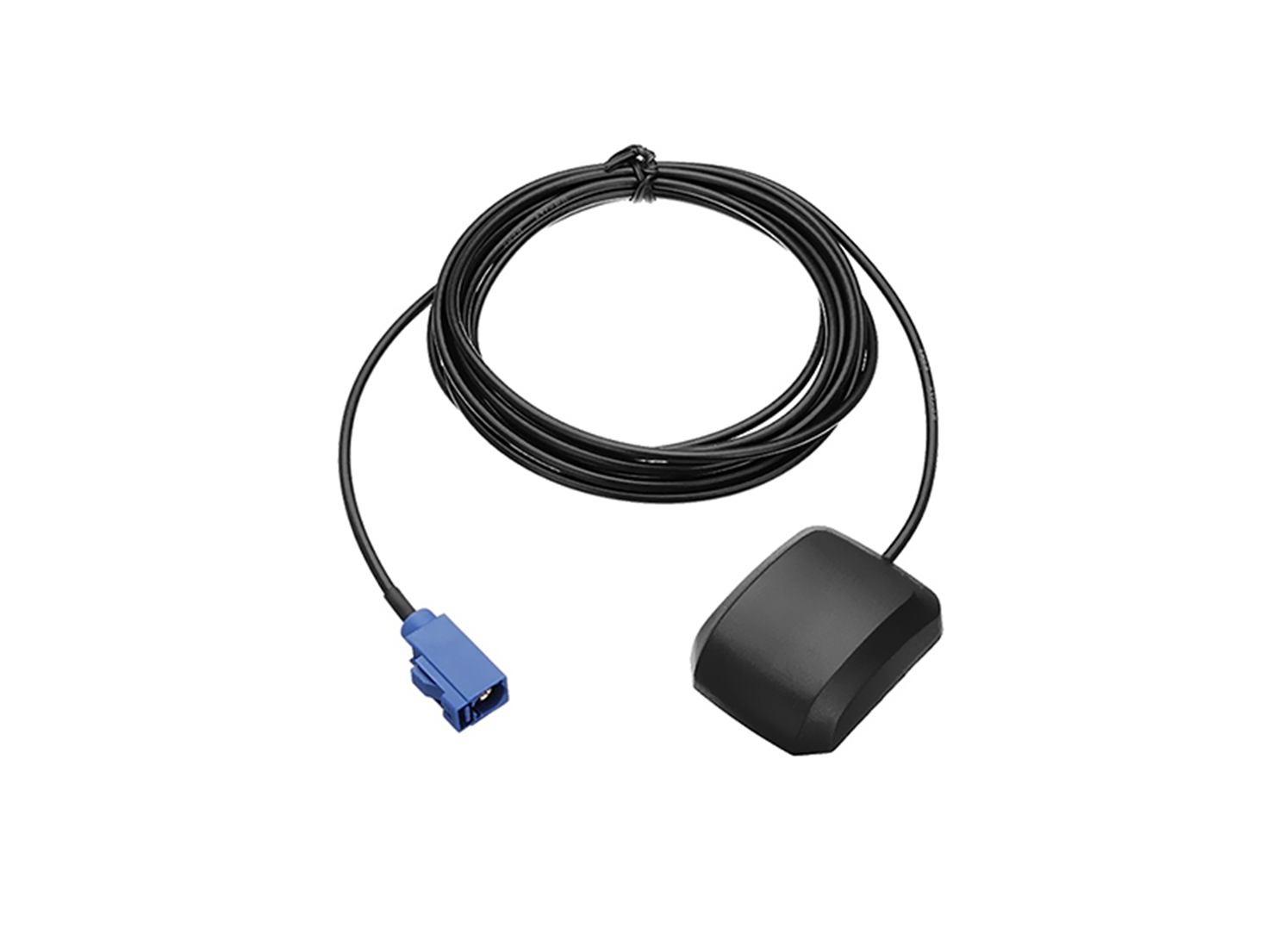

GNSS Antenna

GPS BD Positioning Navigation Antenna

active GPS antenna for automobile, EV car

Frequency ：  BD B1 /GPS L1

Working Voltage ： DC 3~5V

Gain： 28dBi

VSWR:    2.0 max

Impedance:  50ohm

Dimension :   50.3mm(L)×38.4mm(W)×17.1mm(H)

Cable length and spec: 3000±30 mm (RG 174 ）

Application:  all types of front and rear loads, passenger cars, engineering vehicles, electric vehicles, bicycles

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactGPS BD Positioning Navigation Antenna
fd000f5aef6aa73
ce3bca23bb3428e
2d7ba1d1dd91c3b
a522e57b78452c6
02764f919498586
f7dda6a92984088
5fd2c1d37fc121d

Overview

BD+GPS 2-in-1 active antenna, which can quickly locate and accurately navigate in cities with complex environments.

Application: all types of front and rear loads, passenger cars, engineering vehicles, electric vehicles, bicycles.

Key Features

• High gain and low power consumption



LNA Gain: 28±2dB

Voltage Range: DC 3 V ~ 5 V



• Small size and flexible installation



Size:  50.3 × 38.4 × 17.1mm

Adhesive and magnetic



• Wide application

Various models

Urban construction



Specification

Passive Electrical Specifications
Frequency Range: 1561.098-1575.42 MHz
Input Impendence: 50Ω
VSWR: ≤ 2.0
Efficiency: ≥50%
Gain: 2dBi
Polarization : R.H.C.P
Low Noise Amplifier Electrical Specifications.
Frequency Range: 1561.098-1575.42 MHz
LNA Gain: 28±2dB
Noise Figure: ≤ 2.0
Output VSWR: ≤ 2.0
Voltage Range: DC 3 V ~ 5 V
Mechanical Specifications
Antenna Size: 50.3 × 38.4 × 17.1mm

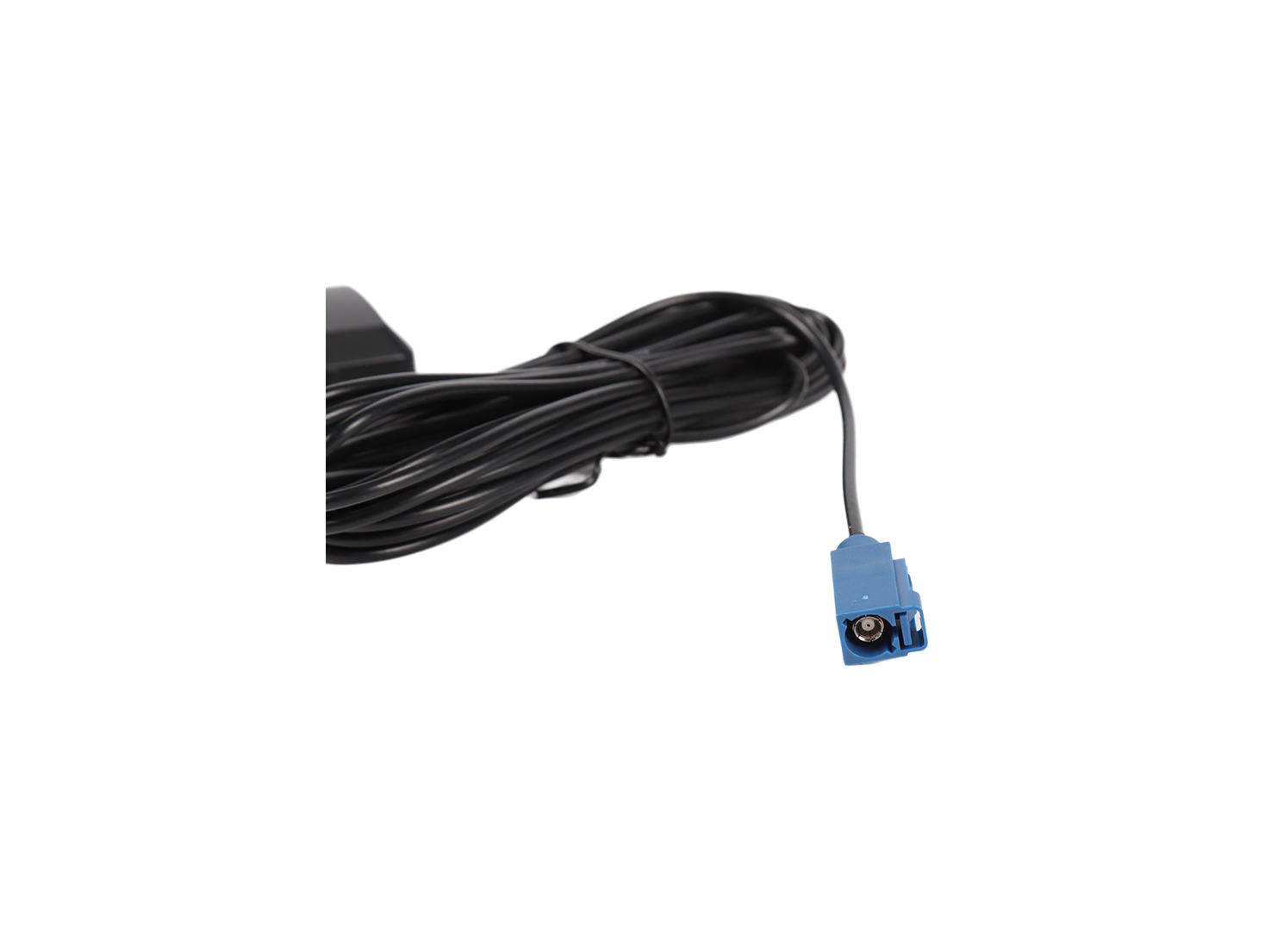

Cable Type & Length: RG174 Black & 3000mm
Casing:  ABS
Connect Type: SMA-J（customizable）
Working Temperature:  -20°C ~ +70°C
Radome Color: Black
Installation method: Magnet adsorption
Weight : 64.6g
IP rating: IP64



Applications
