GPS Antenna For Accuracy Timing And amp; Position

Timing Antenna

GPS Antenna For Accuracy Timing And amp; Position

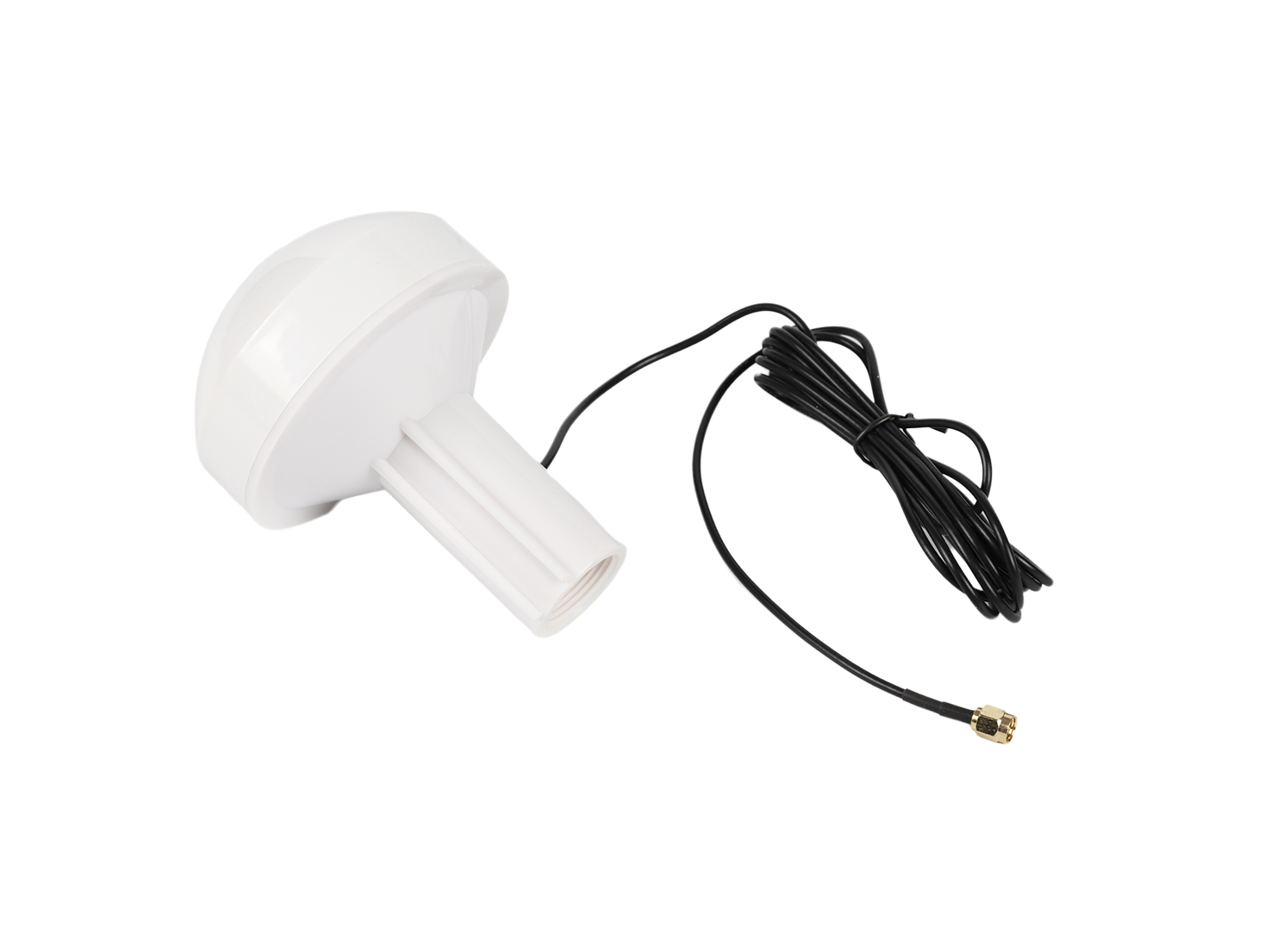

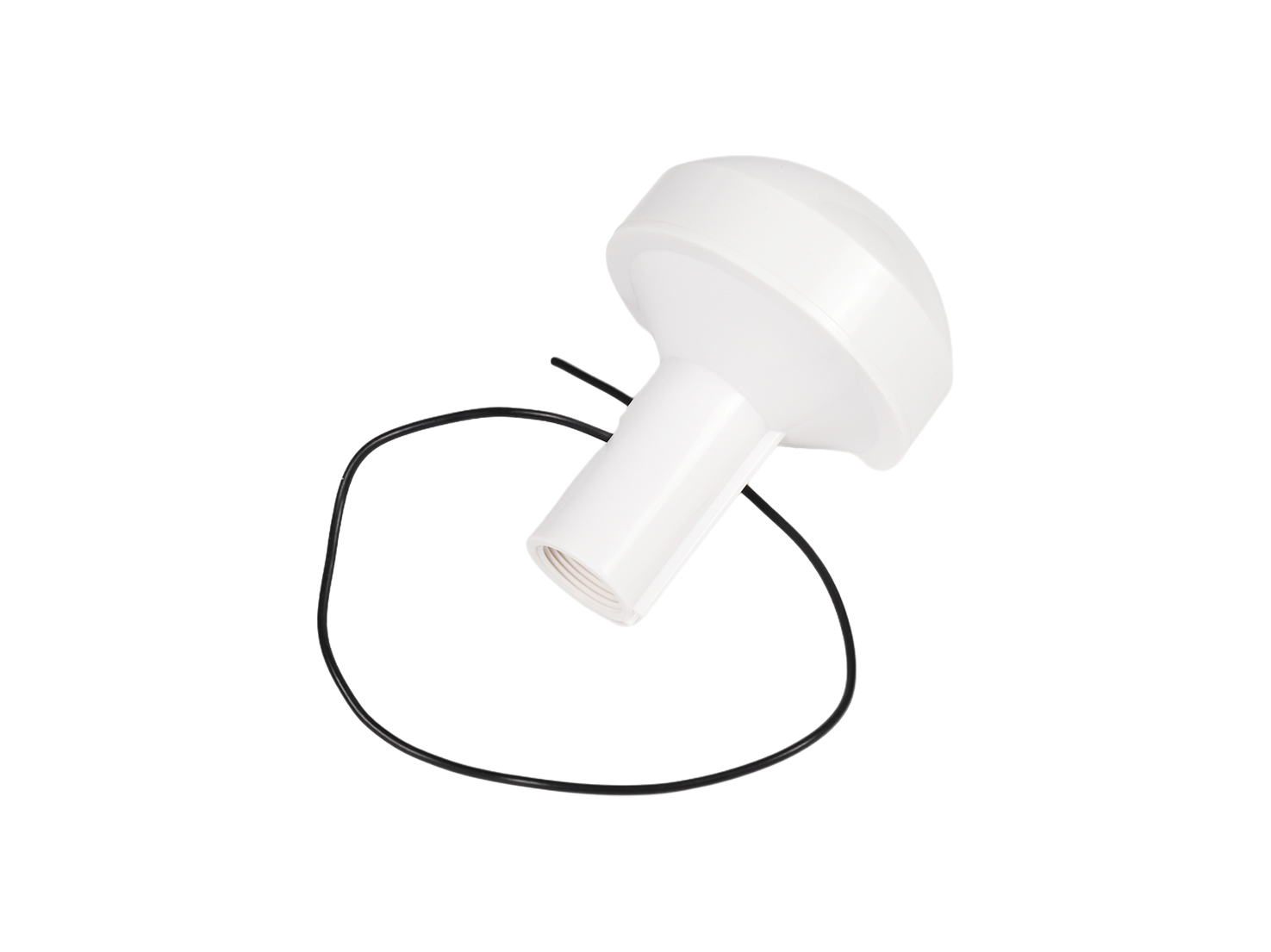

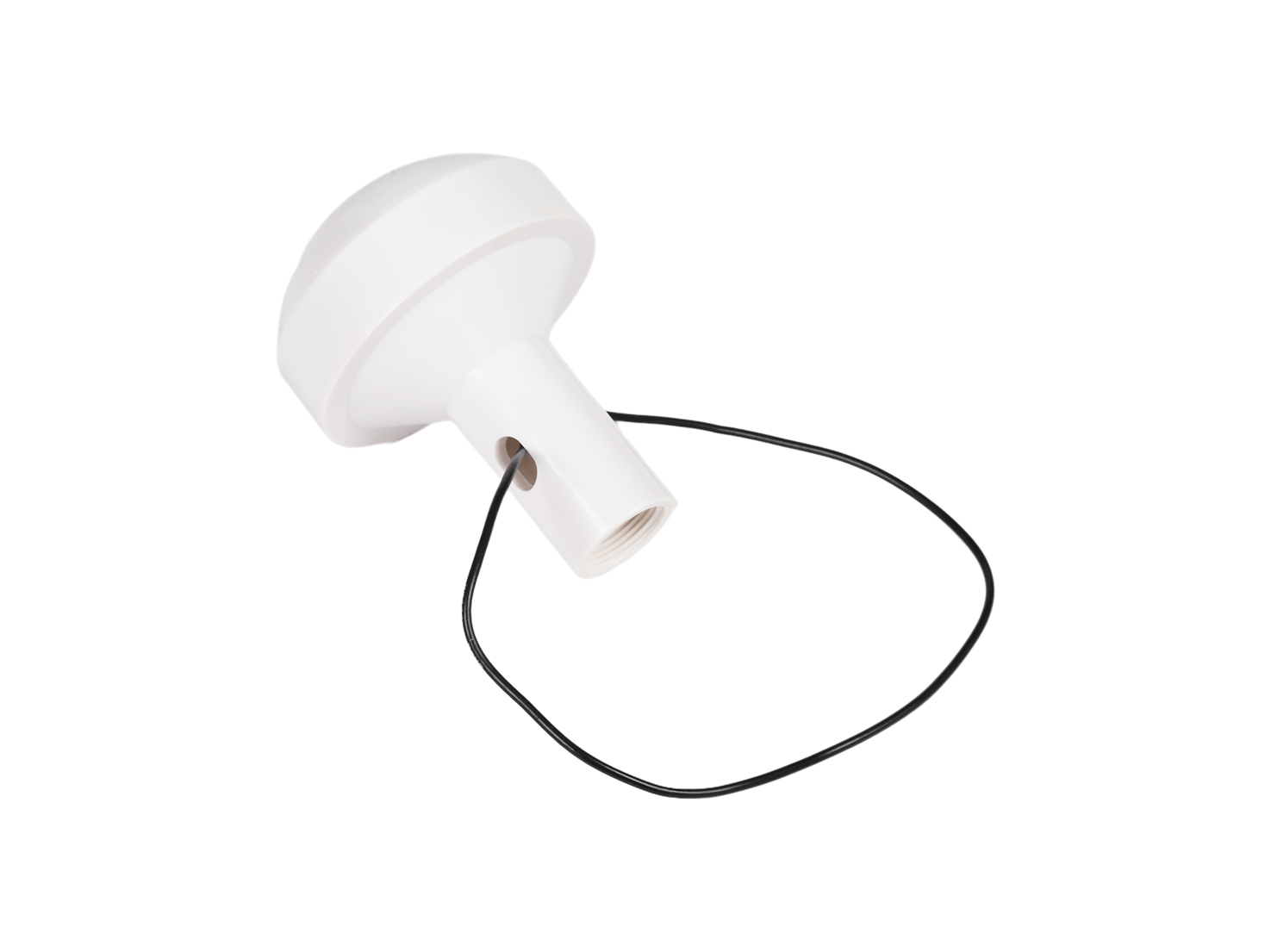

GPS Antenna for accuracy timing & position

Frequency： 1561.098~1575.42MHz

LNA Gain：28.5±2dBi typ

Noise Figure：≤2.0dBi

V.S.W.R ≤2.0 Cable：3000±100mm (RG174 ) （customizable）

Connector：SMA-J （customizable）

Dimensions：Φ96*128.5mm

Application：electric power, base stations, ships and other timing places

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

GPS Antenna For Accuracy Timing And amp; Position

Overview

This high-performance GPS antenna, which is designed for positioning system, adopts lightning and electrostatic protection design, has the characteristics of high Gain and high efficiency, to ensure that it can provide stable and efficient signal reception under various environmental conditions, and is widely used in electric power, base stations, ships and other timing places.

Key Features

• Wide coverage

Frequency 1561.098~1575.42MHz, can cover the world’s main GPS and GNSS (Global Navigation Satellite System) band

• High gain, good performance

LAN gain 28.5±2dB, it can effectively amplify the weak satellite signal to ensure that even in the weak signal environment can achieve fast and accurate positioning.

• Easy installation, beautiful appearance

Size Φ96.2*127.3mm compact design, small space occupation, easy installation. The round appearance is simple and generous, suitable for various installation environments and equipment requirements.

• Lightning and electrostatic protection design

It can effectively prevent the damage of lightning and static electricity to the antenna, and ensure the stable operation of the equipment in bad weather conditions.

Specification

1、Patch Antenna
Frequency：	1561.098~1575.42MHz
Peak Gain ：	≥3 dB
Output V.S.W.R：	2.0dB max
Output Impedance：	50ohm
Polarization：	R.H.C.P
Voltage：	VDC 3~5V
Current：	≤20mA@3V
2.LNA
Frequency：	1561.098~1575.42MHz
Gain：	28.5±2dB typ
Noise Figure：	≤2.0dB
Output V.S.W.R：	2.0 max
3.Characteristic of material
Temperature：	-40℃ to +70℃
TemperatureHumidity：	10% to 95% RH
Cable：	3000±100mm (RG174 ) （customizable）
Connector：	SMA-J （customizable）
Dimensions：	Φ96*128.5mm
