GNSS High Precision Antenna Supporting GPS L1/L5 and BD B1

GNSS Antenna

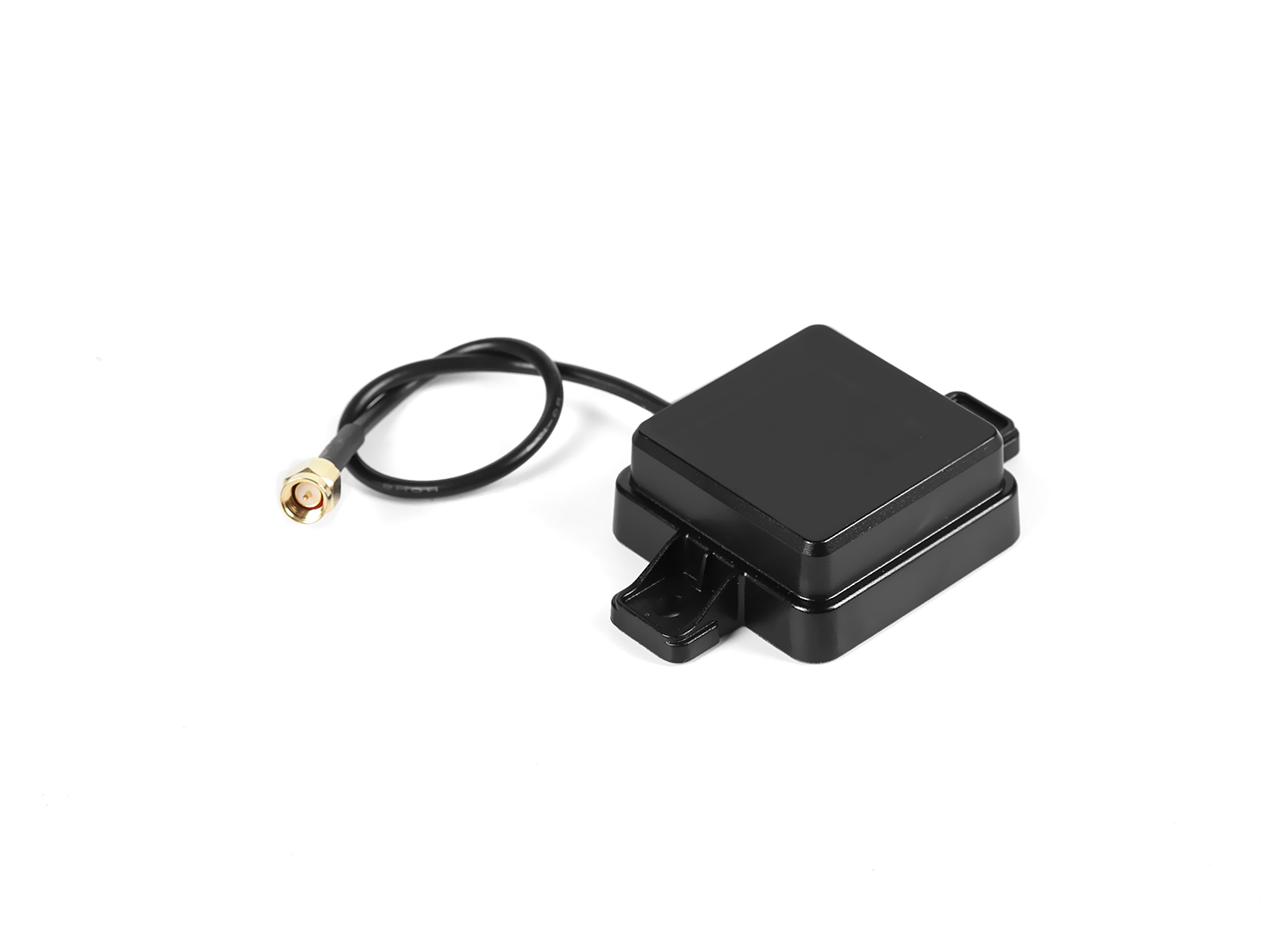

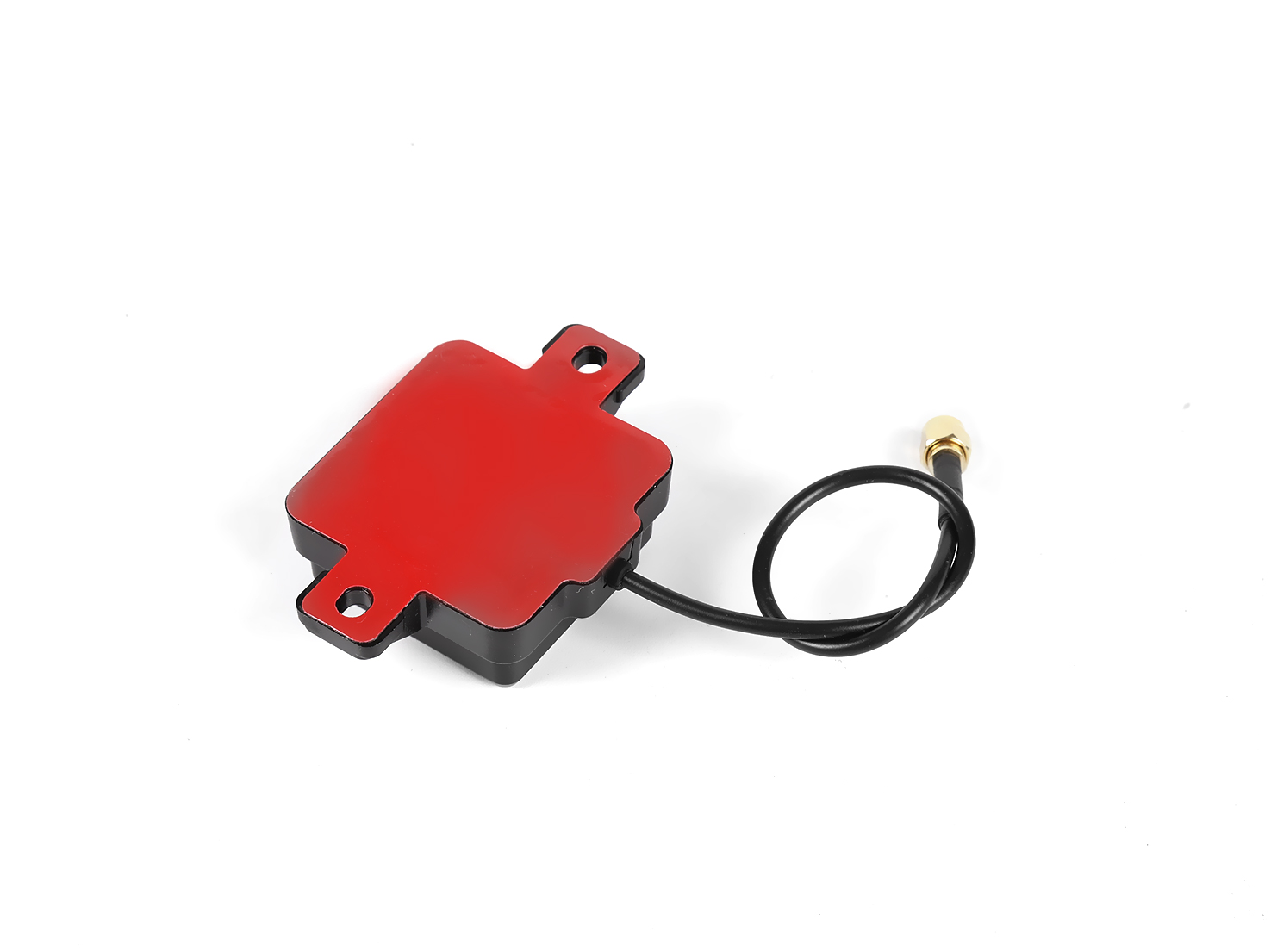

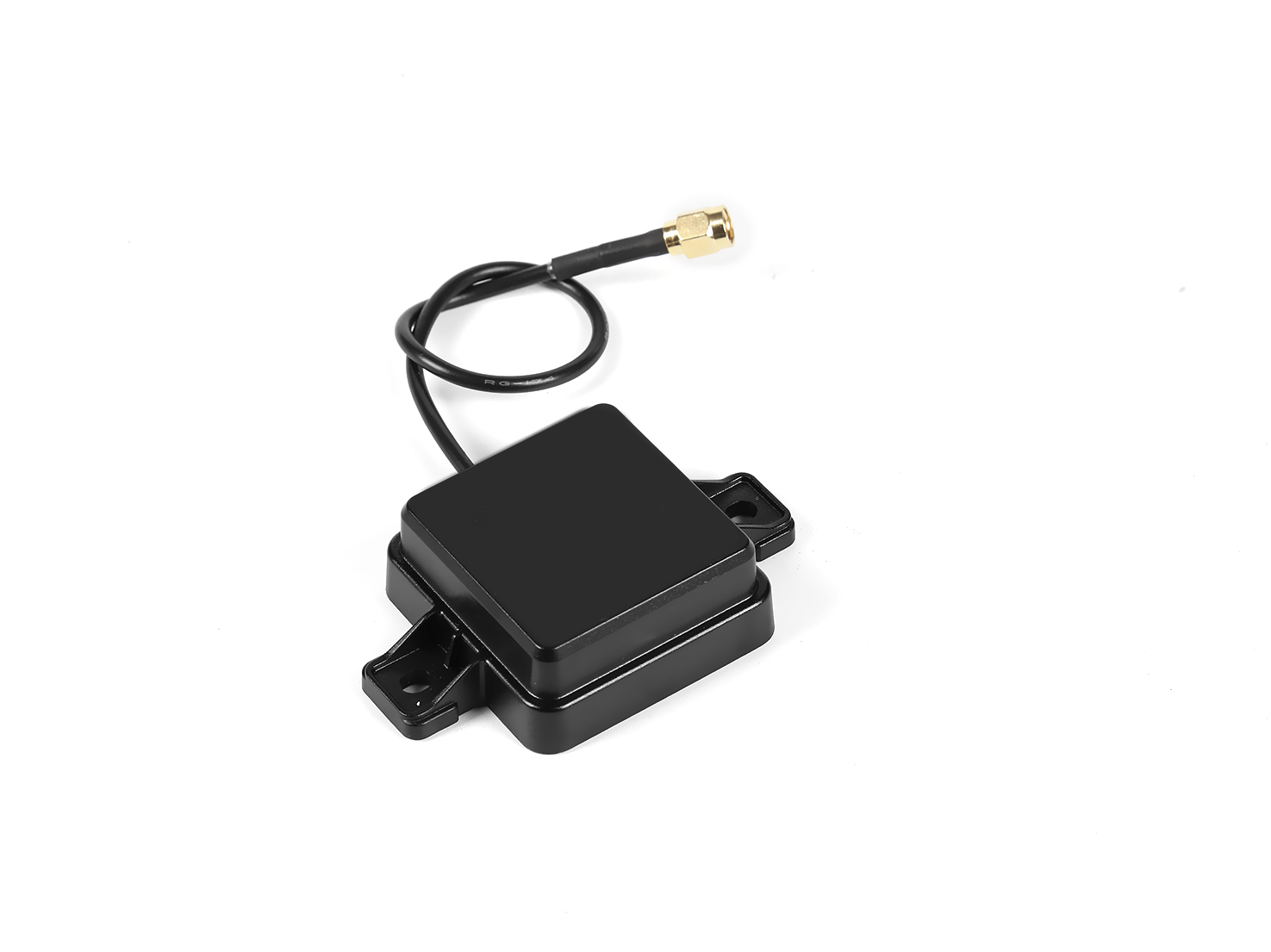

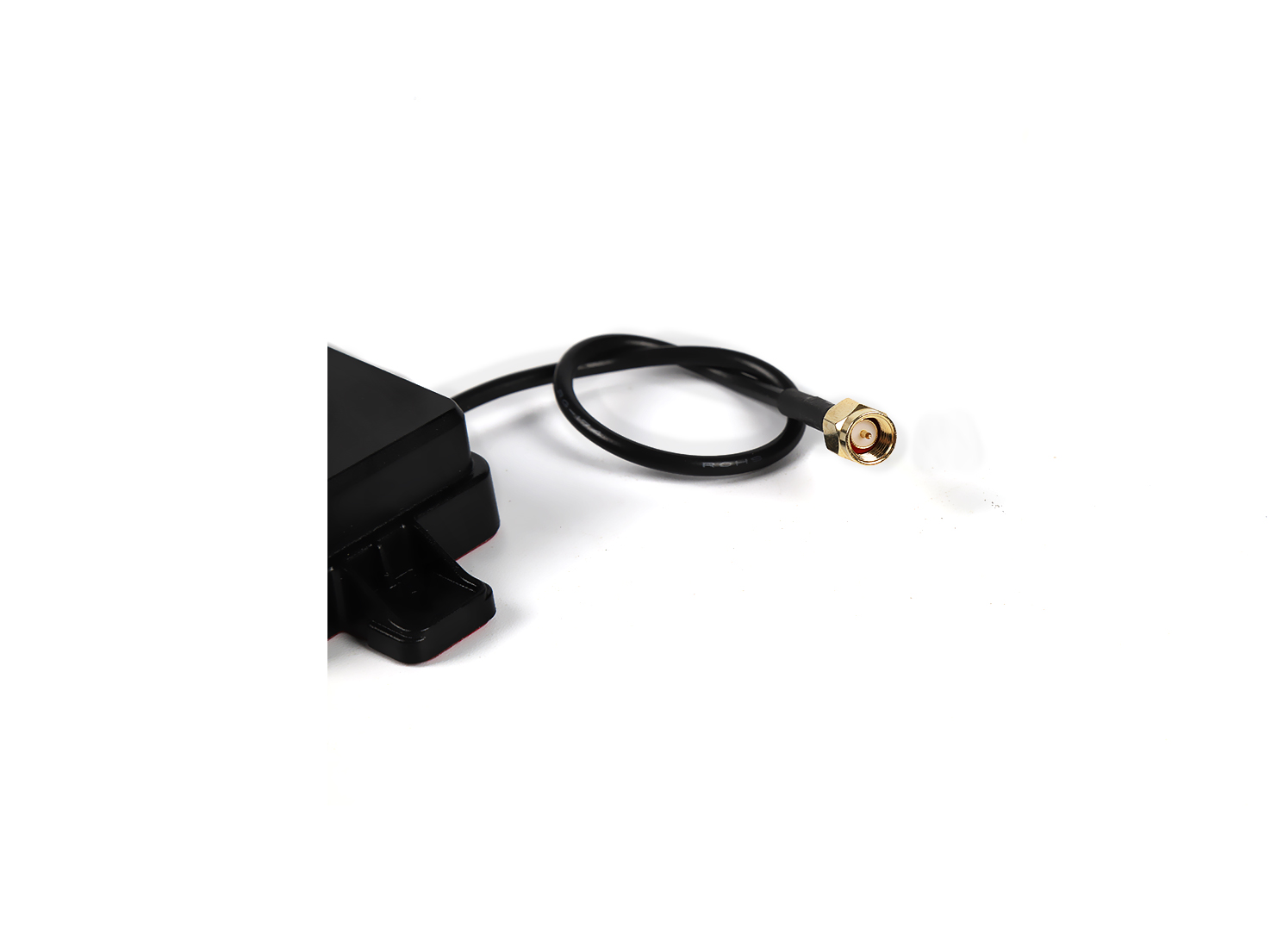

GNSS High Precision Antenna Supporting GPS L1/L5 and BD B1

Model ：V1561-029-A-01

Center Frequency：GPS L1/L5+ BD B1 antennas GNSS car antenna

VSWR：≤2.0

LNA Gain:26±2dBi

Voltage Range：3.0 V ~ 3.6 V

Impedance：50Ω

Connector:SMA-J

Size：78*52.5*20.4（mm）

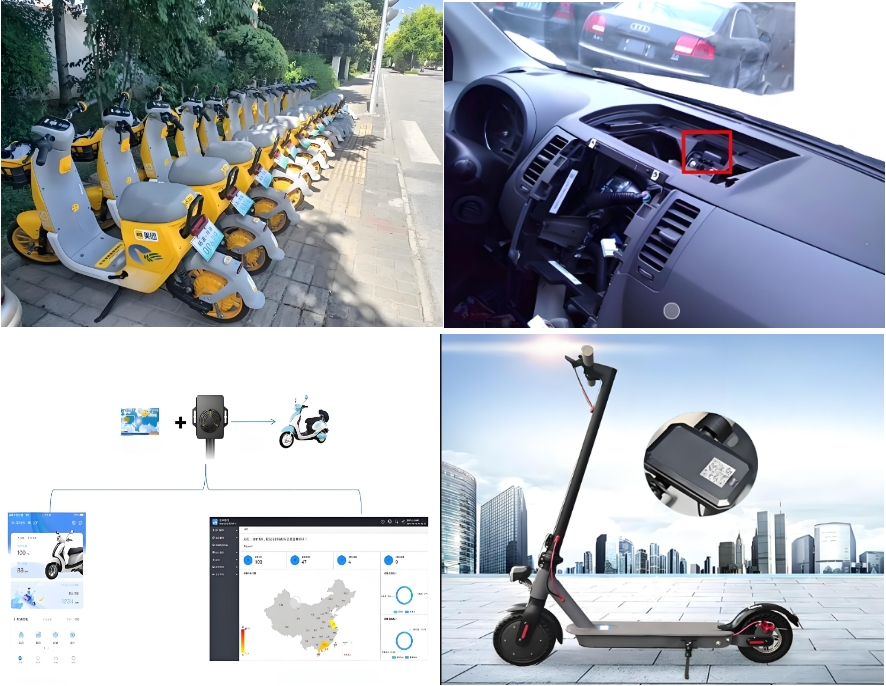

Applications: Shared bicycles, shared electric vehicles, shared cars, self-driving cars, skateboards, through cooperation with various navigation and positioning systems, to provide users with more accurate and reliable positioning and navigation services.

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

GNSS High Precision Antenna Supporting GPS L1/L5 and BD B1

Overview

This product is a high-performance multi-band active antenna designed for high-precision navigation and positioning systems. It supports GPS L1 and L5 bands as well as BDS (Beidou Navigation Satellite System) B1 band, with an operating frequency covering 1176.45MHz to 1575.42MHz, ensuring wide coverage and stable signal reception worldwide. With its compact size (78*52.5*20.4mm) and optimized design, the antenna can be easily installed in a variety of devices and systems, providing users with high-quality navigation and positioning services.

Key Features

• Multi-band support

Support GPS L1, L5 band and BDS B1 band at the same time, to meet the needs of different navigation and positioning systems.

• Broadband coverage

A wide range of operating frequencies, from 1176.45MHz to 1575.42MHz, to ensure stable reception of signals.

• Compact size

Compact form factor design for easy integration into various devices and systems

• High performance reception

advanced signal processing technology is used to improve the reception sensitivity and anti-interference ability of the signal.

Specification

1. Passive Antenna Electrical Specifications
CHARACTERISTICS	SPEC
Center Frequency	1176.45MHz-1561.098MHz-1575.42MHz
Output VSWR	≤2.0 max
Output Impedance	50ohm
Efficiency (%)	≥60
Peak Gain	≥1.5dB
Polarization	R.H.C.P
Antenna Size（mm）	7852.520.4mm
Cable	RG174
Connector	SMA-J
2. Low Noise Amplifier Electrical Specifications
CHARACTERISTICS	SPEC
Frequency Range	1176.45MHz-1561.098MHz-1575.42MHz
LNA Gain	26±2 dB
Output V.S.W.R	2.0dB max
Voltage Range	3.0 V ~ 3.6 V
Current	10 mA
Impedance	50 Ω
3、OPERRATING CONDITION
Temperature	-40℃ to +85℃
4、STORAGE CONDITION
Temperature	-40℃ to +85℃
