ZT06N Smart Car GPS Locator | 4G Multi-Function Tracker

Overview

The CAR TRACKER ZT06N Smart Car GPS Locator is a widely used 4G multi-function positioning terminal. It features Beidou dual-frequency high-precision positioning, with optional RTK for centimeter-level accuracy.

In addition to satellite navigation, the CAR TRACKER ZT06N Smart Car GPS Locator supports indoor positioning using WiFi and base station technologies, ensuring reliable location updates even in indoor or signal-challenged environments.

The device includes a built-in radio frequency interference detection circuit. When interference reaches a preset threshold, an instant alert is triggered, ensuring safe and uninterrupted operation.

Key Features

• Communication mode LTE Cat-1 network

• Supports Beidou/GPS and other satellite systems.

• Dual-frequency RTK high-precision positioning (optional)*

• Supports WiFi positioning, accurate location can be obtained indoors.

• Supports base station positioning.

• Wide voltage input 9-90V.

• Built-in high-power surge protection circuit.

• Supports relay control.

• LED status indicator.

• Built-in RF interference detection circuit, supports interference fast alarm [optional function].

• Built-in battery supports power failure alarm.

• Built-in vibration sensor, supports intelligent power saving mode.

• Built-in light detection circuit, supports removal alarm.

• Supports 1 RS-232 expansion serial port, or 3.3V UART expansion port (optional)*

• The product uses Bluetooth low-power processor to support the application expansion of our company’s various wireless accessories.

• Supports remote firmware upgrade.

Specification

Wireless communication specifications

· Communication module type LTE Cat.1

· Frequency band information:

LTE-FDD: B1/B3/B5/B8

LTE-TDD: B34/B38/B39/B40/B41

GPS specifications

· Chip specifications: Beidou dual-frequency.

· RTK function: optional*

· Antenna size: 25x25x4mm dual-frequency antenna.

· Positioning accuracy: 1.5 meters (outdoor open environment).

· Support A-GNSS fast positioning.

Power system

· Support input voltage range: 9- 90V.

· Built-in anti-reverse damage circuit.

· Average working current: less than 30mA (when powered by 12V).

· Support intelligent power saving mode.

· Built-in battery switching circuit supports power-off alarm function.

· Battery specifications: 110mAh high temperature resistant polymer battery.

· Support 2000W surge protection.

Enhanced functions

· Support relay control to achieve remote oil and power off function.

· Support 1 RS-232 communication interface, or 3.3V UART expansion interface.

· Removal alarm, removal alarm based on light detection.

· Built-in Bluetooth BLE main control chip, supports a variety of wireless accessories.

Environmental parameters

· Working temperature: -20 ºC to +70 ºC

· Storage temperature: -40ºC to +85ºC

· Working humidity: 20%-80%

Physical specifications

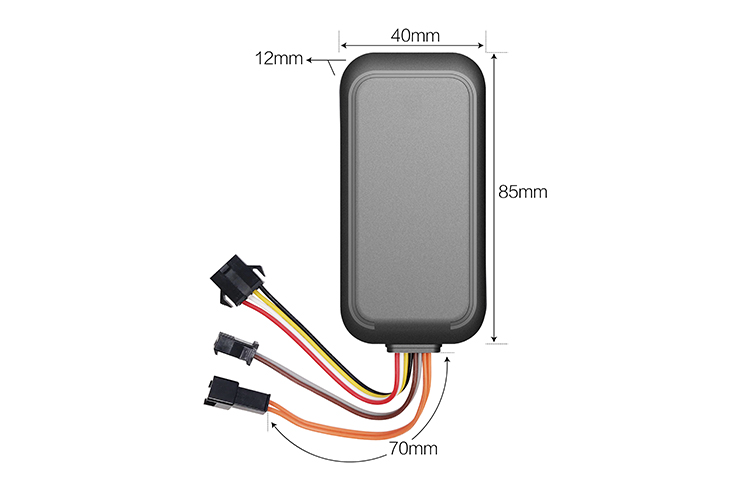

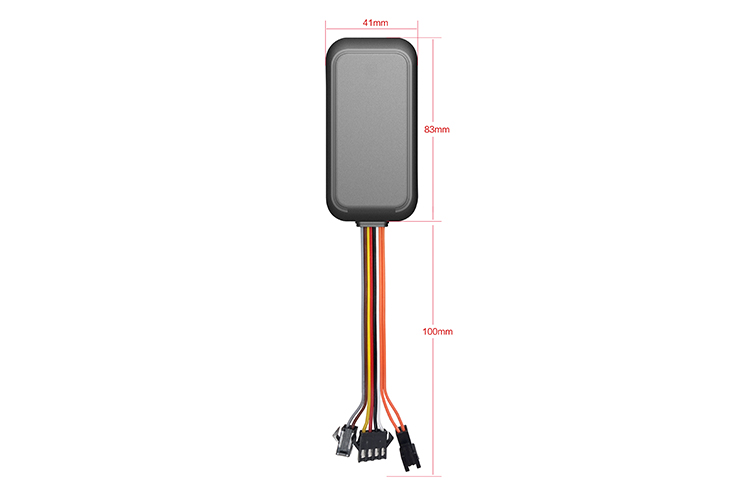

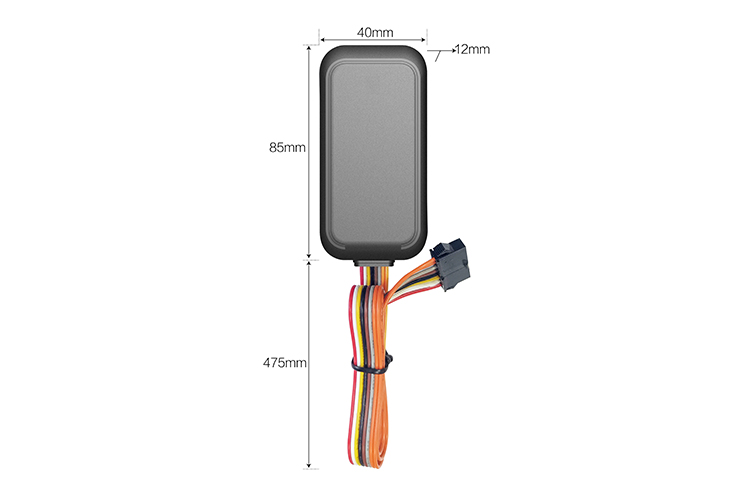

· Product size: 84x42x13.6mm

· Weight: about 80 grams

Applications

1. Personal daily travel, improve convenience.2. Family car sharing, realize vehicle sharing.3. Enterprise fleet management, improve management efficiency.4. Car rental service, simplify the rental process.
