On-board intelligent network antenna
On-board intelligent network antenna
dg
Vehicle Antenna

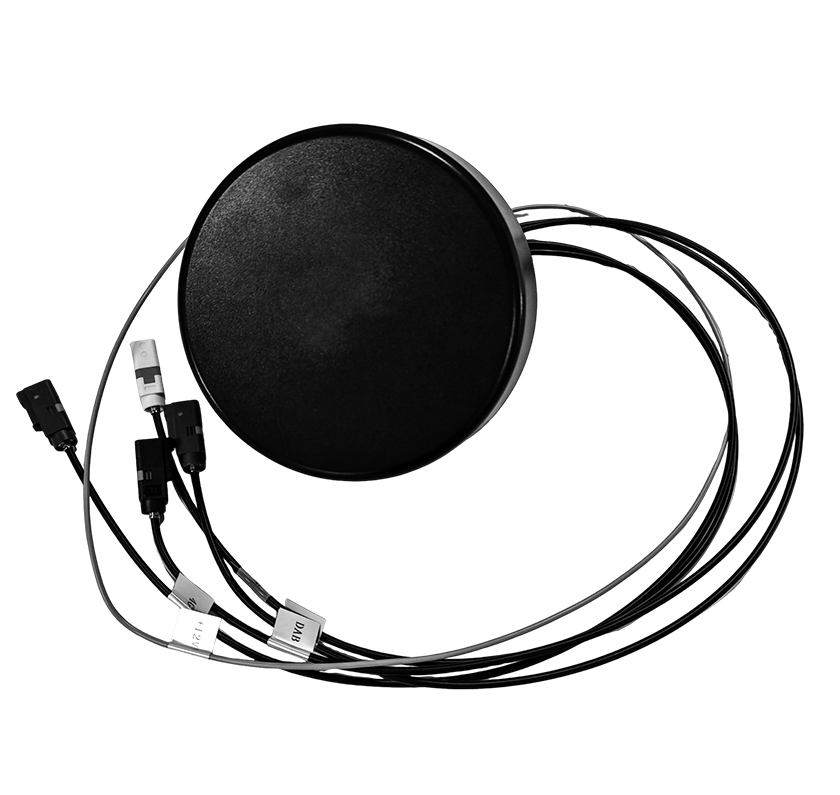

Car Antenna AM/FM+DAB+4G+GNSS 4-in-1 Combination

Operating voltage: DC 8V (power supply voltage 12V)

The working current is 75±10mA.

Operating frequency: FM 87.5.MHz to 108MHz;

Output gain: FM 16±3dB;

Output impedance: 50 Ω ±3 Ω;

The output standing wave ratio is.≤2 0.

noise coefficient: ≤3.5dB;

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactCar Antenna AM/FM+DAB+4G+GNSS 4-in-1 Combination
fhd
On-board intelligent network antenna
dg

Specification

4G Antenna Efficiency Data



Frequency point Producti- veness Loss Gain Frequency point Producti- veness Loss Gain
700 37.12% -4.30 -1.92 1930 56.91% -2.45 3.28
710 38.71% -4.12 -1.65 1950 57.05% -2.44 3.28
720 40.19% -3.96 -0.97 1970 54.73% -2.62 3.03
730 41.71% -3.80 -0.32 1990 54.55% -2.63 2.64
740 44.51% -3.52 0.22 2010 55.06% -2.59 2.50
750 46.34% -3.34 0.49 2030 56.80% -2.46 2.40
760 49.57% -3.05 0.31 2050 56.78% -2.46 2.12
770 51.87% -2.85 0.34 2070 56.04% -2.52 1.94
780 52.39% -2.81 0.44 2090 57.11% -2.43 2.75
790 54.43% -2.64 0.59 2110 61.98% -2.08 3.17
800 57.25% -2.42 0.69 2130 62.13% -2.07 3.52
810 59.68% -2.24 0.72 2150 63.61% -1.96 3.52
820 61.40% -2.12 0.91 2170 64.15% -1.93 3.51
830 60.83% -2.16 0.98 2190 64.19% -1.93 3.33
840 59.44% -2.26 0.97 2210 66.16% -1.79 3.35
850 57.95% -2.37 0.94 2230 66.50% -1.77 3.43
860 56.27% -2.50 0.87 2250 68.28% -1.66 3.53
870 54.30% -2.65 0.74 2270 67.84% -1.69 3.49
880 52.94% -2.76 0.66 2290 67.49% -1.71 3.44
890 51.36% -2.89 0.57 2310 67.02% -1.74 3.42
900 50.39% -2.98 0.51 2330 66.86% -1.75 3.56
910 49.70% -3.04 0.47 2350 66.09% -1.80 3.59
920 48.63% -3.13 0.39 2370 67.82% -1.69 3.55
930 47.53% -3.23 0.31 2390 66.25% -1.79 3.52
940 46.23% -3.35 0.24 2410 65.55% -1.83 3.44
950 45.44% -3.43 0.13 2430 64.70% -1.89 3.54
960 44.90% -3.48 0.09 2450 64.70% -1.89 3.65
        2470 62.65% -2.03 3.54
1710 64.57% -1.90 3.01 2490 62.87% -2.02 3.68
1730 64.82% -1.88 3.13 2510 62.27% -2.06 3.46
1750 65.37% -1.85 3.15 2530 63.60% -1.97 3.66
1770 63.91% -1.94 3.13 2550 62.43% -2.05 3.53
1790 61.80% -2.09 3.02 2570 63.21% -1.99 3.59
1810 59.46% -2.26 3.04 2590 61.95% -2.08 3.52
1830 58.62% -2.32 3.01 2610 62.24% -2.06 3.60
1850 57.49% -2.40 3.07 2630 60.94% -2.15 3.49
1870 56.58% -2.47 3.04 2650 59.89% -2.23 3.36
1890 55.92% -2.52 3.10 2670 56.37% -2.49 3.25
1910 56.57% -2.47 3.17 2690 53.61% -2.71 3.21

Specification

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

4G GPS 2-in-1 combo Antenna for Car Detail

On-board intelligent network antenna

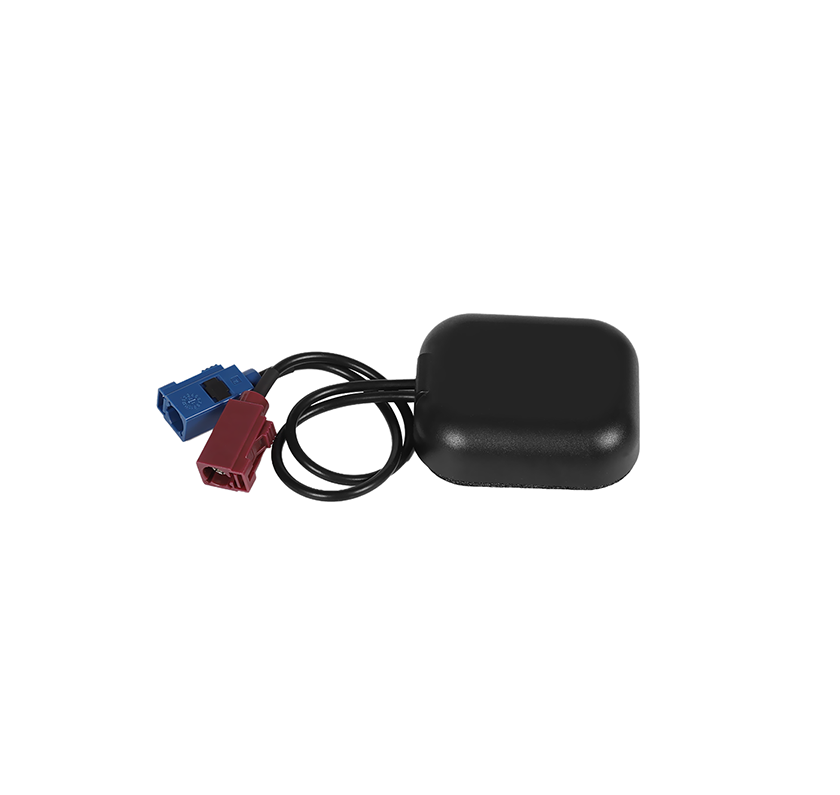

4G GPS 2-in-1 combo Antenna for Car

1*4G 824~960/1710~2170/2300~2690MHz 1*GPS L1、BDS B1 Connector: Fakra or Customize Cable: RG 174 50cm or Customize Protection: IP52

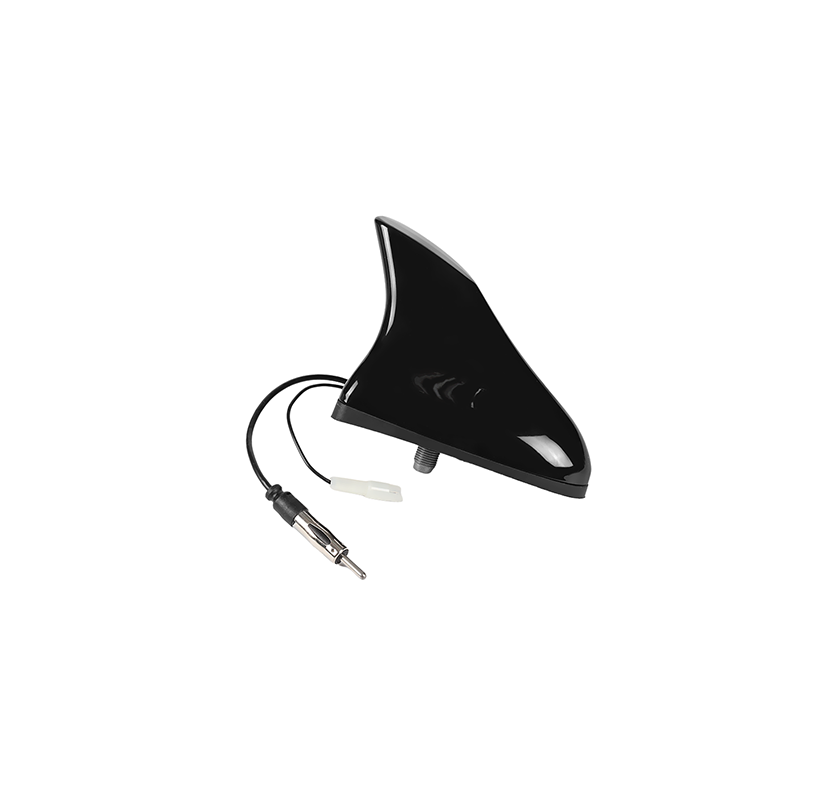

AM/FM(+GPS) Sharkfin Antenna Detail

On-board intelligent network antenna

AM/FM(+GPS) Sharkfin Antenna

Frequency: AM 520KHz～1710KHz、FM 87MHz～108MHz Voltage: 9V∽16V Current: <60mA@12V LNA Gain FM:11±3dBi; AM: 5±3dBi Noise Figure ≤4.0dBi V.S.W.R: < 2.0 @FM Impedance: 50±3Ω size: 124*73*82mm Protection Level IP67 Application: Various Car, Caravan, Bus, and etc

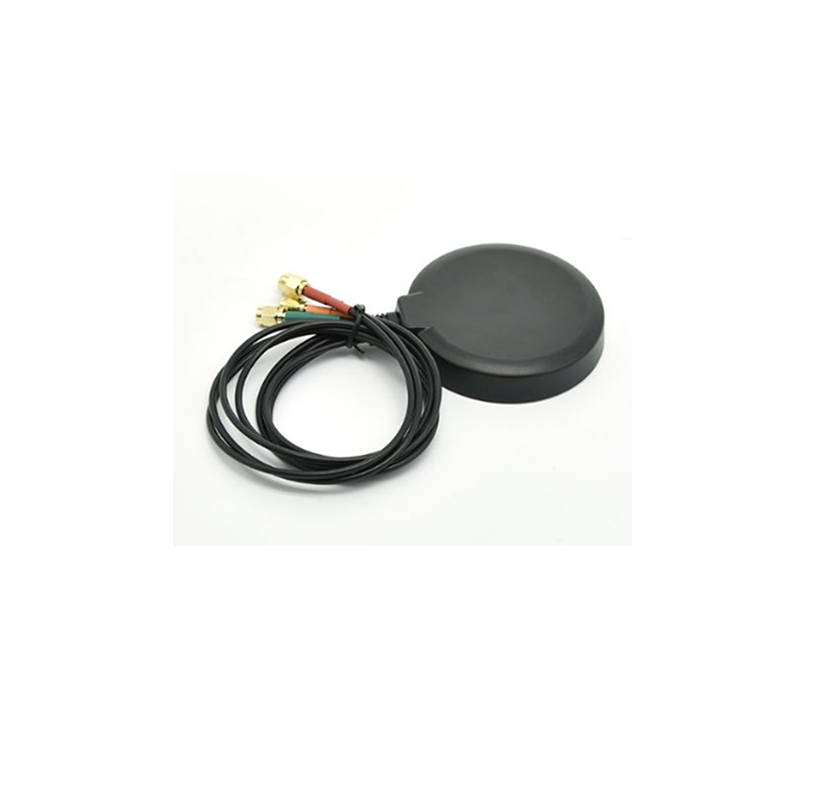

4G SMA Antenna Wi-Fi GPS Combination Antenna Combo Antenna Detail

On-board intelligent network antenna

4G SMA Antenna Wi-Fi GPS Combination Antenna Combo Antenna

4G Main: 690-960/1710-2690 4G DiV:1710-2690 BT/Wi-Fi: 2400-2500/5150-5850 GNSS: 1561/1575.42 Application :automotive, conventional communications, smart home, etc

Car AM/FM Antenna Detail

On-board intelligent network antenna

Car AM/FM Antenna

Frequency AM: 535KHz~1605KHz, FM:88MHz～108MHz Output VSWR: ＜3@98MHz Output Impedance: 75Ω Polarization: Linear polarization Dimensions: 175mm(L)×Ø11mm Cable: 150mm (1.5C-2V ) Connector: JASO Application: Fits most vehicle, truck, car, marine boat stereo receivers media head units CD radios, like Sony, Pioneer, Alpine,etc

3-in-1 combination Antenna-5G, Wifi Antenna Detail

On-board intelligent network antenna

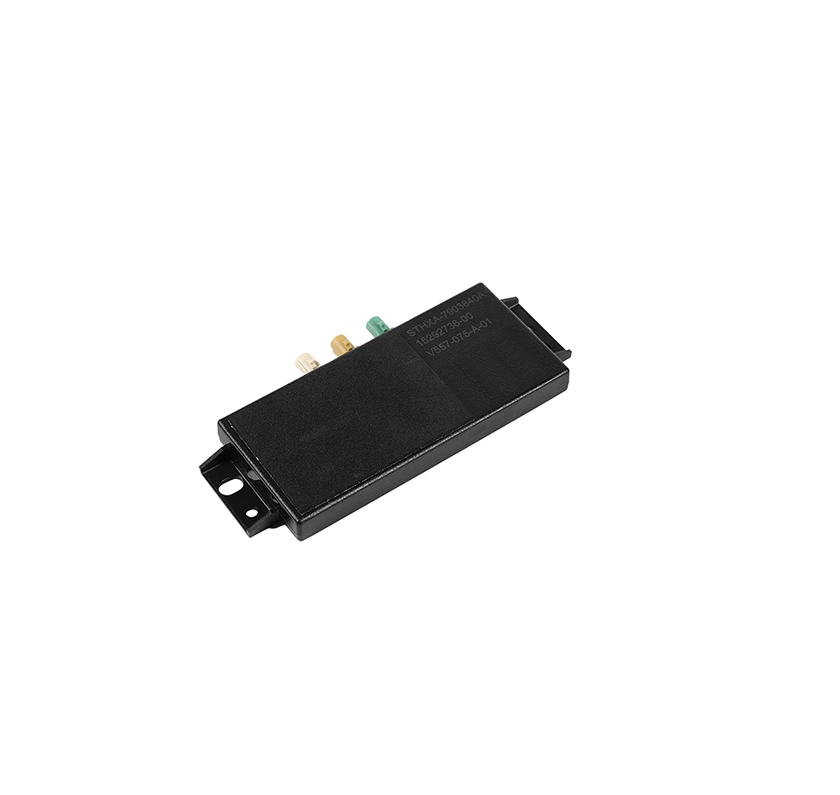

3-in-1 combination Antenna-5G, Wifi Antenna

2*5G LTE (700~960/1710~2690/3300~5000MHz) 1*WiFi （2400~2500/5150~5850MHz） Connector: Fakra Protection: IP52

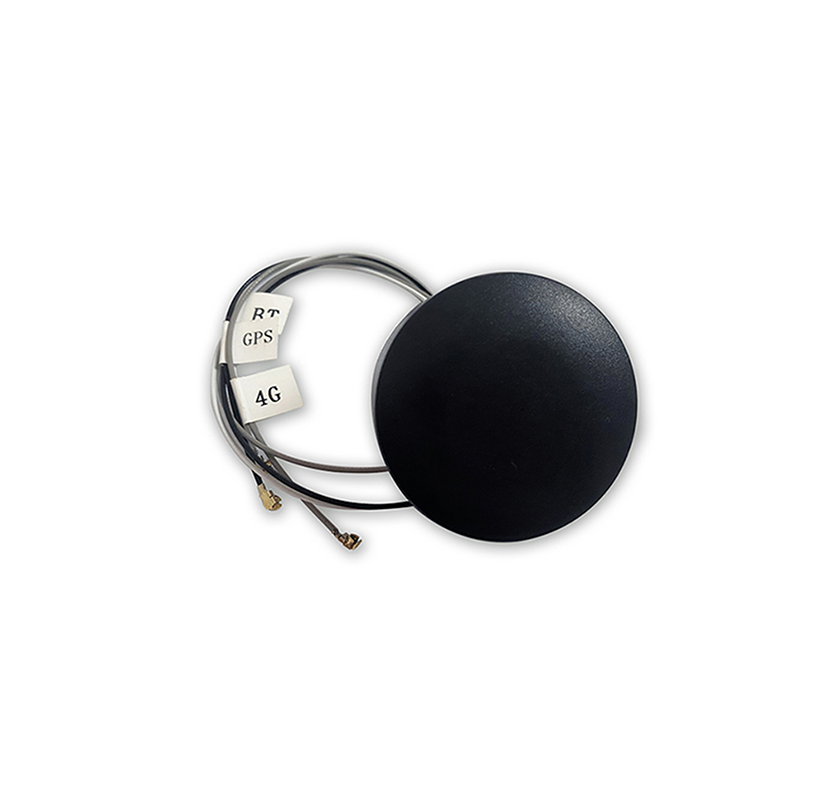

4G BLE GPS 3-in-1 combo Antenna for Charging Pile Detail

On-board intelligent network antenna

4G BLE GPS 3-in-1 combo Antenna for Charging Pile

1*4G 820~960, 1710~2690 Mhz 1*wifi 2400-2500 Mhz 1*GPS 1559-1585 Mhz Dimension ∅46.2*17.7 Connector: Ipex/UHF or Customize

3-in-1 combination Antenna- 4G/ LTE, GPS Antenna Detail

On-board intelligent network antenna

3-in-1 combination Antenna- 4G/ LTE, GPS Antenna

2*4G LTE ( 824~960/1710~2170/2300~2690MHz) 1*GPS L1,BDS L1 Connector: Fakra or Customize Protection: IP52

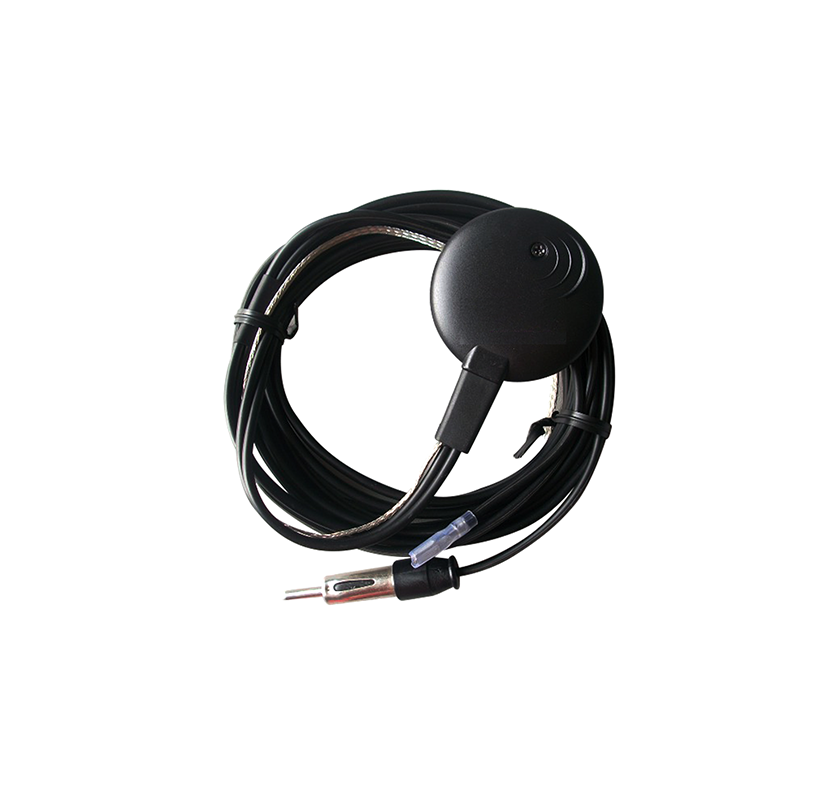

AM/FM Automotive Antenna Detail

On-board intelligent network antenna

AM/FM Automotive Antenna

Frequency: AM: 535-1710 KHz, FM: 87.5-108 MHz DC Voltage: 9-16 V DC Current: 60mA Max Gain: FM 5 +/-3dBi, AM -6dBi+/-3dBi

Bluetooth Digital key Antenna+ Detail

On-board intelligent network antenna

Bluetooth Digital key Antenna+

Protocol: Support GATT (master node and slave node in one) Transmit power: Maximum transmit power is +6dBim. Antenna: Onboard PCB antenna, long-distance anti-interference circular polarization ceramic antenna, etc. Support customization

4-in-1 5G/4G MIMO Roof Mount Antenna Detail

On-board intelligent network antenna

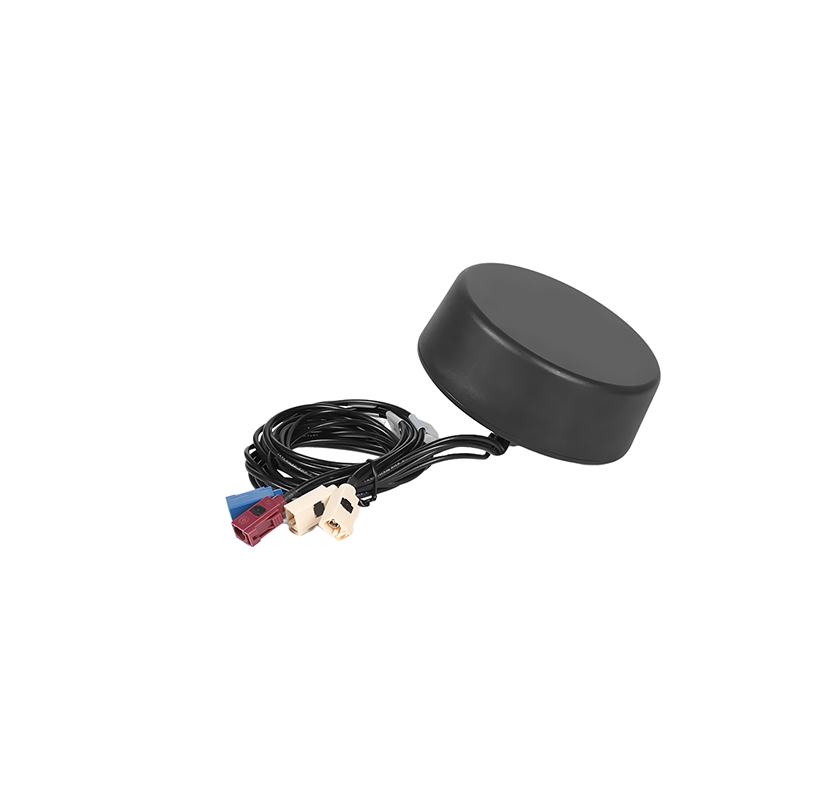

4-in-1 5G/4G MIMO Roof Mount Antenna

* Frequency Bands: 700~5000MHz, 1710~5000MHz * Gain: 0 Min * VSWR: ≤4 * Average efficiency: 700~960MHz: 30%; 1710~2690MHz: 50%; 3300~5000MHz: 50%; * Technology: 5G/4G * Cable Length: 50cm * Connector Type: SMA -Male(SMA-J) * Input impedance: 50Ω * Dimensions: φ120 x 43mm * Application: Charging Pile, Transportation and Autonomous Vehicles, 5G Outdoor Equipment Enclosures, and […]

Automobile Antenna AM/FM+DAB+4G+GNSS 4-in-1 Combination Sharkfin Antenna Detail

On-board intelligent network antenna

Automobile Antenna AM/FM+DAB+4G+GNSS 4-in-1 Combination Sharkfin Antenna

GNSS: 1558MHz ~ 1577MHz; 30±3dBi 4G: 824-960/1710-2170/2300-2690MHz; ≥-4dBi DAB: 174MHz ~ 240MHz,1452MHz~1492MHz; 17/19±3dBi AM/FM: 520KHz ~ 1710KHz,87.5MHz ~ 108MHz; 5/15±3dBi Protection: IP67 (after install to vehicle) Working Temp.: -40℃～+85℃ Dimension: 194.2*79.5*60.0mm Application: Various Car, Caravan, Enginering Vehicles, Agricultural vehicles

Universal AM/FM Car Antenna Detail

On-board intelligent network antenna

Universal AM/FM Car Antenna

Frequency AM: 535KHz~1605KHz, FM:88MHz～108MHz Output VSWR: ＜3@98MHz Output Impedance: 75Ω Polarization: Linear polarization Dimensions: 190mm(L) Application: Fits most vehicle truck car marine boat stereo receivers media head units CD radios, like Sony, Pioneer, Alpine,etc

AM/FM Automotive Antenna ATC-EG06B Detail

On-board intelligent network antenna

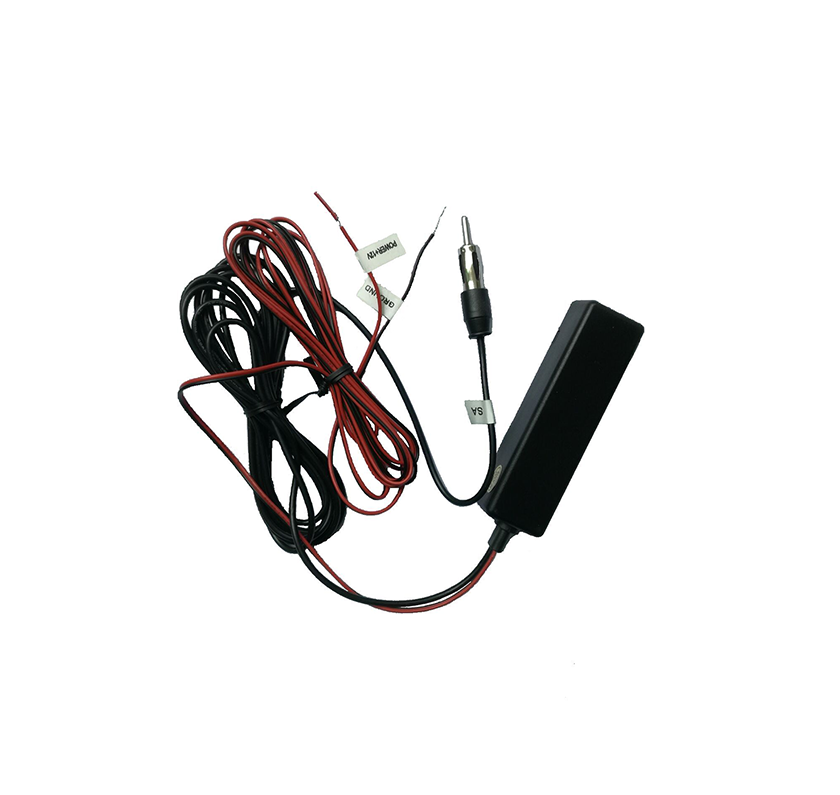

AM/FM Automotive Antenna ATC-EG06B

Model: ATC-EG06B Frequency: AM: 520~1620KHz; FM: 87.5~108MHz Cable Type: 1.5C2V Impedance: 75Ω Gain: 0-2dBi, 2-4dBi Operating Temperature Range: -30℃~80℃ Cable length: 2.6 meters Power cable length: 1.1 meters Connector: molex for power, motorola for radio

5-in-1 combination Antenna-4* 5G, GNSS Antenna Detail

On-board intelligent network antenna

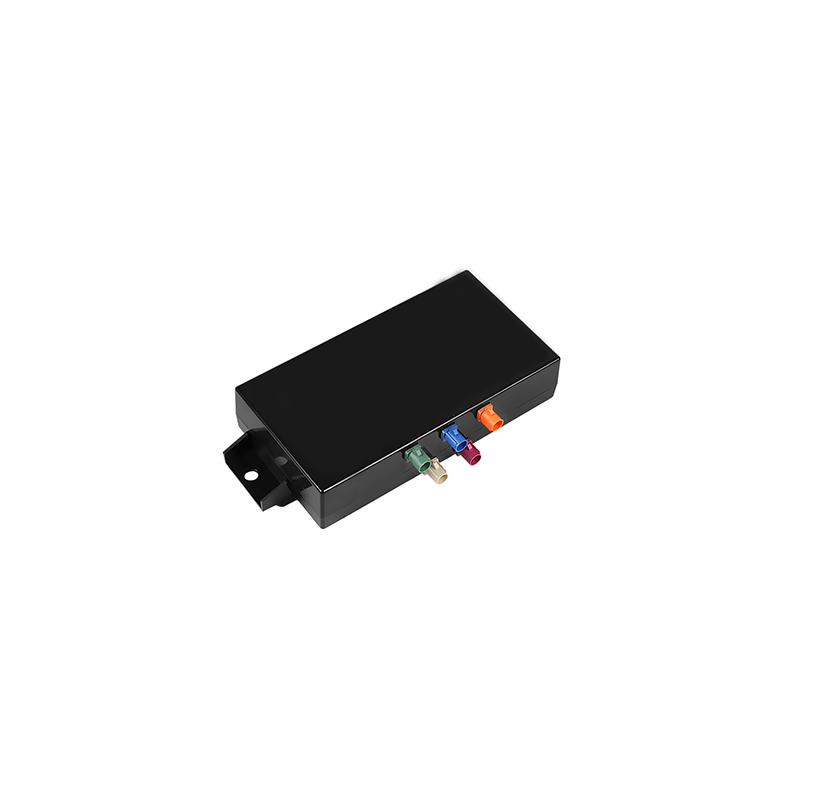

5-in-1 combination Antenna-4* 5G, GNSS Antenna

2*5G 700~960/1710~2690/3300~5000MHz 2*5G MIMO 700~960/1710~2690/3300~5000MHz 1*GNSS (GPS L1/L5、BDS B1) Connector: Fakra Protection: IP52

Whip Antenna Detail

On-board intelligent network antenna

Whip Antenna

Frequency AM: 535KHz~1605KHz, FM:88MHz～108MHz Output VSWR: ＜3@98MHz Output Impedance: 75Ω Polarization: Linear polarization Dimensions: 175mm(L)×Ø11mm Cable: 150mm (1.5C-2V ) Connector: JASO Application: Fits most vehicle, truck, car, marine boat stereo receivers media head units CD radios, like Sony, Pioneer, Alpine,etc

5G, WIFI, V2X, GNSS 8-in-1 combination Antenna for Auto Driving Detail

On-board intelligent network antenna

5G, WIFI, V2X, GNSS 8-in-1 combination Antenna for Auto Driving

2*5G 700~960/1710~2690/3300~5000MHz 2*5G MIMO 1710-2690/3300-5000 MHZ 2*V2X 5855-5925 MHZ 1*GNSS 1166-1236MHZ/1559-1605MHZ Connector: Fakra, SMA or customize Protection: IP52

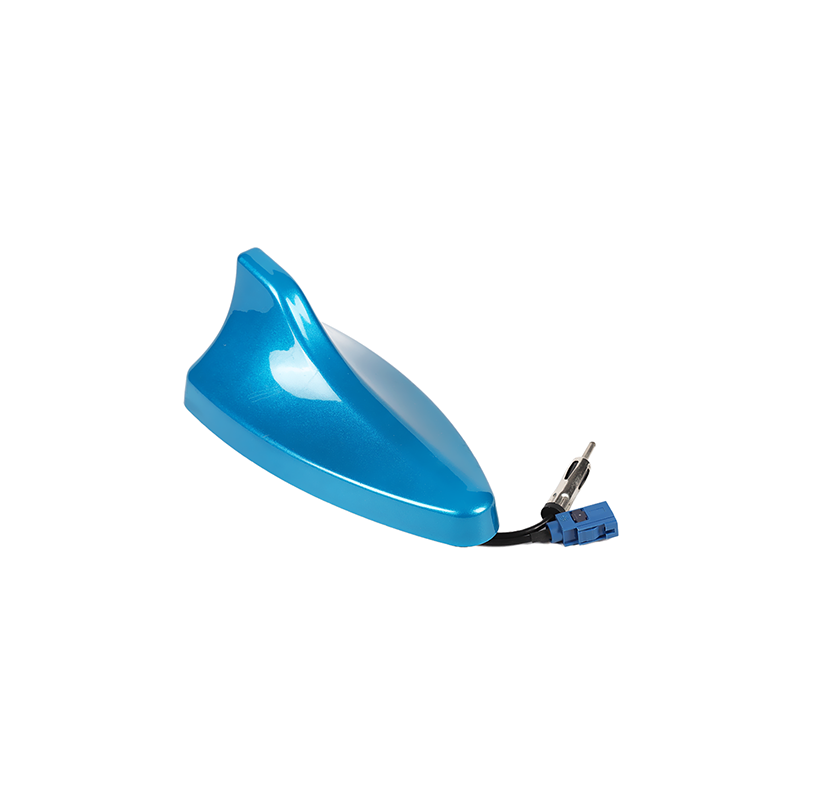

AM/FM+GPS Sharkfin Antenna 2 in 1 Detail

On-board intelligent network antenna

AM/FM+GPS Sharkfin Antenna 2 in 1

Frequency: AM 520KHz～1710KHz、FM 87MHz～108MHz Voltage: 9V∽16V Current: <60mA@12V LNA Gain FM:11±3dBi; AM: 5±3dBi Noise Figure ≤4.0dBi V.S.W.R: < 2.0 @FM Impedance: 50±3Ω size: 124*73*82mm Protection Level IP67 Application: Various Car, Caravan, Bus, and etc

700MHz Antenna 4-in-1 2* 4G/5G+2*2 5G MIMO Antenna (700~5000MHz) Detail

On-board intelligent network antenna

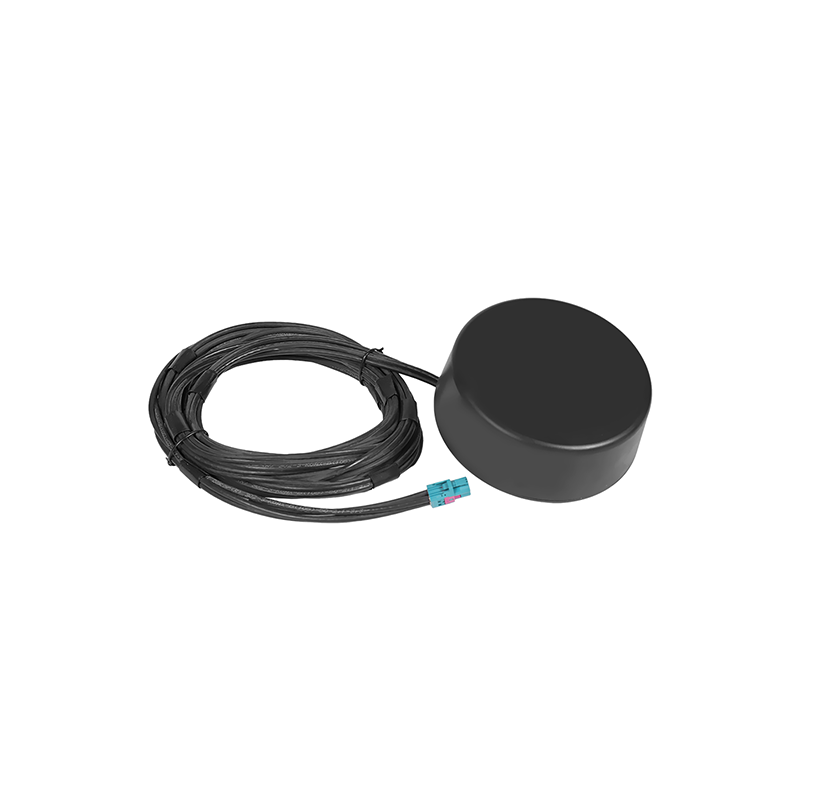

700MHz Antenna 4-in-1 2* 4G/5G+2*2 5G MIMO Antenna (700~5000MHz)

* Frequency Bands: 700~5000MHz, 1710~5000MHz * Gain: ≥-2dBi * VSWR: ≤4 * Average efficiency: 700~960MHz: 30%; 1710~2690MHz: 50%; 3300~5000MHz: 50%; * Technology: 5G/4G * Cable Length: 50cm * Connector Type: SMA -Male(SMA-J) * Input impedance: 50Ω * Dimensions: φ120 x 43mm * Application: Charging Pile, Transportation and Autonomous Vehicles, 5G Outdoor Equipment Enclosures, and etc.

Whip Antenna Detail

On-board intelligent network antenna

Whip Antenna

Frequency AM: 535KHz~1605KHz, FM:88MHz～108MHz Output VSWR: ＜3@98MHz Output Impedance: 75Ω Polarization: Linear polarization Universal AM/FM Antennas for car antenna replacement

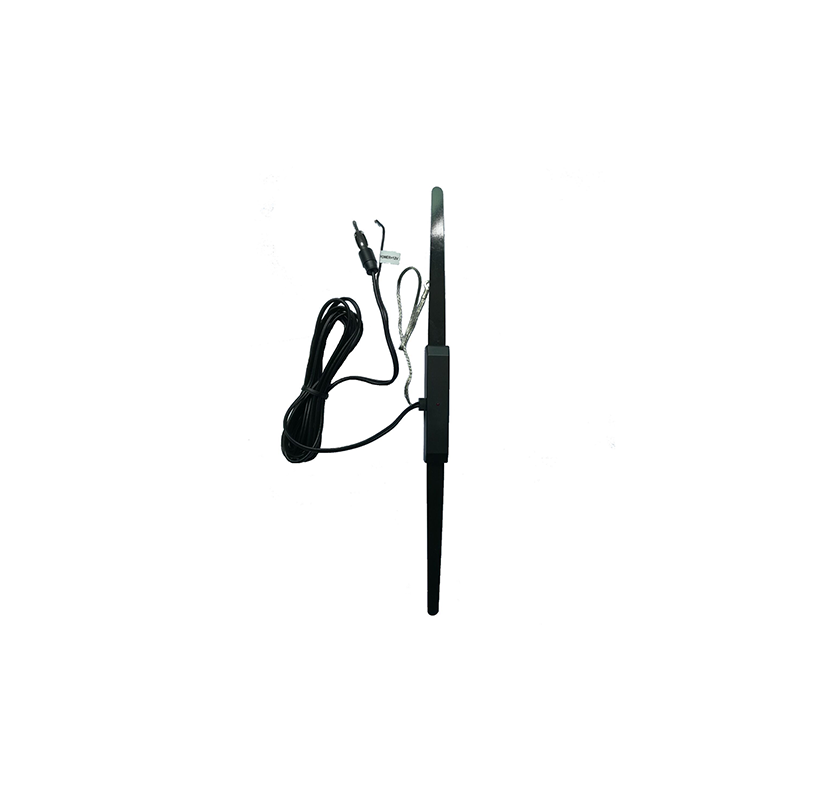

AM/FM Automotive Antenna Detail

On-board intelligent network antenna

AM/FM Automotive Antenna

Frequency Range: AM 535-1605KHz, FM 88-108MHz Gain: AM 10dBi±2dBi, FM 12±2dBi Operation Voltage: DC12V (9V-16V) Operation Current: 20mA±5mA Impedance: 75 ohm Pull Out Of Force Between Cable And Plug: Over 5kg Operation Temperature: -20℃~+70℃ Storage Temperature: -30℃~+80℃

Car Antenna AM/FM+DAB+4G+GNSS 4-in-1 Combination Detail

On-board intelligent network antenna

Car Antenna AM/FM+DAB+4G+GNSS 4-in-1 Combination

Operating voltage: DC 8V (power supply voltage 12V) The working current is 75±10mA. Operating frequency: FM 87.5.MHz to 108MHz; Output gain: FM 16±3dB; Output impedance: 50 Ω ±3 Ω; The output standing wave ratio is.≤2 0. noise coefficient: ≤3.5dB;

NFC+BLE Reader Detail

On-board intelligent network antenna

NFC+BLE Reader

The digital key can realize keyless entry and start, remote key authorization, personalized vehicle settings and other functions. In addition, the digital key can also lock, unlock, start, open and close windows and air conditioning, share vehicles, etc. through smart devices.

Universal AM/FM Whip Antennas Detail

On-board intelligent network antenna

Universal AM/FM Whip Antennas

Frequency AM: 535KHz~1605KHz, FM:88MHz～108MHz Output VSWR: ＜3@98MHz Output Impedance: 75Ω Polarization: Linear polarization Universal AM/FM Antennas for car antenna replacement

5-in-1 combo Antenna for Charging Pile Detail

On-board intelligent network antenna

5-in-1 combo Antenna for Charging Pile

1*4G 820~960, 1710~2690 Mhz 1*wifi 2400-2500 Mhz 1*BLE 1*GPS 1559-1585 Mhz Dimension φ120*43 Connector: Fakra, SMA, MINI Fakra or Customize Protection：IP69K

7-in-1 combination Antenna- 5G, V2X, GNSS Car Antenna Detail

On-board intelligent network antenna

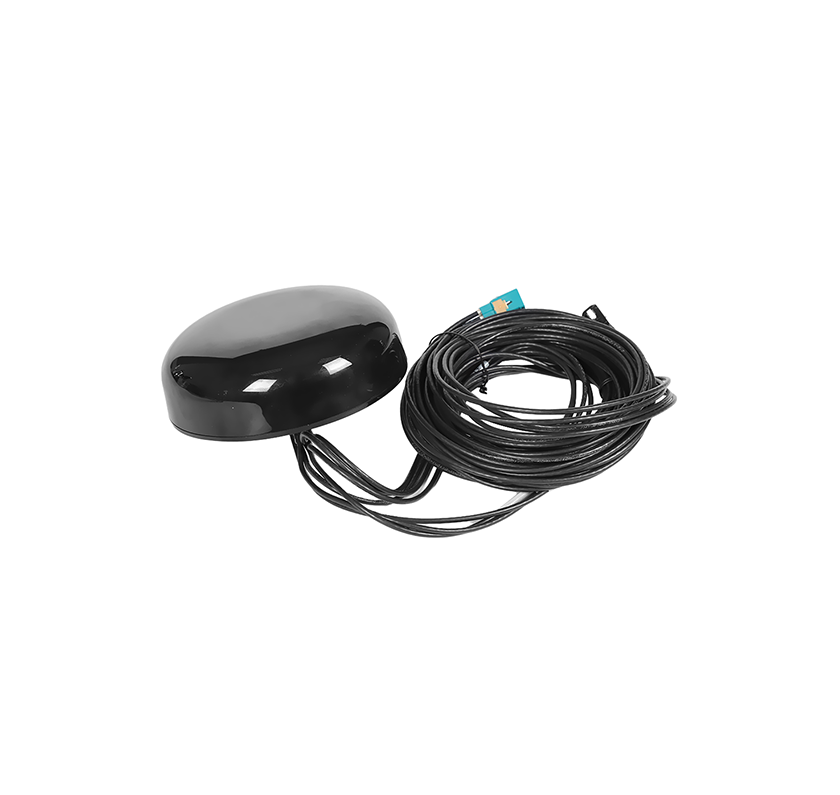

7-in-1 combination Antenna- 5G, V2X, GNSS Car Antenna
