Vehicle Antenna

Car AM/FM Antenna

Frequency AM: 535KHz~1605KHz, FM:88MHz～108MHz

Output VSWR: ＜3@98MHz

Output Impedance: 75Ω

Polarization: Linear polarization

Dimensions: 175mm(L)×Ø11mm

Cable: 150mm (1.5C-2V )

Connector: JASO

Application: Fits most vehicle, truck, car, marine boat stereo receivers media head units CD radios, like Sony, Pioneer, Alpine,etc

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactCar AM/FM Antenna

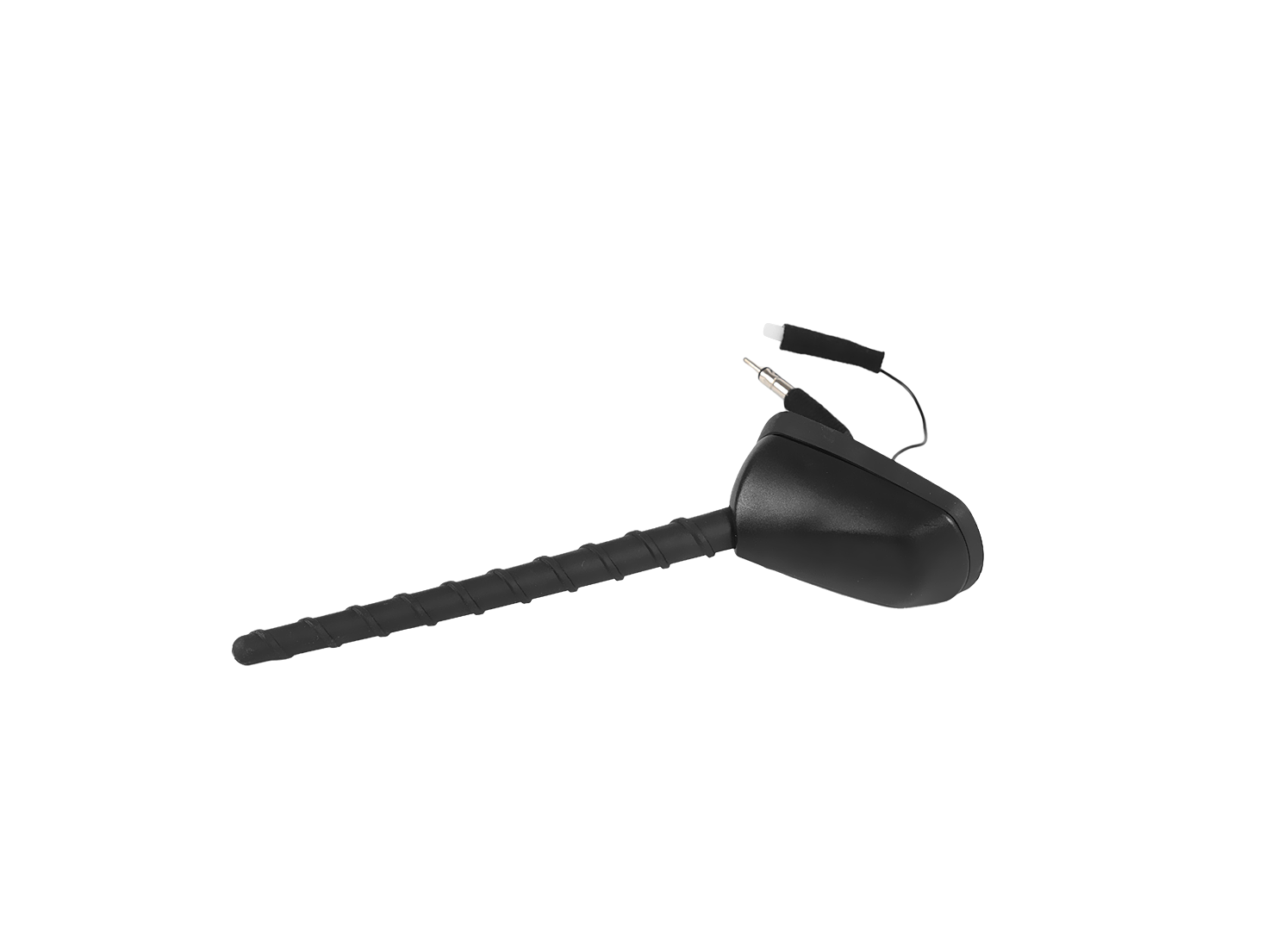

04d2c95938a0f56-2

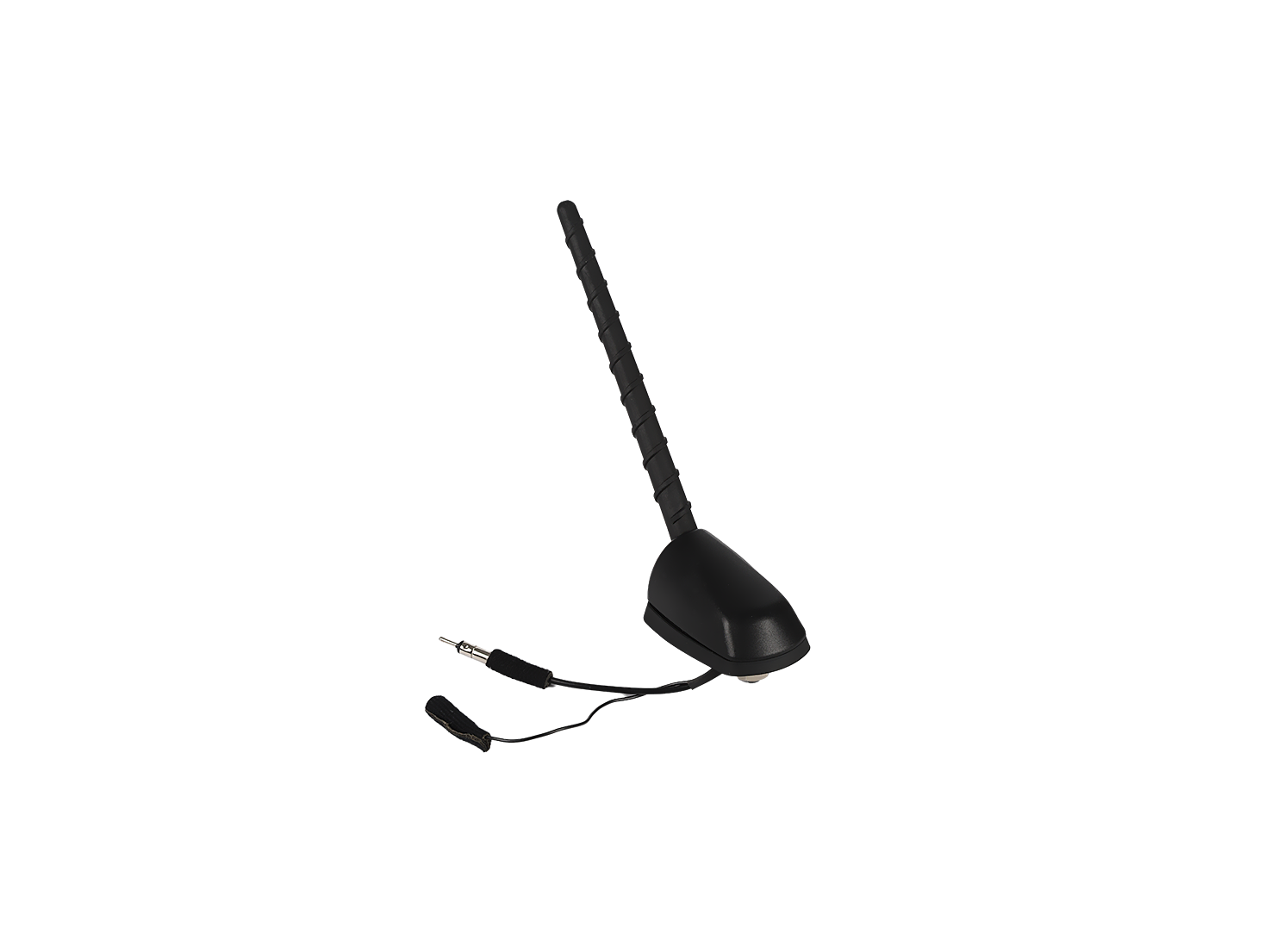

adbb0decd6b1499-2
6b9d7ec5a7977dd-2

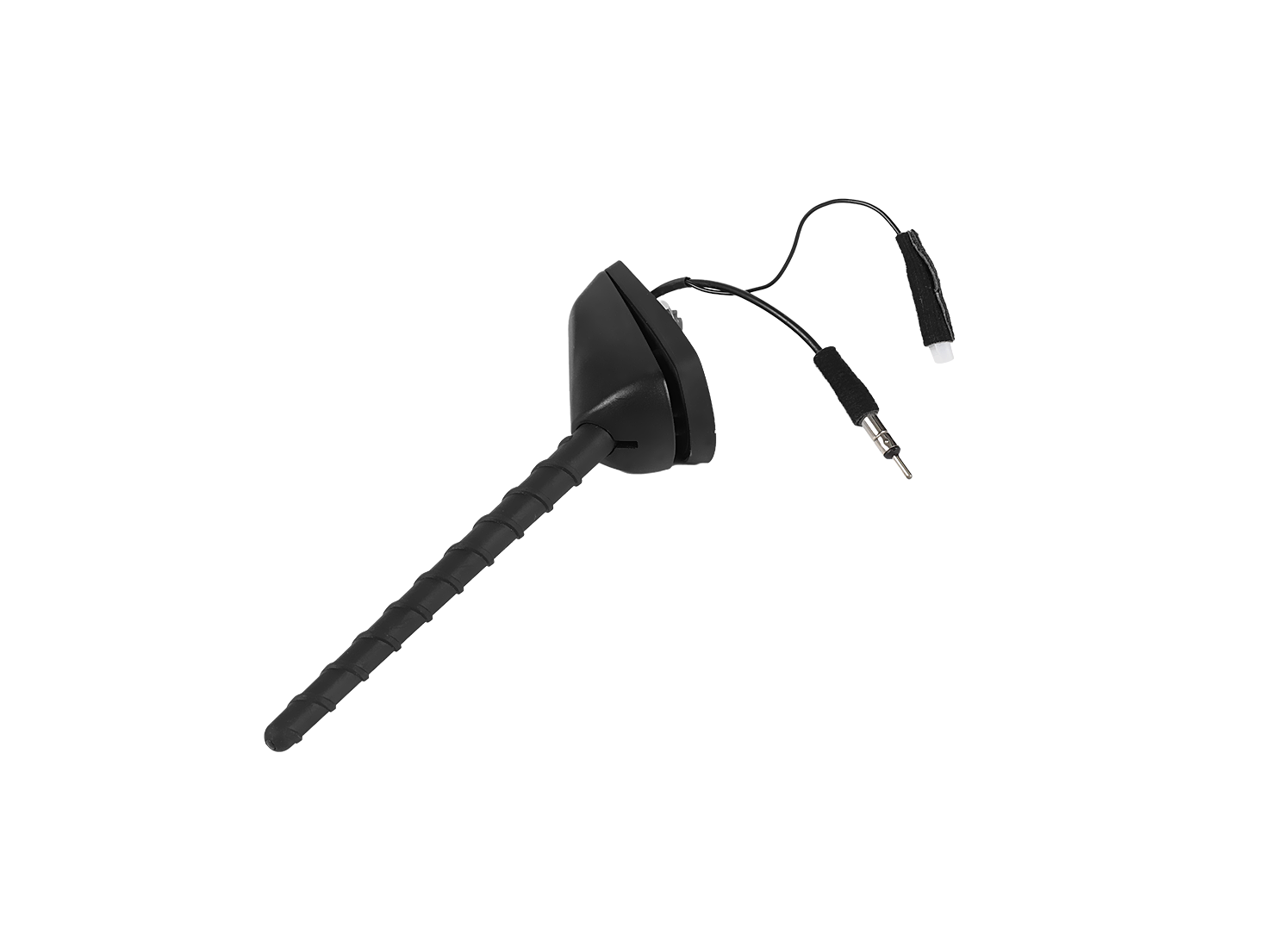

15a22013ebeb3ea-2

Overview

Overview

This is a AM/FM car antenna come with Jaso connector, which can fits most vehicle, truck, car, marine, boat stereo receivers media head units CD radios, like Sony, Pioneer, Alpine,etc



Key Features

• Flexible Mast

19cm long, external part making of durable rubber, the antenna is flexible and weatherproof, you can go through the car wash without removing it.



• Highly Conductive Copper Coil

The internal part is made of high quality copper coil, which provides better signal reception and allows you pick up more radio stations



• Mounting Method

Hole drilling on car roof or fender.

Specification

Function AM/FM
Frequency AM :535KHz~1605KHz, FM:88MHz～108MHz
Output VSWR ＜3@98MHz
Impedance 75Ω
Polarization Linear polarization
Connector JASO
Dimensions 175mm(L)×Ø11mm
Environmental Requirements
Operating temperature -40℃ ~ +85℃
Protection grade IP65
Connector pulling force >98N

Applications

Fits most vehicle, truck, car, marine, boat stereo receivers media head units CD radios, like Sony, Pioneer, Alpine,etc
1716545273715276
