Vehicle Antenna

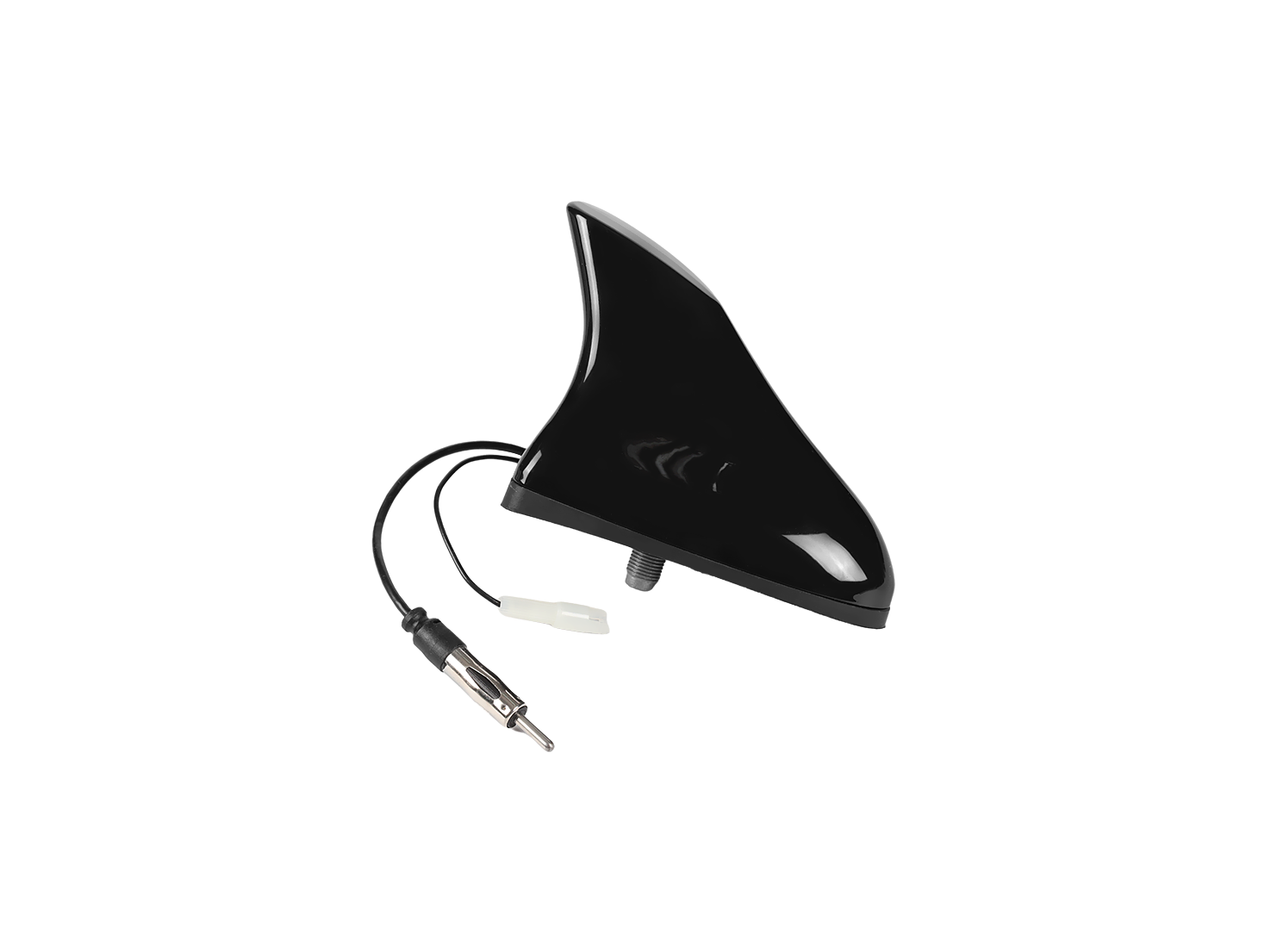

AM/FM(+GPS) Sharkfin Antenna

Frequency: AM 520KHz～1710KHz、FM 87MHz～108MHz

Voltage: 9V∽16V

Current: <60mA@12V

LNA Gain FM:11±3dBi; AM: 5±3dBi

Noise Figure ≤4.0dBi

V.S.W.R: < 2.0 @FM

Impedance: 50±3Ω

size: 124*73*82mm

Protection Level IP67

Application: Various Car, Caravan, Bus, and etc

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) ContactAM/FM(+GPS) Sharkfin Antenna
9e3a6178a8bd228-2
64c365d410733cb-2
fbc8e7d437e15d-2

Overview

This is a AM/FM sharkin antenna reserve space also for a GNSS antenna, customer can choose single AM/FM antenna, GPS antenna or AM/FM+GPS 2-in-1 antenna according to the function of car host devices. This antenna can be supply to various Car, Bus and caravans.

Key Features

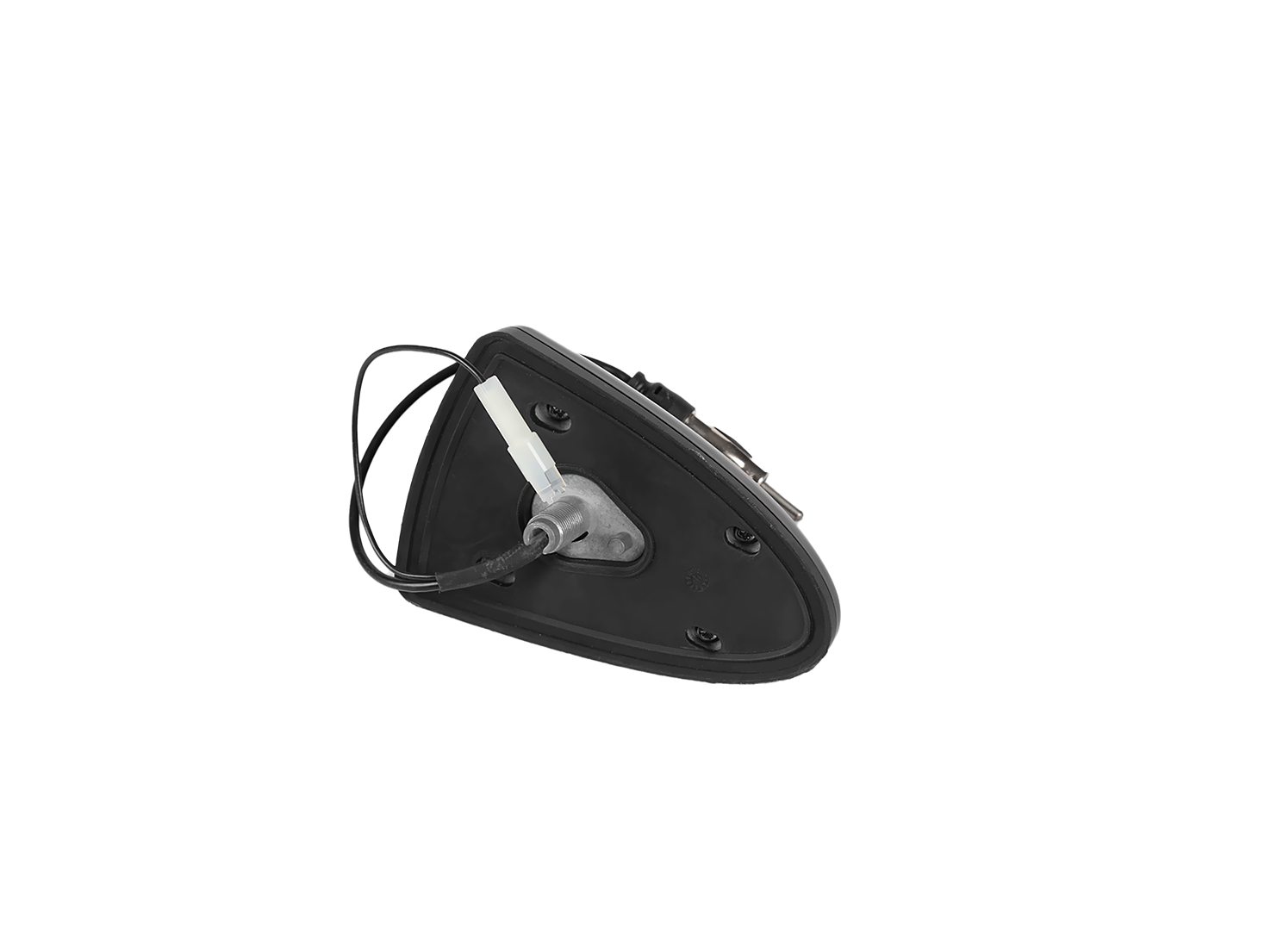

• Mounting Method

Hole drilling on car roof or fender.



• Lower wind resistance

Not like the traditional whip antenna, user can go through the car wash without removing it. And the sharkfin share design provides not only the good looking, but also the help of lower the wind resistance of the vehicle.



• Customize

With same casing, other frequency i.e. 4G/5G, wifi, V2X, and etc are also customizable. Welcome to contact VLG for more details.

Specification

Function AM/FM GPS
Frequency Range AM 520-1710KHz, FM 87.5-108MHz 1559-1577MHz
V.S.W.R < 2.0 @FM ≤2.0:1
lmpedance 50±3Ω 50Ω
Polarization Linear RHCP
Low noise amplifier characteristics
Working voltage 9V∽16V，Nominal Voltage：12V 3V∽5V
Working current <60mA@12V 10±3mA@3.3V
Output gain FM:11±3dB; AM: 5±3dB 28±3dB
Output impedance 50±3Ω 50±3Ω
Output standing wave ratio < 2.0 @FM ≤2.0:1
Noise factor ≤4.0dB ≤2dB





Environmental Requirements
(1) Operating temperature  -40℃ ~ +90℃
(2) Storage temperature -40℃ ~ +105℃
(3) Protection grade IP67 (after vehicle assembly)

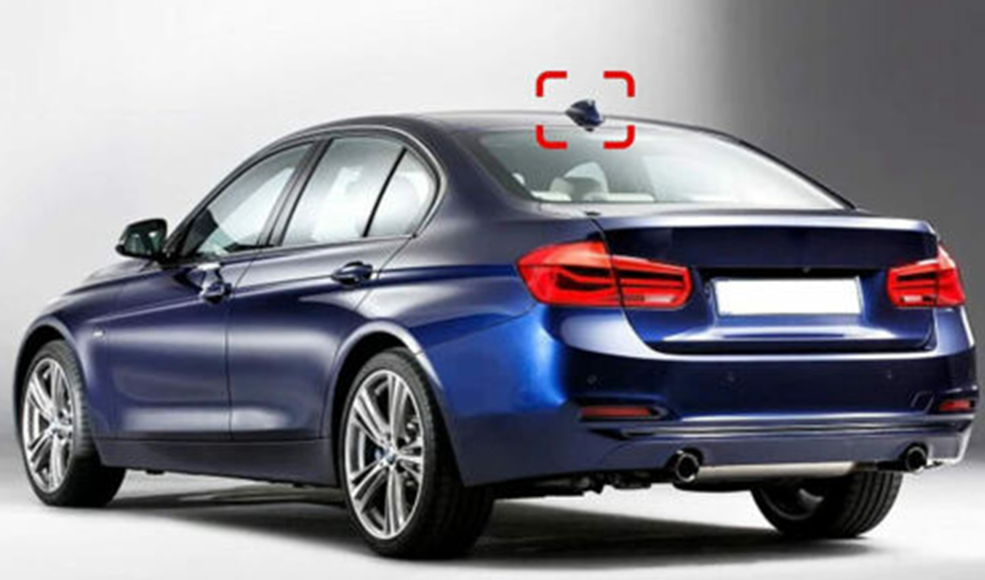

Applications

Various Car, Caravan, Enginering Vehicles, Agricultural vehicles, and ect.
