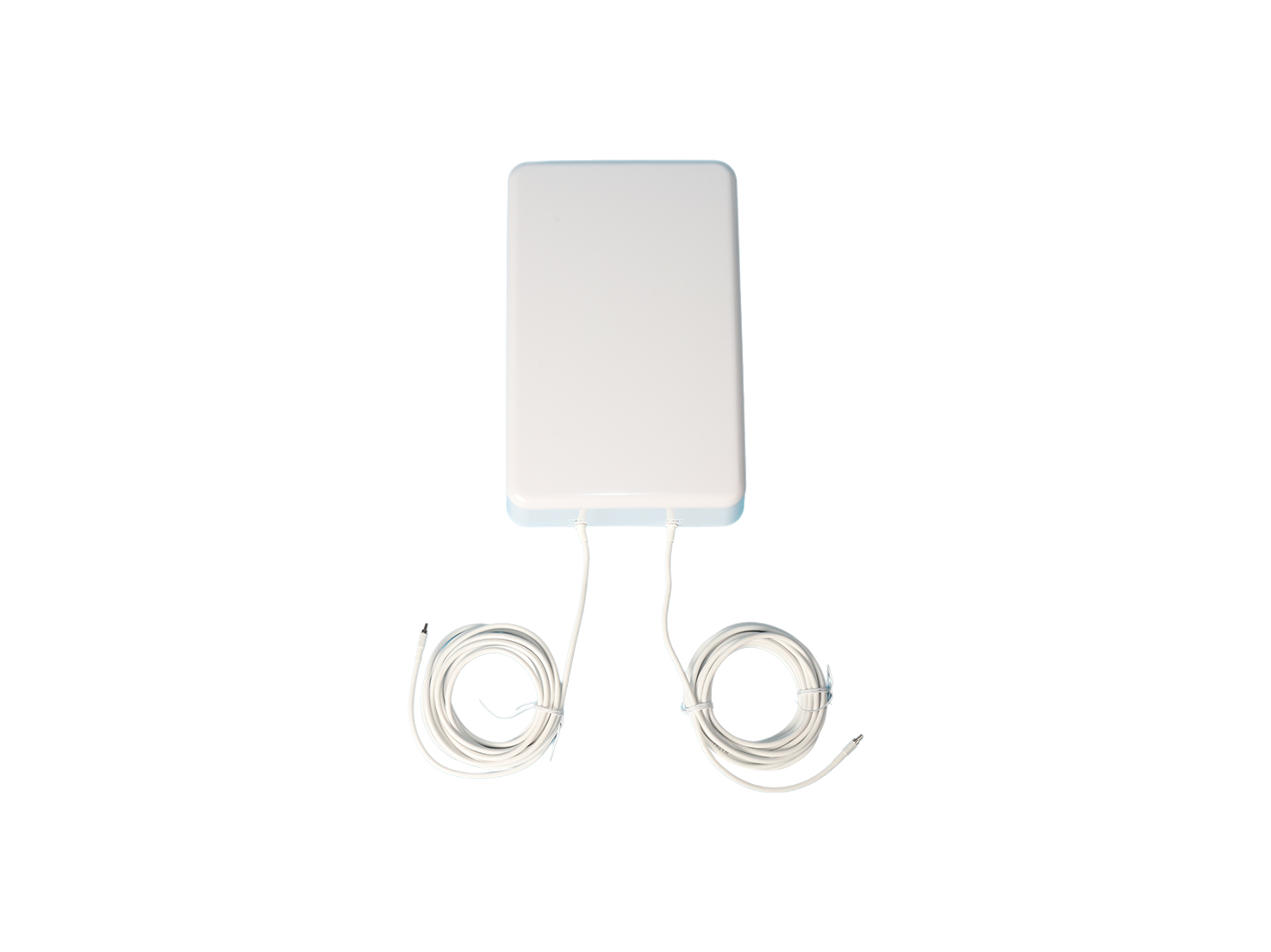

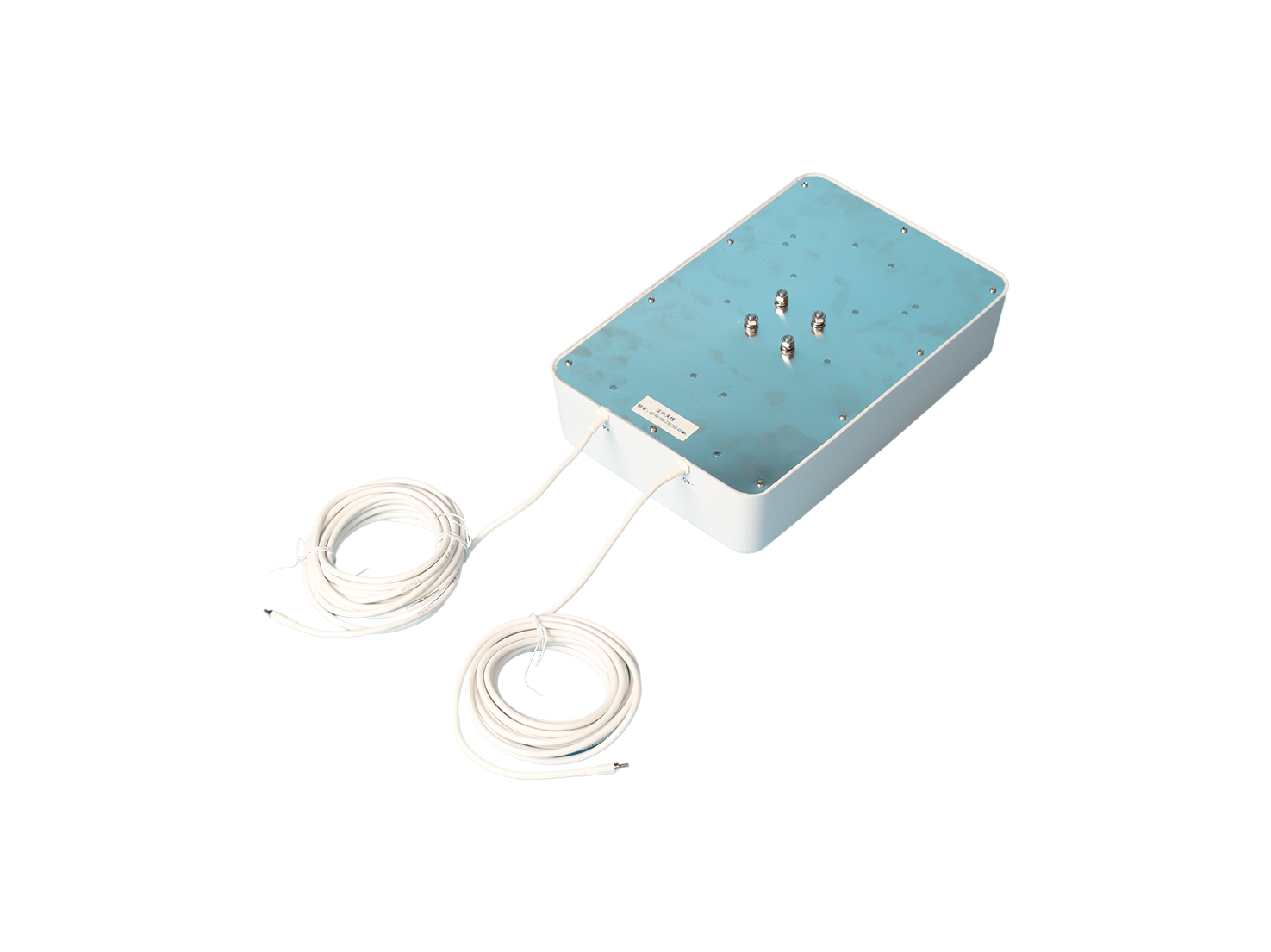

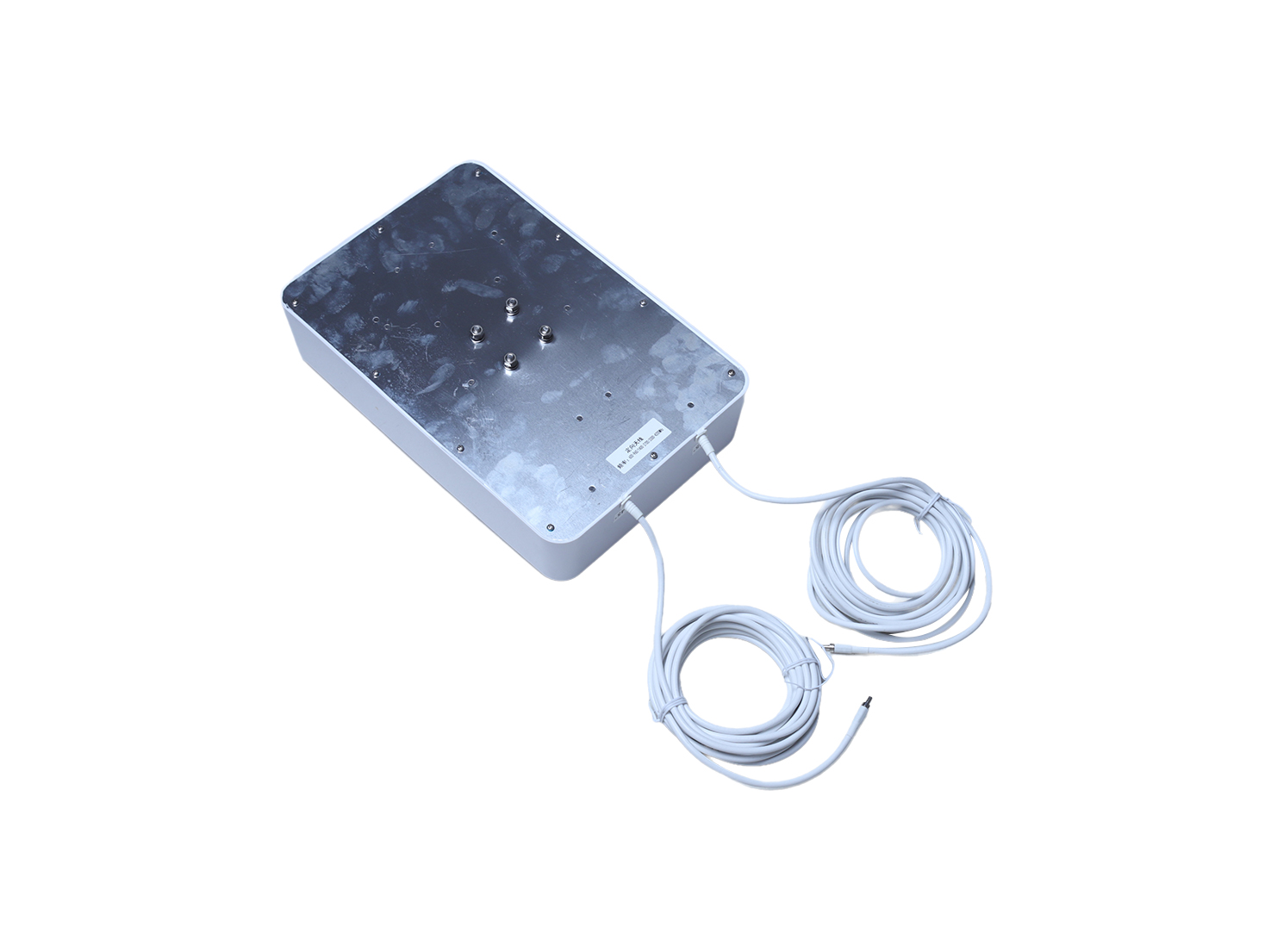

CPE antenna

8dBi Outdoor directional Antenna (Dual port) custom Antennas

Frequency range (MHz): 600-960MHz / 1400-2690MHz / 3300-4200MHz

VSWR: ≤2.5

Gain (dBi): 3dBi@600-960MHz / 6dBi@1400-2690MHz / 8dBi@3300-4200MHz

Polarization: ±45° Cross polarization



Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact8dBi Outdoor directional Antenna (Dual port) custom Antennas
ce5010b7f3178b2
3683d3ebb307ecf
99707d931f2f8b5
12a924696f089b4
17d18e9f67843c0

Overview

The VLG 600-4200MHz Directional Antenna is a high-gain broadband solution designed to enhance cellular connectivity for 4G and 5G networks. This antenna operates on multiple frequency bands (600-960MHz, 1400-2690MHz, and 3300-4200MHz) to support a variety of cellular applications. Its directional flat panel design provides increased signal strength in the desired direction, making it ideal for applications that require long-range communications or to overcome signal weaknesses.

Key Features

• Wide Frequency Range (600-4200MHz)

The antenna operates over a wide frequency range, ensuring compatibility with 4G and 5G deployments from most major operators. No need to worry about upgrading the antenna as technology evolves.



• Extended coverage and improved reception

VLG directional flat panel antennas have significantly higher gain (8 dBi) compared to omnidirectional antennas. This means stronger signal, extended cellular coverage, and better reception, especially in areas with weak signal strength.



Specification

Electrical specification
Frequency range（MHz）

600-960MHz

1400-2690MHz

3300-4200MHz
VSWR ≤2.5
Gain（dBi）

3dBi@600-960MHz

6dBi@1400-2690MHz

8dBi@3300-4200MHz
Horizontal beam width（°） ＞60°
Vertical beam width（°） ＞30°
Polarization ±45° Cross polarization
Lightning protection DC ground
Mechanical specification
Dimensions（mm） 320mm×210mm×80mm
Number of inputs 2
Connector types TS-9
Wall|pole mount included Yes
Radome material UV-protect plastic
Operating temperature（℃） -40°C to + 55°C

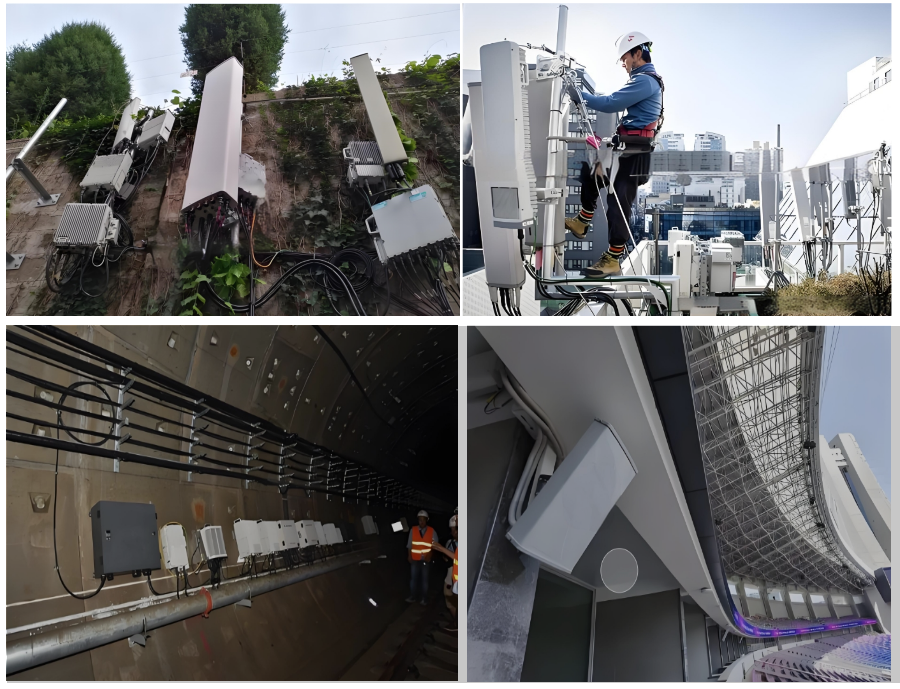

Applications
